DELPHI

Delphi TA1641 Tie Rod End

SKU: TA1641

Your selected vehicle

In stock

Orders placed by 17:00 are usually dispatched the same working day

£13.20 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL,

Description	Cylinder Capacity	Horse Power	Year
1.9 D	1896 CCM	61 HP	07/1990 - 12/1995
1.9 TD	1896 CCM	68 HP	10/1992 - 04/2003
2.4 D	2370 CCM	78 HP	09/1990 - 04/1998
2.5	2461 CCM	110 HP	11/1990 - 04/2003
2.5 Syncro	2461 CCM	110 HP	11/1992 - 11/2001
2.0	1968 CCM	84 HP	07/1990 - 04/2003
2.5	2461 CCM	115 HP	08/1996 - 04/2003
2.5 Syncro	2461 CCM	115 HP	08/1996 - 04/2003
2.4 D Syncro	2370 CCM	78 HP	10/1992 - 09/1998
2.5 TDI	2461 CCM	102 HP	09/1995 - 04/2003
2.4 D	2370 CCM	75 HP	08/1997 - 04/2003
2.5 TDI	2461 CCM	88 HP	05/1998 - 04/2003
2.5 TDI Syncro	2461 CCM	102 HP	05/1998 - 04/2003
2.8	2792 CCM	140 HP	05/1996 - 05/2000
1.9 D	1896 CCM	60 HP	09/1990 - 12/1995

TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J)

Description	Cylinder Capacity	Horse Power	Year
2.0	1968 CCM	84 HP	07/1990 - 04/2003
2.5	2461 CCM	110 HP	11/1990 - 04/2003
1.9 D	1896 CCM	61 HP	07/1990 - 12/1995
1.9 TD	1896 CCM	68 HP	10/1992 - 04/2003
2.4 D	2370 CCM	78 HP	07/1990 - 04/1998
2.5 Syncro	2461 CCM	110 HP	11/1992 - 11/2001
2.4 D Syncro	2370 CCM	78 HP	10/1992 - 09/1998
2.5	2461 CCM	115 HP	08/1996 - 04/2003
2.5 Syncro	2461 CCM	115 HP	08/1996 - 04/2003
2.5 TDI	2461 CCM	102 HP	09/1995 - 04/2003
2.4 D	2370 CCM	75 HP	08/1997 - 04/2003
2.5 TDI Syncro	2461 CCM	102 HP	09/1995 - 04/2003
2.5 TDI	2461 CCM	88 HP	12/1998 - 04/2003
2.5 TDI	2461 CCM	151 HP	09/2000 - 04/2003
2.8 VR6	2792 CCM	204 HP	06/2000 - 04/2003

TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J,

Description	Cylinder Capacity	Horse Power	Year
2.4 D Syncro	2370 CCM	78 HP	10/1992 - 09/1998
2.5 Syncro	2461 CCM	110 HP	08/1992 - 04/2003
2.5	2461 CCM	110 HP	09/1990 - 06/2003
1.9 D	1896 CCM	60 HP	09/1990 - 12/1995
1.9 TD	1896 CCM	68 HP	10/1992 - 04/2003
2.4 D	2370 CCM	78 HP	09/1990 - 04/1998
2.0	1968 CCM	84 HP	09/1990 - 04/2003
2.5 TDI	2461 CCM	102 HP	09/1995 - 04/2003
2.5 TDI Syncro	2461 CCM	102 HP	01/1996 - 04/2003
2.5 Syncro	2461 CCM	115 HP	07/1996 - 04/2003
2.5	2461 CCM	115 HP	08/1996 - 04/2003
2.8 VR 6	2792 CCM	140 HP	11/1995 - 04/2000
2.5 TDI	2461 CCM	88 HP	05/1998 - 04/2003
2.5 TDI	2461 CCM	151 HP	05/1998 - 04/2003

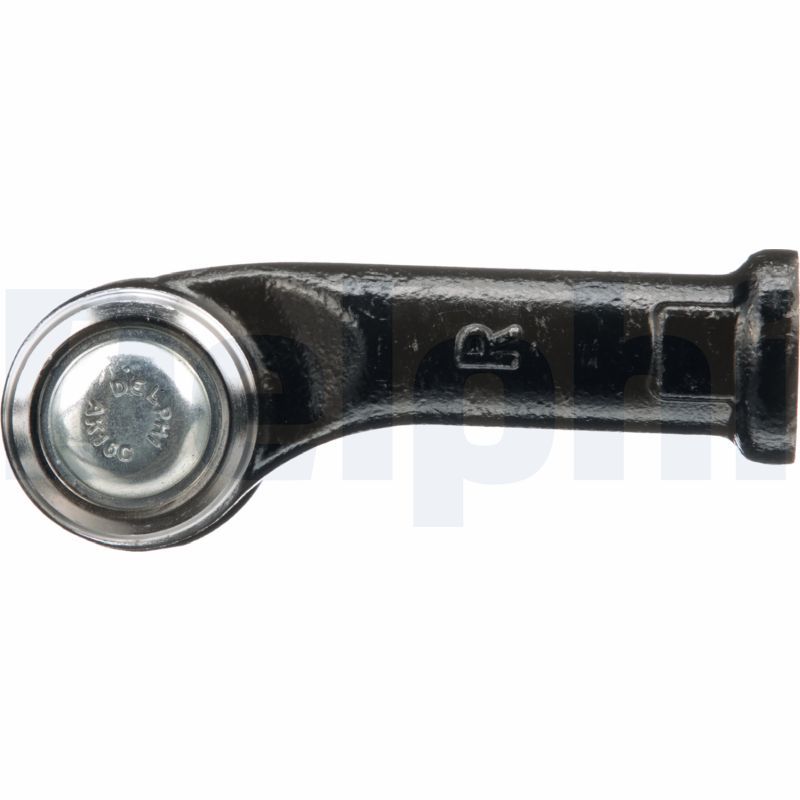

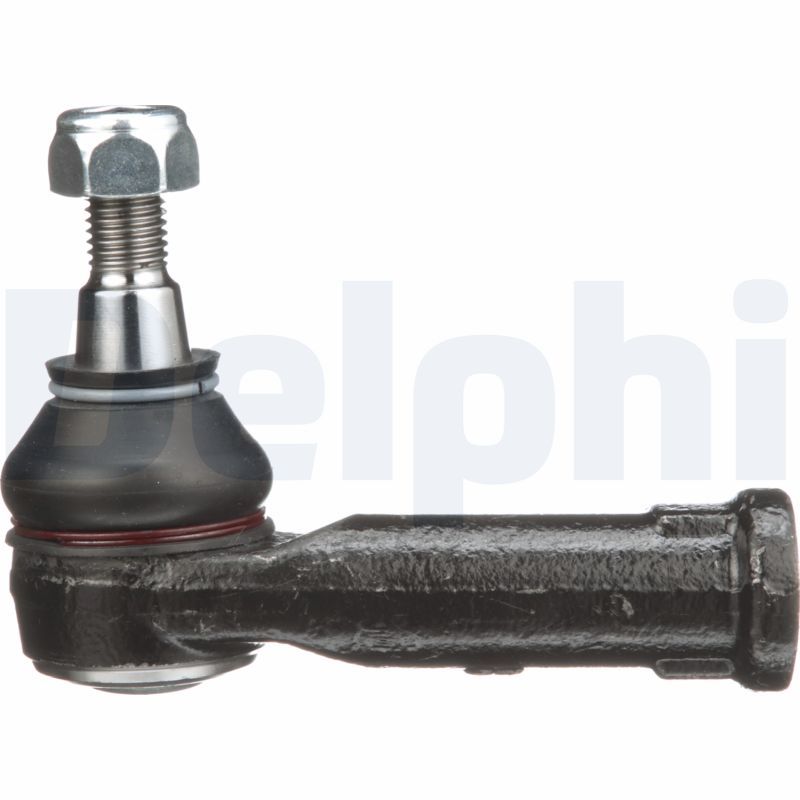

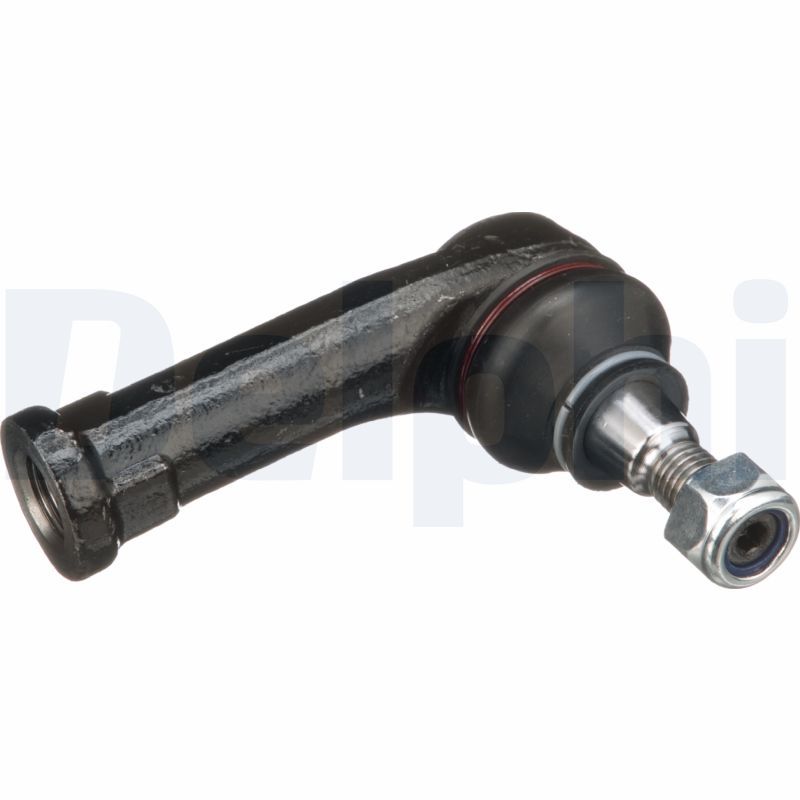

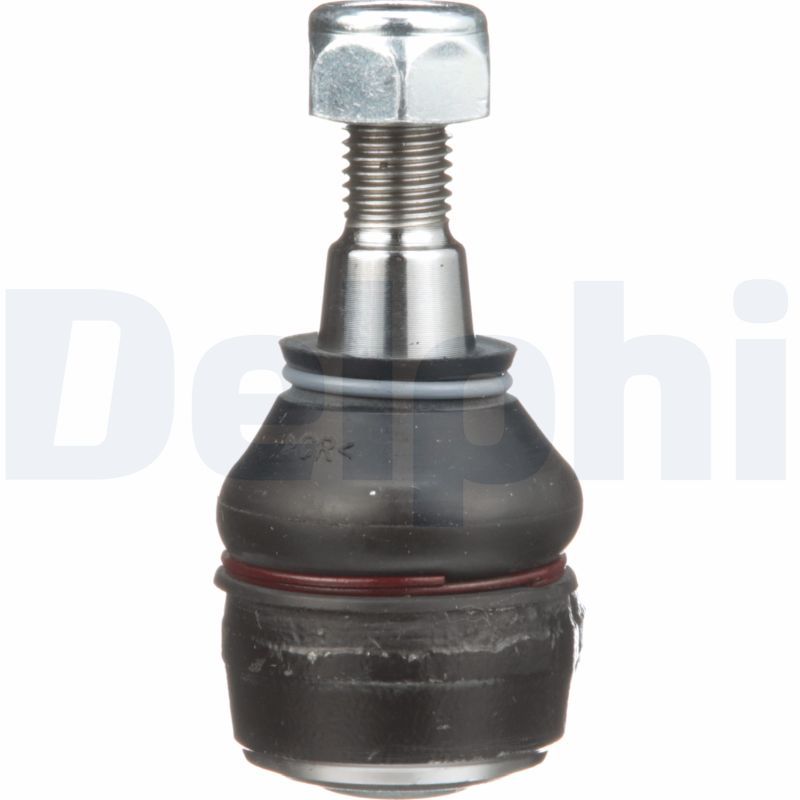

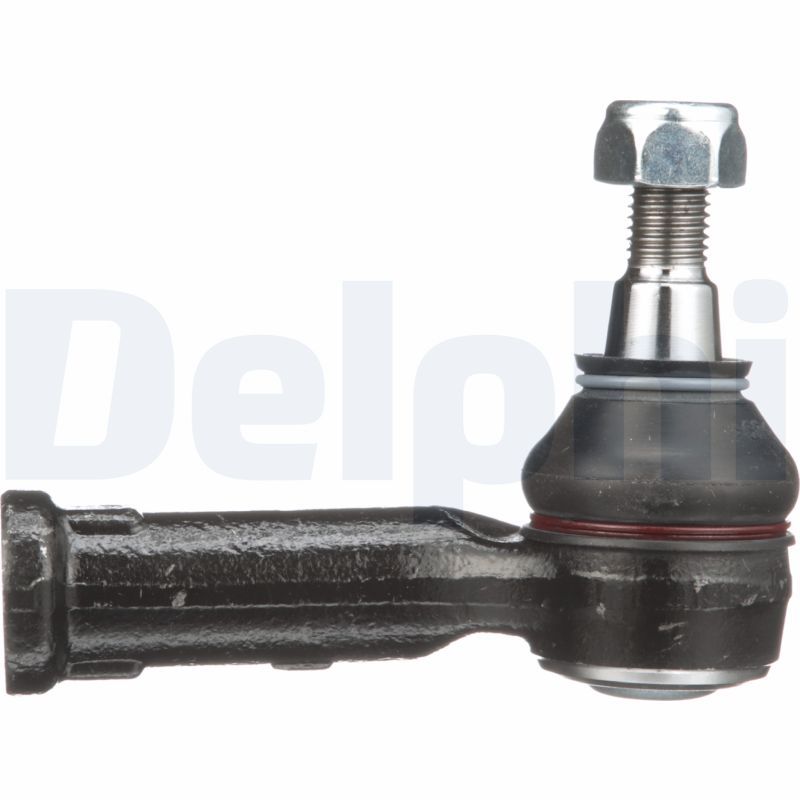

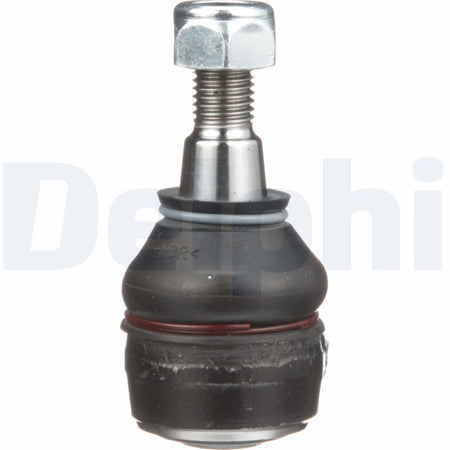

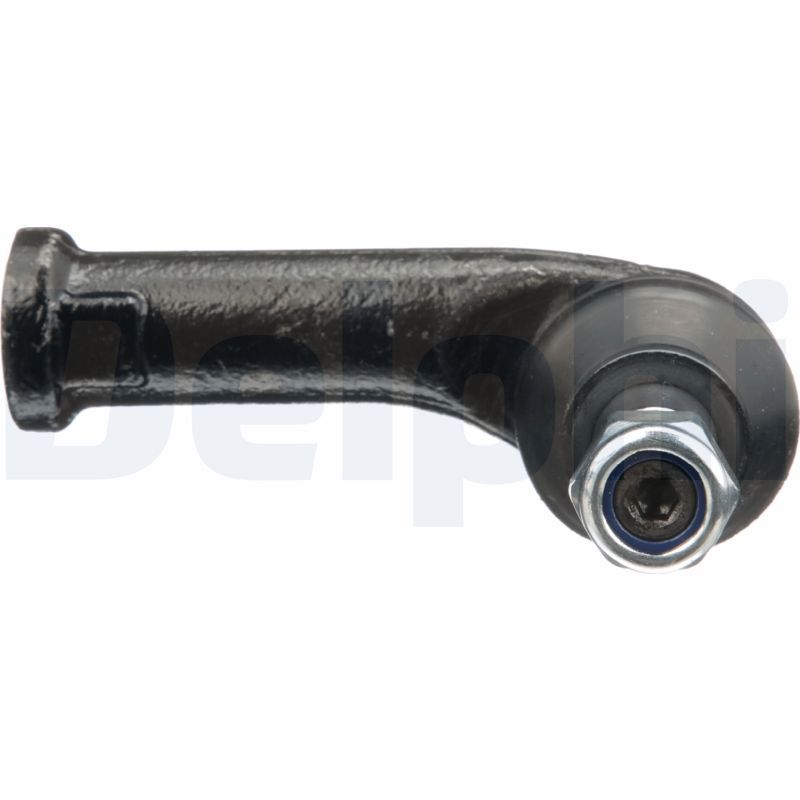

The Delphi TA1641 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16x1.5 thread size, with right-hand thread thread type, front axle right fitting position, and 104 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End

Thread Size : M16x1.5

Thread Type : with right-hand thread

Cone Size [mm] : 14.7

Paired article number : TA1640

Fitting Position : Front Axle Right

Length [mm] : 104

Width [mm] : 40

Height [mm] : 78

APEC : AST6147
BORG & BECK : BTR4857
CORTECO : 49398661
CORTECO : 49398978
FEBI BILSTEIN : 10583
FEBI BILSTEIN : 10887
FEBI BILSTEIN : 32079
FIRST LINE : FTR4857
LEMFÖRDER : 10275 02
LEMFÖRDER : 17675 02
MEYLE : 116 020 8203/HD
MONROE : L29127
NAPA : NST6147
Schaeffler FAG : 840 0839 10
Schaeffler FAG : 840 0841 10
SKF : VKDY 311047
SKF : VKDY 311051
TRW : JTE362
TRW : JTF210
