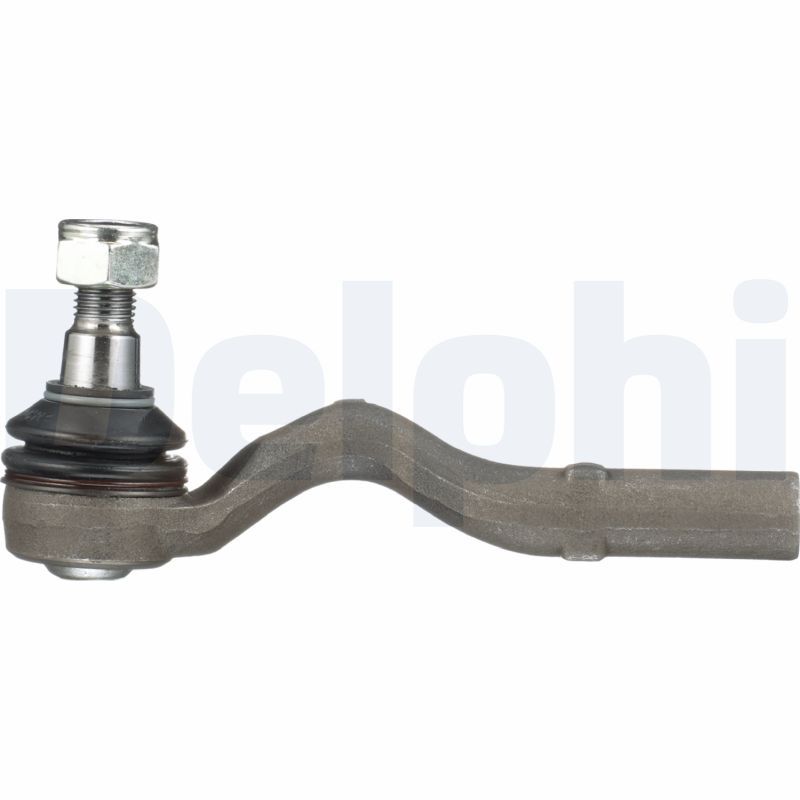

Delphi TA1658 Tie Rod End - 1

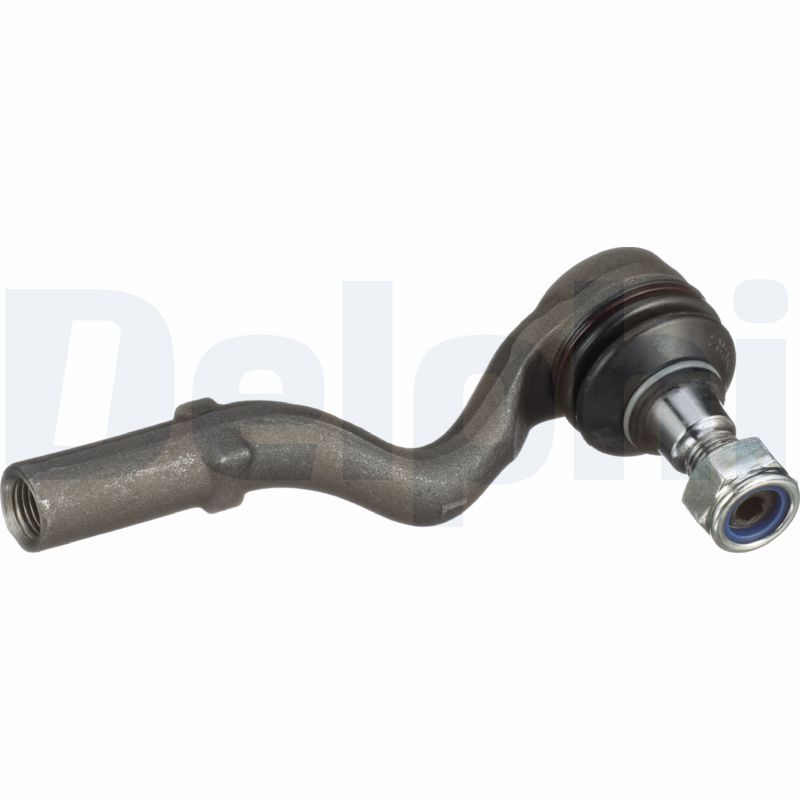

Delphi TA1658 Tie Rod End - 2

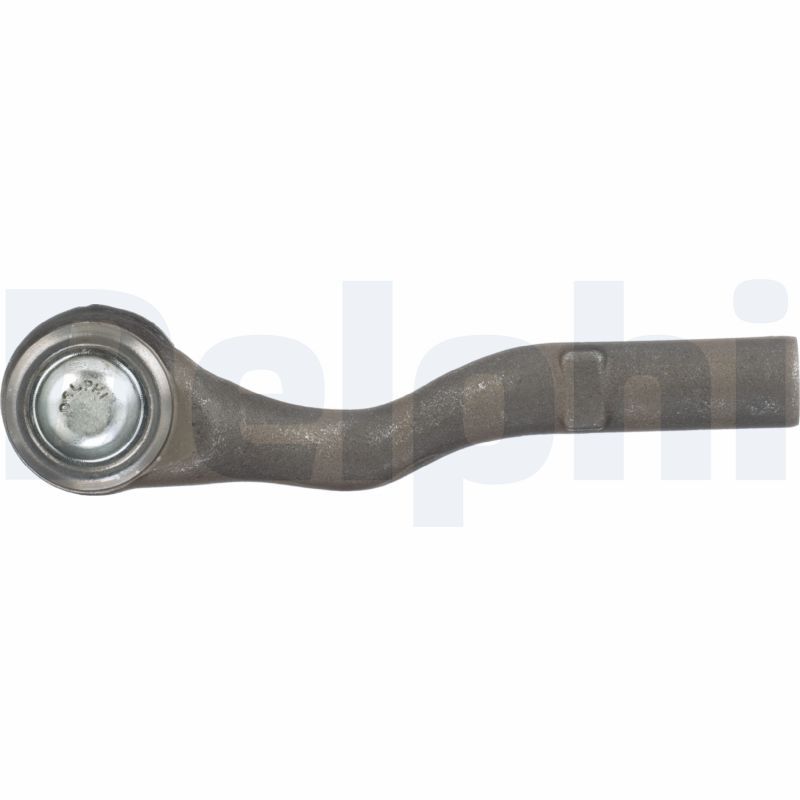

Delphi TA1658 Tie Rod End - 3

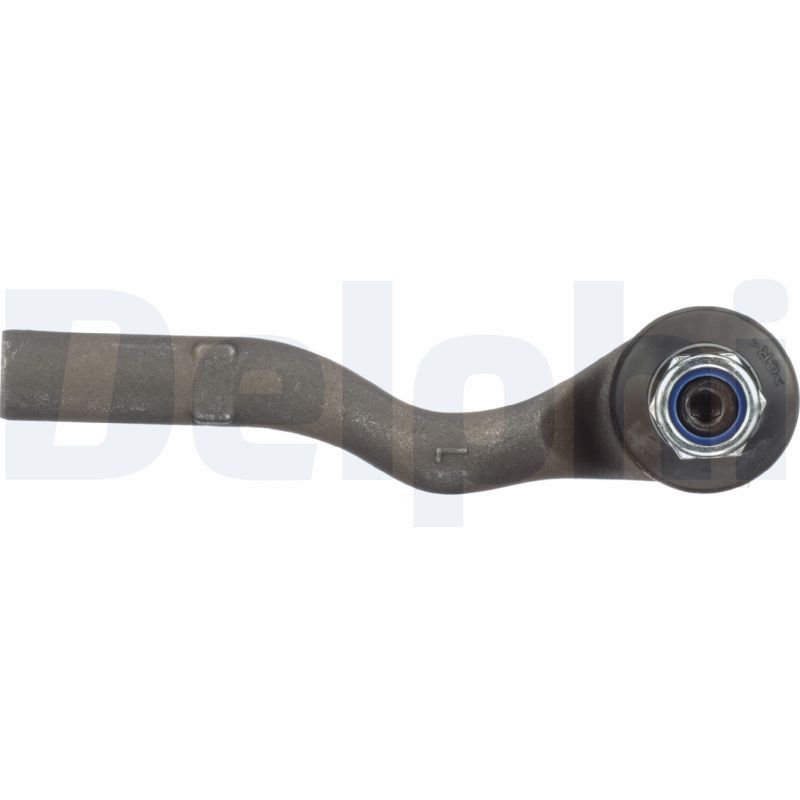

Delphi TA1658 Tie Rod End - 4

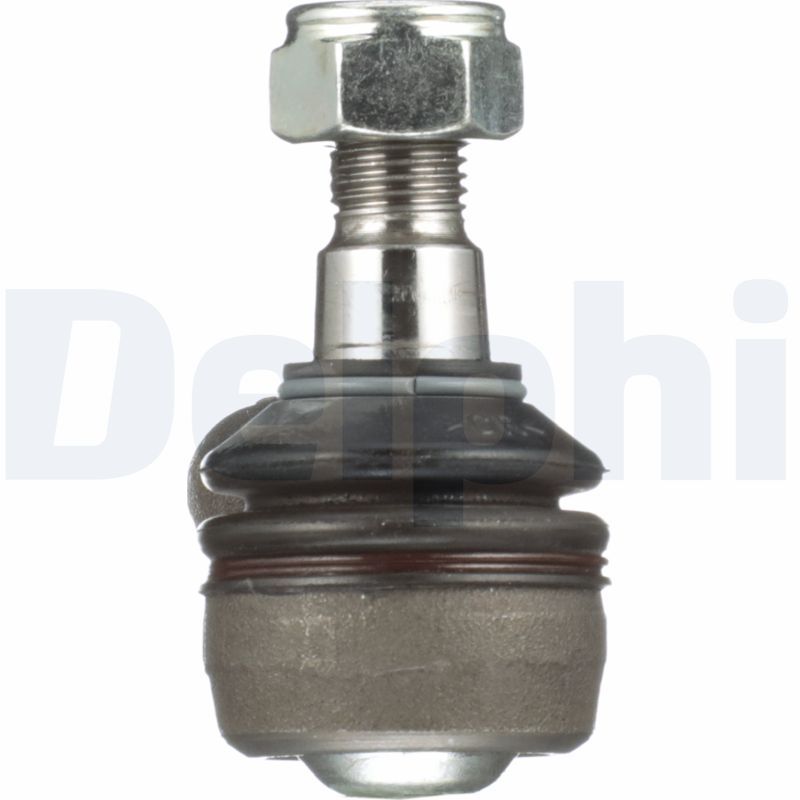

Delphi TA1658 Tie Rod End - 5

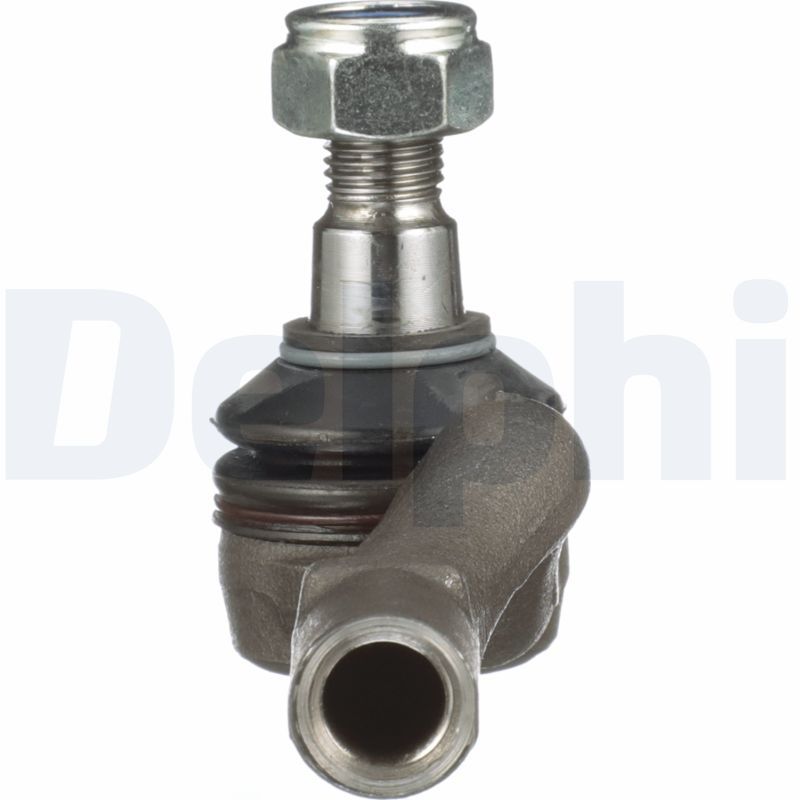

Delphi TA1658 Tie Rod End - 6
Delphi TA1658 Tie Rod End video
DELPHI

Delphi TA1658 Tie Rod End

SKU: TA1658
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£17.90 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
E-CLASS (W210)
Description Cylinder Capacity Horse Power Year
E 220 D (210.004) 2155 CCM 95 HP 06/1995 - 07/1999
E 250 D (210.010) 2497 CCM 113 HP 06/1995 - 07/1999
E 200 (210.035) 1998 CCM 136 HP 06/1995 - 08/2000
E 300 D (210.020) 2996 CCM 136 HP 06/1995 - 06/1997
E 230 (210.037) 2295 CCM 150 HP 06/1995 - 06/1997
E 320 (210.055) 3199 CCM 220 HP 06/1995 - 06/1997
E 290 Turbo-D (210.017) 2874 CCM 129 HP 03/1996 - 07/1999
E 280 (210.053) 2799 CCM 193 HP 01/1996 - 06/1997
E 420 (210.072) 4196 CCM 279 HP 01/1996 - 06/1997
E 50 AMG (210.072) 4973 CCM 347 HP 02/1996 - 08/1997
E 270 CDI (210.016) 2685 CCM 163 HP 07/1999 - 03/2002
E 280 (210.063) 2799 CCM 204 HP 12/1996 - 03/2002
E 320 (210.065) 3199 CCM 224 HP 06/1997 - 03/2002
E 300 Turbo-D (210.025) 2996 CCM 177 HP 12/1996 - 07/1999
E-CLASS Platform/Chassis (VF210)
Description Cylinder Capacity Horse Power Year
E 220 CDi (210.606) 2148 CCM 143 HP 07/1999 - 12/2002
E 280 (210.663) 2799 CCM 204 HP 07/1999 - 11/2002
E-CLASS T-Model (S210)
Description Cylinder Capacity Horse Power Year
E 200 T (210.235) 1998 CCM 136 HP 06/1996 - 08/2000
E 230 T (210.237) 2295 CCM 150 HP 06/1996 - 06/1997
E 420 T (210.272) 4196 CCM 279 HP 06/1996 - 06/1997
E 290 T Turbo-D (210.217) 2874 CCM 129 HP 06/1996 - 07/1999
E 250 T D (210.210) 2497 CCM 113 HP 06/1996 - 07/1999
E 270 T CDI 2685 CCM 163 HP 02/2000 - 03/2003
E 320 T (210.265) 3199 CCM 224 HP 12/1996 - 03/2003
E 300 T Turbo-D (210.225) 2996 CCM 177 HP 12/1996 - 07/1999
E 250 T Turbo-D (210.215) 2497 CCM 150 HP 06/1997 - 07/1999
E 280 T (210.263) 2799 CCM 204 HP 12/1996 - 03/2003
E 240 T (210.261) 2398 CCM 170 HP 06/1997 - 03/2003
E 430 T (210.270) 4266 CCM 279 HP 06/1997 - 03/2003
E 200 T Kompressor (210.245) 1998 CCM 186 HP 06/1997 - 03/2003

The Delphi TA1658 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle left fitting position, and 170 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 16.6
Paired article number : TA1659
Fitting Position : Front Axle Left
Length [mm] : 170
Width [mm] : 40
Height [mm] : 80
  • Vendor DELPHI
  • SKU TA1658
  • Barcode 5012759143056
  • MERCEDES-BENZ : 210 338 0515 A210 338 0515
  • BORG & BECK : BTR4597
  • BOSCH : 0 986 140 449
  • CORTECO : 49399844
  • FEBI BILSTEIN : 11959
  • FEBI BILSTEIN : 33014
  • FIRST LINE : FTR4597
  • LEMFÖRDER : 12662 02
  • MEYLE : 016 020 6339
  • MONROE : L23106
  • Schaeffler FAG : 840 0722 10
  • SKF : VKDY 318016
  • TRW : JTE248
