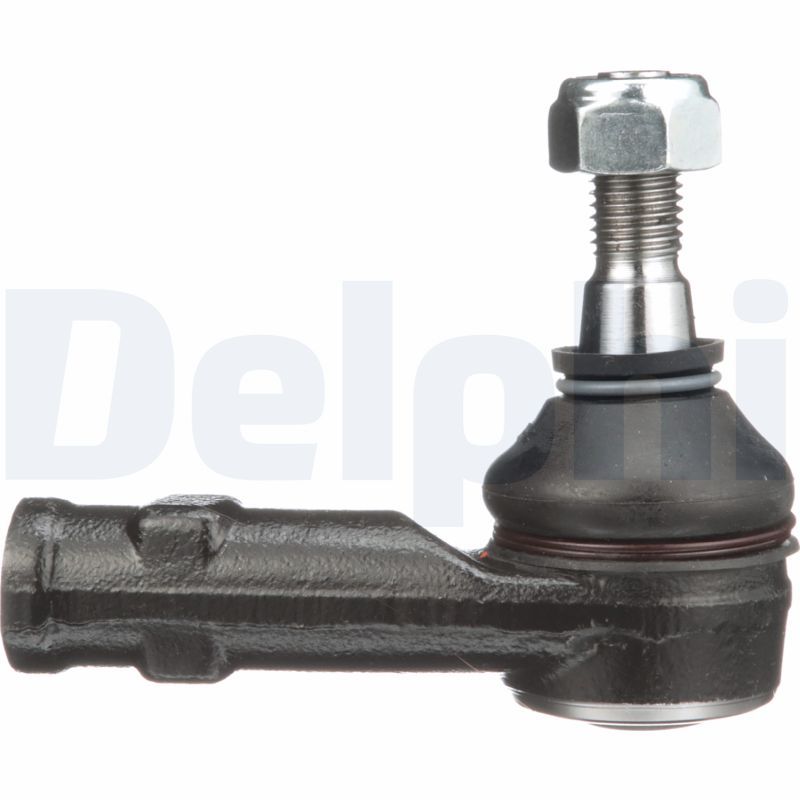

Delphi TA1666 Tie Rod End - 1

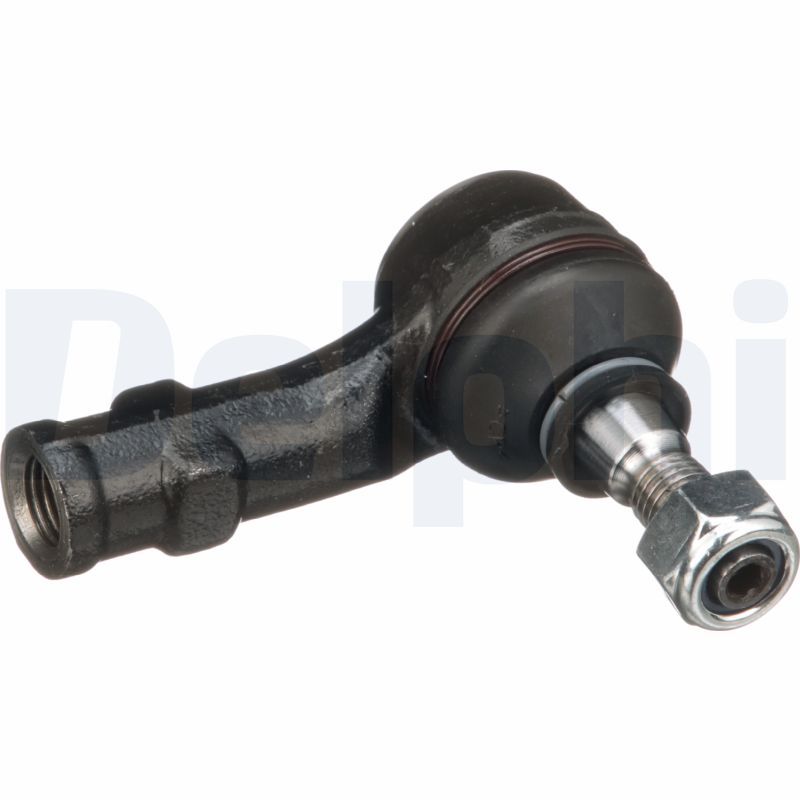

Delphi TA1666 Tie Rod End - 2

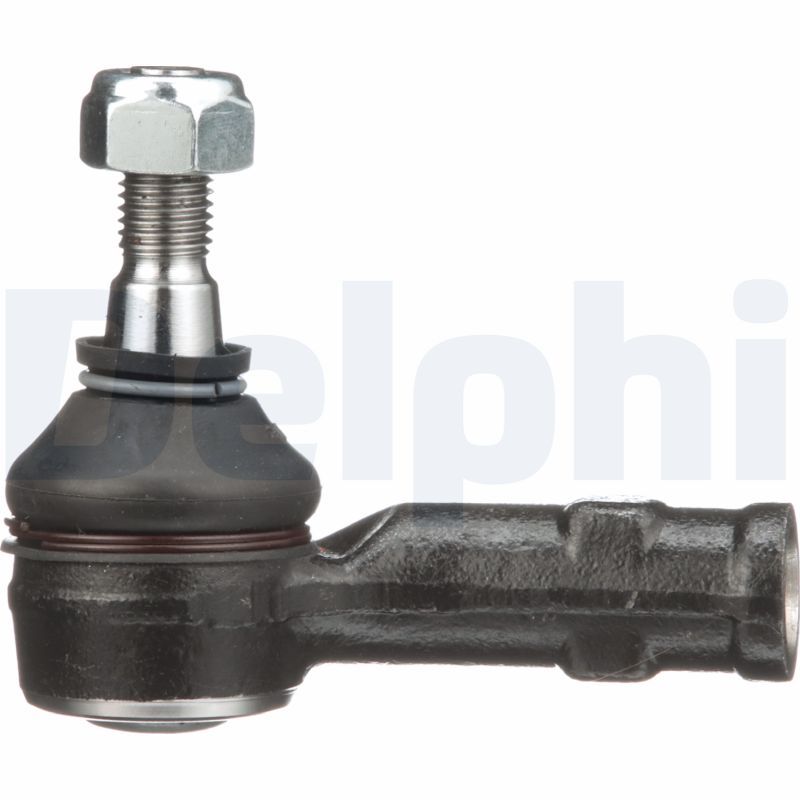

Delphi TA1666 Tie Rod End - 3

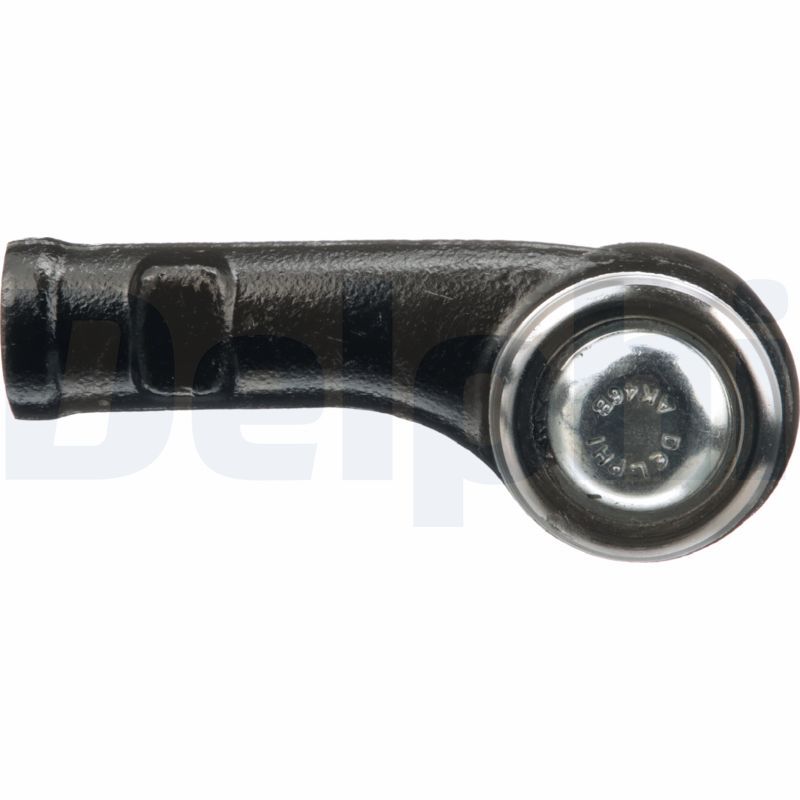

Delphi TA1666 Tie Rod End - 4

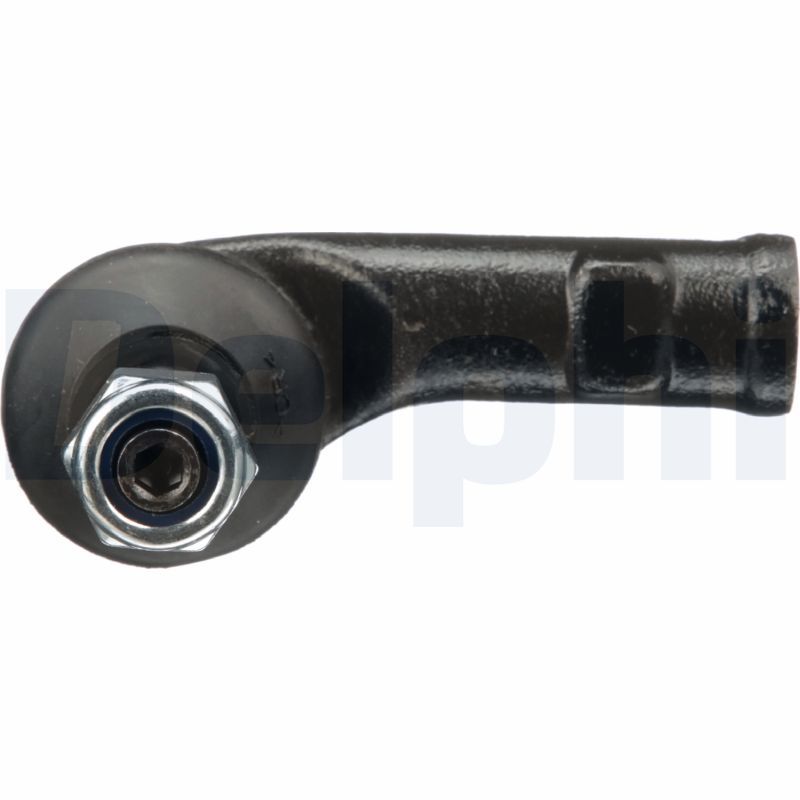

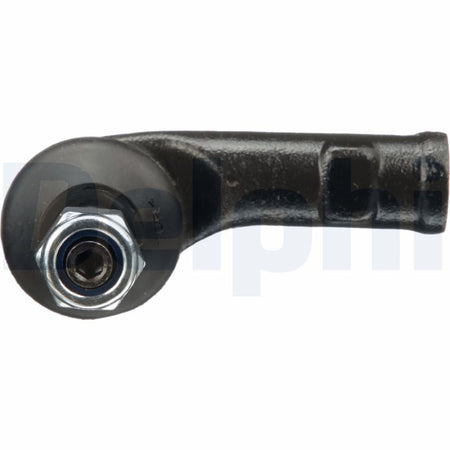

Delphi TA1666 Tie Rod End - 5

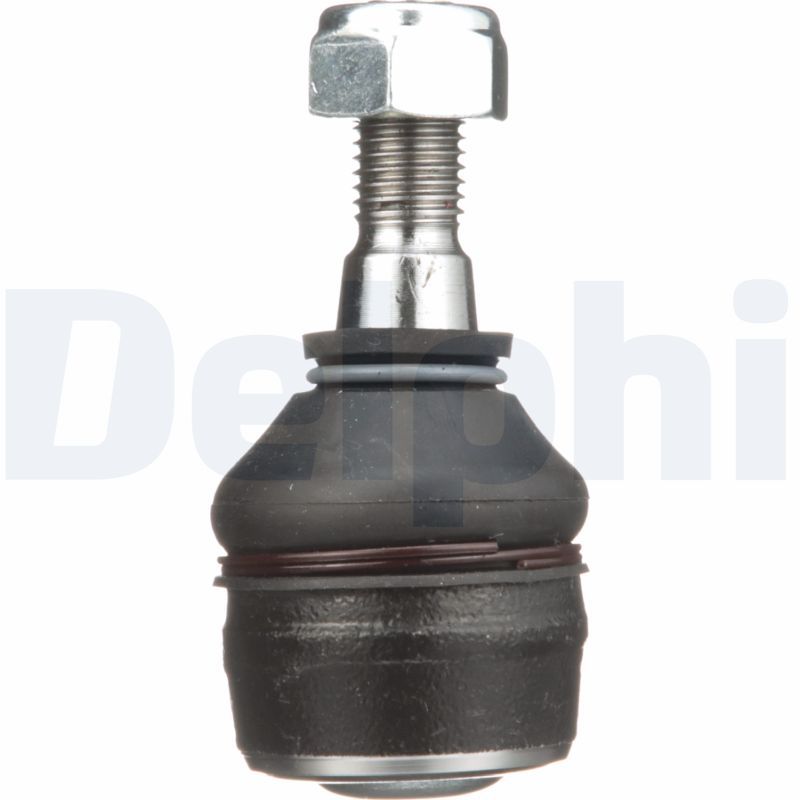

Delphi TA1666 Tie Rod End - 6
Delphi TA1666 Tie Rod End video
DELPHI

Delphi TA1666 Tie Rod End

SKU: TA1666
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£13.53 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
A3 (8L1)
Description Cylinder Capacity Horse Power Year
1.6 1595 CCM 101 HP 09/1996 - 05/2003
1.8 1781 CCM 125 HP 09/1996 - 05/2003
1.8 T 1781 CCM 150 HP 12/1996 - 05/2003
1.9 TDI 1896 CCM 90 HP 09/1996 - 07/2001
1.9 TDI 1896 CCM 110 HP 08/1997 - 07/2001
1.8 T quattro 1781 CCM 150 HP 12/1996 - 05/2003
SKODA
OCTAVIA I (1U2)
Description Cylinder Capacity Horse Power Year
1.6 1598 CCM 75 HP 09/1996 - 09/2004
1.8 1781 CCM 125 HP 09/1996 - 07/2000
1.9 TDI 1896 CCM 90 HP 09/1996 - 03/2010
1.6 1595 CCM 101 HP 02/1997 - 12/2007
1.9 SDI 1896 CCM 68 HP 06/1997 - 12/2003
1.9 TDI 1896 CCM 110 HP 08/1997 - 01/2006
1.8 T 1781 CCM 150 HP 08/1997 - 12/2010
VW
GOLF Mk IV (1J1)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 90 HP 10/1997 - 05/2004
1.6 1595 CCM 100 HP 08/1997 - 05/2004
1.9 TDI 1896 CCM 110 HP 08/1997 - 05/2004
1.9 SDI 1896 CCM 68 HP 08/1997 - 06/2005
1.4 16V 1390 CCM 75 HP 10/1997 - 05/2004
1.8 1781 CCM 125 HP 08/1997 - 06/2005
1.8 T 1781 CCM 150 HP 08/1997 - 06/2005
2.3 V5 2324 CCM 150 HP 08/1997 - 10/2000
GOLF IV Van (1J1)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 110 HP 10/1997 - 05/2004

The Delphi TA1666 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle right fitting position, and 72 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 13.4
Paired article number : TA1665
Fitting Position : Front Axle Right
Length [mm] : 72
Width [mm] : 40
Height [mm] : 70
  • Vendor DELPHI
  • SKU TA1666
  • Barcode 5012759143117
  • AUDI : 1J0 422 812 1J0 422 812A 1J0422812C
  • SKODA : 1J0 422 812 1J0 422 812A 1J0422812C
  • VW : 1J0422812C 1J0 422 812 1J0 422 812A
  • BLUE PRINT : ADN19654
  • BORG & BECK : BTR4675
  • BOSCH : 0 986 140 427
  • CORTECO : 49399514
  • FEBI BILSTEIN : 14186
  • FIRST LINE : FTR4675
  • LEMFÖRDER : 17624 02
  • MEYLE : 116 020 8285
  • MONROE : L29121
  • Schaeffler FAG : 840 0890 10
  • SKF : VKDY 311012
  • TRW : JTE350
