Home / Car Parts / Steering & Suspension / Steering Parts / Tie Rod End
Delphi TA1669 Tie Rod End - 1
Delphi TA1669 Tie Rod End video
Delphi TA1669 Tie Rod End - 1
Delphi TA1669 Tie Rod End video
DELPHI

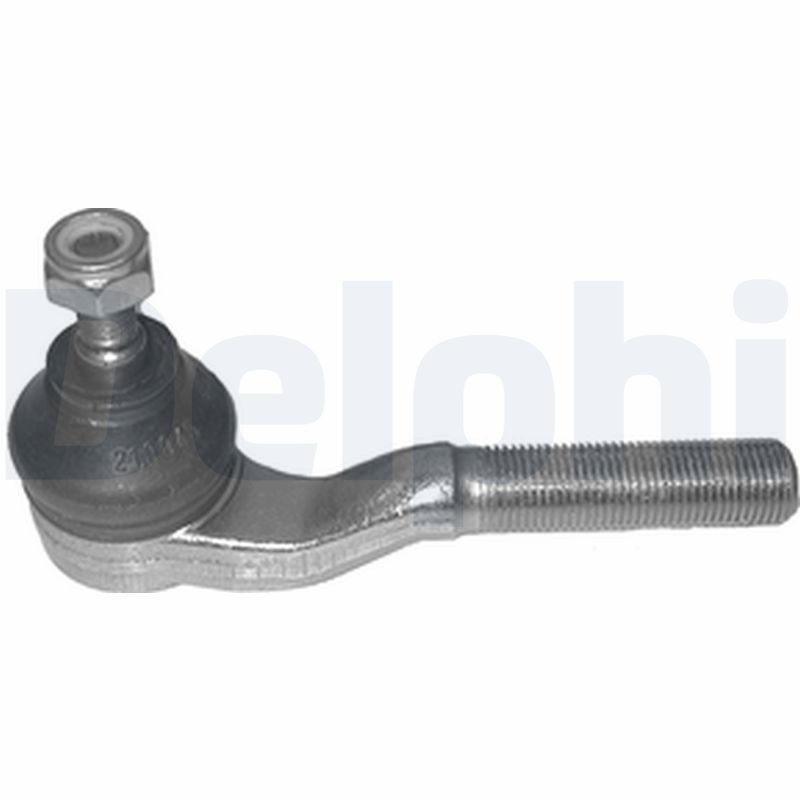

Delphi TA1669 Tie Rod End

SKU: TA1669
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£15.48 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

PEUGEOT
406 (8B)
Description Cylinder Capacity Horse Power Year
1.6 1580 CCM 88 HP 11/1995 - 05/2004
1.8 16V 1761 CCM 110 HP 11/1995 - 10/2000
2.0 16V 1998 CCM 132 HP 11/1995 - 05/2004
1.9 TD 1905 CCM 90 HP 01/1996 - 05/2004
2.1 TD 12V 2088 CCM 109 HP 01/1996 - 05/2004
2.0 Turbo 1998 CCM 147 HP 04/1996 - 05/2004
1.9 TD 1905 CCM 92 HP 01/1996 - 05/2004
3.0 24V 2946 CCM 190 HP 10/1996 - 05/2004
1.8 1761 CCM 90 HP 05/1997 - 05/2004
2.0 HDI 110 1997 CCM 109 HP 06/1998 - 08/2001
2.0 HDI 90 1997 CCM 90 HP 02/1999 - 05/2004
2.0 16V 1997 CCM 135 HP 01/1999 - 08/2000
3.0 V6 2946 CCM 207 HP 03/2000 - 05/2004
2.2 2230 CCM 158 HP 07/2000 - 05/2004
1.8 16V 1749 CCM 116 HP 10/2000 - 05/2004
406 Estate (8E/F)
Description Cylinder Capacity Horse Power Year
1.9 D 1905 CCM 75 HP 10/1996 - 10/2004
1.8 16V 1761 CCM 110 HP 10/1996 - 10/2000
1.9 TD 1905 CCM 90 HP 10/1996 - 10/2004
2.1 TD 12V 2088 CCM 109 HP 10/1996 - 10/2004
2.0 Turbo 1998 CCM 147 HP 10/1996 - 10/2004
2.0 16V 1998 CCM 132 HP 10/1996 - 10/2004
3.0 24V 2946 CCM 190 HP 10/1996 - 10/2004
1.8 1761 CCM 90 HP 05/1997 - 10/2004
2.0 HDI 110 1997 CCM 109 HP 02/1999 - 04/2004
2.0 HDI 90 1997 CCM 90 HP 02/1999 - 10/2004
2.0 16V 1997 CCM 135 HP 01/1999 - 10/2000
3.0 V6 2946 CCM 207 HP 03/2000 - 10/2004
2.2 2230 CCM 158 HP 07/2000 - 10/2004
1.8 16V 1749 CCM 116 HP 10/2000 - 10/2004
2.0 16V 1997 CCM 136 HP 10/2000 - 10/2004
406 Coupe (8C)
Description Cylinder Capacity Horse Power Year
2.0 16V 1998 CCM 132 HP 03/1997 - 12/2004
3.0 V6 24V 2946 CCM 190 HP 03/1997 - 12/2004
2.0 16V 1997 CCM 135 HP 01/1999 - 10/2000
3.0 V6 2946 CCM 207 HP 03/2000 - 12/2004
2.0 16V 1997 CCM 136 HP 10/2000 - 12/2004
2.2 HDI 2179 CCM 133 HP 03/2000 - 12/2004
2.2 2230 CCM 158 HP 03/2002 - 12/2004
2.0 16V 1998 CCM 135 HP 04/1999 - 09/2004

The Delphi TA1669 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16x1.5 thread size, with right-hand thread thread type, front axle left fitting position, and 145 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M16x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 12
Paired article number : TA1670
Fitting Position : Front Axle Left
Length [mm] : 145
Width [mm] : 46
Height [mm] : 80
  • Vendor DELPHI
  • SKU TA1669
  • Barcode 5012759143124
  • PEUGEOT : 1607317980 3817.40
  • BLUE PRINT : ADK896502
  • BORG & BECK : BTR4690
  • CORTECO : 49400377
  • FEBI BILSTEIN : 10657
  • FIRST LINE : FTR4690
  • LEMFÖRDER : 24723 01
  • MEYLE : 11-16 020 0004
  • MONROE : L28102
  • Schaeffler FAG : 840 0927 10
  • SKF : VKDY 313035
  • TRW : JTE277
