DELPHI

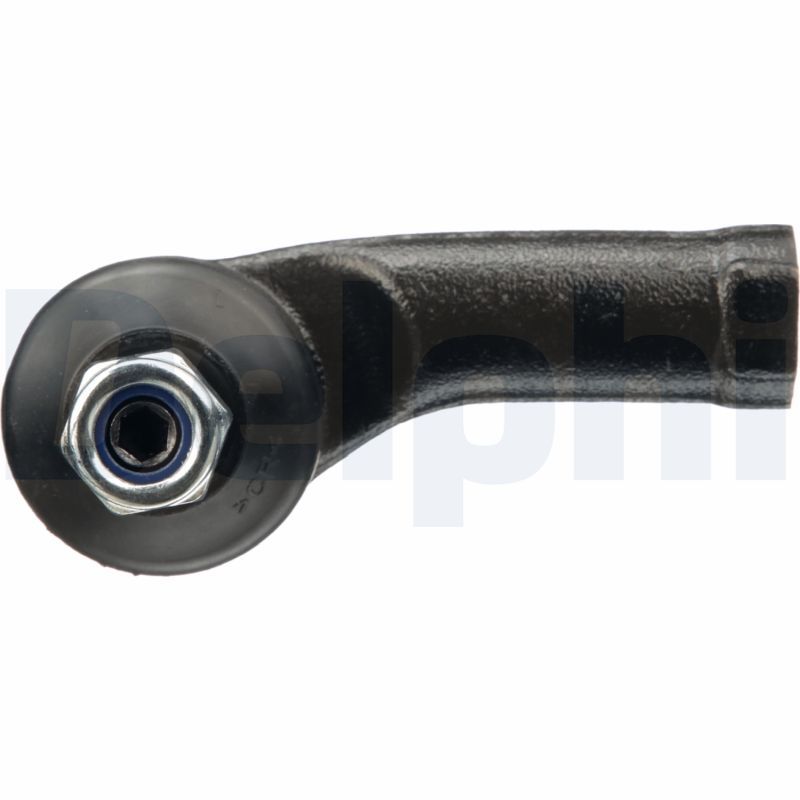

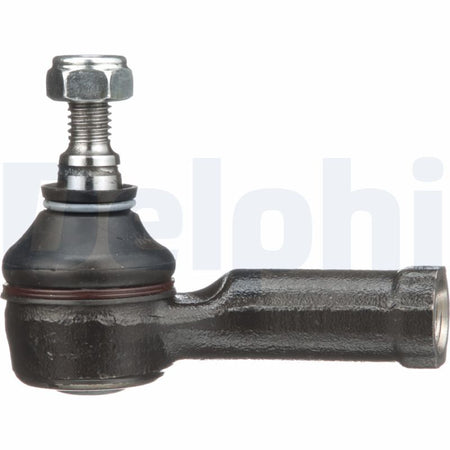

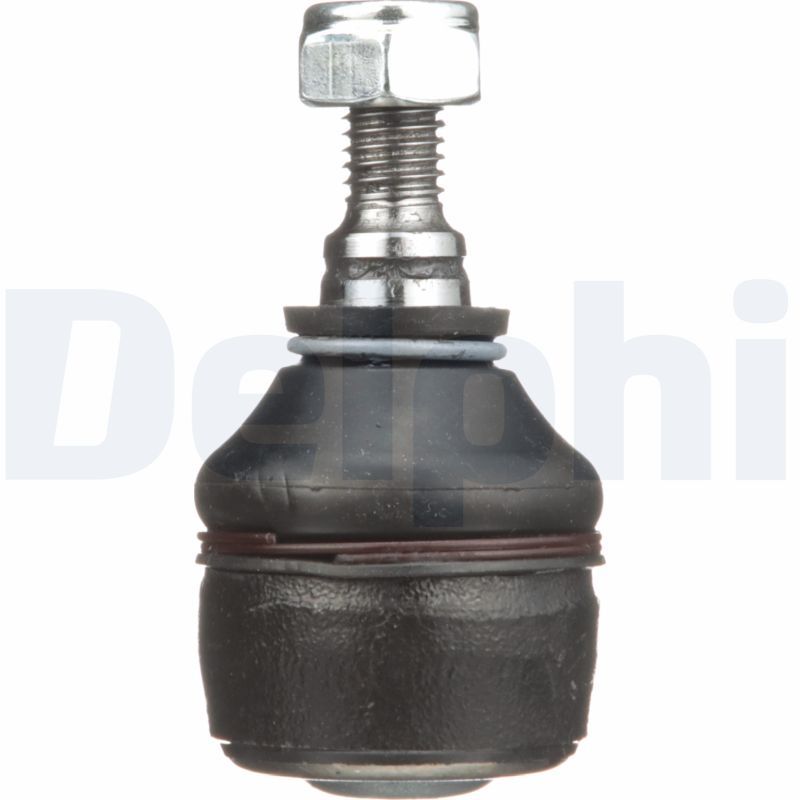

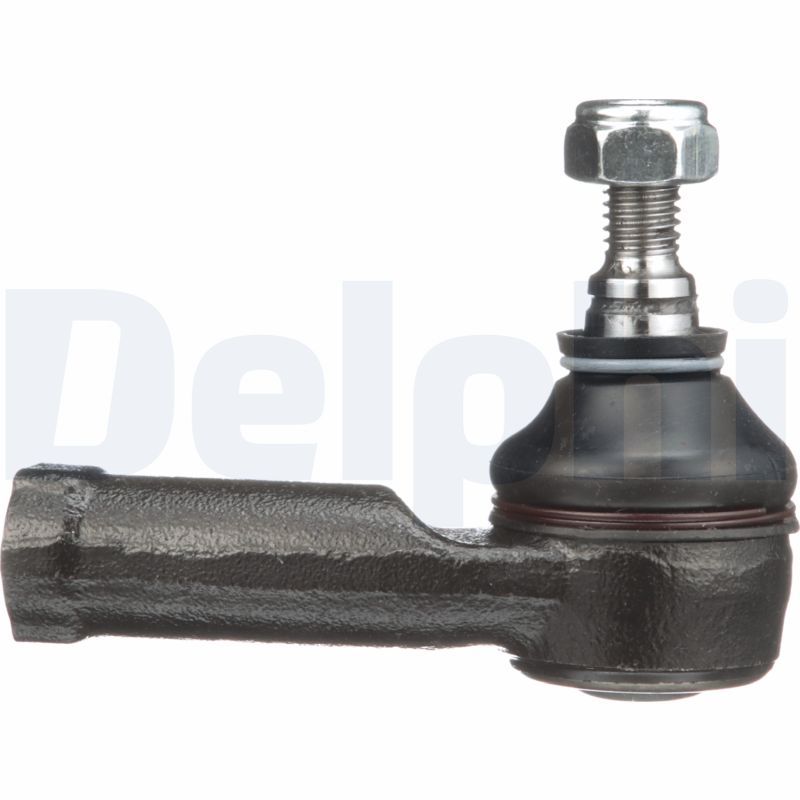

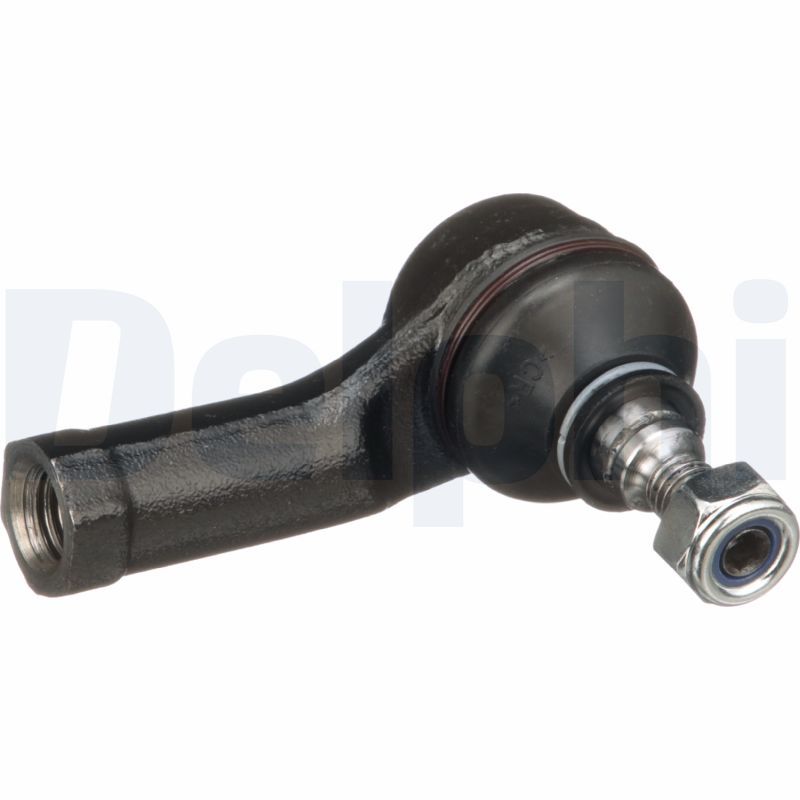

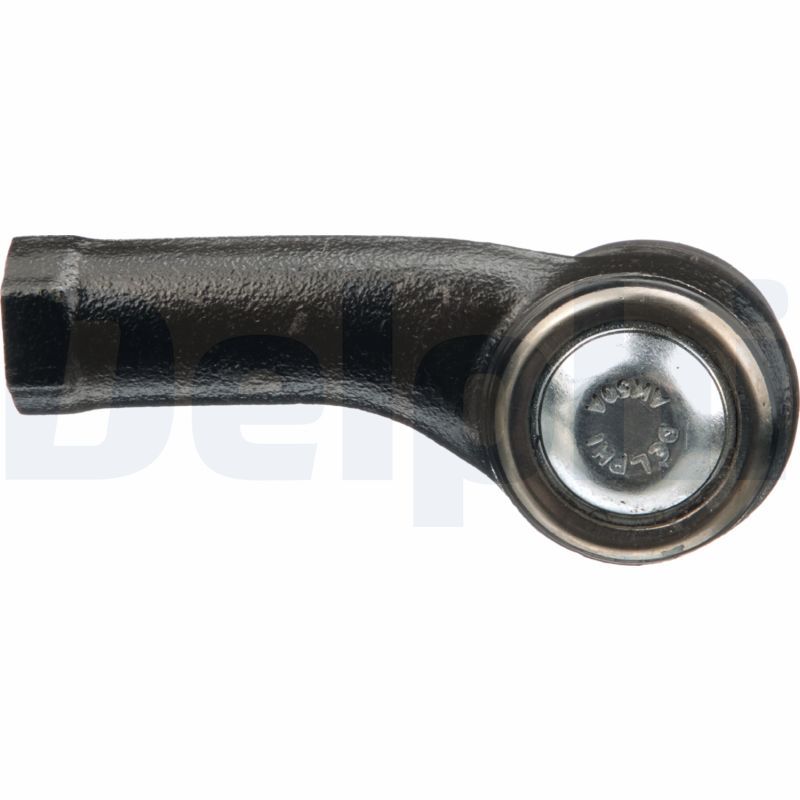

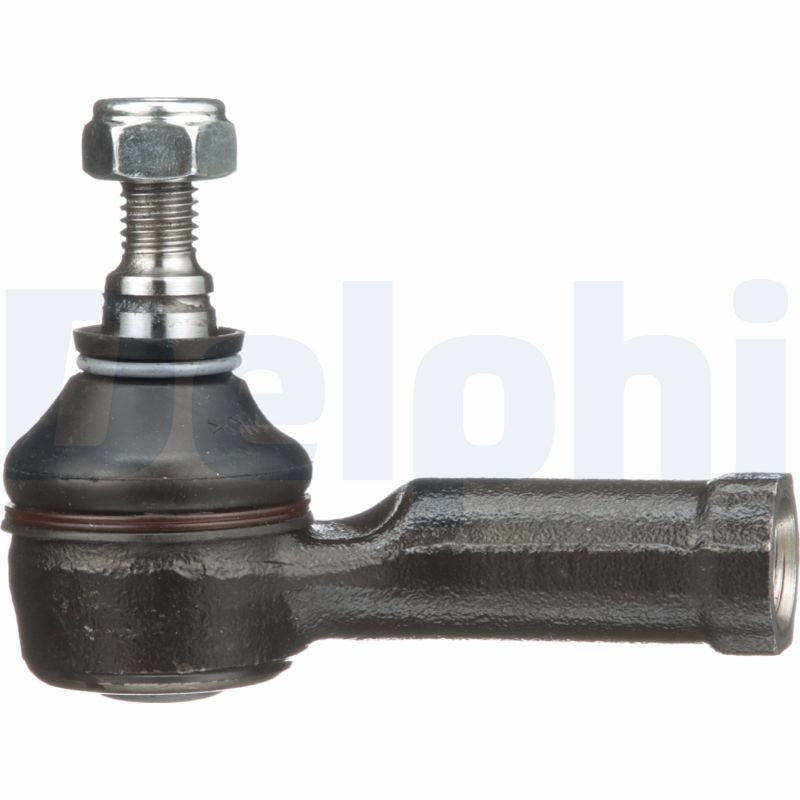

Delphi TA1674 Tie Rod End

SKU: TA1674
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£11.72 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
FOCUS I Estate Van (DNW)
Description Cylinder Capacity Horse Power Year
1.8 TDDi 1753 CCM 75 HP 08/1999 - 03/2005
1.6 1596 CCM 101 HP 04/1999 - 03/2005
1.8 1796 CCM 116 HP 04/1999 - 03/2005
1.8 TDDi 1753 CCM 90 HP 08/1998 - 03/2005
1.8 TDCi 1753 CCM 101 HP 08/2002 - 03/2005
1.8 TDCi 1753 CCM 116 HP 08/2001 - 03/2005
FOCUS I (DAW, DBW)
Description Cylinder Capacity Horse Power Year
1.4 16V 1388 CCM 75 HP 10/1998 - 11/2004
1.6 16V 1596 CCM 100 HP 10/1998 - 11/2004
1.8 16V 1796 CCM 115 HP 10/1998 - 11/2004
2.0 16V 1988 CCM 131 HP 10/1998 - 11/2004
1.8 Turbo DI / TDDi 1753 CCM 90 HP 10/1998 - 11/2004
1.8 DI / TDDi 1753 CCM 75 HP 08/1999 - 11/2004
1.8 TDCi 1753 CCM 115 HP 03/2001 - 11/2004
ST170 1988 CCM 173 HP 03/2002 - 11/2004
1.8 TDCi 1753 CCM 100 HP 08/2002 - 11/2004
RS 1988 CCM 215 HP 10/2002 - 11/2004
1.8 16V BiFuel 1796 CCM 115 HP 09/2002 - 07/2004
FOCUS I Turnier (DNW)
Description Cylinder Capacity Horse Power Year
1.4 16V 1388 CCM 75 HP 02/1999 - 11/2004
1.6 16V 1596 CCM 100 HP 02/1999 - 11/2004
1.8 16V 1796 CCM 115 HP 02/1999 - 11/2004
2.0 16V 1988 CCM 131 HP 02/1999 - 11/2004
1.8 Turbo DI / TDDi 1753 CCM 90 HP 02/1999 - 11/2004
1.8 DI / TDDi 1753 CCM 75 HP 08/1999 - 11/2004
1.8 TDCi 1753 CCM 115 HP 03/2001 - 11/2004
ST170 1988 CCM 173 HP 08/2002 - 11/2004
1.8 TDCi 1753 CCM 100 HP 08/2002 - 11/2004
1.8 BiFuel 1796 CCM 111 HP 02/2003 - 01/2005
FOCUS I Saloon (DFW)
Description Cylinder Capacity Horse Power Year
1.4 16V 1388 CCM 75 HP 02/1999 - 11/2004
1.6 16V 1596 CCM 100 HP 02/1999 - 11/2004
1.8 16V 1796 CCM 115 HP 02/1999 - 11/2004
2.0 16V 1988 CCM 131 HP 02/1999 - 11/2004
1.8 Turbo DI / TDDi 1753 CCM 90 HP 02/1999 - 11/2004
1.8 TDCi 1753 CCM 115 HP 10/2001 - 04/2005
1.8 TDCi 1753 CCM 100 HP 08/2002 - 11/2004
1.8 Turbo DI / TDDi 1753 CCM 75 HP 08/2001 - 03/2005

The Delphi TA1674 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x2 thread size, with right-hand thread thread type, front axle left fitting position, and 98 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14x2
Thread Type : with right-hand thread
Cone Size [mm] : 13.2
Paired article number : TA1675
Fitting Position : Front Axle Left
Length [mm] : 98
Width [mm] : 42
Height [mm] : 65
  • Vendor DELPHI
  • SKU TA1674
  • Barcode 5012759143179
  • FORD : 98AX3270BA 98AG3290AA 1107015 1074306
  • APEC : AST6040
  • BLUE PRINT : ADT322108
  • BLUE PRINT : ADT32256
  • BORG & BECK : BFA2407
  • BORG & BECK : BFA2584
  • BORG & BECK : BTR4808
  • BOSCH : 0 986 140 425
  • BOSCH : F 026 400 225
  • CORTECO : 49398913
  • FEBI BILSTEIN : 12801
  • FEBI BILSTEIN : 184275
  • FEBI BILSTEIN : 184425
  • FEBI BILSTEIN : 26679
  • FIRST LINE : FTR4808
  • HENGST FILTER : E1242L
  • LEMFÖRDER : 22001 02
  • LUCAS : LFAF435
  • MAHLE : LX 1700
  • MANN-FILTER : C 31 007
  • MEYLE : 716 020 0007
  • MONROE : L16142
  • NAPA : NFA1321
  • NAPA : NST6040
  • Schaeffler FAG : 840 0772 10
  • SKF : VKDY 314016
  • TRW : JTE195
  • WIX FILTERS : WA9626
