DELPHI

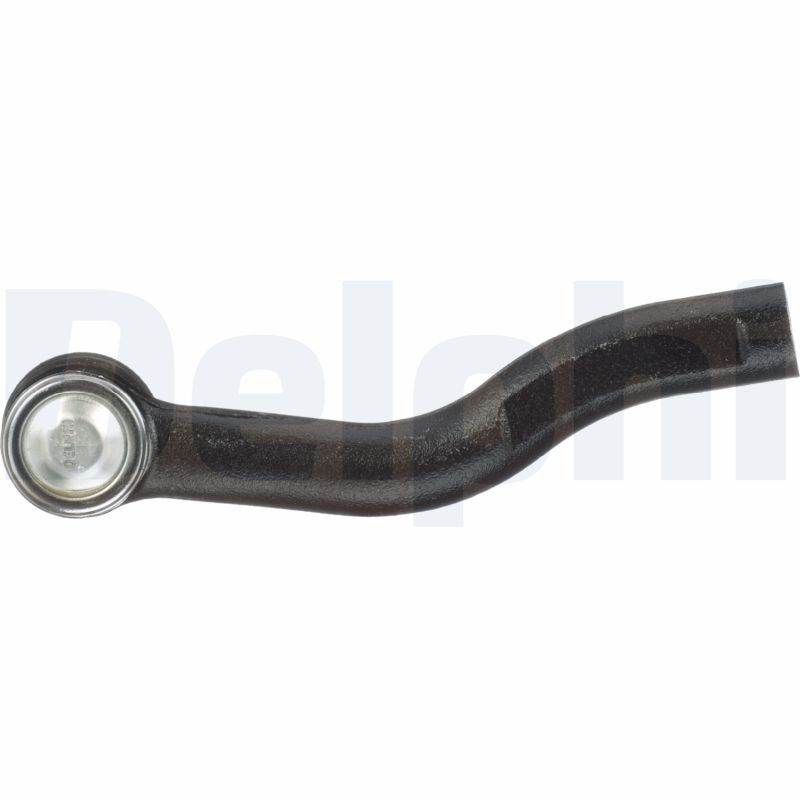

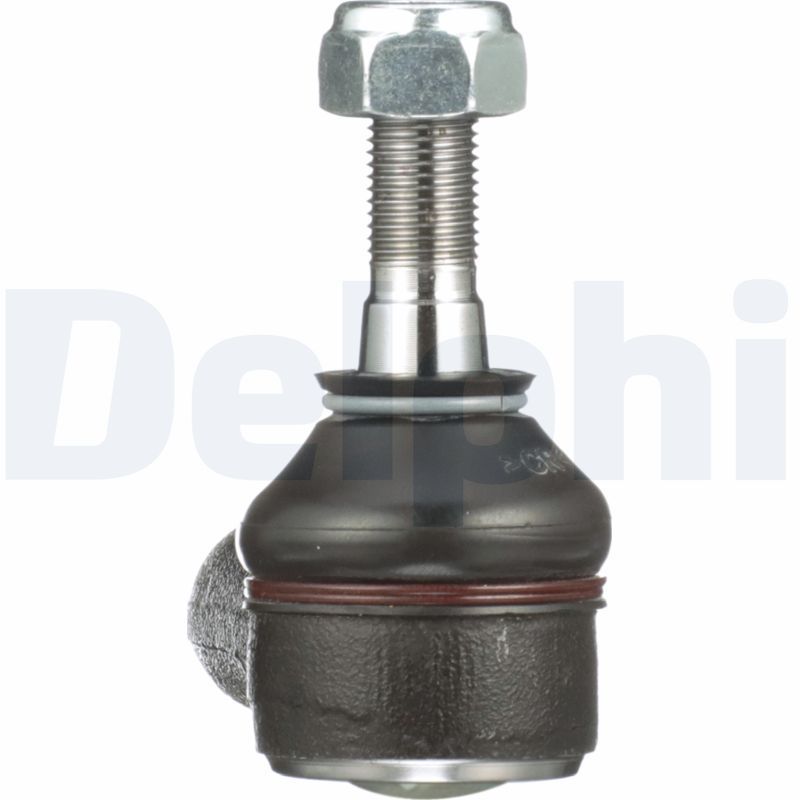

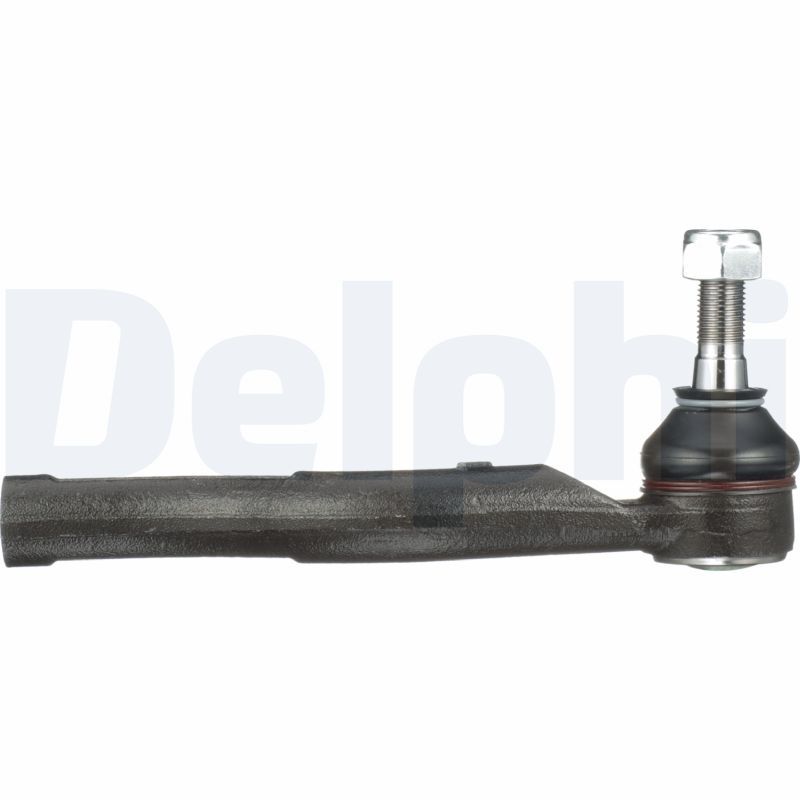

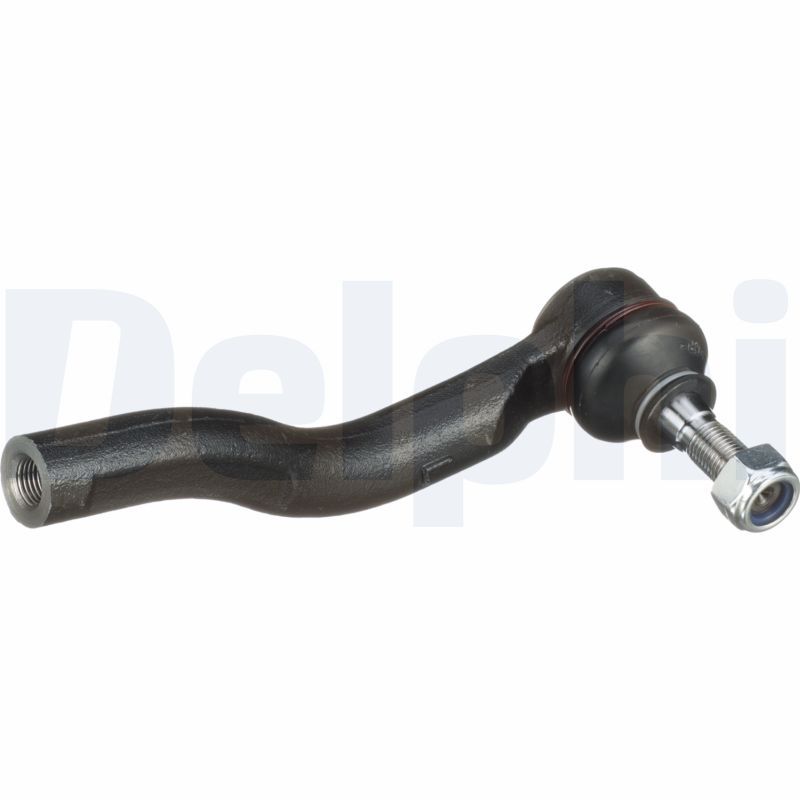

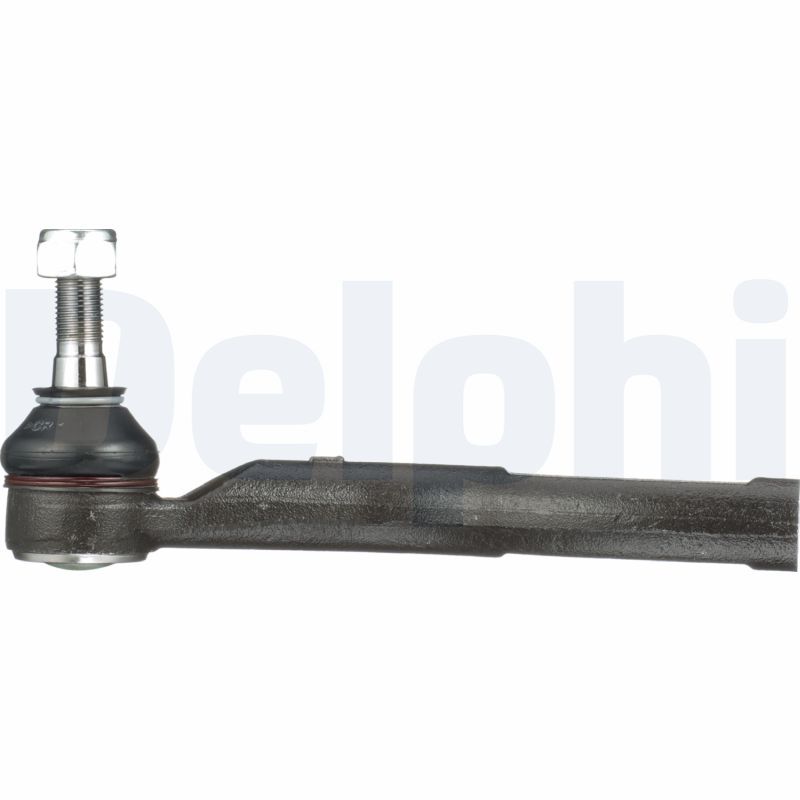

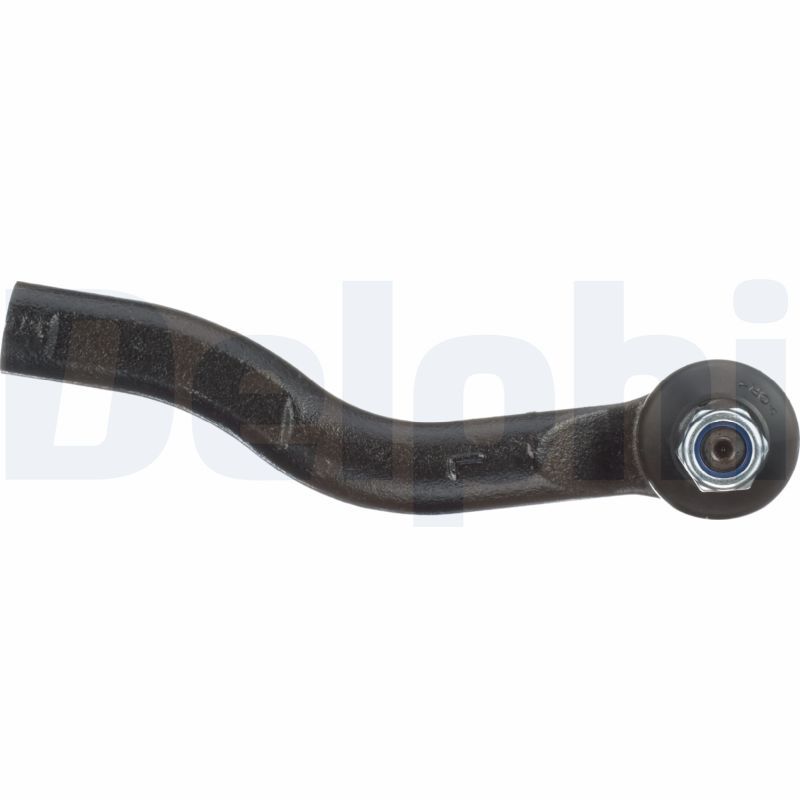

Delphi TA1696 Tie Rod End

5.0/5 65 reviews
SKU: TA1696

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£19.30 inc. VAT

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

TOYOTA
YARIS VERSO / FUN CARGO (_P2_)
Description Cylinder Capacity Horse Power Year
1.3 (NCP20_, NCP22_, NCP20R, NCP22R) 1299 CCM 86 HP 08/1999 - 10/2002
1.5 (NCP21_) 1497 CCM 106 HP 03/2000 - 09/2005
1.4 D-4D (NLP20_, NLP22_) 1364 CCM 75 HP 09/2000 - 09/2005
1.3 (NCP20_, NCP22_, NCP20R, NCP22R) 1299 CCM 84 HP 11/2002 - 09/2005
1.5 (NCP21_) 1497 CCM 105 HP 03/2000 - 09/2005
YARIS VERSO VAN (_P2_)
Description Cylinder Capacity Horse Power Year
1.3 VVTi (NCP22_) 1299 CCM 86 HP 03/2000 - 09/2005
1.4 D4d (NLP22_) 1364 CCM 75 HP 10/2001 - 09/2005
YARIS/VITZ (_P1_)
Description Cylinder Capacity Horse Power Year
1.0 (SCP10_, SCP10R) 998 CCM 68 HP 04/1999 - 09/2005
1.3 (NCP10, SCP12_) 1299 CCM 86 HP 08/1999 - 11/2005
1.4 D-4D (NLP10_, NLP10R) 1364 CCM 75 HP 10/2001 - 09/2005
1.3 (SCP12_, SCP13_, SCP12R, SCP13R) 1298 CCM 87 HP 04/2002 - 09/2005
1.0 (SCP10_, SCP10R) 998 CCM 65 HP 03/2003 - 09/2005

The Delphi TA1696 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M12x1.25 thread size, with right-hand thread thread type, front axle left fitting position, and 198 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M12x1.25
Thread Type : with right-hand thread
Cone Size [mm] : 12.6
Paired article number : TA1697
Fitting Position : Front Axle Left
Length [mm] : 198
Width [mm] : 65
Height [mm] : 90
  • Vendor DELPHI
  • SKU TA1696
  • Barcode 5012759142714
  • TOYOTA : 45047-59025 45047-59035 45047-59026 4504709040 45047-09040 4504709210
  • APEC : AST6683
  • BLUE PRINT : ADBP870082
  • BLUE PRINT : ADT322106
  • BLUE PRINT : ADT38790
  • BORG & BECK : BFA2522
  • BORG & BECK : BTR4848
  • BOSCH : 0 986 140 465
  • CORTECO : 49401694
  • FEBI BILSTEIN : 1004983
  • FEBI BILSTEIN : 184603
  • FEBI BILSTEIN : 23641
  • FEBI BILSTEIN : 33718
  • FIRST LINE : FTR4848
  • HENGST FILTER : E1286L
  • KYB : KTR1231
  • LEMFÖRDER : 25187 01
  • LUCAS : LFAF605
  • MAHLE : LX 2750
  • MANN-FILTER : C 32 014
  • MEYLE : 30-16 020 0000
  • MONROE : L13134
  • NAPA : NST6683
  • Schaeffler FAG : 840 0606 10
  • SKF : VKDY 811006
  • TRW : JTE7569
  • WIX FILTERS : 49010
  • User manual
