DELPHI

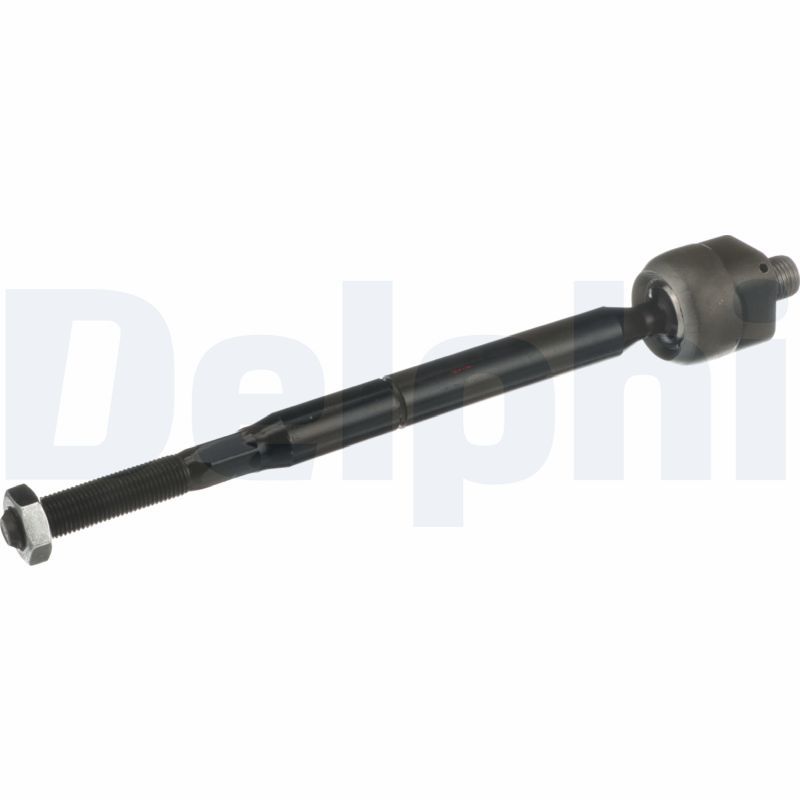

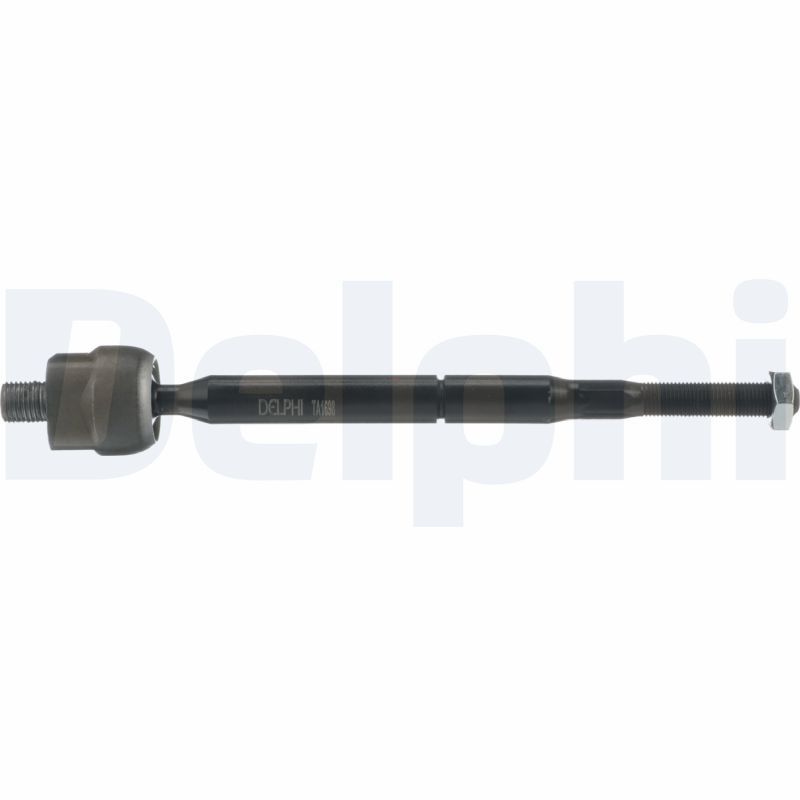

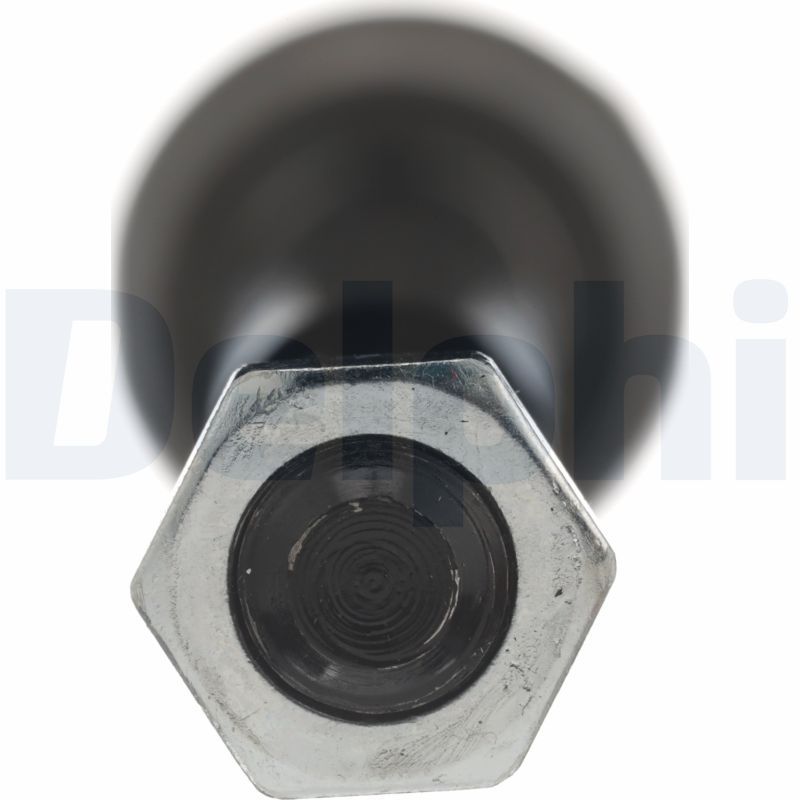

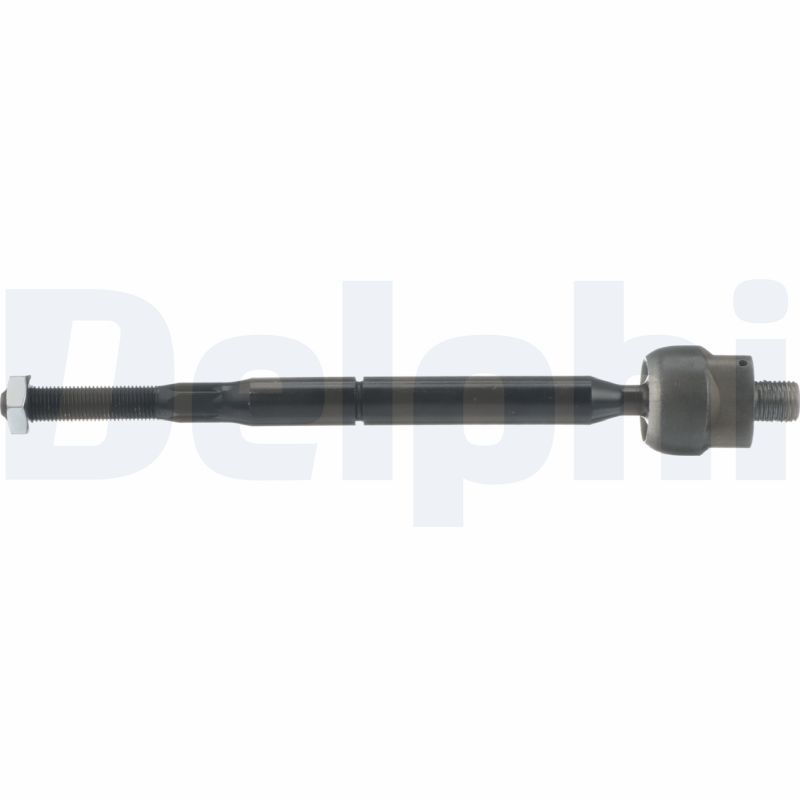

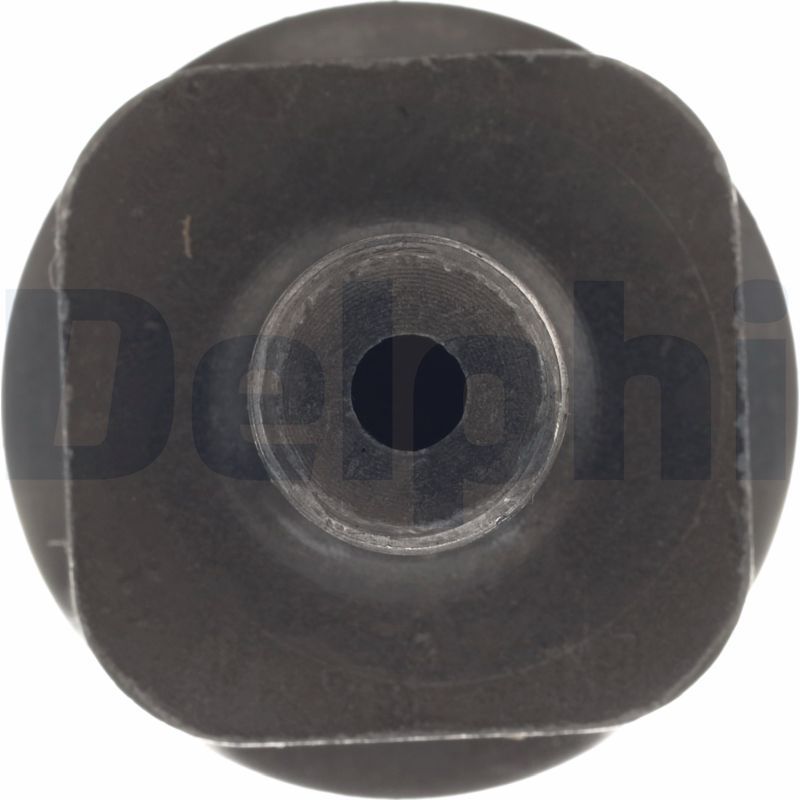

Delphi TA1698 Inner Tie Rod

SKU: TA1698
Your selected vehicle
Out of stock
Out of Stock
£14.17 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
YARIS VERSO / FUN CARGO (_P2_)
Description Cylinder Capacity Horse Power Year
1.3 (NCP20_, NCP22_, NCP20R, NCP22R) 1299 CCM 86 HP 08/1999 - 10/2002
1.5 (NCP21_) 1497 CCM 106 HP 03/2000 - 09/2005
1.4 D-4D (NLP20_, NLP22_) 1364 CCM 75 HP 09/2000 - 09/2005
1.3 (NCP20_, NCP22_, NCP20R, NCP22R) 1299 CCM 84 HP 11/2002 - 09/2005
1.5 (NCP21_) 1497 CCM 105 HP 03/2000 - 09/2005
YARIS VERSO VAN (_P2_)
Description Cylinder Capacity Horse Power Year
1.3 VVTi (NCP22_) 1299 CCM 86 HP 03/2000 - 09/2005
1.4 D4d (NLP22_) 1364 CCM 75 HP 10/2001 - 09/2005
YARIS/VITZ (_P1_)
Description Cylinder Capacity Horse Power Year
1.0 (SCP10_, SCP10R) 998 CCM 68 HP 04/1999 - 09/2005
1.3 (NCP10, SCP12_) 1299 CCM 86 HP 08/1999 - 11/2005
1.4 D-4D (NLP10_, NLP10R) 1364 CCM 75 HP 10/2001 - 09/2005
1.3 (SCP12_, SCP13_, SCP12R, SCP13R) 1298 CCM 87 HP 04/2002 - 09/2005
1.0 (SCP10_, SCP10R) 998 CCM 65 HP 03/2003 - 09/2005

The Delphi TA1698 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1,5 thread size 1, M12x1.25 thread size 2, front axle fitting position, and 256 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod
Thread Size 1 : M14x1,5
Thread Size 2 : M12x1.25
Fitting Position : Front Axle
Length [mm] : 256
Width [mm] : 35
Height [mm] : 35
Axle Joint Length [mm] : 240
  • Vendor DELPHI
  • SKU TA1698
  • Barcode 5012759142691
  • TOYOTA : 45503-59045 45503-52010
  • APEC : AST6542
  • BLUE PRINT : ADT322110
  • BLUE PRINT : ADT38789
  • BORG & BECK : BFA2272
  • BORG & BECK : BTR4850
  • BOSCH : 0 986 141 066
  • CORTECO : 49396858
  • Fahren : FFA1114
  • FEBI BILSTEIN : 183995
  • FEBI BILSTEIN : 23645
  • FIRST LINE : FTR4850
  • HELLA : 8ZA 366 131-061
  • HENGST FILTER : E1155L
  • KYB : KRE1134
  • LEMFÖRDER : 25186 01
  • LUCAS : LFAF320
  • MAHLE : LX 2870
  • MANN-FILTER : C 22 009
  • MEYLE : 30-12 321 0038
  • MEYLE : 30-16 031 0075
  • NAPA : NFA1210
  • NAPA : NST6542
  • Schaeffler FAG : 840 0019 10
  • SKF : VKDY 821001
  • TRW : JAR7527
  • UFI : 30.625.00
  • WIX FILTERS : WA9671
