Delphi TA1741 Tie Rod End - 1
Delphi TA1741 Tie Rod End video
Delphi TA1741 Tie Rod End - 1
Delphi TA1741 Tie Rod End video
DELPHI

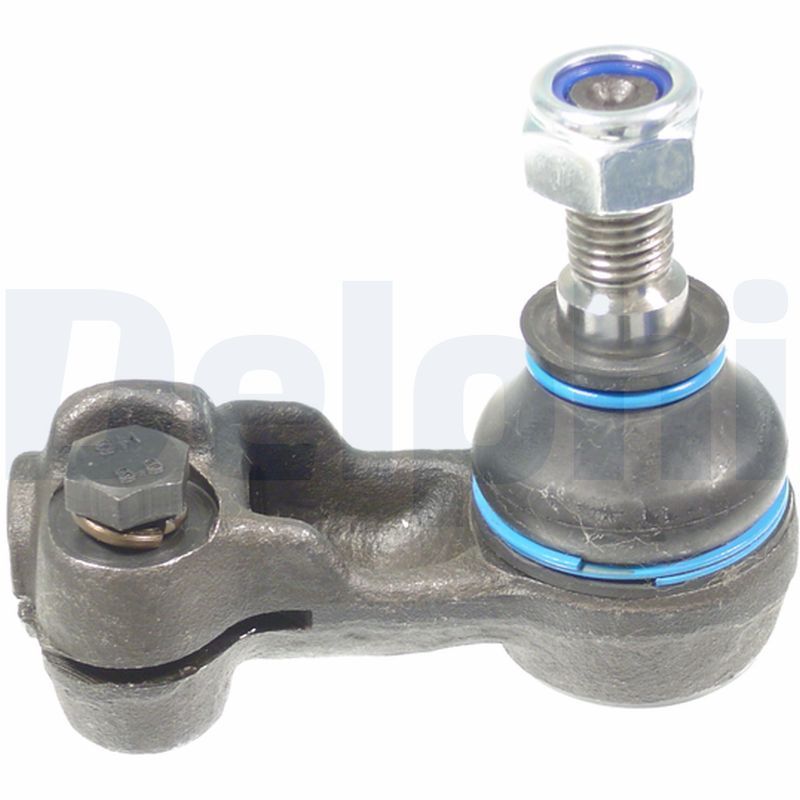

Delphi TA1741 Tie Rod End

SKU: TA1741
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£17.08 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

LAND ROVER
FREELANDER I (L314)
Description Cylinder Capacity Horse Power Year
1.8 i 16V 4x4 1796 CCM 120 HP 02/1998 - 11/2000
2.0 DI 4x4 1994 CCM 98 HP 02/1998 - 11/2000
2.5 V6 4x4 2497 CCM 177 HP 11/2000 - 10/2006
2.0 Td4 4x4 1951 CCM 112 HP 11/2000 - 10/2006
1.8 16V 4x4 1796 CCM 117 HP 04/1998 - 10/2006
2.0 Td4 4x4 1951 CCM 109 HP 03/2001 - 10/2006
FREELANDER I Soft Top (L314)
Description Cylinder Capacity Horse Power Year
1.8 i 16V 4x4 1796 CCM 120 HP 02/1998 - 10/2006
2.0 DI 4x4 1994 CCM 98 HP 02/1998 - 10/2006
1.8 4x4 1796 CCM 117 HP 10/2000 - 10/2006
2.0 TD4 4x4 1951 CCM 112 HP 10/2000 - 10/2006
2.5 V6 4x4 2497 CCM 177 HP 11/2000 - 10/2006

The Delphi TA1741 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16x1.5 thread size, with right-hand thread thread type, front axle right fitting position, and 100 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M16x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 14.7
Paired article number : TA1740
Fitting Position : Front Axle Right
Length [mm] : 100
Width [mm] : 55
Height [mm] : 75
  • Vendor DELPHI
  • SKU TA1741
  • Barcode 5012759176191
  • JAGUAR : QJB100220
  • LAND ROVER : QJB100220 JQB100220
  • APEC : AST6065
  • BLUE PRINT : ADJ138702
  • BORG & BECK : BTR4920
  • BOSCH : 0 986 140 484
  • CORTECO : 49399345
  • FEBI BILSTEIN : 30121
  • FEBI BILSTEIN : 34546
  • FIRST LINE : FTR4920
  • LEMFÖRDER : 35305 01
  • MEYLE : 53-16 020 0001
  • MONROE : L17119
  • NAPA : NST6065
  • Schaeffler FAG : 840 0701 10
  • SKF : VKDY 317503
  • TRW : JTE1123
