Delphi TA1758 Inner Tie Rod - 1
Delphi TA1758 Inner Tie Rod video
Delphi TA1758 Inner Tie Rod - 1
Delphi TA1758 Inner Tie Rod video
DELPHI

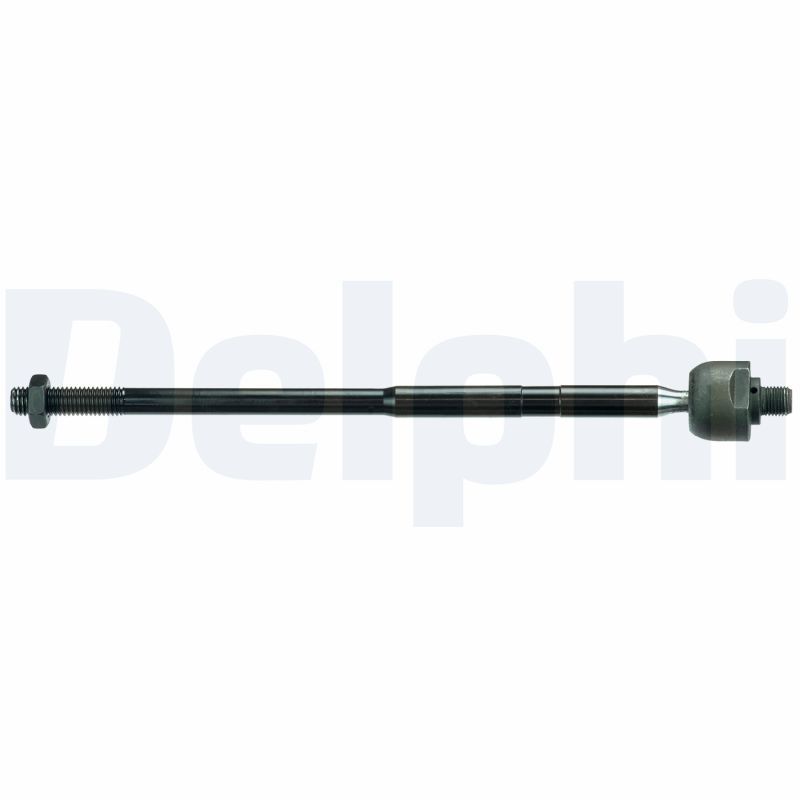

Delphi TA1758 Inner Tie Rod

SKU: TA1758
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£15.53 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
FOCUS I Estate Van (DNW)
Description Cylinder Capacity Horse Power Year
1.8 TDDi 1753 CCM 75 HP 08/1999 - 03/2005
1.8 TDDi 1753 CCM 90 HP 08/1998 - 03/2005
1.8 TDCi 1753 CCM 101 HP 08/2002 - 03/2005
FOCUS I (DAW, DBW)
Description Cylinder Capacity Horse Power Year
1.4 16V 1388 CCM 75 HP 10/1998 - 11/2004
1.6 16V 1596 CCM 100 HP 10/1998 - 11/2004
1.8 16V 1796 CCM 115 HP 10/1998 - 11/2004
2.0 16V 1988 CCM 131 HP 10/1998 - 11/2004
1.8 Turbo DI / TDDi 1753 CCM 90 HP 10/1998 - 11/2004
1.8 DI / TDDi 1753 CCM 75 HP 08/1999 - 11/2004
1.8 TDCi 1753 CCM 115 HP 03/2001 - 11/2004
1.8 TDCi 1753 CCM 100 HP 08/2002 - 11/2004
1.4 16V 1388 CCM 75 HP 10/1998 - 09/1999
1.8 16V BiFuel 1796 CCM 115 HP 09/2002 - 07/2004
FOCUS I Turnier (DNW)
Description Cylinder Capacity Horse Power Year
1.4 16V 1388 CCM 75 HP 02/1999 - 11/2004
1.6 16V 1596 CCM 100 HP 02/1999 - 11/2004
1.8 16V 1796 CCM 115 HP 02/1999 - 11/2004
2.0 16V 1988 CCM 131 HP 02/1999 - 11/2004
1.8 Turbo DI / TDDi 1753 CCM 90 HP 02/1999 - 11/2004
1.8 DI / TDDi 1753 CCM 75 HP 08/1999 - 11/2004
1.8 TDCi 1753 CCM 115 HP 03/2001 - 11/2004
1.8 TDCi 1753 CCM 100 HP 08/2002 - 11/2004
1.8 BiFuel 1796 CCM 111 HP 02/2003 - 01/2005
FOCUS I Saloon (DFW)
Description Cylinder Capacity Horse Power Year
1.4 16V 1388 CCM 75 HP 02/1999 - 11/2004
1.6 16V 1596 CCM 100 HP 02/1999 - 11/2004
1.8 16V 1796 CCM 115 HP 02/1999 - 11/2004
2.0 16V 1988 CCM 131 HP 02/1999 - 11/2004
1.8 Turbo DI / TDDi 1753 CCM 90 HP 02/1999 - 11/2004
1.8 TDCi 1753 CCM 115 HP 10/2001 - 04/2005
1.8 TDCi 1753 CCM 100 HP 08/2002 - 11/2004
1.8 Turbo DI / TDDi 1753 CCM 75 HP 08/2001 - 03/2005

The Delphi TA1758 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14 x 1,5 thread size 1, M14x2 thread size 2, front axle fitting position, and 357.7 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod
Thread Size 1 : M14 x 1,5
Thread Size 2 : M14x2
Fitting Position : Front Axle
Length [mm] : 357.7
Width [mm] : 36
Height [mm] : 36
Axle Joint Length [mm] : 344
  • Vendor DELPHI
  • SKU TA1758
  • Barcode 5012759238608
  • FORD : 3707333 3707533 XS4C3280BA
  • APEC : AST6041
  • BORG & BECK : BTR5129
  • CORTECO : 49398874
  • FEBI BILSTEIN : 17921
  • FEBI BILSTEIN : 17923
  • FIRST LINE : FTR5129
  • LEMFÖRDER : 25491 01
  • MEYLE : 716 031 0005
  • MONROE : L16215
  • NAPA : NST6041
  • Schaeffler FAG : 840 0130 10
  • Schaeffler FAG : 840 0292 10
  • SKF : VKDY 324005
  • TRW : JAR116
