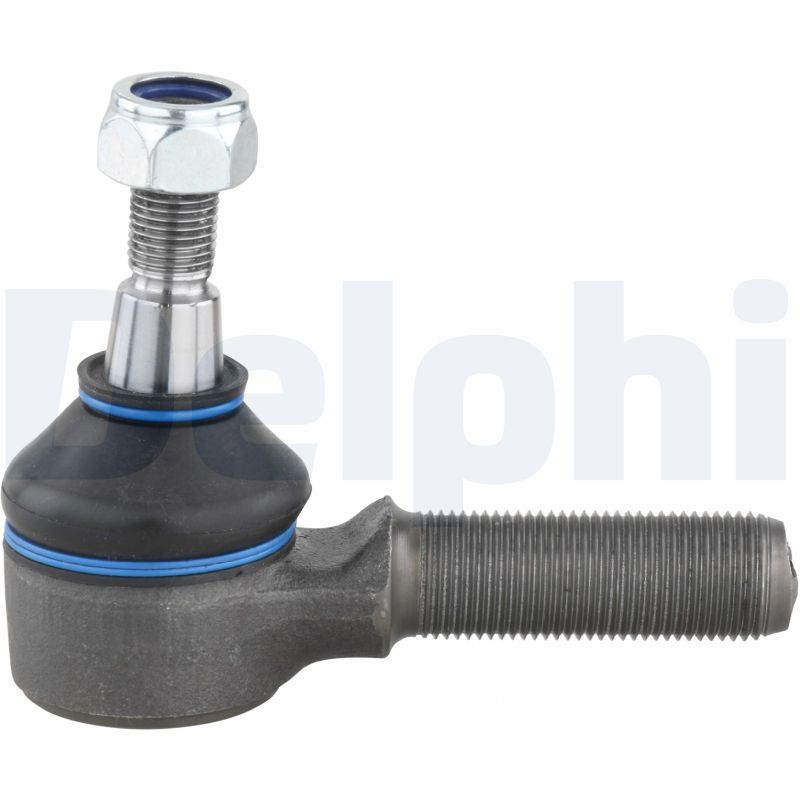

Delphi TA1759 Tie Rod End - 1

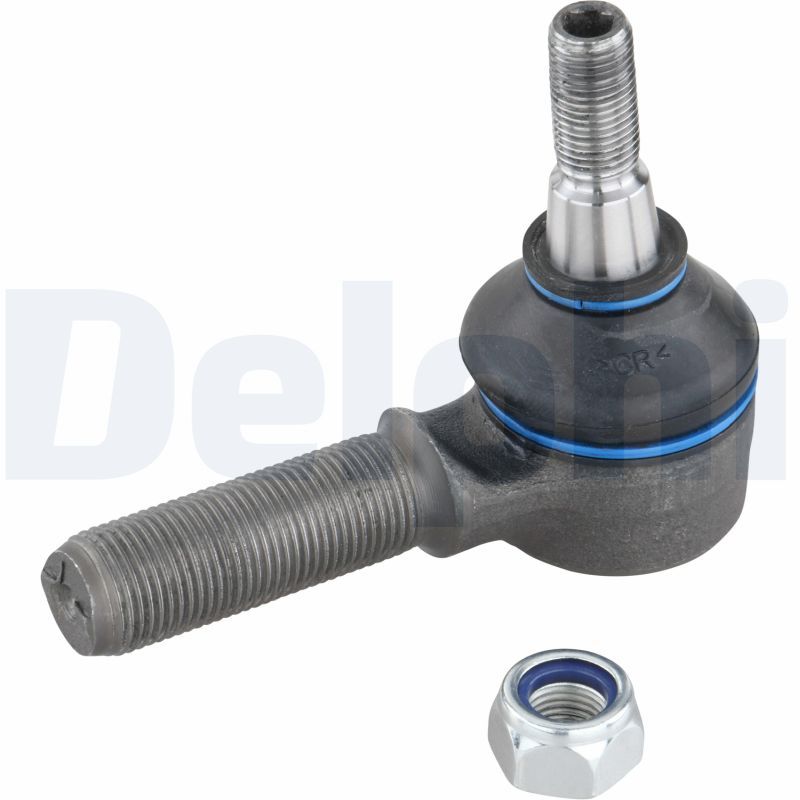

Delphi TA1759 Tie Rod End - 2

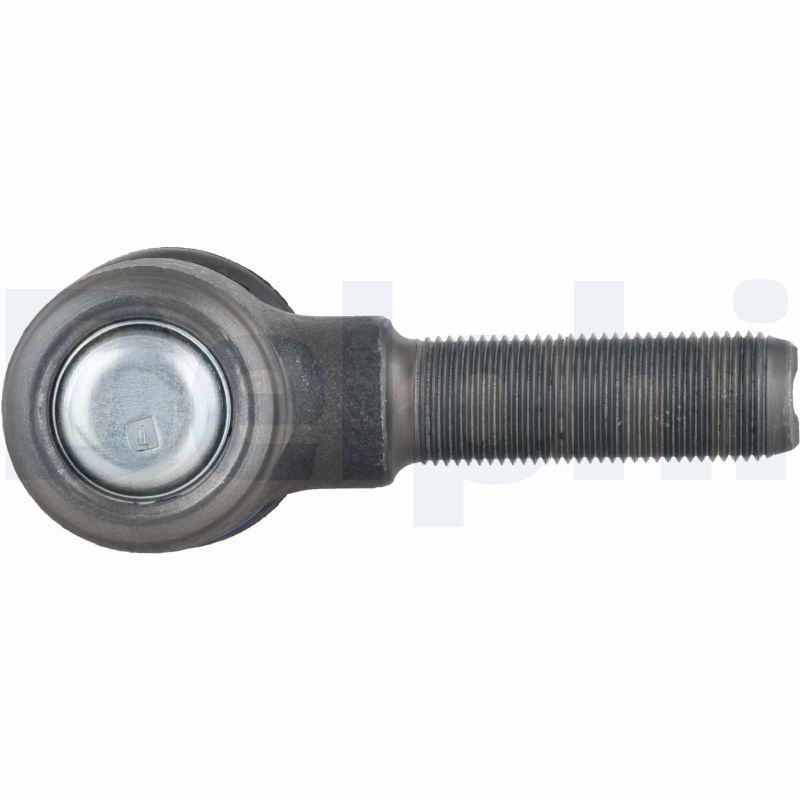

Delphi TA1759 Tie Rod End - 3

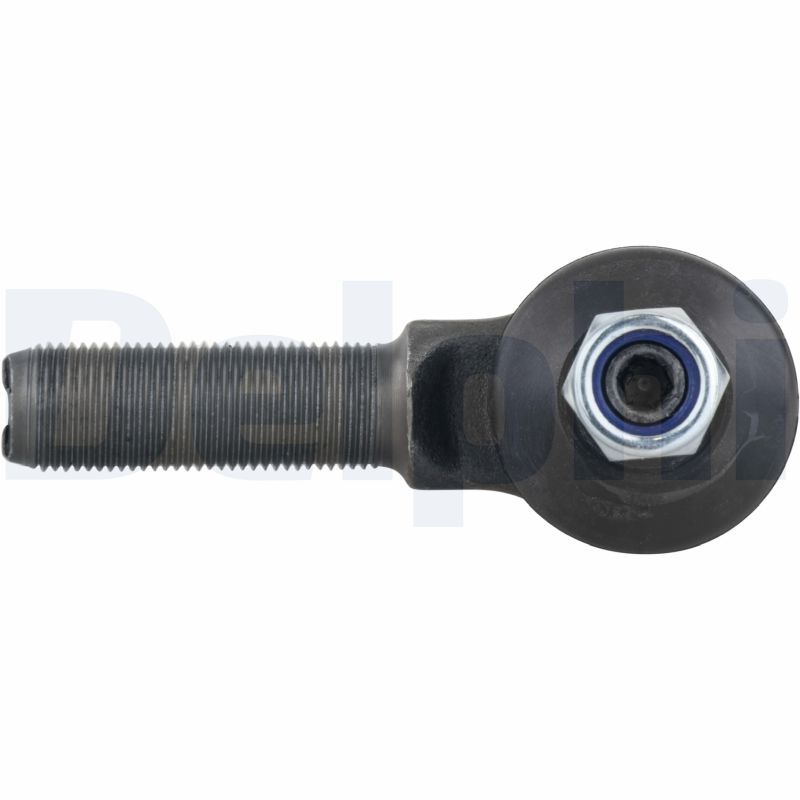

Delphi TA1759 Tie Rod End - 4

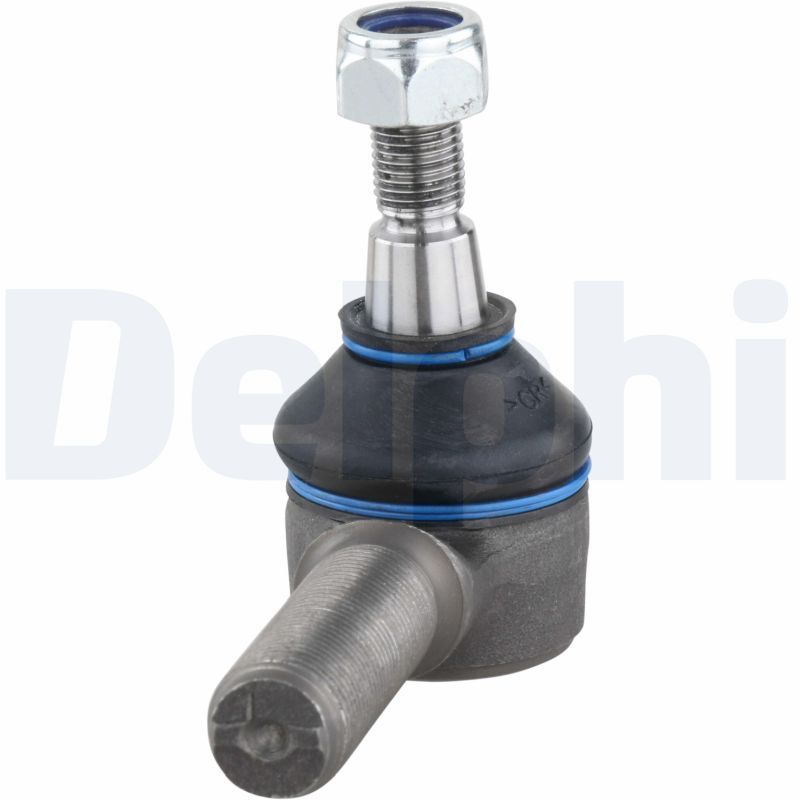

Delphi TA1759 Tie Rod End - 5

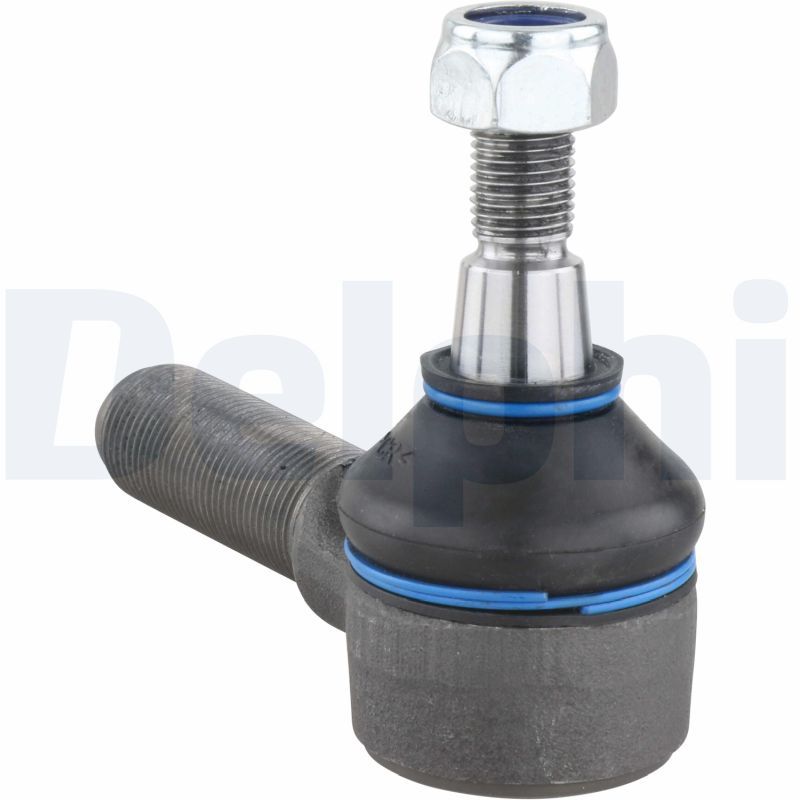

Delphi TA1759 Tie Rod End - 6
Delphi TA1759 Tie Rod End video
DELPHI

Delphi TA1759 Tie Rod End

SKU: TA1759
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£15.69 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

LAND ROVER
DISCOVERY Mk II (L318)
Description Cylinder Capacity Horse Power Year
2.5 Td5 4x4 2495 CCM 139 HP 11/1998 - 06/2004
4.0 V8 4x4 3947 CCM 185 HP 11/1998 - 06/2004
RANGE ROVER Mk II (P38A)
Description Cylinder Capacity Horse Power Year
2.5 D 4x4 2497 CCM 136 HP 07/1994 - 03/2002
3.9 4x4 3947 CCM 190 HP 07/1994 - 03/2002
4.6 4x4 4553 CCM 224 HP 07/1994 - 03/2002
4.0 4x4 3947 CCM 185 HP 01/1995 - 03/2002
4.6 4x4 4554 CCM 218 HP 06/1998 - 03/2002

The Delphi TA1759 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M18x1.5 thread size, with right-hand thread thread type, front axle fitting position, and 113 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M18x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 14
Fitting Position : Front Axle
Length [mm] : 113
Width [mm] : 43
Height [mm] : 85
  • Vendor DELPHI
  • SKU TA1759
  • Barcode 5012759236611
  • JAGUAR : QFS000010
  • ROVER : QFS100060 STC1871
  • LAND ROVER : QFS000010 QFS100060 STC1871
  • APEC : AST6062
  • BLUE PRINT : ADJ138722
  • BORG & BECK : BTR4918
  • CORTECO : 49400440
  • FEBI BILSTEIN : 14124
  • FIRST LINE : FTR4918
  • LEMFÖRDER : 27205 01
  • MEYLE : 53-16 020 0003
  • MONROE : L17124
  • NAPA : NST6062
  • Schaeffler FAG : 840 0698 10
  • SKF : VKDY 317508
  • TRW : JTE1719
