Delphi TA1772 Tie Rod End - 1
Delphi TA1772 Tie Rod End video
Delphi TA1772 Tie Rod End - 1
Delphi TA1772 Tie Rod End video
DELPHI

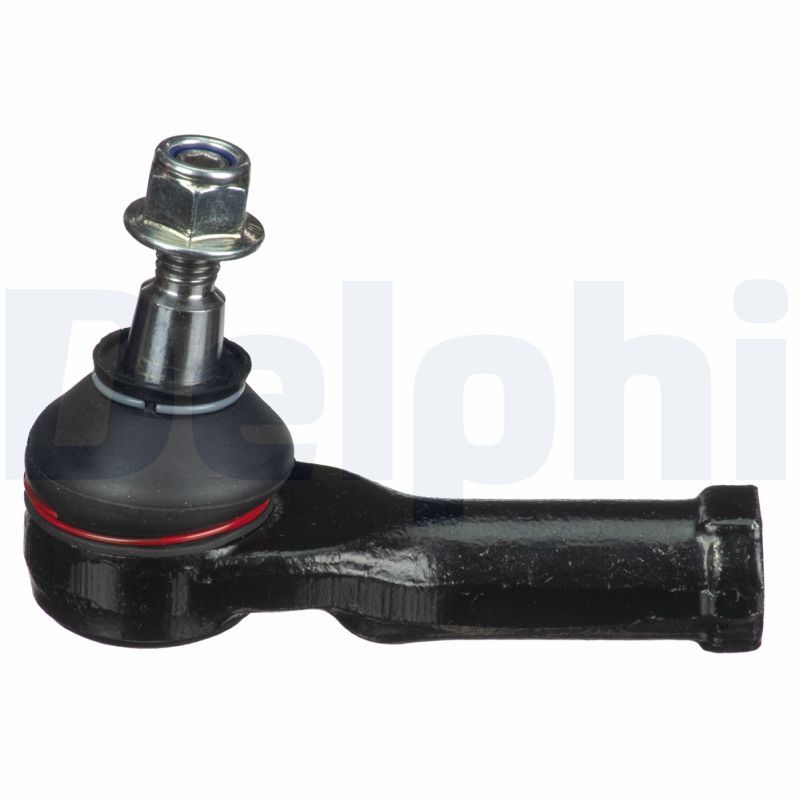

Delphi TA1772 Tie Rod End

SKU: TA1772
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£14.08 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
MONDEO III (B5Y)
Description Cylinder Capacity Horse Power Year
1.8 16V 1798 CCM 110 HP 10/2000 - 03/2007
1.8 16V 1798 CCM 125 HP 10/2000 - 03/2007
2.0 16V 1999 CCM 146 HP 10/2000 - 03/2007
2.5 V6 24V 2495 CCM 170 HP 10/2000 - 03/2007
2.0 16V DI / TDDi / TDCi 1998 CCM 90 HP 10/2000 - 03/2007
2.0 16V TDDi / TDCi 1998 CCM 115 HP 10/2000 - 03/2007
2.0 TDCi 1998 CCM 130 HP 10/2001 - 03/2007
ST220 2967 CCM 226 HP 04/2002 - 03/2007
1.8 SCi 1798 CCM 130 HP 06/2003 - 03/2007
2.2 TDCi 2198 CCM 155 HP 09/2004 - 03/2007
3.0 V6 24V 2967 CCM 204 HP 09/2004 - 03/2007
2.2 TDCi 2198 CCM 150 HP 09/2004 - 03/2007
2.0 DI 1998 CCM 125 HP 10/2000 - 03/2007
MONDEO III Turnier (BWY)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 150 HP 09/2004 - 03/2007
1.8 16V 1798 CCM 110 HP 10/2000 - 03/2007
1.8 16V 1798 CCM 125 HP 10/2000 - 03/2007
2.0 16V 1999 CCM 146 HP 10/2000 - 03/2007
2.5 V6 24V 2495 CCM 170 HP 10/2000 - 03/2007
2.0 16V DI / TDDi / TDCi 1998 CCM 90 HP 10/2000 - 03/2007
2.0 16V TDDi / TDCi 1998 CCM 115 HP 10/2000 - 03/2007
2.0 TDCi 1998 CCM 130 HP 10/2001 - 03/2007
ST220 2967 CCM 226 HP 04/2002 - 03/2007
1.8 SCi 1798 CCM 130 HP 06/2003 - 03/2007
2.2 TDCi 2198 CCM 155 HP 09/2004 - 03/2007
3.0 V6 24V 2967 CCM 204 HP 09/2004 - 03/2007
MONDEO Mk III Saloon (B4Y)
Description Cylinder Capacity Horse Power Year
1.8 16V 1798 CCM 110 HP 10/2000 - 03/2007
1.8 16V 1798 CCM 125 HP 10/2000 - 03/2007
2.0 16V 1999 CCM 146 HP 10/2000 - 03/2007
2.5 V6 24V 2495 CCM 170 HP 10/2000 - 03/2007
2.0 16V DI / TDDi / TDCi 1998 CCM 90 HP 10/2000 - 03/2007
2.0 16V TDDi / TDCi 1998 CCM 115 HP 10/2000 - 03/2007
2.0 TDCi 1998 CCM 130 HP 10/2001 - 03/2007
ST220 2967 CCM 226 HP 04/2002 - 03/2007
1.8 SCi 1798 CCM 130 HP 06/2003 - 03/2007
2.2 TDCi 2198 CCM 155 HP 09/2004 - 03/2007
3.0 V6 24V 2967 CCM 204 HP 09/2004 - 03/2007
2.2 TDCi 2198 CCM 150 HP 09/2004 - 03/2007
2.0 DI 1998 CCM 125 HP 10/2000 - 03/2007
JAGUAR
X-TYPE I (X400)
Description Cylinder Capacity Horse Power Year
2.2 D 2198 CCM 150 HP 10/2005 - 11/2009
2.5 V6 All-wheel Drive 2495 CCM 196 HP 06/2001 - 11/2009
3.0 V6 All-wheel Drive 2967 CCM 230 HP 06/2001 - 12/2008
2.1 V6 2099 CCM 156 HP 03/2002 - 11/2009
2.0 D 1998 CCM 130 HP 07/2003 - 11/2009
2.2 D 2198 CCM 155 HP 10/2005 - 11/2009
2.2 D 2198 CCM 146 HP 01/2007 - 11/2009
X-TYPE I Estate (X400)
Description Cylinder Capacity Horse Power Year
2.2 D 2198 CCM 150 HP 10/2005 - 12/2009
2.0 D 1998 CCM 130 HP 02/2004 - 12/2009
2.5 2495 CCM 196 HP 02/2004 - 12/2009
3.0 2967 CCM 230 HP 02/2004 - 12/2009
2.2 D 2198 CCM 155 HP 10/2005 - 12/2009
2.1 V6 2099 CCM 156 HP 11/2003 - 03/2009
2.2 D 2198 CCM 146 HP 01/2007 - 12/2009

The Delphi TA1772 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16x1.5 thread size, with right-hand thread thread type, front axle fitting position, and 115 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M16x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 12.6
Fitting Position : Front Axle
Length [mm] : 115
Width [mm] : 45
Height [mm] : 95
  • Vendor DELPHI
  • SKU TA1772
  • Barcode 5012759238691
  • FORD : 1138313 1138314 1S7C3290AB 1S7C3290BB 1S7J3290AB 1S7J3290BB 4118933 4118934
  • JAGUAR : C2S12013 C2S47357
  • APEC : AST6049
  • BLUE PRINT : ADJ138718
  • BORG & BECK : BTR4936
  • CORTECO : 49398689
  • FEBI BILSTEIN : 21849
  • FEBI BILSTEIN : 31256
  • FIRST LINE : FTR4936
  • LEMFÖRDER : 25812 01
  • LEMFÖRDER : 27704 02
  • MEYLE : 716 020 0014
  • MONROE : L16145
  • NAPA : NST6049
  • Schaeffler FAG : 840 0774 10
  • SKF : VKDY 314009
  • TRW : JTE1217
  • TRW : JTE768
  • User manual
