Delphi TA1773 Tie Rod End
Your selected vehicle
Regular price
£18.34
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

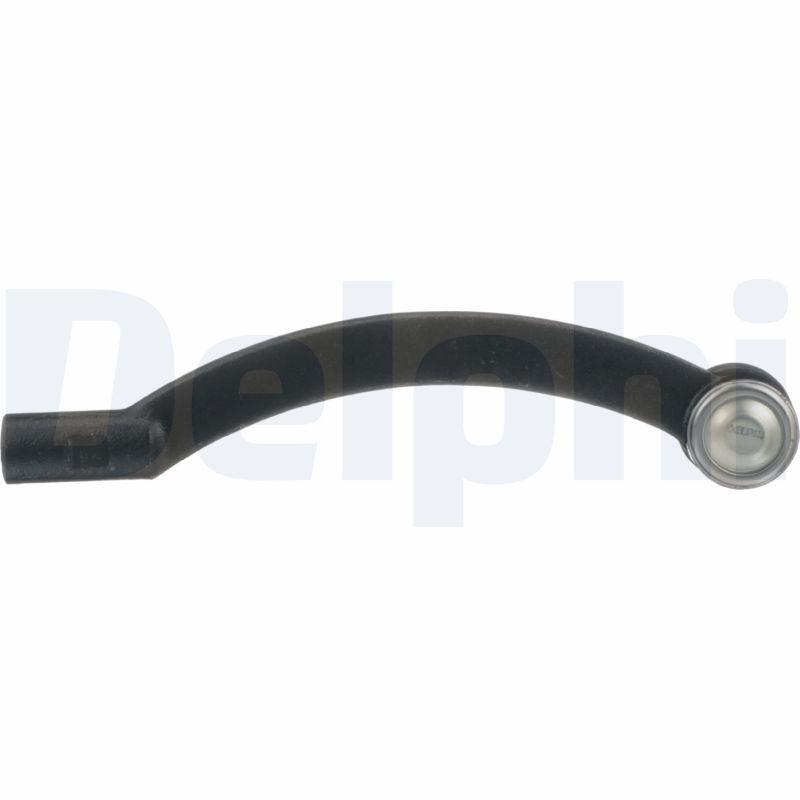

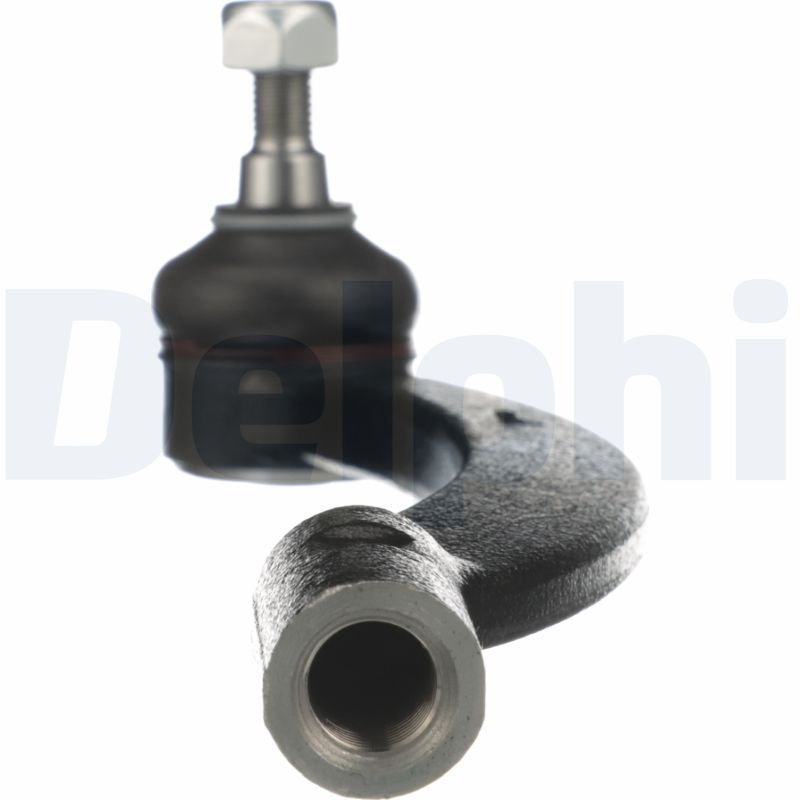

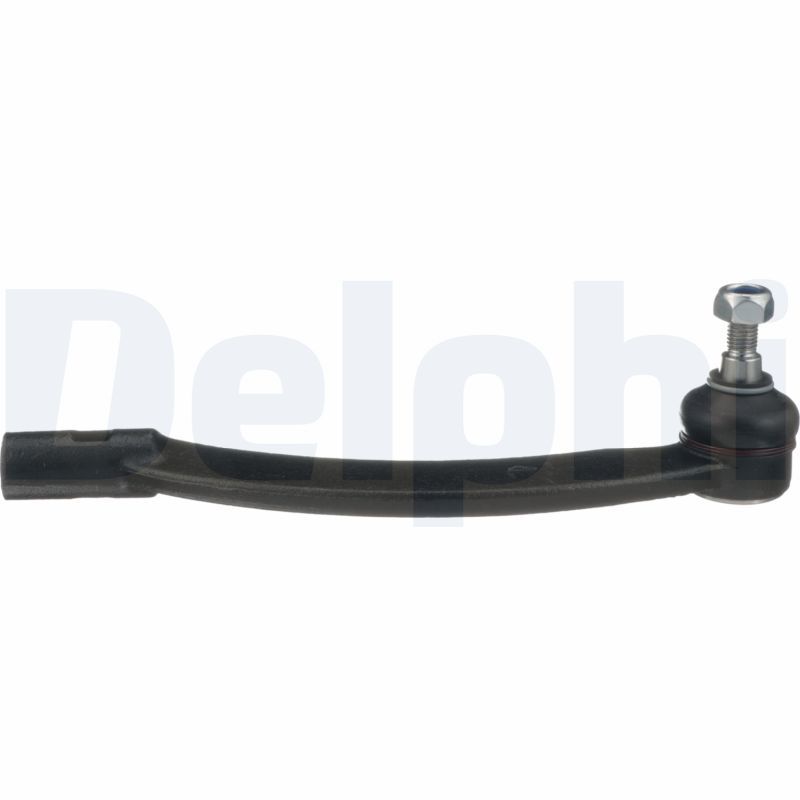

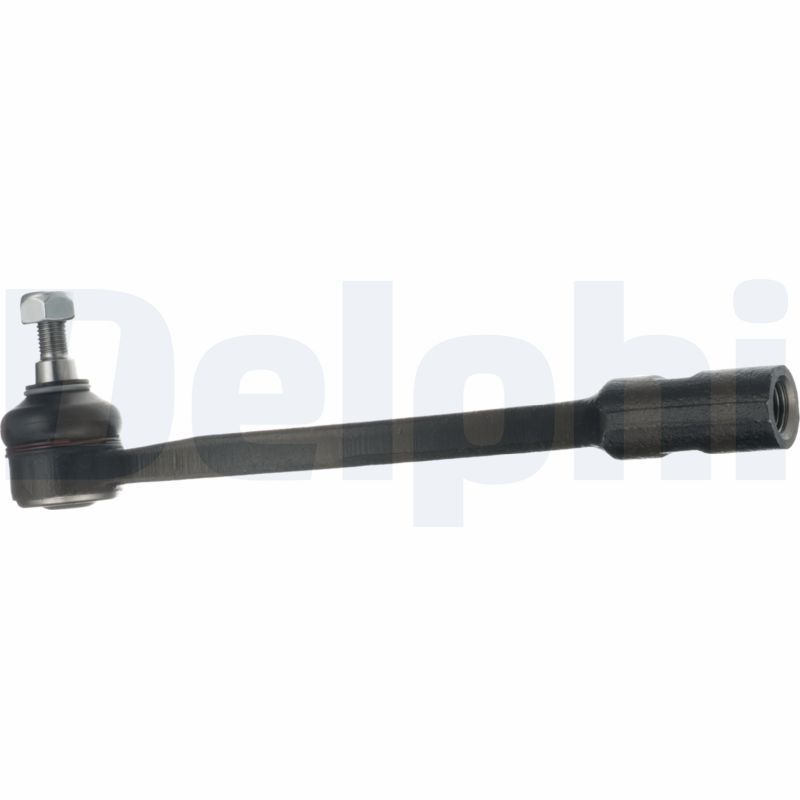

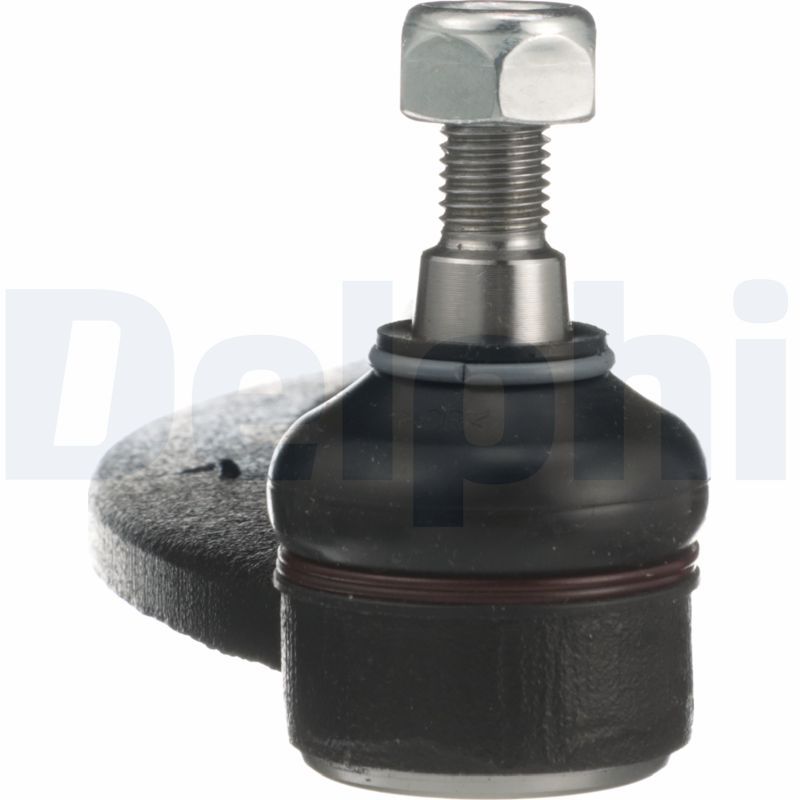

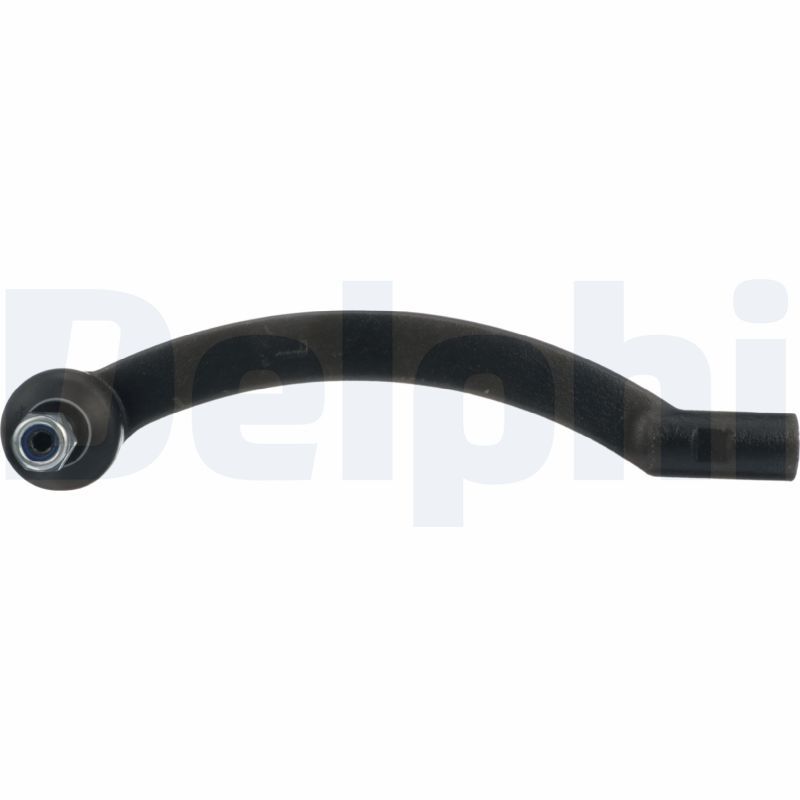

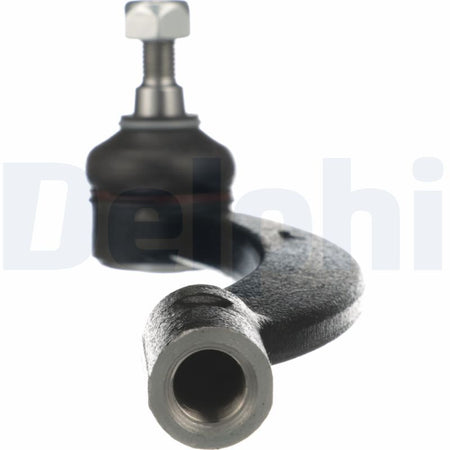

The Delphi TA1773 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle left fitting position, and 275 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.
Function :
Tie Rod End
Thread Size :
M14x1.5
Thread Type :
with right-hand thread
Cone Size [mm] :
12.1
Paired article number :
TA1774
Fitting Position :
Front Axle Left
Length [mm] :
275
Width [mm] :
92
Height [mm] :
75
- Vendor DELPHI
- SKU TA1773
- BMW : 32216754565
- MINI : 3221 6754 565
- APEC : AST6321
- BLUE PRINT : ADG08780
- BORG & BECK : BTR5023
- CORTECO : 49400326
- FEBI BILSTEIN : 21495
- FIRST LINE : FTR5023
- LEMFÖRDER : 26707 01
- MEYLE : 316 020 0004
- MONROE : L11112
- NAPA : NST6321
- Schaeffler FAG : 840 0950 10
- SKF : VKDY 318502
- TRW : JTE1099
