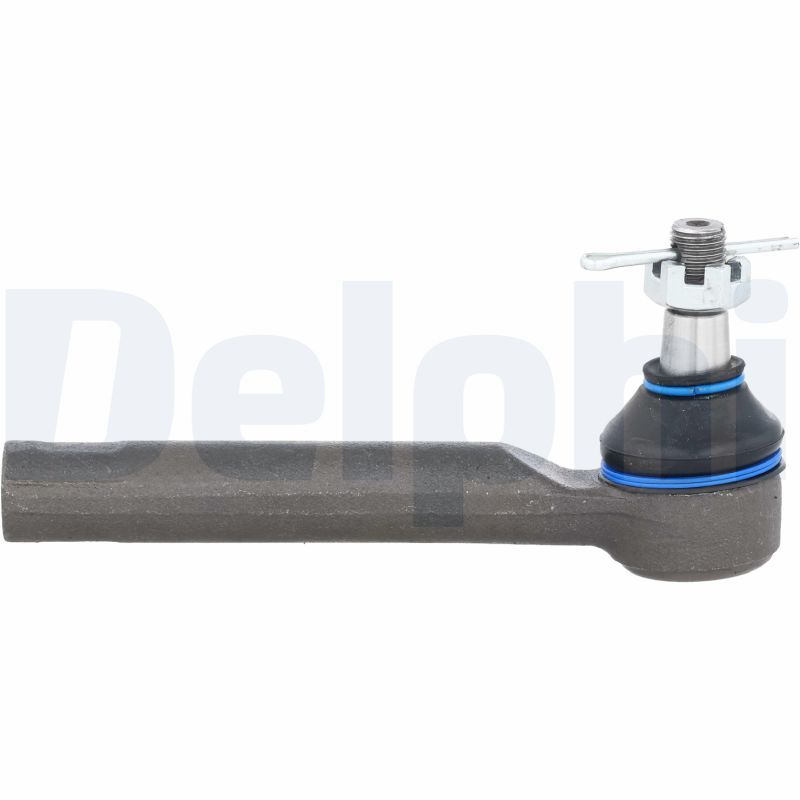

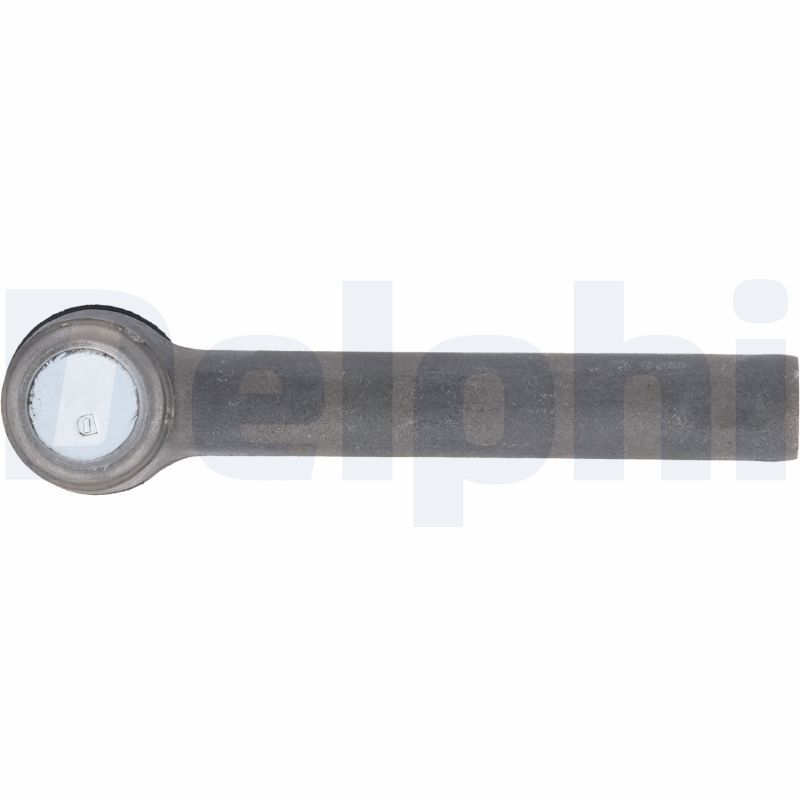

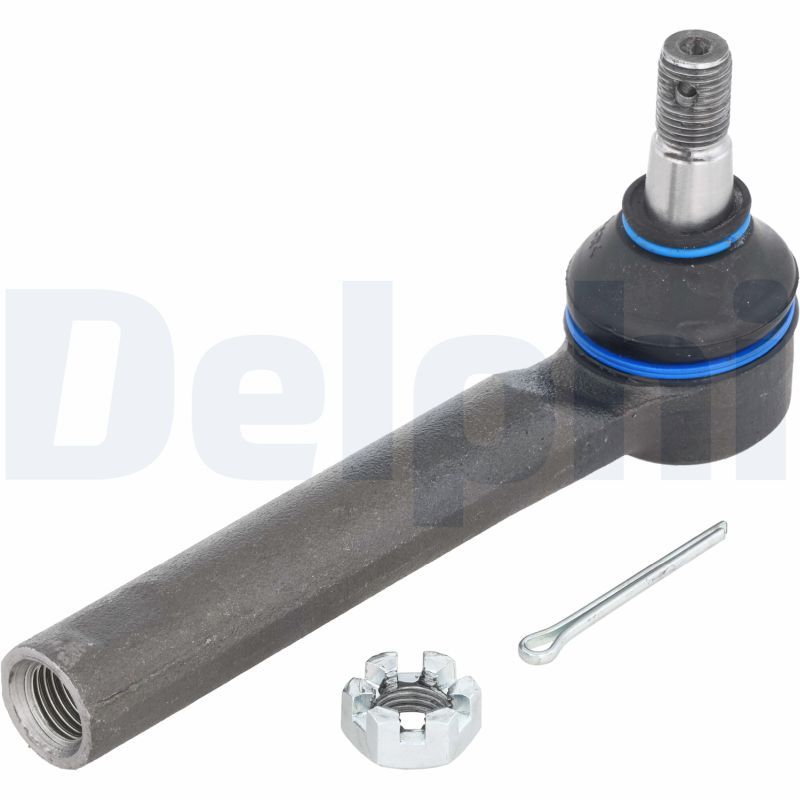

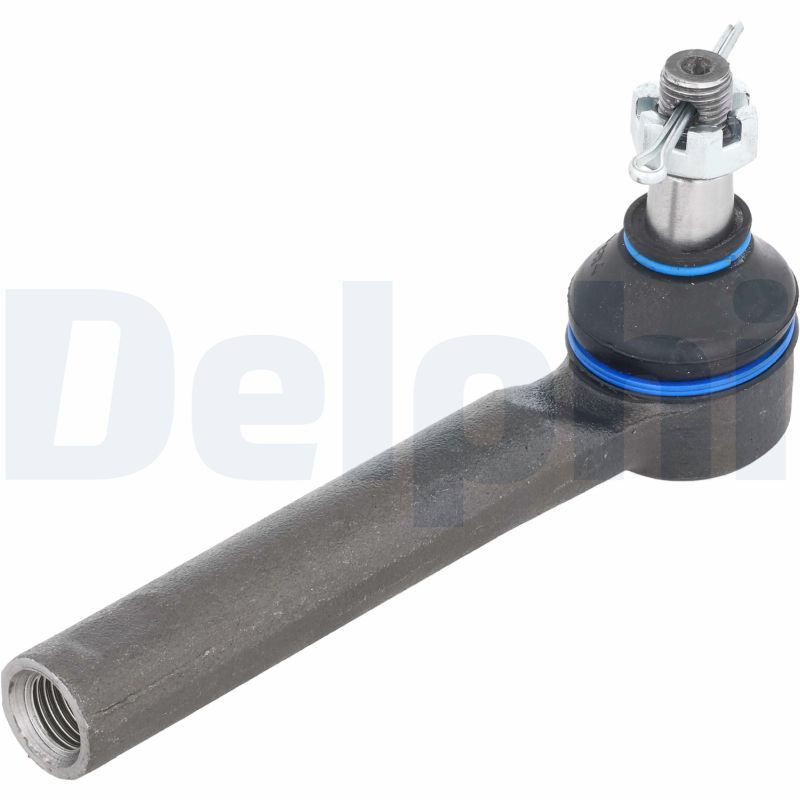

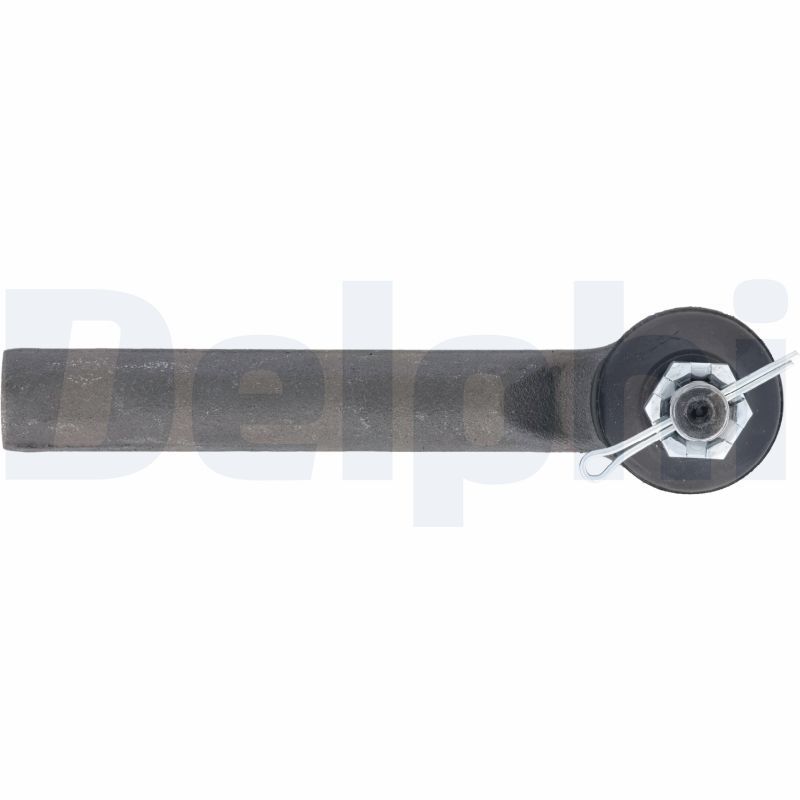

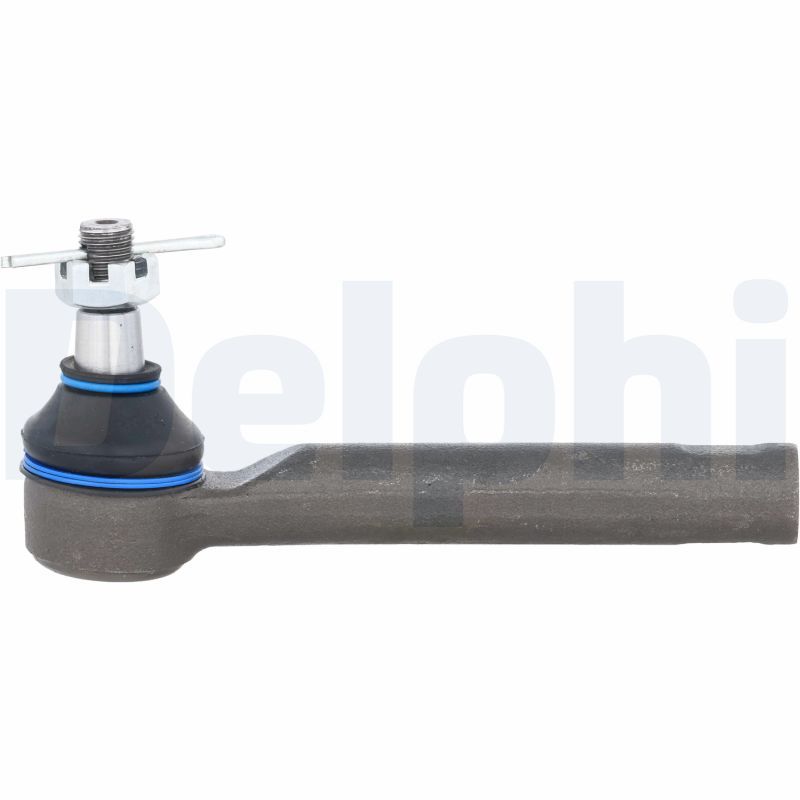

Delphi TA1812 Tie Rod End
Your selected vehicle
Regular price
£16.32
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.
The Delphi TA1812 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, 160 mm length, and 40 mm width. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.
Function :
Tie Rod End
Thread Size :
M14x1.5
Thread Type :
with right-hand thread
Cone Size [mm] :
13.3
Length [mm] :
160
Width [mm] :
40
Height [mm] :
85
- Vendor DELPHI
- SKU TA1812
- APEC : AST6376
- BLUE PRINT : ADS78707
- BORG & BECK : BTR5002
- BOSCH : 0 986 140 493
- CORTECO : 49399678
- FEBI BILSTEIN : 29853
- FEBI BILSTEIN : 32024
- FEBI BILSTEIN : 42811
- FIRST LINE : FTR5002
- LEMFÖRDER : 30690 01
- MEYLE : 34-16 020 0011
- MONROE : L68105
- NAPA : NST6376
- Schaeffler FAG : 840 0712 10
- SKF : VKDY 818000
- TRW : JTE7575
