Delphi TA1817 Tie Rod End - 1
Delphi TA1817 Tie Rod End video
Delphi TA1817 Tie Rod End - 1
Delphi TA1817 Tie Rod End video
DELPHI

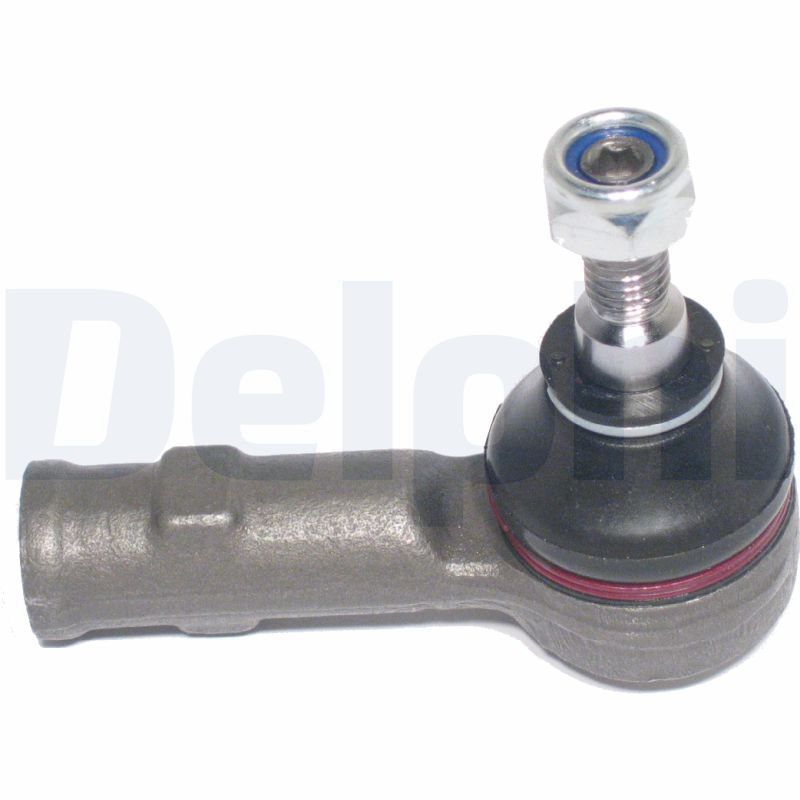

Delphi TA1817 Tie Rod End

SKU: TA1817
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£15.00 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
TOURNEO CONNECT
Description Cylinder Capacity Horse Power Year
1.8 TDCi /TDDi /DI 1753 CCM 75 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 90 HP 06/2002 - 12/2013
1.8 16V 1796 CCM 116 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 110 HP 08/2006 - 12/2013
TRANSIT CONNECT (P65_, P70_, P80_)
Description Cylinder Capacity Horse Power Year
1.8 16V LPG 1796 CCM 116 HP 06/2002 - 12/2013
1.8 16V 1796 CCM 116 HP 06/2002 - 12/2013
1.8 Di 1753 CCM 75 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 90 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 110 HP 08/2006 - 12/2013

The Delphi TA1817 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x2 thread size, with right-hand thread thread type, front axle fitting position, and 100 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14x2
Thread Type : with right-hand thread
Cone Size [mm] : 12.8
Fitting Position : Front Axle
Length [mm] : 100
Width [mm] : 40
Height [mm] : 70
  • Vendor DELPHI
  • SKU TA1817
  • Barcode 5012759289242
  • FORD : 4381840 2T143289AA
  • APEC : AST6148
  • BORG & BECK : BTR4966
  • BOSCH : 0 986 140 480
  • CORTECO : 49399871
  • FEBI BILSTEIN : 34728
  • FIRST LINE : FTR4966
  • LEMFÖRDER : 28325 02
  • MEYLE : 716 020 0019
  • MONROE : L16148
  • NAPA : NST6148
  • Schaeffler FAG : 840 0778 10
  • SKF : VKDY 314008
  • TRW : JTE1035
  • User manual
