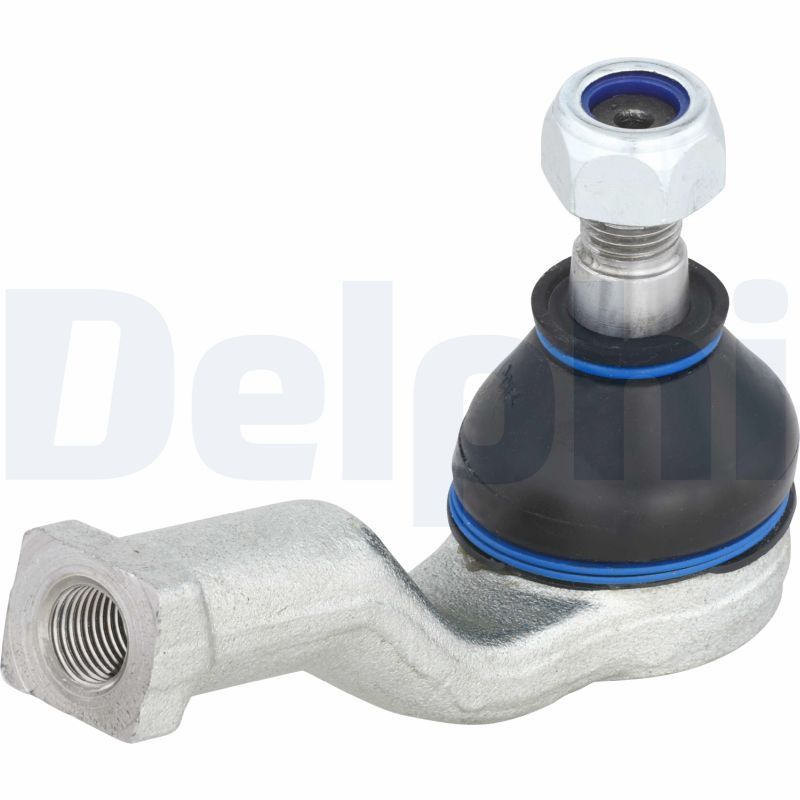

Delphi TA1830 Tie Rod End - 1

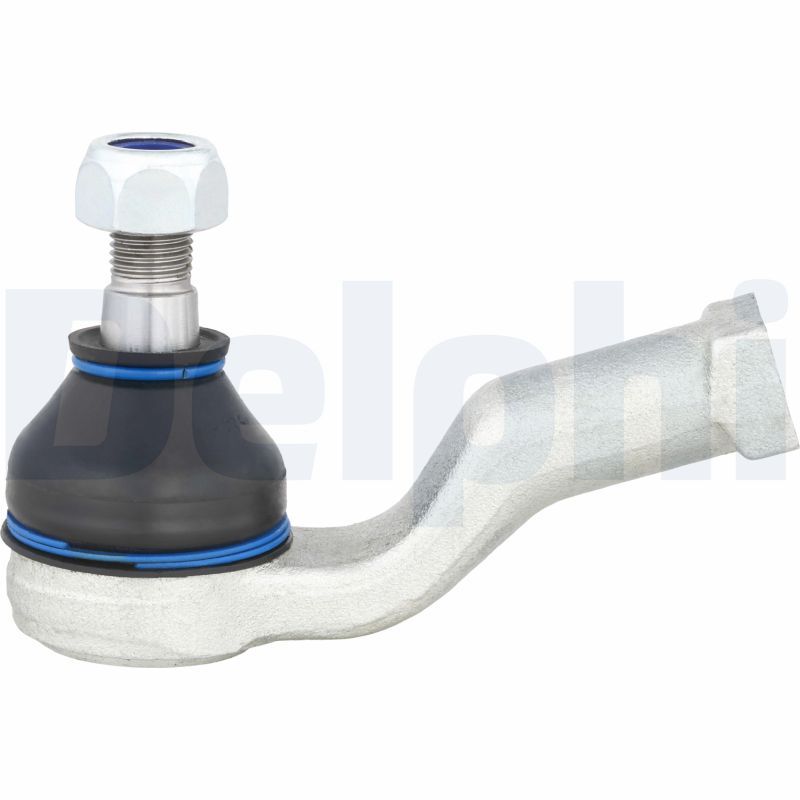

Delphi TA1830 Tie Rod End - 2

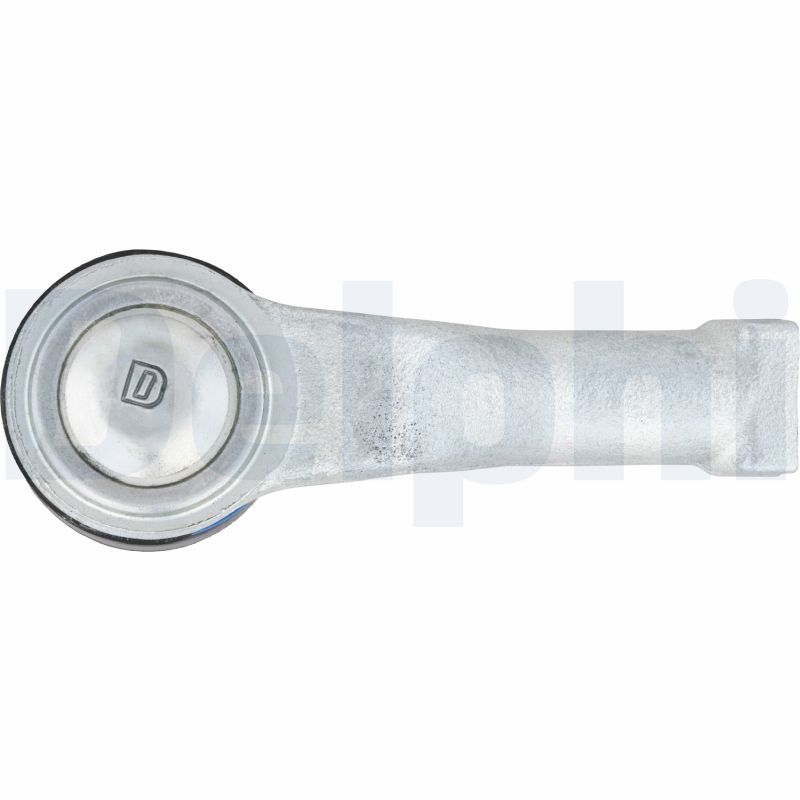

Delphi TA1830 Tie Rod End - 3

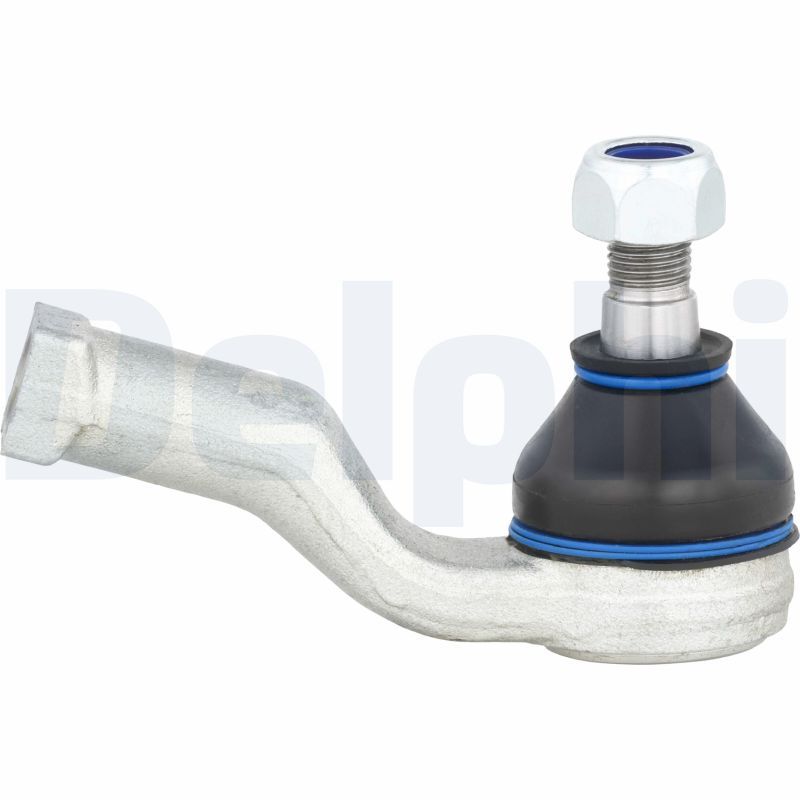

Delphi TA1830 Tie Rod End - 4

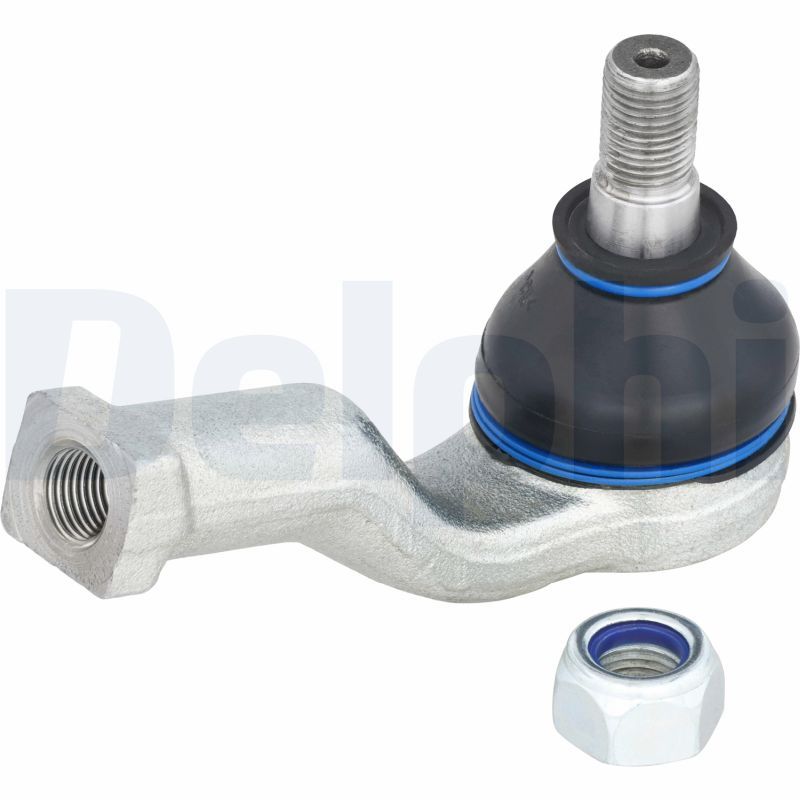

Delphi TA1830 Tie Rod End - 5

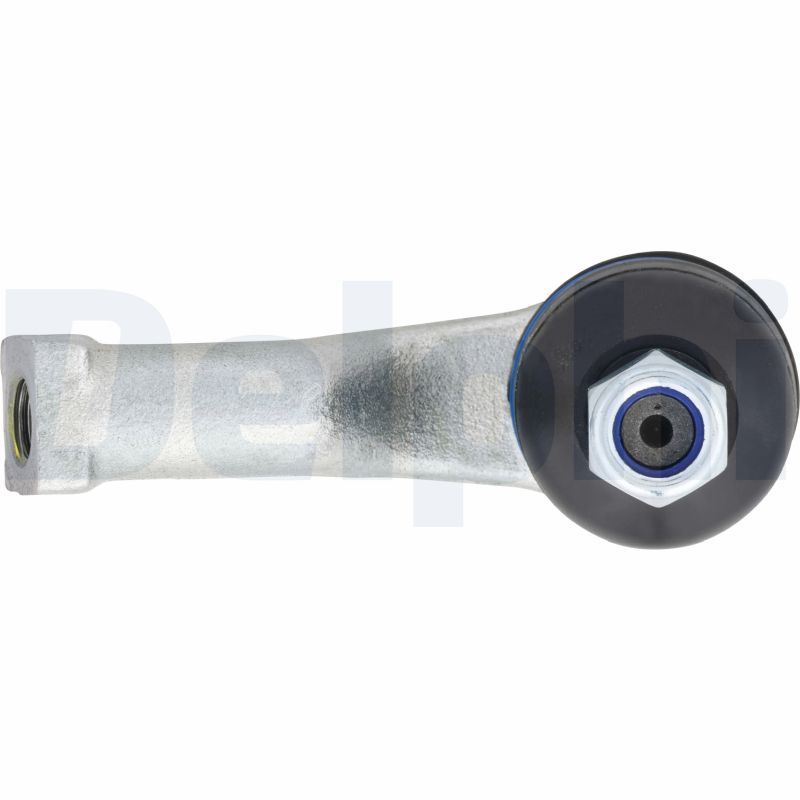

Delphi TA1830 Tie Rod End - 6
Delphi TA1830 Tie Rod End video
DELPHI

Delphi TA1830 Tie Rod End

SKU: TA1830
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£15.49 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MAZDA
MX-5   (NA)
Description Cylinder Capacity Horse Power Year
1.6 (NA6C) 1597 CCM 115 HP 05/1990 - 01/1994
1.8 (NA8C) 1840 CCM 130 HP 01/1993 - 04/1998
1.6 (NA6C) 1598 CCM 90 HP 01/1995 - 04/1998
1.8 (NA8C) 1839 CCM 131 HP 09/1993 - 12/1997
MX-5 Mk II (NB)
Description Cylinder Capacity Horse Power Year
1.6 16V (NB6C) 1597 CCM 110 HP 05/1998 - 10/2005
1.8 16V (NB8C) 1840 CCM 140 HP 05/1998 - 10/2005
1.8 16V (NB8C) 1840 CCM 146 HP 11/2000 - 10/2005
1.8 16V (NB8C) 1840 CCM 139 HP 11/2000 - 10/2005
1.8 (NB8C) 1839 CCM 140 HP 01/1998 - 07/2002
1.8 (NB8C) 1839 CCM 146 HP 08/2002 - 10/2005

The Delphi TA1830 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M12x1.25 thread size, with right-hand thread thread type, front axle fitting position, and 110 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M12x1.25
Thread Type : with right-hand thread
Cone Size [mm] : 13.2
Fitting Position : Front Axle
Length [mm] : 110
Width [mm] : 40
Height [mm] : 70
  • Vendor DELPHI
  • SKU TA1830
  • Barcode 5012759286814
  • MAZDA : 8A01-34-550 8AN1-32-280
  • APEC : AST6246
  • BLUE PRINT : ADM58727
  • BORG & BECK : BTR5096
  • CORTECO : 49401825
  • FEBI BILSTEIN : 27729
  • FEBI BILSTEIN : 42458
  • FIRST LINE : FTR5096
  • LEMFÖRDER : 34665 01
  • MEYLE : 35-16 020 0034
  • MONROE : L50157
  • NAPA : NST6246
  • Schaeffler FAG : 840 0616 10
  • SKF : VKDY 814002
  • TRW : JTE1405
