DELPHI

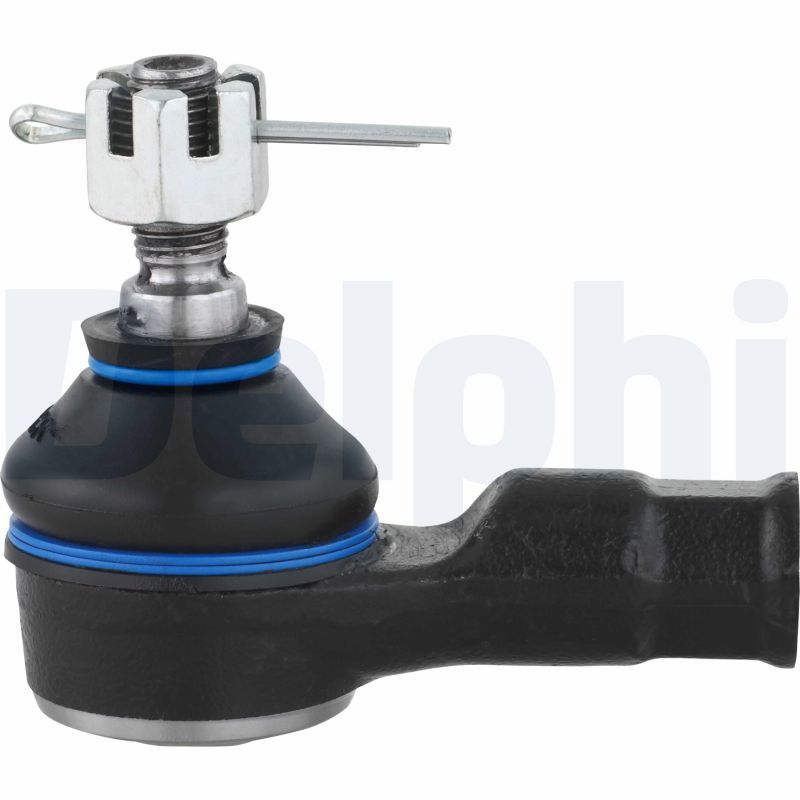

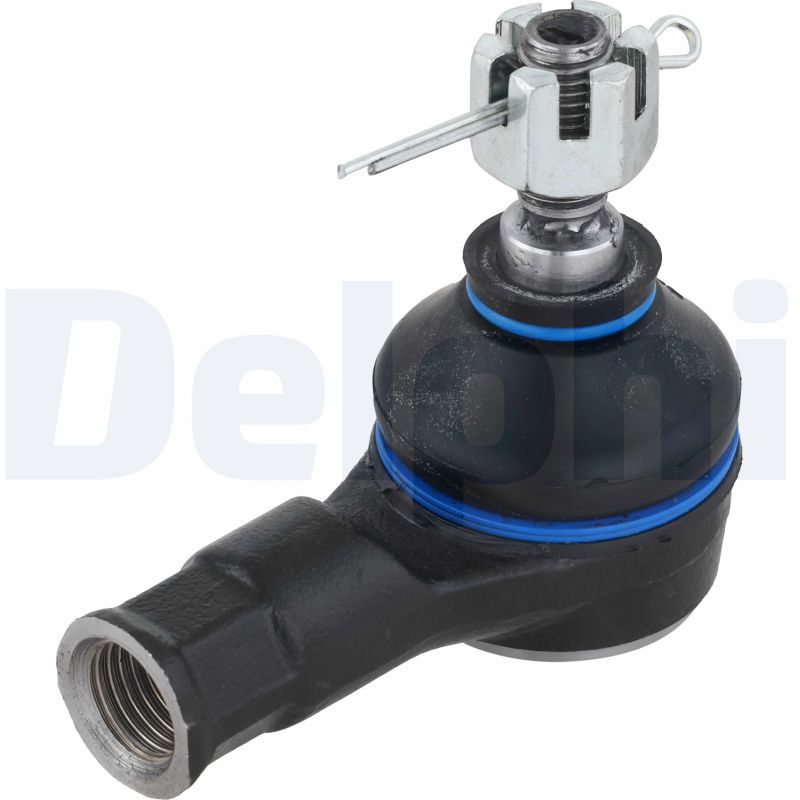

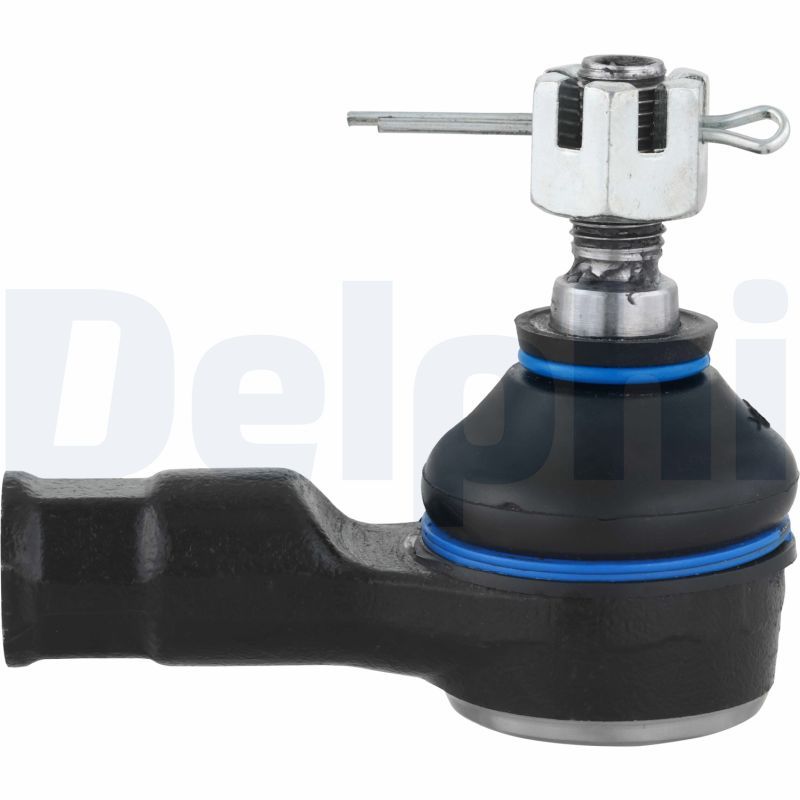

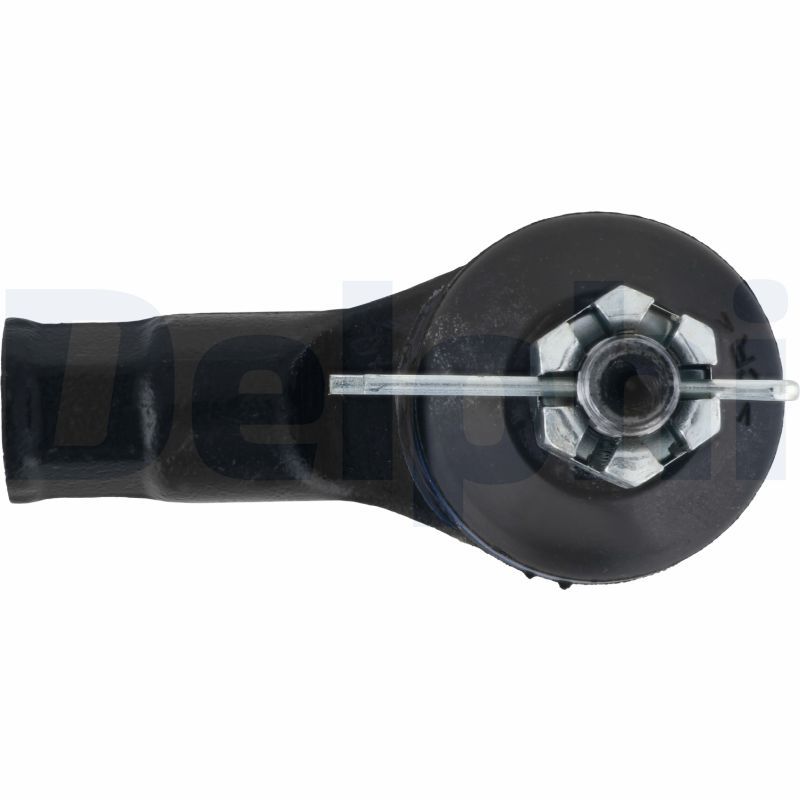

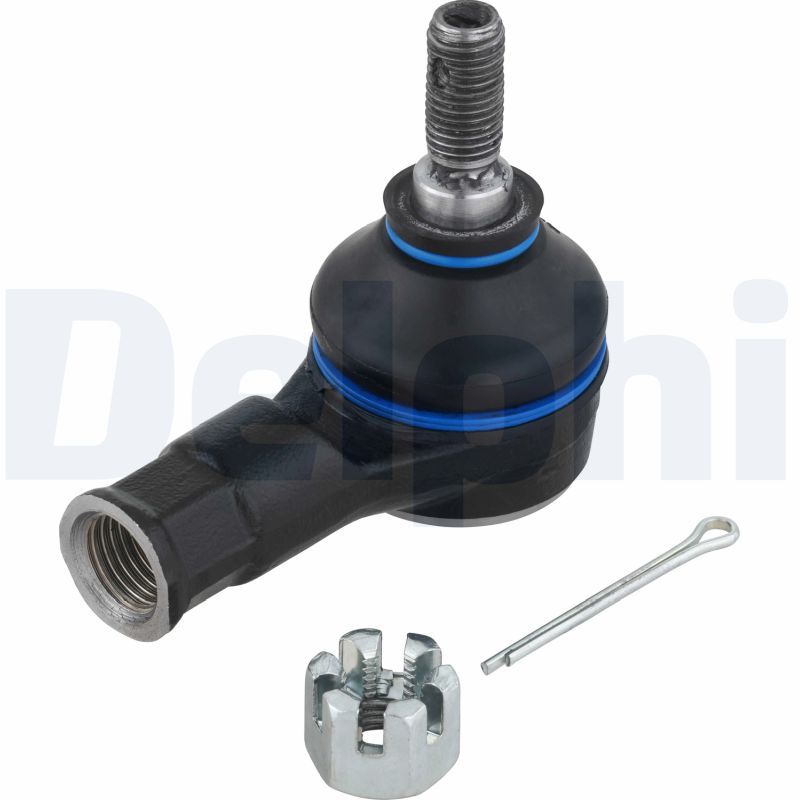

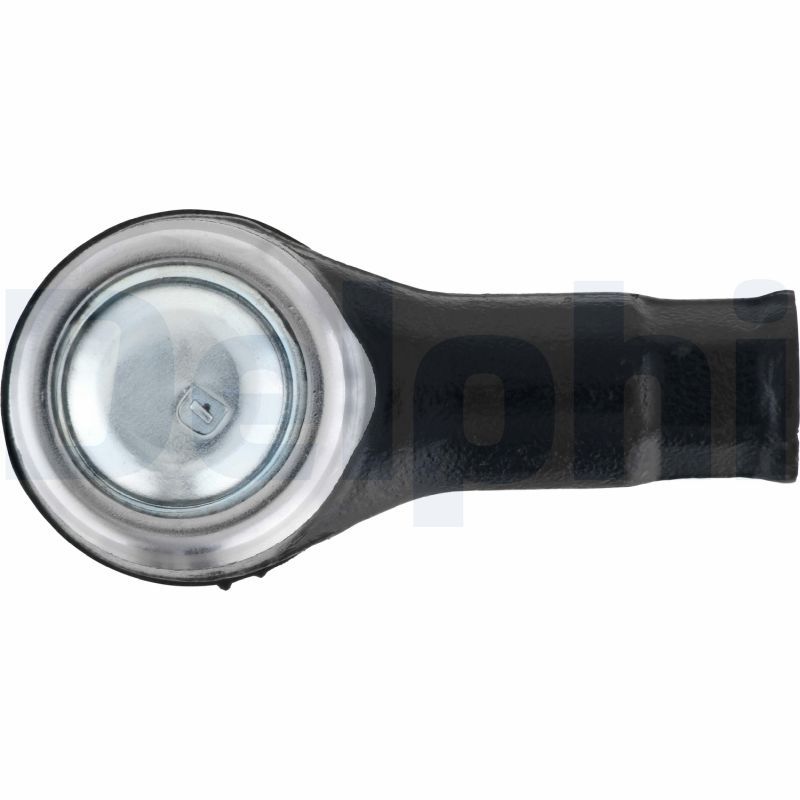

Delphi TA1900 Tie Rod End

SKU: TA1900
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£19.96 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HONDA
CIVIC VII Hatchback (EU, EP, EV)
Description Cylinder Capacity Horse Power Year
1.4 iS (EP1, EU5, EU7) 1396 CCM 90 HP 11/2000 - 09/2005
1.6 i (EP2, EU8, EU6) 1590 CCM 110 HP 02/2001 - 09/2005
1.4 i (EP1, EU7) 1396 CCM 75 HP 02/2001 - 09/2005
2.0 Type-R (EP3) 1998 CCM 200 HP 09/2001 - 09/2005
1.7 CTDi (EP4, EU9) 1686 CCM 100 HP 01/2002 - 09/2005
2.0 i Sport (EV1) 1998 CCM 160 HP 09/2001 - 09/2005
CIVIC VII Saloon (ES, ET)
Description Cylinder Capacity Horse Power Year
1.7 1668 CCM 116 HP 02/2001 - 09/2005
1.3 IMA (ED9, ES9) 1339 CCM 83 HP 10/2003 - 09/2005
1.4 (ES4) 1396 CCM 90 HP 12/2000 - 09/2005
1.6 (ES5) 1590 CCM 110 HP 02/2001 - 09/2005
1.5 (ES8) 1493 CCM 112 HP 02/2003 - 09/2005
CIVIC VII Coupe (EM2)
Description Cylinder Capacity Horse Power Year
1.6 i (EM1) 1590 CCM 110 HP 02/2001 - 12/2005
1.7 i (EM2) 1668 CCM 120 HP 05/2001 - 12/2005
1.7 i VTEC (EM2) 1668 CCM 125 HP 05/2001 - 12/2005
CR-V Mk II (RD_)
Description Cylinder Capacity Horse Power Year
2.0 (RD5) 1998 CCM 150 HP 09/2001 - 03/2007

The Delphi TA1900 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle fitting position, and 80 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 12.7
Fitting Position : Front Axle
Length [mm] : 80
Width [mm] : 45
Height [mm] : 75
  • Vendor DELPHI
  • SKU TA1900
  • Barcode 5012759348703
  • HONDA : 53541-S5A-003
  • APEC : AST6057
  • BLUE PRINT : ADH28719
  • BORG & BECK : BTR5066
  • CORTECO : 49399773
  • FEBI BILSTEIN : 24946
  • FIRST LINE : FTR5066
  • KYB : KTR1079
  • LEMFÖRDER : 29798 01
  • MEYLE : 31-16 031 0001
  • MONROE : L40113
  • NAPA : NST6057
  • Schaeffler FAG : 840 1089 10
  • SKF : VKDY 813006
  • TRW : JTE7514
