Home / Car Parts / Steering & Suspension / Steering Parts / Tie Rod End

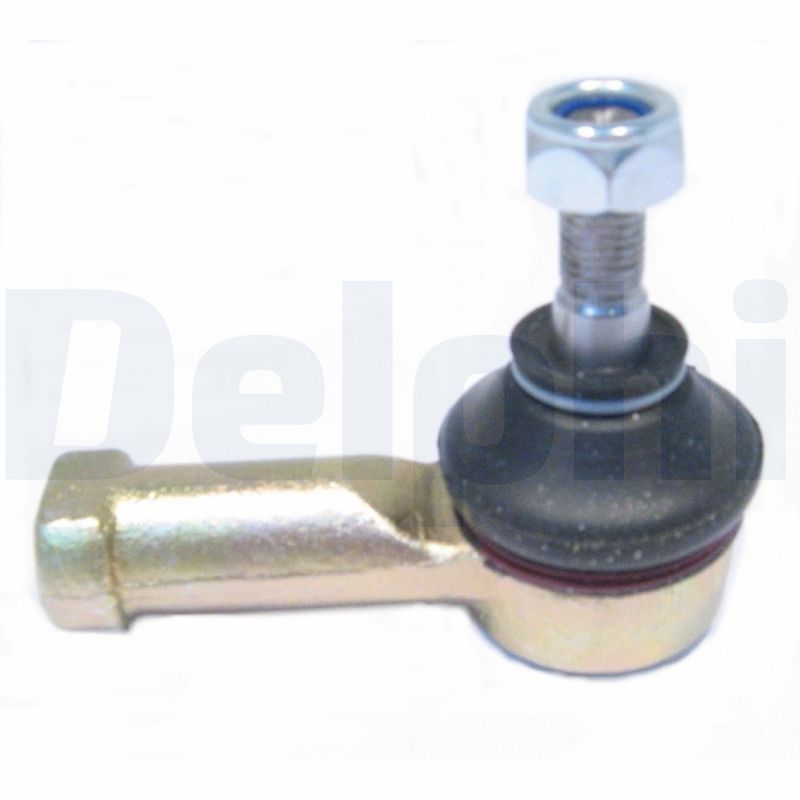

Delphi TA1903 Tie Rod End - 1
Delphi TA1903 Tie Rod End video
Delphi TA1903 Tie Rod End - 1
Delphi TA1903 Tie Rod End video
DELPHI

Delphi TA1903 Tie Rod End

SKU: TA1903
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£13.76 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

OPEL
MERIVA A MPV (X03)
Description Cylinder Capacity Horse Power Year
1.4 16V Twinport LPG (E75) 1364 CCM 90 HP 07/2004 - 05/2010
1.8 (E75) 1796 CCM 125 HP 05/2003 - 05/2010
1.7 DTI (E75) 1686 CCM 75 HP 09/2003 - 05/2010
1.6 (E75) 1598 CCM 87 HP 05/2003 - 05/2010
1.6 16V (E75) 1598 CCM 100 HP 05/2003 - 01/2006
1.7 CDTI (E75) 1686 CCM 100 HP 09/2003 - 05/2010
1.4 16V Twinport (E75) 1364 CCM 90 HP 07/2004 - 05/2010
1.6 (E75) 1598 CCM 105 HP 01/2006 - 05/2010
1.3 CDTI (E75) 1248 CCM 75 HP 09/2003 - 05/2010
1.6 Turbo (E75) 1598 CCM 180 HP 09/2005 - 05/2010
1.7 CDTI (E75) 1686 CCM 125 HP 09/2006 - 05/2010
1.3 CDTI (E75) 1248 CCM 69 HP 04/2005 - 05/2010
VAUXHALL
MERIVA A (X03)
Description Cylinder Capacity Horse Power Year
1.7 DTI 1686 CCM 75 HP 06/2003 - 06/2010
1.6 i 1598 CCM 87 HP 01/2003 - 06/2010
1.6 i 16V 1598 CCM 100 HP 01/2003 - 09/2005
1.8 i 16V 1796 CCM 125 HP 05/2003 - 06/2010
1.7 CDTi 1686 CCM 100 HP 09/2003 - 06/2008
1.3 CDTI 1248 CCM 75 HP 01/2003 - 10/2009
1.6 Turbo 1598 CCM 180 HP 05/2006 - 06/2010
1.4 16V Twinport 1364 CCM 90 HP 01/2003 - 06/2010
1.6 i 16V Twinport 1598 CCM 105 HP 05/2003 - 06/2010
1.3 CDTI 1248 CCM 69 HP 04/2005 - 06/2010

The Delphi TA1903 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle fitting position, and 90 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 10.9
Fitting Position : Front Axle
Length [mm] : 90
Width [mm] : 40
Height [mm] : 90
  • Vendor DELPHI
  • SKU TA1903
  • Barcode 5012759346921
  • OPEL : 93192417 1603240 1603430 26102923
  • VAUXHALL : 93192417 1603240 26102923
  • APEC : AST6092
  • BORG & BECK : BTR5135
  • BOSCH : 0 986 140 511
  • CORTECO : 49399129
  • FEBI BILSTEIN : 23154
  • FIRST LINE : FTR5135
  • KYB : KTR4044
  • LEMFÖRDER : 28366 01
  • LEMFÖRDER : 28366 02
  • MEYLE : 616 020 0002
  • MONROE : L24123
  • NAPA : NST6092
  • Schaeffler FAG : 840 0825 10
  • SKF : VKDY 315012
  • TRW : JTE1041
