DELPHI

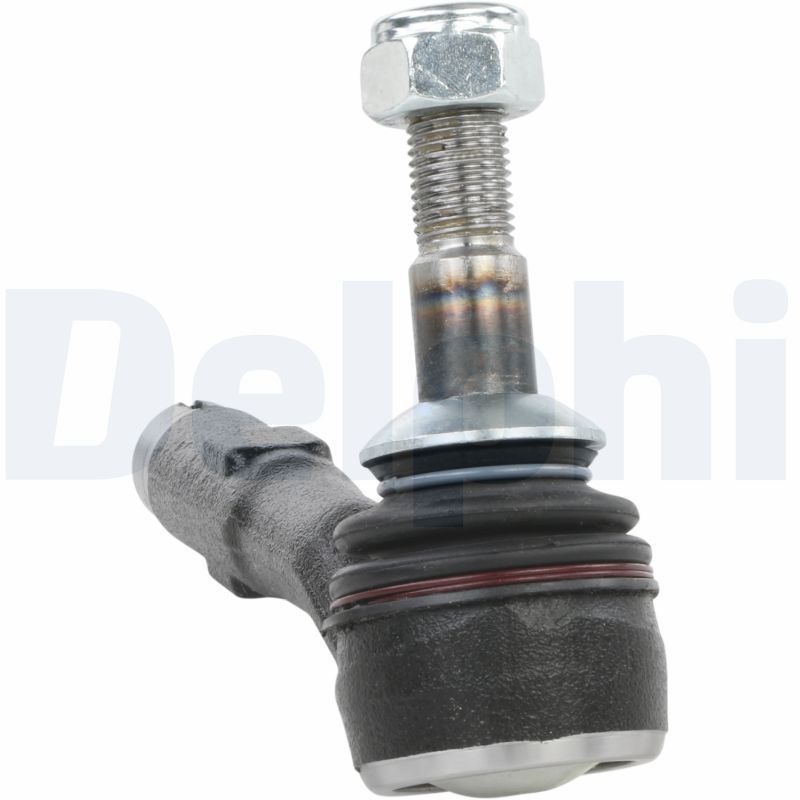

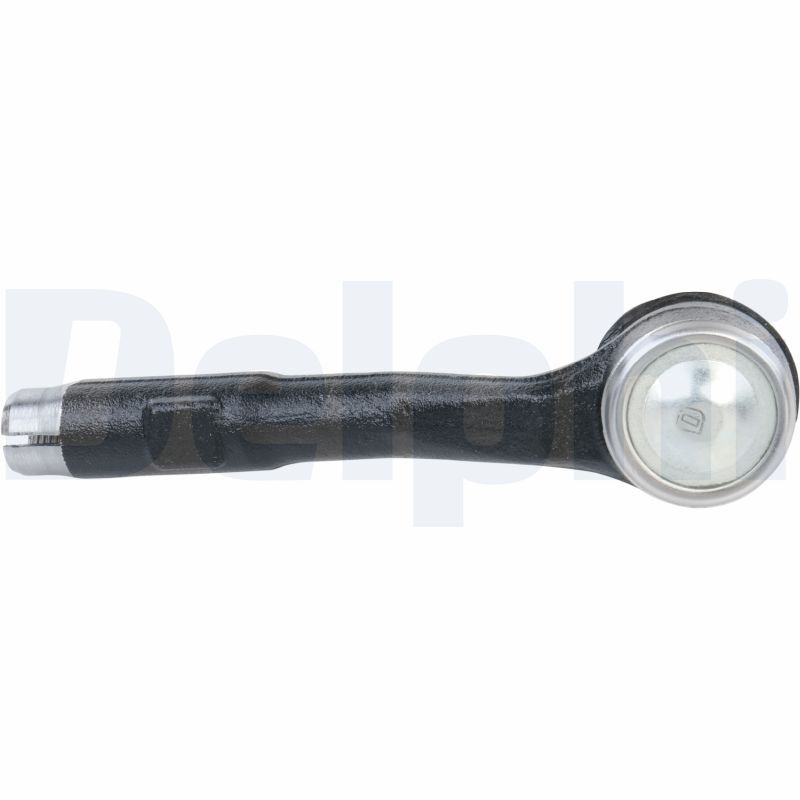

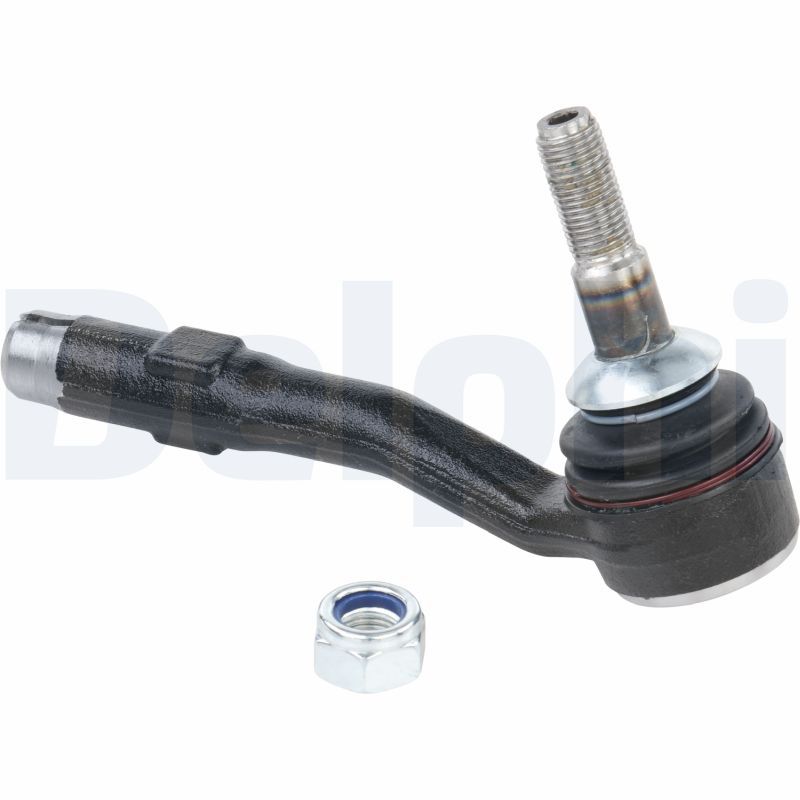

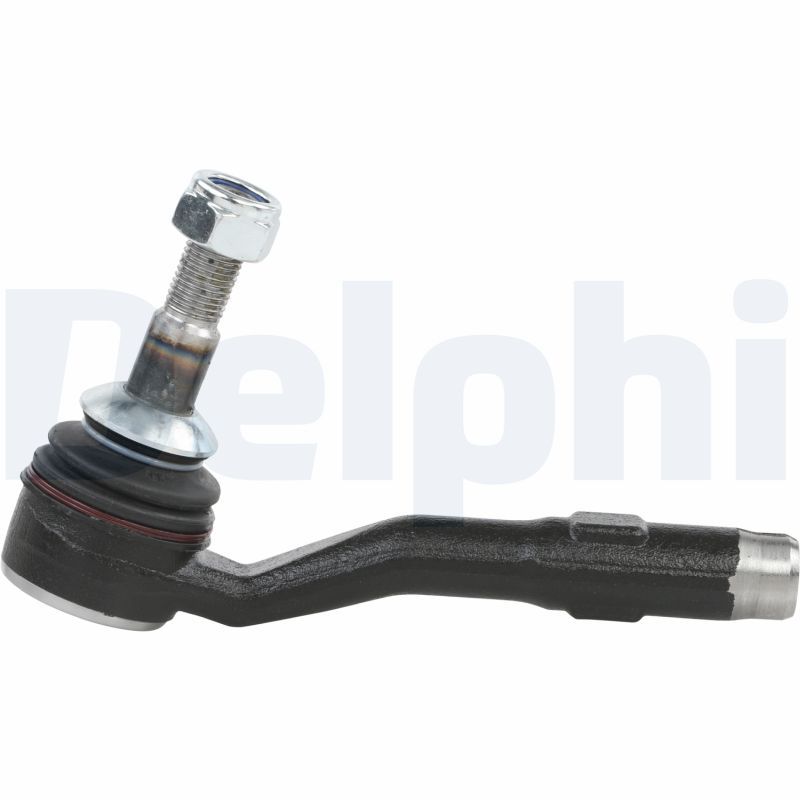

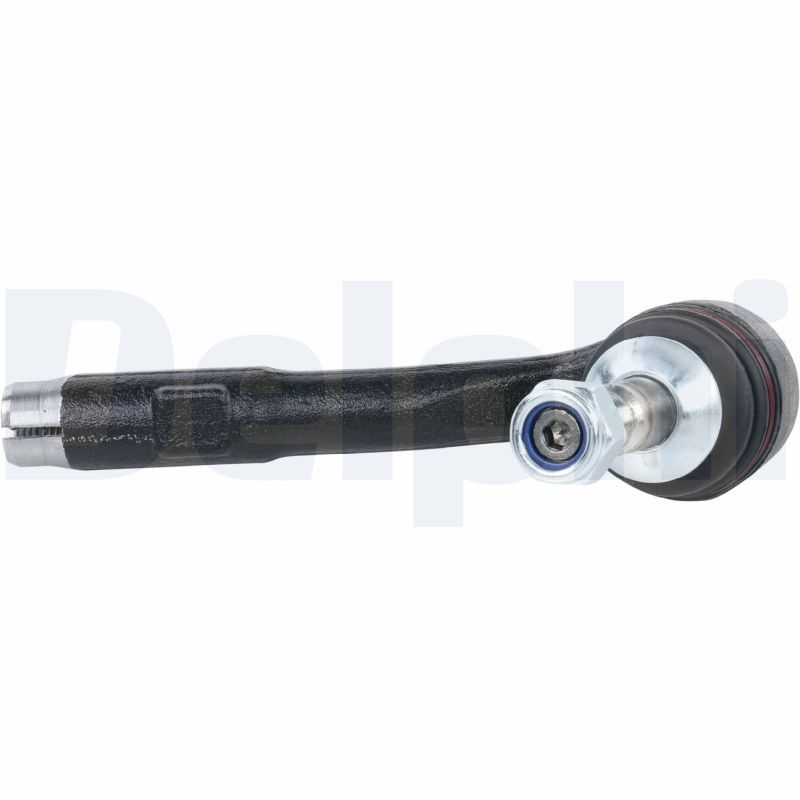

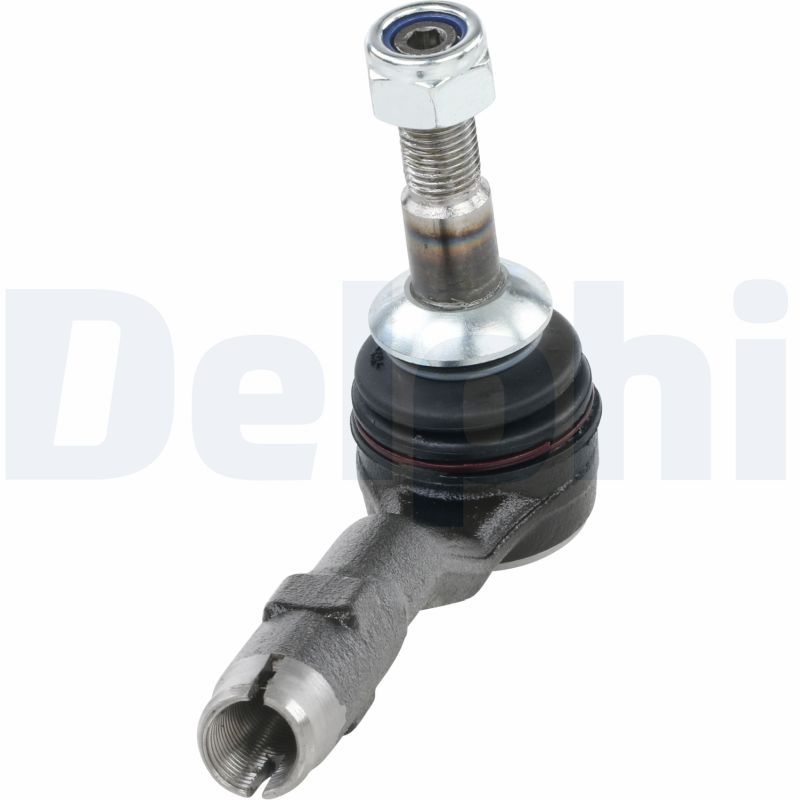

Delphi TA1906 Tie Rod End

SKU: TA1906

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£20.28 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW

5 (E60)

Description	Cylinder Capacity	Horse Power	Year
520 i	2171 CCM	170 HP	07/2003 - 03/2010
530 i	2979 CCM	231 HP	12/2001 - 02/2005
530 d	2993 CCM	218 HP	09/2002 - 09/2005
525 i	2494 CCM	192 HP	09/2003 - 02/2005
545 i	4398 CCM	333 HP	07/2003 - 08/2005
525 d	2497 CCM	177 HP	06/2004 - 03/2010
M5	4999 CCM	507 HP	09/2004 - 12/2009
535 d	2993 CCM	272 HP	09/2004 - 03/2010
530 i	2996 CCM	258 HP	03/2005 - 03/2007
523 i	2497 CCM	177 HP	10/2004 - 02/2007
525 i	2497 CCM	218 HP	03/2005 - 12/2009
540 i	4000 CCM	306 HP	03/2007 - 12/2009
550 i	4799 CCM	367 HP	09/2005 - 12/2009
520 d	1995 CCM	163 HP	09/2005 - 12/2009
530 d	2993 CCM	231 HP	09/2005 - 03/2007

5 Touring (E61)

Description	Cylinder Capacity	Horse Power	Year
525 i	2494 CCM	192 HP	06/2004 - 12/2010
545 i	4398 CCM	333 HP	06/2004 - 12/2010
530 d	2993 CCM	218 HP	03/2004 - 09/2005
525 d	2497 CCM	177 HP	03/2004 - 03/2007
535 d	2993 CCM	272 HP	09/2004 - 12/2010
530 i	2996 CCM	258 HP	09/2004 - 02/2007
523 i	2497 CCM	177 HP	10/2004 - 02/2007
525 i	2497 CCM	218 HP	03/2005 - 05/2010
550 i	4799 CCM	367 HP	07/2005 - 12/2010
530 d	2993 CCM	231 HP	02/2005 - 02/2007
520 d	1995 CCM	163 HP	04/2005 - 05/2010
525 d	2497 CCM	163 HP	03/2004 - 03/2007

6 (E63)

Description	Cylinder Capacity	Horse Power	Year
645 Ci	4398 CCM	333 HP	09/2003 - 08/2005
630 i	2996 CCM	258 HP	09/2004 - 08/2007
650 i	4799 CCM	367 HP	09/2005 - 08/2010
M	4999 CCM	507 HP	09/2005 - 07/2010
630 i	2996 CCM	272 HP	09/2007 - 08/2010
635 d	2993 CCM	286 HP	07/2007 - 07/2010
630 i	2996 CCM	272 HP	09/2007 - 08/2010

6 Convertible (E64)

Description	Cylinder Capacity	Horse Power	Year
645 Ci	4398 CCM	333 HP	04/2004 - 08/2005
630 i	2996 CCM	258 HP	09/2004 - 08/2007
650 i	4799 CCM	367 HP	09/2005 - 08/2010
M6	4999 CCM	507 HP	09/2006 - 08/2010
635 d	2993 CCM	286 HP	07/2007 - 07/2010
630 i	2996 CCM	272 HP	09/2007 - 08/2010
630 i	2996 CCM	272 HP	09/2007 - 08/2010

7 (E65, E66, E67)

Description	Cylinder Capacity	Horse Power	Year
730 d	2993 CCM	211 HP	09/2003 - 08/2008
735 i, Li	3600 CCM	272 HP	11/2001 - 02/2005
745 i, Li	4398 CCM	333 HP	07/2001 - 03/2005
730 d	2993 CCM	218 HP	06/2002 - 02/2005
740 d	3901 CCM	258 HP	10/2002 - 02/2005
760 i, Li	5972 CCM	445 HP	01/2003 - 08/2008
730 i, Li	2979 CCM	231 HP	03/2003 - 07/2008
740 i, Li	4000 CCM	306 HP	03/2005 - 08/2008
750 i, Li	4799 CCM	367 HP	03/2005 - 08/2008
730 Ld	2993 CCM	231 HP	07/2005 - 08/2008
745 d	4423 CCM	329 HP	07/2005 - 07/2008
730 i, Li	2996 CCM	258 HP	03/2005 - 08/2008
745 d	4423 CCM	300 HP	03/2005 - 08/2005

The Delphi TA1906 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16x1.5 thread size, with right-hand thread thread type, front axle fitting position, and 180 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End

Thread Size : M16x1.5

Thread Type : with right-hand thread

Cone Size [mm] : 16.2

Fitting Position : Front Axle

Length [mm] : 180

Width [mm] : 45

Height [mm] : 110

APEC : AST6008
BORG & BECK : BTR5213
CORTECO : 49398950
FEBI BILSTEIN : 27204
FIRST LINE : FTR5213
KYB : KTR4021
LEMFÖRDER : 25896 02
MEYLE : 316 030 0002
MONROE : L11113
NAPA : NST6008
Schaeffler FAG : 840 0680 10
SKF : VKDY 318510
TRW : JTE1063

Delphi TA1906 Tie Rod End
