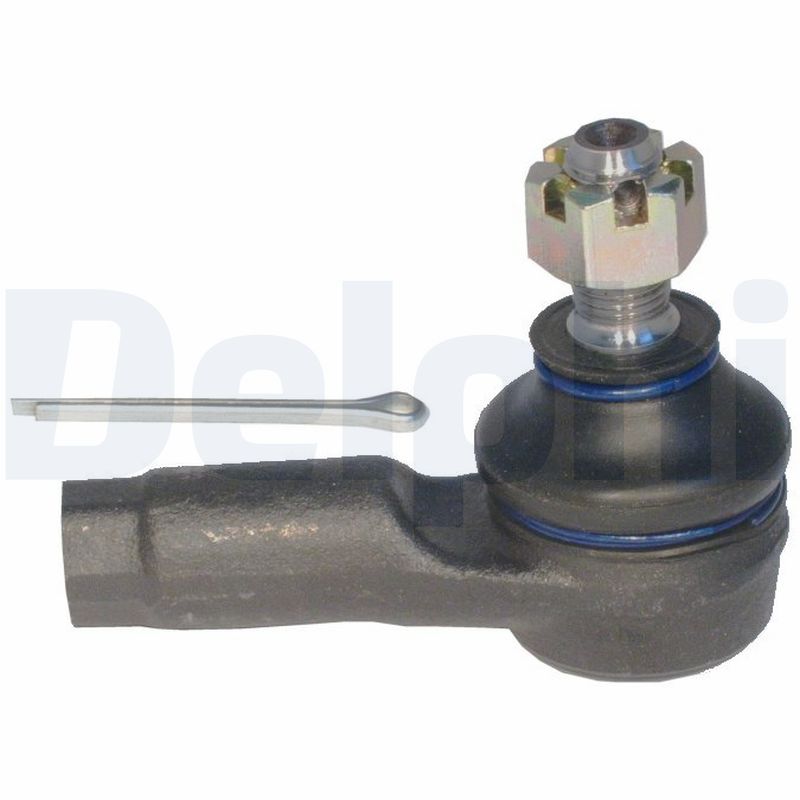

Delphi TA1953 Tie Rod End

SKU: TA1953
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£11.98 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HONDA
HR-V (GH_)
Description Cylinder Capacity Horse Power Year
1.6 16V 4WD (GH2, GH4) 1590 CCM 105 HP From 03/1999
1.6 16V 4WD (GH2, GH4) 1590 CCM 124 HP 10/1999 - 09/2005
1.6 16V (GH1, GH3) 1590 CCM 105 HP From 03/1999
LOGO (GA)
Description Cylinder Capacity Horse Power Year
1.3 (GA3) 1343 CCM 65 HP 03/1999 - 03/2002

The Delphi TA1953 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M12x1.25 thread size, with right-hand thread thread type, front axle fitting position, and 90 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M12x1.25
Thread Type : with right-hand thread
Cone Size [mm] : 13.8
Fitting Position : Front Axle
Length [mm] : 90
Width [mm] : 38
Height [mm] : 75
  • Vendor DELPHI
  • SKU TA1953
  • Barcode 5012759353561
  • HONDA : 53540-SX8-T01
  • APEC : AST6381
  • BLUE PRINT : ADH28720
  • BORG & BECK : BTR5069
  • CORTECO : 49401625
  • FEBI BILSTEIN : 24956
  • FEBI BILSTEIN : 33716
  • FIRST LINE : FTR5069
  • KYB : KTR1078
  • LEMFÖRDER : 38992 01
  • MEYLE : 31-16 020 0000
  • MONROE : L40127
  • NAPA : NST6381
  • Schaeffler FAG : 840 0647 10
  • SKF : VKDY 813007
