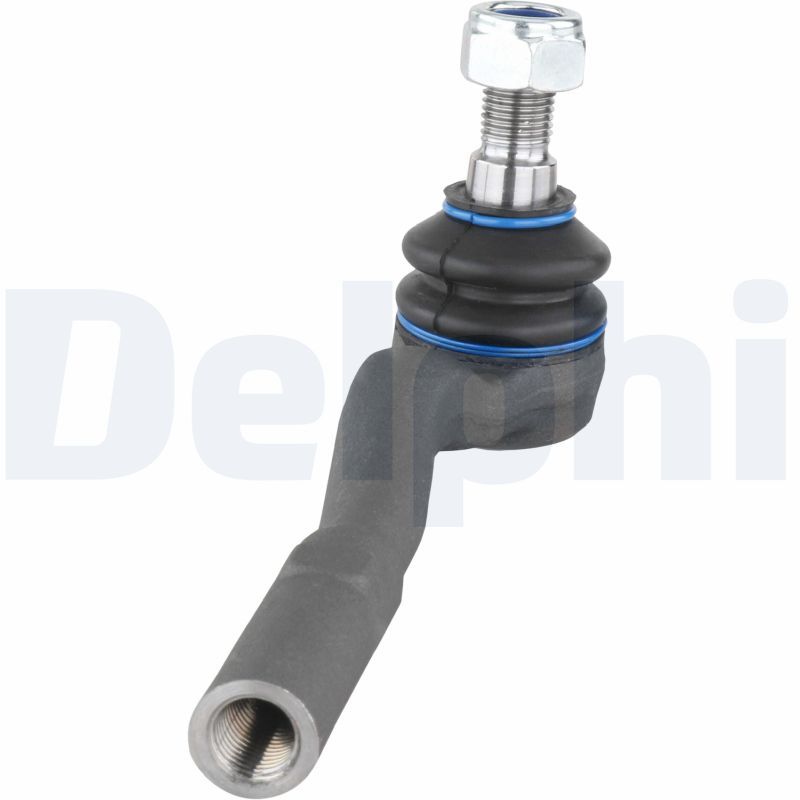

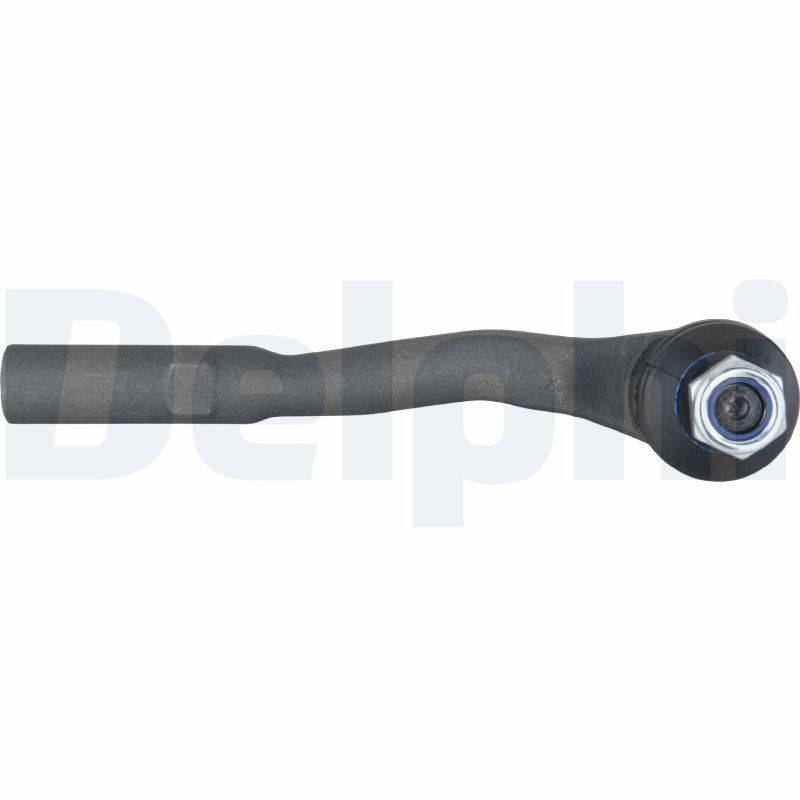

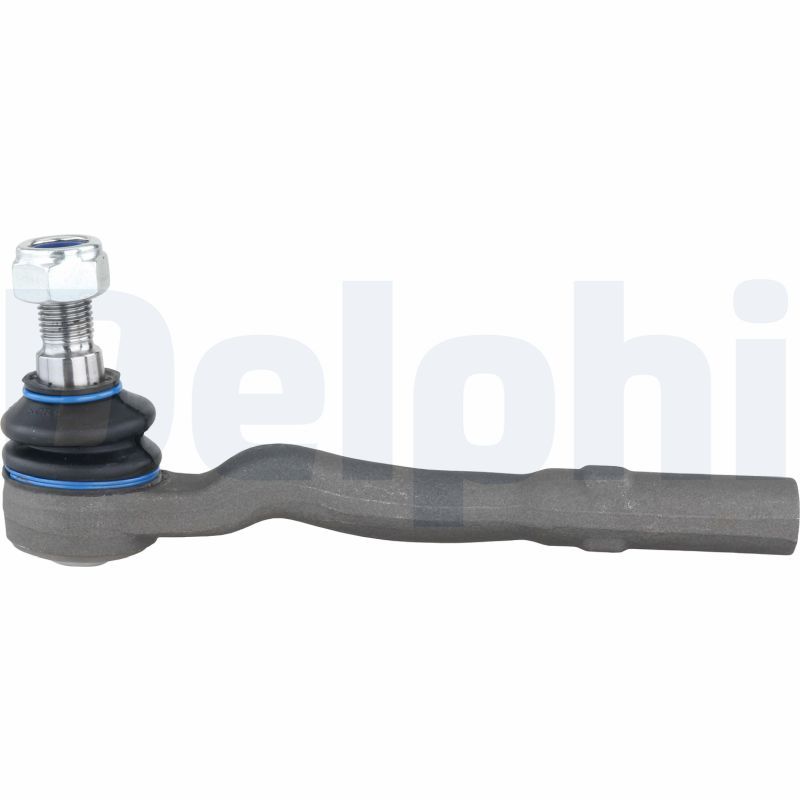

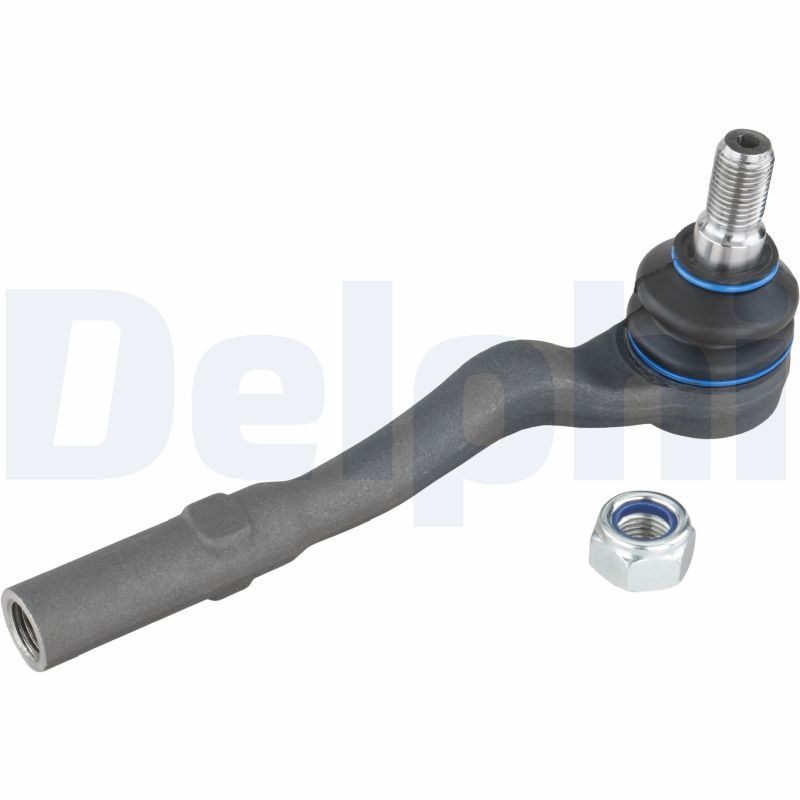

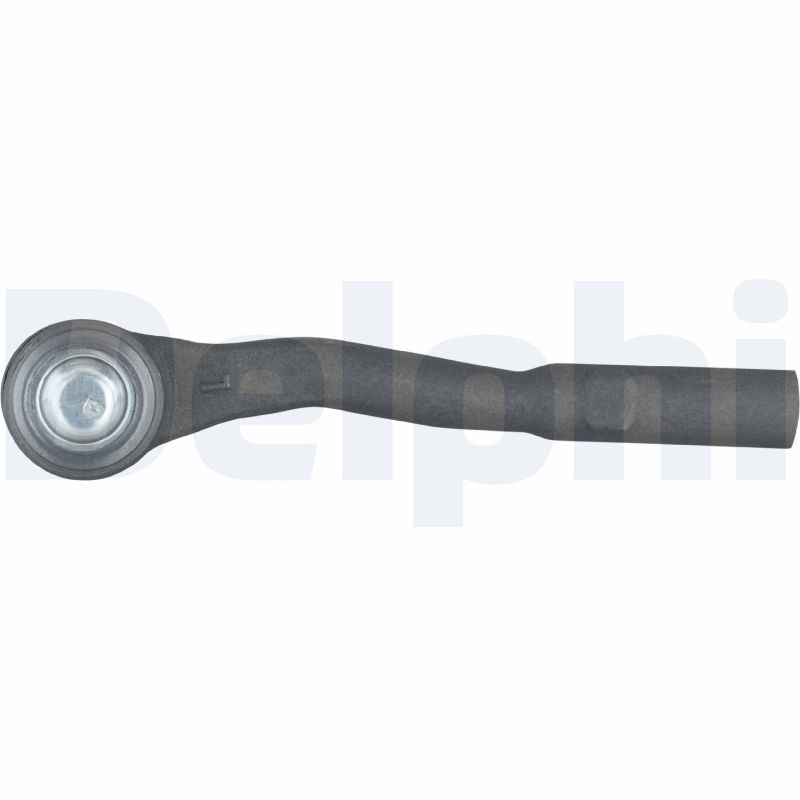

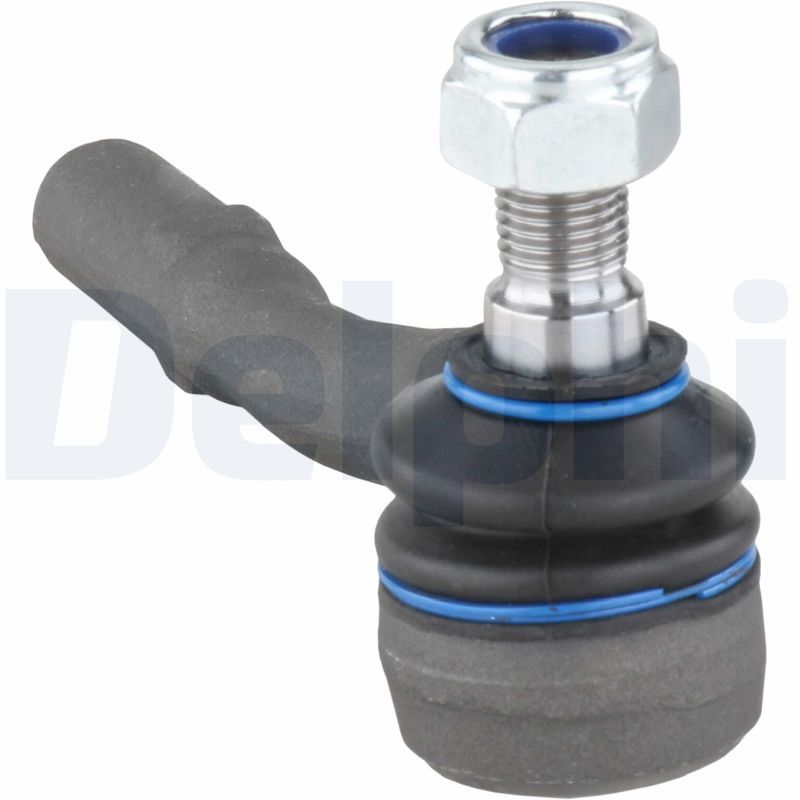

Delphi TA1959 Tie Rod End - 1
Delphi TA1959 Tie Rod End - 2
Delphi TA1959 Tie Rod End - 3
Delphi TA1959 Tie Rod End - 4
Delphi TA1959 Tie Rod End - 5
Delphi TA1959 Tie Rod End - 6
Delphi TA1959 Tie Rod End video
Delphi TA1959 Tie Rod End - 1
Delphi TA1959 Tie Rod End - 2
Delphi TA1959 Tie Rod End - 3
Delphi TA1959 Tie Rod End - 4
Delphi TA1959 Tie Rod End - 5
Delphi TA1959 Tie Rod End - 6
Delphi TA1959 Tie Rod End video
DELPHI

Delphi TA1959 Tie Rod End

SKU: TA1959
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£18.51 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
CLS (C219)
Description Cylinder Capacity Horse Power Year
CLS 350 (219.356) 3498 CCM 272 HP 10/2004 - 12/2010
CLS 500 (219.375) 4966 CCM 306 HP 10/2004 - 12/2010
CLS 55 AMG (219.376) 5439 CCM 476 HP 01/2005 - 12/2010
CLS 320 CDI (219.322) 2987 CCM 224 HP 01/2005 - 12/2010
CLS 350 (219.357) 3498 CCM 292 HP 04/2006 - 12/2010
CLS 500 (219.372) 5461 CCM 388 HP 04/2006 - 12/2010
CLS 63 AMG (219.377) 6208 CCM 514 HP 04/2006 - 12/2010
CLS 280 (219.354) 2996 CCM 231 HP 07/2008 - 12/2010
CLS 300 (219.354) 2996 CCM 231 HP 04/2009 - 12/2010
CLS 350 CDI (219.322) 2987 CCM 224 HP 04/2009 - 12/2010
CLS 350 CDI 2987 CCM 272 HP 04/2009 - 12/2010
CLS 55 AMG 5439 CCM 476 HP 09/2005 - 12/2006
CLS 63 AMG (219.377) 6208 CCM 514 HP 09/2006 - 12/2010
E-CLASS (W211)
Description Cylinder Capacity Horse Power Year
E 220 CDI 2149 CCM 163 HP 03/2003 - 12/2008
E 320 (211.065) 3199 CCM 224 HP 03/2002 - 12/2008
E 500 (211.070) 4966 CCM 306 HP 03/2002 - 12/2008
E 240 (211.061) 2597 CCM 177 HP 03/2002 - 12/2008
E 220 CDI (211.006) 2148 CCM 150 HP 03/2002 - 12/2008
E 270 CDI (211.016) 2685 CCM 177 HP 03/2002 - 12/2008
E 200 CDI (211.004) 2148 CCM 102 HP 07/2002 - 12/2008
E 200 CDI (211.004) 2148 CCM 122 HP 07/2002 - 12/2008
E 55 AMG Kompressor (211.076) 5439 CCM 476 HP 10/2002 - 12/2008
E 200 Kompressor (211.042) 1796 CCM 163 HP 11/2002 - 12/2008
E 320 CDI (211.026) 3222 CCM 204 HP 11/2002 - 12/2008
E 400 CDI (211.028) 3996 CCM 260 HP 02/2003 - 12/2008
E-CLASS T-Model (S211)
Description Cylinder Capacity Horse Power Year
E 220 T CDI 2148 CCM 163 HP 03/2003 - 07/2009
E 240 T (211.261) 2597 CCM 177 HP 03/2003 - 07/2009
E 320 T (211.265) 3199 CCM 224 HP 03/2003 - 07/2009
E 200 T Kompressor (211.242) 1796 CCM 163 HP 03/2003 - 07/2009
E 220 T CDI (211.206) 2148 CCM 150 HP 03/2003 - 07/2009
E 270 T CDI (211.216) 2685 CCM 177 HP 03/2003 - 07/2009
E 320 T CDI (211.226) 3222 CCM 204 HP 03/2003 - 07/2009
E 55 T AMG Kompressor (211.276) 5439 CCM 476 HP 07/2003 - 07/2009
E 500 T (211.270) 4966 CCM 306 HP 10/2003 - 07/2009
E 280 T CDI (211.223) 3222 CCM 177 HP 05/2004 - 07/2009
E 320 T CDI (211.222) 2987 CCM 224 HP 03/2005 - 07/2009
E 280 T CDI (211.220) 2987 CCM 190 HP 03/2005 - 07/2009
E-CLASS Platform/Chassis (VF211)
Description Cylinder Capacity Horse Power Year
E 220 CDI (211.606) 2148 CCM 150 HP 10/2003 - 07/2006
E 220 CDI (211.608) 2148 CCM 170 HP 04/2006 - 07/2009
E 270 CDI (211.616) 2685 CCM 177 HP 10/2003 - 07/2005
E 280 CDI (211.620) 2987 CCM 190 HP 08/2005 - 07/2009

The Delphi TA1959 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle left fitting position, and 205 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 16.6
Paired article number : TA1960
Fitting Position : Front Axle Left
Length [mm] : 205
Width [mm] : 40
Height [mm] : 85
  • Vendor DELPHI
  • SKU TA1959
  • Barcode 5012759351987
  • MERCEDES-BENZ : 211 330 0103 211 330 2303 211 330 2503 211 330 2703 A211 330 0103 A211 330 2303 A211 330 2503 A211 330 2703
  • APEC : AST6254
  • BLUE PRINT : AD06R1200
  • BLUE PRINT : ADN196509
  • BLUE PRINT : ADN196517
  • BORG & BECK : BTR5104
  • CORTECO : 49398721
  • FEBI BILSTEIN : 177165
  • FEBI BILSTEIN : 26759
  • FEBI BILSTEIN : 27835
  • FEBI BILSTEIN : 28933
  • FEBI BILSTEIN : 30159
  • FEBI BILSTEIN : 44980
  • FIRST LINE : FTR5104
  • KYB : KTR4043
  • LEMFÖRDER : 25461 02
  • MEYLE : 016 030 0006
  • MONROE : L23120
  • NAPA : NST6254
  • Schaeffler FAG : 840 0736 10
  • SKF : VKDY 318020
  • TRW : JTE1004
  • User manual
