Home / Car Parts / Steering & Suspension / Steering Parts / Tie Rod End

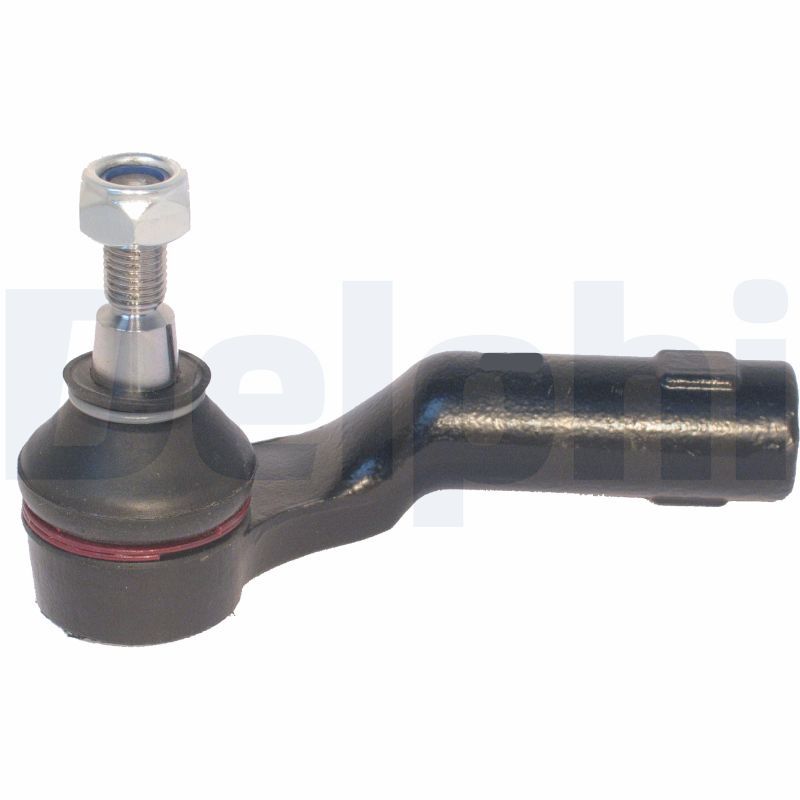

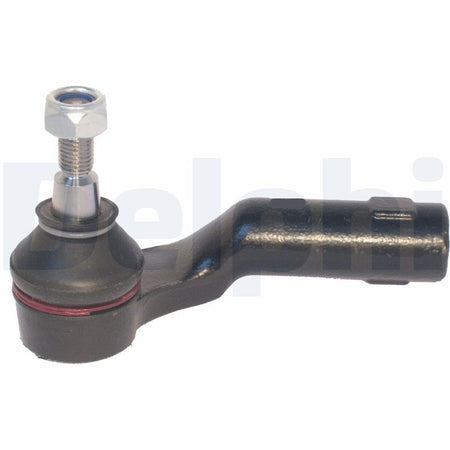

Delphi TA1976 Tie Rod End - 1
Delphi TA1976 Tie Rod End video
Delphi TA1976 Tie Rod End - 1
Delphi TA1976 Tie Rod End video
DELPHI

Delphi TA1976 Tie Rod End

SKU: TA1976
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£14.72 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MAZDA
3 Saloon (BK)
Description Cylinder Capacity Horse Power Year
1.6 (BK12) 1598 CCM 105 HP 02/2004 - 06/2009
2.0 (BKEP) 1999 CCM 150 HP 10/2003 - 12/2009
1.6 DI Turbo (BK12Y) 1560 CCM 109 HP 06/2004 - 06/2009
2.0 MZR-CD (BK12) 1998 CCM 143 HP 12/2006 - 06/2009
3 (BK)
Description Cylinder Capacity Horse Power Year
1.6 (BK14) 1598 CCM 105 HP 10/2003 - 06/2009
2.0 (BKEP) 1999 CCM 150 HP 10/2003 - 12/2009
1.6 DI Turbo 1560 CCM 109 HP 06/2004 - 06/2009
1.3 (BK14) 1349 CCM 84 HP 10/2003 - 06/2009
2.3 DiSi Turbo MPS (BK3P) 2261 CCM 250 HP 06/2006 - 06/2009
2.3 MPS Turbo (BK14) 2261 CCM 260 HP 12/2006 - 06/2009
2.0 MZR-CD (BK14) 1998 CCM 143 HP 07/2006 - 06/2009
1.6 MZ-CD 1560 CCM 90 HP 06/2006 - 12/2009
3 (BL)
Description Cylinder Capacity Horse Power Year
1.6 MZR CD (BL14) 1560 CCM 116 HP 09/2010 - 05/2013
1.6 MZR (BL14) 1598 CCM 105 HP 12/2008 - 09/2014
2.0 MZR DISI (BLEFW) 1999 CCM 151 HP 12/2008 - 05/2013
2.0 MZR (BLEFW) 1999 CCM 150 HP 01/2009 - 09/2014
1.6 MZ-CD (BL14) 1560 CCM 109 HP 12/2008 - 05/2013
2.2 MZR CD (BL10) 2184 CCM 150 HP 01/2009 - 10/2013
2.2 MZR CD (BL10) 2184 CCM 185 HP 01/2009 - 05/2013
2.3 MPS Turbo (BL14) 2261 CCM 260 HP 12/2008 - 09/2014
2.0 MZR (BLEFW, BL10F) 1999 CCM 147 HP 04/2009 - 09/2014
1.6 MZR 1598 CCM 107 HP 01/2010 - 12/2013
2.0 DISI (BLEFW) 1998 CCM 150 HP 05/2009 - 02/2012
3 Saloon (BL)
Description Cylinder Capacity Horse Power Year
1.6 MZR CD (BL14) 1560 CCM 116 HP 09/2010 - 05/2013
1.6 MZR (BL12) 1598 CCM 105 HP 12/2008 - 09/2014
2.0 MZR (BL12, BLEFP) 1999 CCM 150 HP 03/2009 - 09/2014
2.0 MZR DISI (BL12) 1999 CCM 151 HP 02/2009 - 05/2013
2.2 MZR CD (BL10) 2184 CCM 150 HP 01/2009 - 09/2014
2.2 MZR CD (BL10) 2184 CCM 185 HP 06/2009 - 05/2013
1.6 MZR CD (BL12) 1560 CCM 109 HP 12/2008 - 05/2013
5 (CR)
Description Cylinder Capacity Horse Power Year
1.8 (CR19) 1798 CCM 116 HP 02/2005 - 05/2010
2.0 (CREW, CR19) 1999 CCM 146 HP 02/2005 - 05/2010
2.0 CD (CR19) 1998 CCM 110 HP 02/2005 - 05/2010
2.0 CD (CR19) 1998 CCM 143 HP 02/2005 - 05/2010
5 (CW)
Description Cylinder Capacity Horse Power Year
1.6 CD 1560 CCM 116 HP From 07/2010
2.0 (CWEFW) 1999 CCM 150 HP From 09/2010
2.0 (CWEFW) 1999 CCM 144 HP From 06/2010
1.8 MZR 1798 CCM 116 HP From 09/2010
2.0 (CWFFW) 1998 CCM 151 HP From 08/2014
2.0 1999 CCM 147 HP From 01/2011

The Delphi TA1976 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M17x1.5 thread size, with right-hand thread thread type, front axle left fitting position, and 130 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M17x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 12.3
Paired article number : TA1977
Fitting Position : Front Axle Left
Length [mm] : 130
Width [mm] : 80
Height [mm] : 80
  • Vendor DELPHI
  • SKU TA1976
  • Barcode 5012759350188
  • MAZDA : BP4L-32-290
  • APEC : AST6393
  • BLUE PRINT : ADM58747
  • BORG & BECK : BTR5088
  • BOSCH : 0 986 140 523
  • CORTECO : 49400494
  • FEBI BILSTEIN : 29983
  • FEBI BILSTEIN : 34480
  • FIRST LINE : FTR5088
  • KYB : KTR1262
  • LEMFÖRDER : 34664 01
  • MEYLE : 35-16 020 0029
  • MONROE : L50156
  • NAPA : NST6393
  • Schaeffler FAG : 840 1078 10
  • SKF : VKDY 814014
  • TRW : JTE7584
