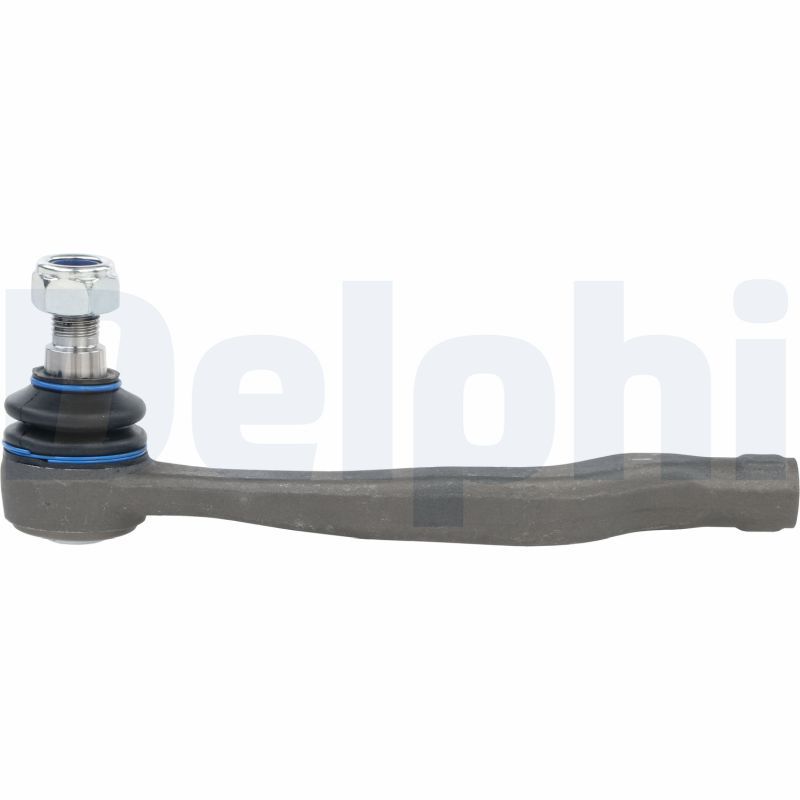

Delphi TA1983 Tie Rod End - 1

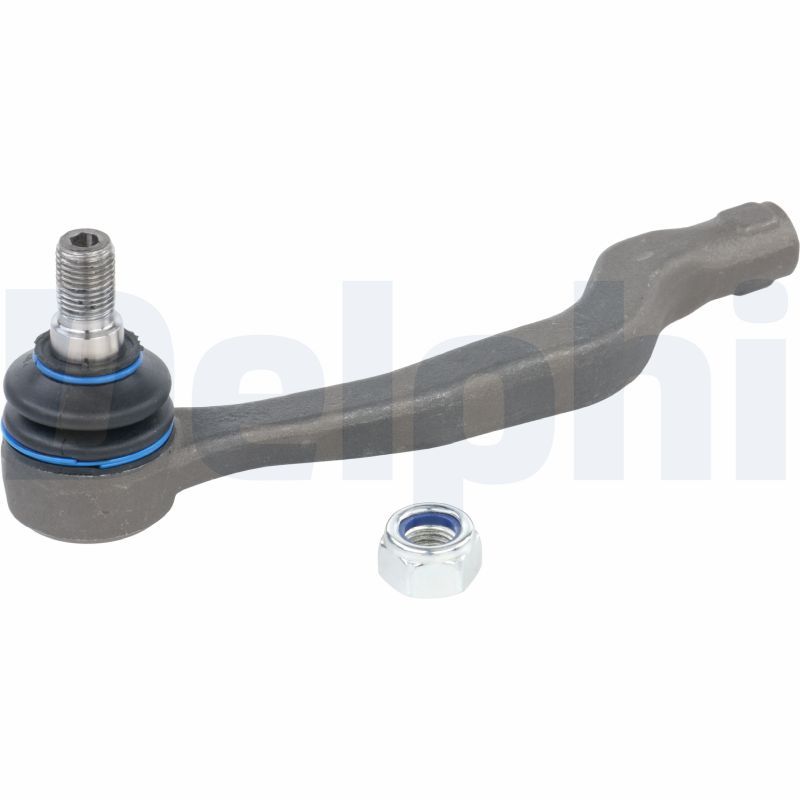

Delphi TA1983 Tie Rod End - 2

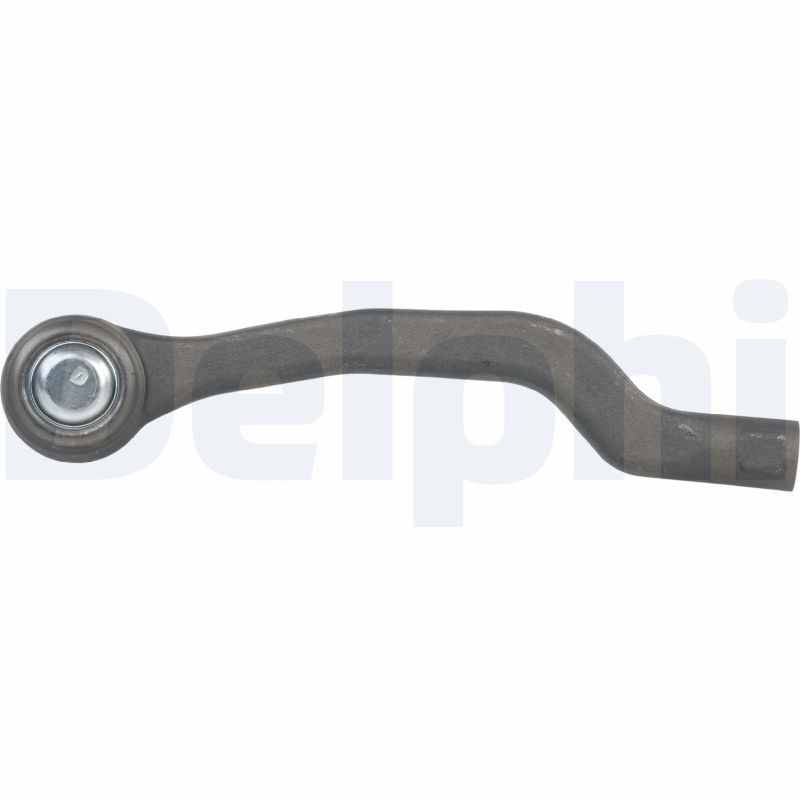

Delphi TA1983 Tie Rod End - 3

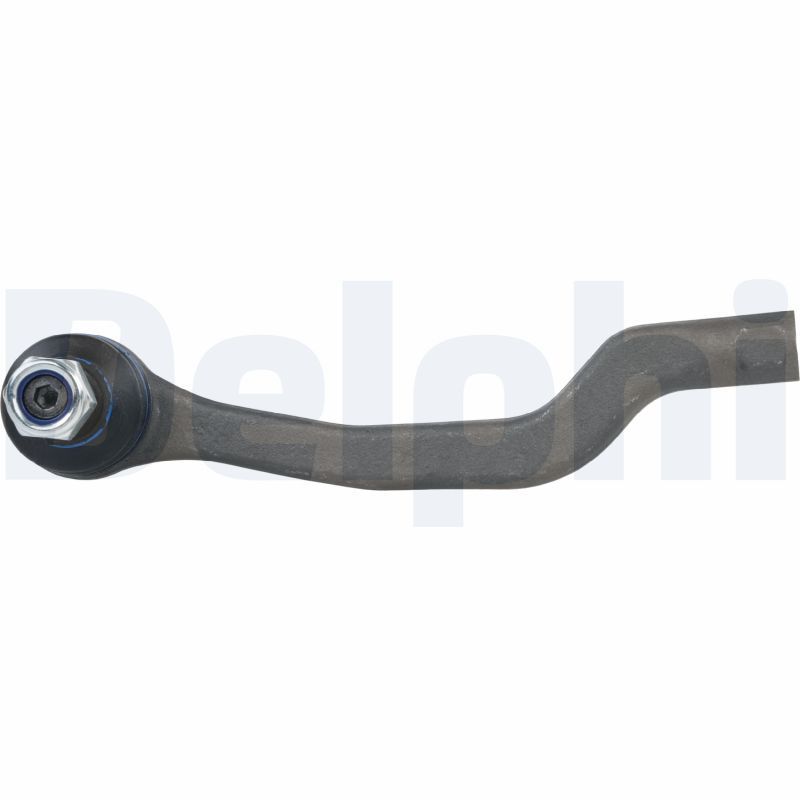

Delphi TA1983 Tie Rod End - 4

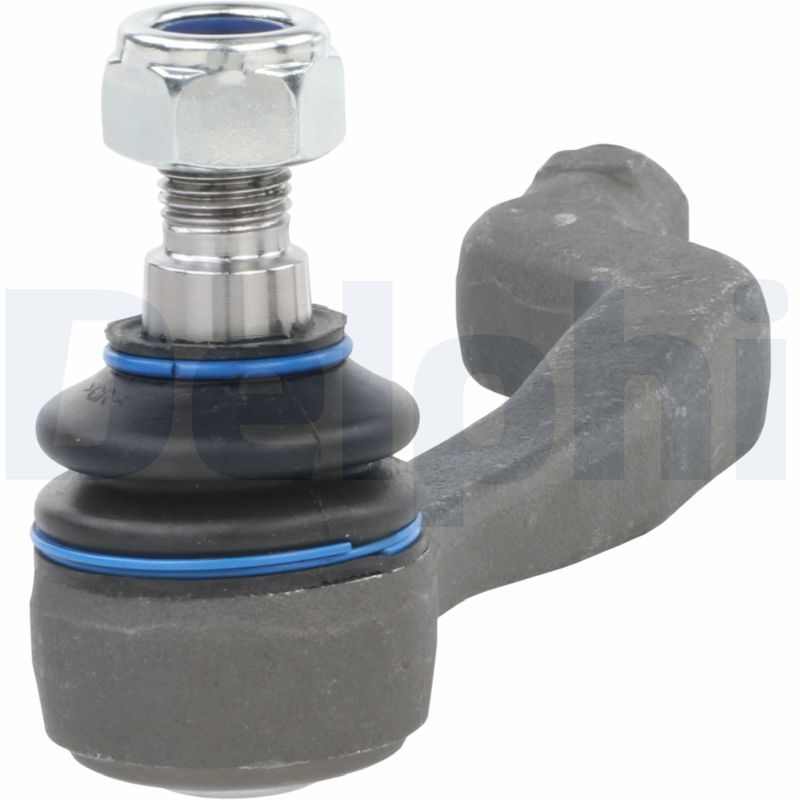

Delphi TA1983 Tie Rod End - 5

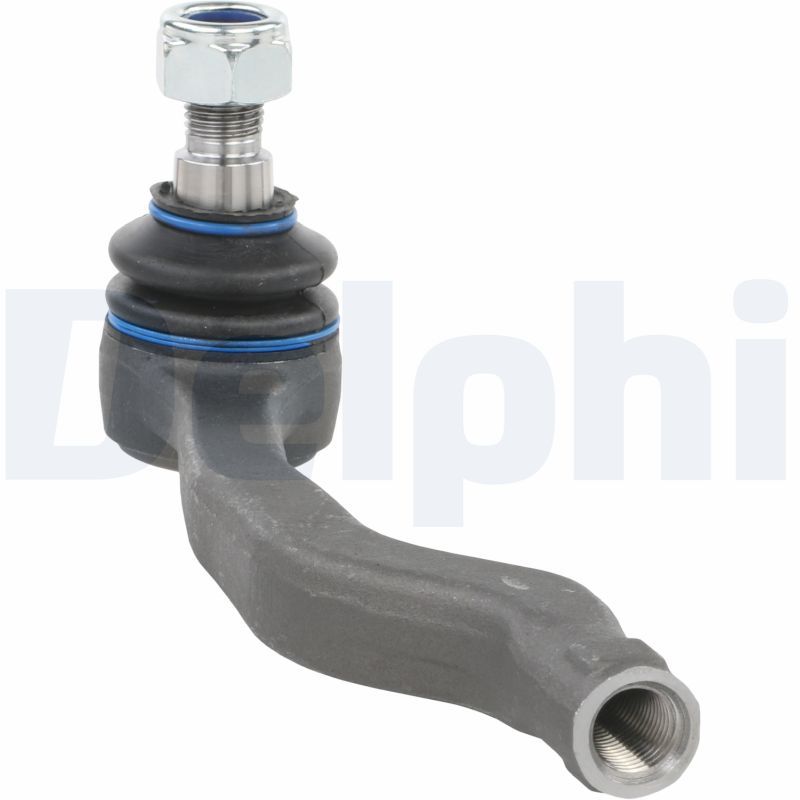

Delphi TA1983 Tie Rod End - 6
Delphi TA1983 Tie Rod End video
Delphi TA1983 Tie Rod End - 1
Delphi TA1983 Tie Rod End - 2
Delphi TA1983 Tie Rod End - 3
Delphi TA1983 Tie Rod End - 4
Delphi TA1983 Tie Rod End - 5
Delphi TA1983 Tie Rod End - 6
Delphi TA1983 Tie Rod End video
DELPHI

Delphi TA1983 Tie Rod End

SKU: TA1983
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£24.27 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
A-CLASS (W168)
Description Cylinder Capacity Horse Power Year
A 160 CDI (168.007) 1689 CCM 60 HP 07/1998 - 02/2001
A-CLASS (W169)
Description Cylinder Capacity Horse Power Year
E-CELL (169.090) 68 HP 12/2010 - 06/2012
A 200 CDI (169.308, 169.008) 1991 CCM 136 HP 09/2004 - 06/2012
A 170 (169.032, 169.332) 1699 CCM 116 HP 09/2004 - 06/2012
A 150 (169.031, 169.331) 1498 CCM 95 HP 09/2004 - 06/2012
A 200 (169.033, 169.333) 2034 CCM 136 HP 09/2004 - 06/2012
A 160 CDI (169.006, 169.306) 1991 CCM 82 HP 09/2004 - 06/2012
A 180 CDI (169.007, 169.307) 1991 CCM 109 HP 09/2004 - 06/2012
A 200 CDI (169.008, 169.308) 1991 CCM 140 HP 09/2004 - 06/2012
A 200 TURBO (169.034, 169.334) 2034 CCM 193 HP 09/2005 - 06/2012
A 160 (169.031, 169.331) 1498 CCM 95 HP 04/2009 - 06/2012
A 180 (169.032, 169.332) 1699 CCM 116 HP 04/2009 - 06/2012
B-CLASS Sports Tourer (W245)
Description Cylinder Capacity Horse Power Year
B 180 CDI (245.207) 1991 CCM 109 HP 03/2005 - 11/2011
B 200 CDI (245.208) 1991 CCM 140 HP 03/2005 - 11/2011
B 170 (245.232) 1699 CCM 116 HP 03/2005 - 11/2011
B 200 (245.233) 2034 CCM 136 HP 03/2005 - 11/2011
B 200 TURBO (245.234) 2034 CCM 193 HP 03/2005 - 11/2011
B 150 (245.231) 1498 CCM 95 HP 03/2005 - 11/2011
B 170 NGT (245.233) 2034 CCM 116 HP 04/2008 - 11/2011
B 180 NGT (245.233) 2034 CCM 116 HP 04/2008 - 11/2011
B 160 (245.231) 1498 CCM 95 HP 04/2009 - 11/2011
B 180 (245.232) 1699 CCM 116 HP 04/2009 - 11/2011
B 200 CDI (245.208) 1991 CCM 136 HP 03/2005 - 11/2011

The Delphi TA1983 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle left fitting position, and 228 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 16.7
Paired article number : TA1984
Fitting Position : Front Axle Left
Length [mm] : 228
Width [mm] : 50
Height [mm] : 80
  • Vendor DELPHI
  • SKU TA1983
  • Barcode 5012759352021
  • MERCEDES-BENZ : 169 330 0503 A169 330 0503
  • APEC : AST6396
  • BLUE PRINT : ADJ1396508
  • BORG & BECK : BTR5242
  • BOSCH : 0 986 140 529
  • CORTECO : 49400004
  • FEBI BILSTEIN : 26018
  • FEBI BILSTEIN : 30128
  • FEBI BILSTEIN : 34845
  • FEBI BILSTEIN : 36859
  • FIRST LINE : FTR5242
  • KYB : KTR4039
  • LEMFÖRDER : 31933 01
  • MEYLE : 016 020 0007
  • MONROE : L23126
  • NAPA : NST6396
  • Schaeffler FAG : 840 0803 10
  • SKF : VKDY 318012
  • TRW : JTE1196
