Home / Car Parts / Steering & Suspension / Steering Parts / Tie Rod End
Delphi TA1990 Tie Rod End - 1
Delphi TA1990 Tie Rod End video
Delphi TA1990 Tie Rod End - 1
Delphi TA1990 Tie Rod End video
DELPHI

Delphi TA1990 Tie Rod End

SKU: TA1990
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£14.09 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
C-MAX (DM2)
Description Cylinder Capacity Horse Power Year
1.8 1798 CCM 122 HP 02/2007 - 09/2010
2.0 TDCi 1997 CCM 133 HP 02/2007 - 09/2010
1.6 TDCi 1560 CCM 101 HP 02/2007 - 09/2010
1.6 1596 CCM 100 HP 02/2007 - 09/2010
1.8 1798 CCM 125 HP 02/2007 - 09/2010
1.8 Flexifuel 1798 CCM 125 HP 02/2007 - 09/2010
2.0 1999 CCM 145 HP 02/2007 - 09/2010
1.6 TDCi 1560 CCM 90 HP 02/2007 - 09/2010
1.6 TDCi 1560 CCM 109 HP 02/2007 - 09/2010
2.0 TDCi 1997 CCM 136 HP 02/2007 - 09/2010
2.0 TDCi 1997 CCM 110 HP 02/2008 - 09/2010
1.8 TDCi 1753 CCM 115 HP 02/2007 - 09/2010
2.0 CNG 1999 CCM 145 HP 04/2009 - 09/2010
2.0 LPG 1999 CCM 145 HP 06/2008 - 09/2010
1.6 1596 CCM 116 HP 04/2007 - 09/2010
FOCUS C-MAX (DM2)
Description Cylinder Capacity Horse Power Year
2.0 TDCi 1997 CCM 133 HP 10/2003 - 03/2007
1.8 1798 CCM 120 HP 10/2003 - 03/2007
1.6 TDCi 1560 CCM 109 HP 10/2003 - 03/2007
2.0 TDCi 1997 CCM 136 HP 10/2003 - 03/2007
1.6 1596 CCM 100 HP 10/2003 - 03/2007
2.0 1999 CCM 145 HP 03/2004 - 03/2007
1.8 1798 CCM 125 HP 04/2004 - 03/2007
1.6 Ti 1596 CCM 115 HP 08/2004 - 03/2007
1.6 TDCi 1560 CCM 90 HP 02/2005 - 03/2007
1.8 TDCi 1753 CCM 115 HP 01/2005 - 03/2007
1.8 Flexifuel 1798 CCM 125 HP 01/2006 - 03/2007
1.8 1798 CCM 122 HP 09/2005 - 03/2007
FOCUS II (DA_, HCP, DP)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 100 HP 07/2004 - 09/2012
2.0 TDCi 1997 CCM 133 HP 07/2004 - 01/2008
1.6 1596 CCM 100 HP 07/2004 - 09/2012
1.6 Ti 1596 CCM 115 HP 07/2004 - 09/2012
2.0 1999 CCM 145 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 109 HP 07/2004 - 09/2012
2.0 TDCi 1997 CCM 136 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 90 HP 10/2005 - 03/2012
1.8 TDCi 1753 CCM 115 HP 10/2005 - 06/2010
2.5 ST 2522 CCM 225 HP 10/2005 - 09/2012
1.8 Flexifuel 1798 CCM 125 HP 01/2006 - 09/2012
2.0 TDCi 1997 CCM 110 HP 02/2008 - 07/2011
1.8 1798 CCM 125 HP 03/2006 - 09/2012
2.5 RS 2521 CCM 305 HP 01/2009 - 07/2011
FOCUS II Estate Van
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 101 HP 11/2004 - 07/2011
1.6 TDCi 1560 CCM 109 HP 07/2004 - 07/2011
1.6 Ti-VCT 1596 CCM 116 HP 09/2005 - 07/2011
1.6 1596 CCM 101 HP 09/2005 - 07/2011
1.6 TDCi 1560 CCM 90 HP 09/2005 - 07/2011
FOCUS II Station Wagon (DA_, FFS, DS)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 100 HP 07/2004 - 09/2012
2.0 TDCi 1997 CCM 133 HP 07/2004 - 01/2008
1.6 TDCi 1560 CCM 110 HP 12/2007 - 09/2012
1.6 1596 CCM 100 HP 07/2004 - 07/2011
1.6 Ti 1596 CCM 115 HP 07/2004 - 09/2012
2.0 1999 CCM 145 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 109 HP 07/2004 - 09/2012
2.0 TDCi 1997 CCM 136 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 90 HP 07/2004 - 09/2012
1.8 TDCi 1753 CCM 115 HP 10/2005 - 06/2010
1.8 Flexifuel 1798 CCM 125 HP 01/2006 - 09/2012
2.0 TDCi 1997 CCM 110 HP 02/2008 - 07/2011
1.8 1798 CCM 125 HP 03/2006 - 09/2012
2.0 LPG 1999 CCM 145 HP 06/2008 - 07/2011
FOCUS II Saloon (DB_, FCH, DH)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 100 HP 04/2005 - 09/2012
1.6 1596 CCM 100 HP 04/2005 - 09/2012
1.6 Ti 1596 CCM 115 HP 04/2005 - 09/2012
2.0 1999 CCM 145 HP 04/2005 - 07/2011
1.6 TDCi 1560 CCM 90 HP 04/2005 - 09/2012
1.6 TDCi 1560 CCM 109 HP 04/2005 - 09/2012
1.8 TDCi 1753 CCM 115 HP 04/2005 - 09/2012
2.0 TDCi 1997 CCM 136 HP 04/2005 - 09/2012
1.8 Flexifuel 1798 CCM 125 HP 06/2006 - 07/2011
2.0 TDCi 1997 CCM 110 HP 02/2008 - 07/2011
1.8 1798 CCM 125 HP 03/2006 - 09/2012
FOCUS II Convertible
Description Cylinder Capacity Horse Power Year
1.6 1596 CCM 100 HP 10/2006 - 09/2010
2.0 1999 CCM 145 HP 10/2006 - 09/2010
2.0 TDCi 1997 CCM 136 HP 10/2006 - 09/2010
FOCUS III
Description Cylinder Capacity Horse Power Year
1.6 Ti 1596 CCM 105 HP 07/2010 - 02/2020
1.6 Ti 1596 CCM 125 HP 07/2010 - 12/2017
1.6 Flexifuel 1596 CCM 120 HP 07/2010 - 02/2020
1.6 Ti 1596 CCM 85 HP 08/2011 - 12/2017
1.6 LPG 1596 CCM 120 HP 02/2012 - 02/2020
FOCUS III Turnier
Description Cylinder Capacity Horse Power Year
1.6 Ti 1596 CCM 105 HP 07/2010 - 02/2020
1.6 Ti 1596 CCM 125 HP 07/2010 - 02/2020
1.6 Flexifuel 1596 CCM 120 HP 07/2010 - 02/2020
1.6 Ti 1596 CCM 85 HP 08/2011 - 02/2020
1.6 LPG 1596 CCM 120 HP 02/2012 - 02/2020
FOCUS III Saloon
Description Cylinder Capacity Horse Power Year
1.6 Ti 1596 CCM 105 HP 07/2010 - 02/2020
1.6 Ti 1596 CCM 125 HP 07/2010 - 02/2020
1.6 Flexifuel 1596 CCM 120 HP 07/2010 - 02/2020
1.6 Ti 1596 CCM 85 HP 08/2011 - 02/2020
FOCUS III Hatchback Van
Description Cylinder Capacity Horse Power Year
1.6 Ti 1596 CCM 105 HP 01/2011 - 02/2020
VOLVO
C30 (533)
Description Cylinder Capacity Horse Power Year
D2 1560 CCM 115 HP 10/2010 - 12/2012
D3 1984 CCM 150 HP 10/2010 - 12/2012
D4 1984 CCM 177 HP 10/2010 - 12/2012
1.6 1596 CCM 100 HP 10/2006 - 12/2012
1.8 1798 CCM 125 HP 10/2006 - 12/2012
2.0 1999 CCM 145 HP 10/2006 - 12/2012
2.4 i 2435 CCM 170 HP 10/2006 - 12/2012
T5 2521 CCM 220 HP 10/2006 - 12/2012
1.6 D 1560 CCM 109 HP 10/2006 - 12/2012
2.0 D 1998 CCM 136 HP 10/2006 - 12/2012
D5 2400 CCM 180 HP 10/2006 - 12/2012
T5 2521 CCM 230 HP 03/2007 - 12/2012
1.8 FlexFuel 1798 CCM 125 HP 01/2007 - 12/2012
D5 2400 CCM 163 HP 10/2006 - 12/2012
2.0 FlexFuel 1999 CCM 146 HP 01/2010 - 12/2012
C70 II Convertible (542)
Description Cylinder Capacity Horse Power Year
D3 1984 CCM 150 HP 10/2010 - 06/2013
D4 1984 CCM 177 HP 10/2010 - 06/2013
2.4 2435 CCM 140 HP 03/2006 - 10/2009
2.4 i 2435 CCM 170 HP 03/2006 - 10/2009
T5 2521 CCM 220 HP 03/2006 - 02/2007
D5 2400 CCM 180 HP 03/2006 - 06/2013
T5 2521 CCM 230 HP 03/2007 - 06/2013
2.0 D 1998 CCM 136 HP 01/2008 - 10/2009
2.4 D 2400 CCM 163 HP 03/2007 - 06/2013
S40 II (544)
Description Cylinder Capacity Horse Power Year
D3 1984 CCM 150 HP 10/2010 - 12/2012
D4 1984 CCM 177 HP 10/2010 - 12/2012
D2 1560 CCM 115 HP 10/2010 - 12/2012
2.0 F 1999 CCM 146 HP 10/2009 - 12/2012
2.4 2435 CCM 140 HP 01/2004 - 12/2010
2.4 2435 CCM 170 HP 01/2004 - 12/2012
T5 2521 CCM 220 HP 01/2004 - 12/2007
2.0 D 1998 CCM 136 HP 01/2004 - 12/2010
T5 AWD 2521 CCM 220 HP 04/2004 - 12/2007
1.8 1798 CCM 125 HP 04/2004 - 12/2010
1.6 1596 CCM 101 HP 01/2005 - 12/2012
1.6 D 1560 CCM 110 HP 01/2005 - 12/2012
2.0 1999 CCM 146 HP 10/2006 - 12/2012
D5 2400 CCM 179 HP 03/2006 - 12/2010
T5 2521 CCM 230 HP 03/2007 - 12/2012
V50 (545)
Description Cylinder Capacity Horse Power Year
D4 1984 CCM 177 HP 10/2010 - 12/2012
D3 1984 CCM 150 HP 10/2010 - 12/2012
2.4 2435 CCM 140 HP 04/2004 - 12/2010
2.4 2435 CCM 170 HP 04/2004 - 12/2010
T5 2521 CCM 220 HP 04/2004 - 12/2007
2.0 D 1998 CCM 136 HP 04/2004 - 12/2010
T5 AWD 2521 CCM 220 HP 04/2004 - 12/2007
1.8 1798 CCM 125 HP 04/2004 - 12/2010
1.6 1596 CCM 101 HP 01/2005 - 12/2012
1.6 D 1560 CCM 110 HP 01/2005 - 12/2011
2.0 1999 CCM 146 HP 10/2006 - 12/2012
D5 2400 CCM 179 HP 04/2006 - 02/2008
T5 2521 CCM 230 HP 03/2007 - 12/2012
T5 AWD 2521 CCM 230 HP 03/2007 - 12/2010
1.8 FlexFuel 1798 CCM 125 HP 01/2005 - 12/2010

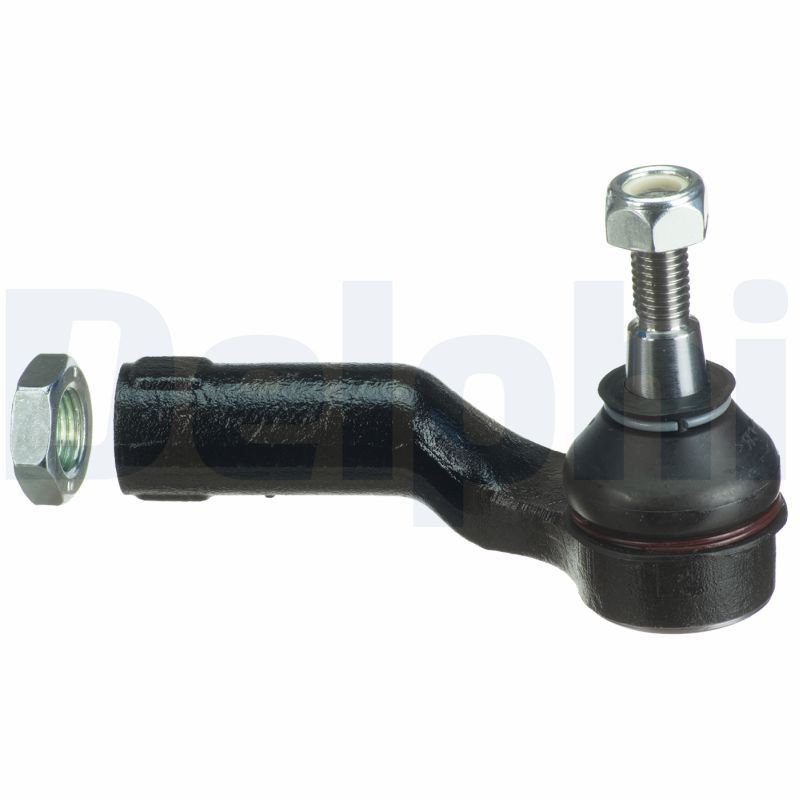

The Delphi TA1990 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16x1.5 thread size, with right-hand thread thread type, front axle right fitting position, and 120 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M16x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 12.4
Paired article number : TA1989
Fitting Position : Front Axle Right
Length [mm] : 120
Width [mm] : 55
Height [mm] : 85
  • Vendor DELPHI
  • SKU TA1990
  • Barcode 5012759351161
  • FORD : 3M513289AC 3M513C367AA 3M513C367AB 4M513289AB 4M513289AC EV613289AA 1541652 4M513289AD 1730933 1388549 1328877 1317446 1315074 1306177 1251925 1894033
  • VOLVO : 274500 30723103 30778171 31201412
  • APEC : AST6038
  • BORG & BECK : BTR5061
  • BOSCH : 0 986 140 526
  • CORTECO : 49398683
  • FEBI BILSTEIN : 29224
  • FIRST LINE : FTR5061
  • KYB : KTR4034
  • LEMFÖRDER : 30463 02
  • MEYLE : 716 020 0017/HD
  • MEYLE : 716 020 0018/HD
  • MONROE : L10109
  • MONROE : L10110
  • NAPA : NST6038
  • Schaeffler FAG : 840 1038 10
  • SKF : VKDY 314004
  • TRW : JTE1106
