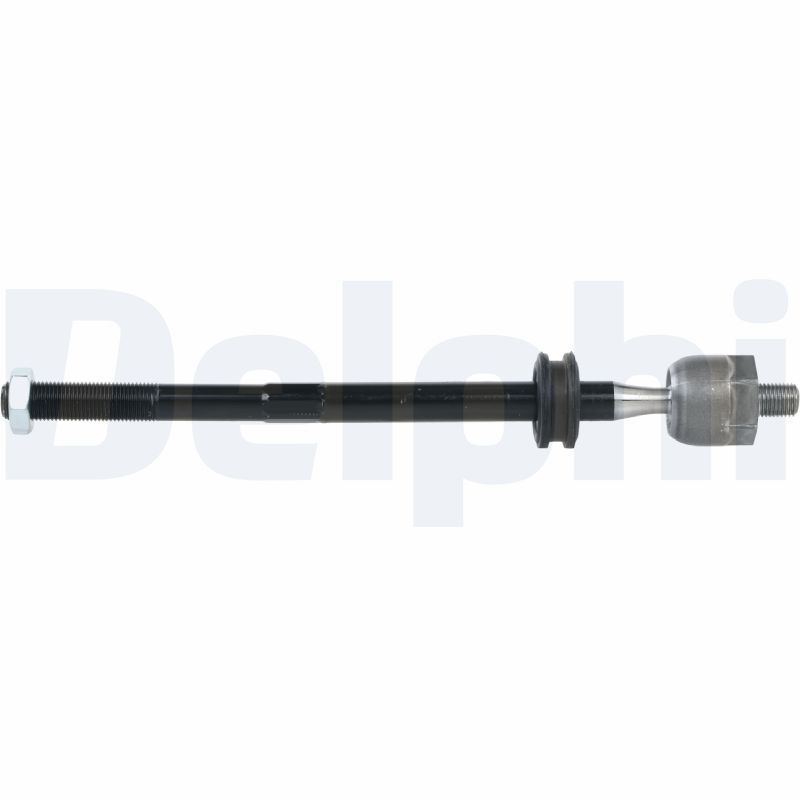

Delphi TA2019 Inner Tie Rod - 1

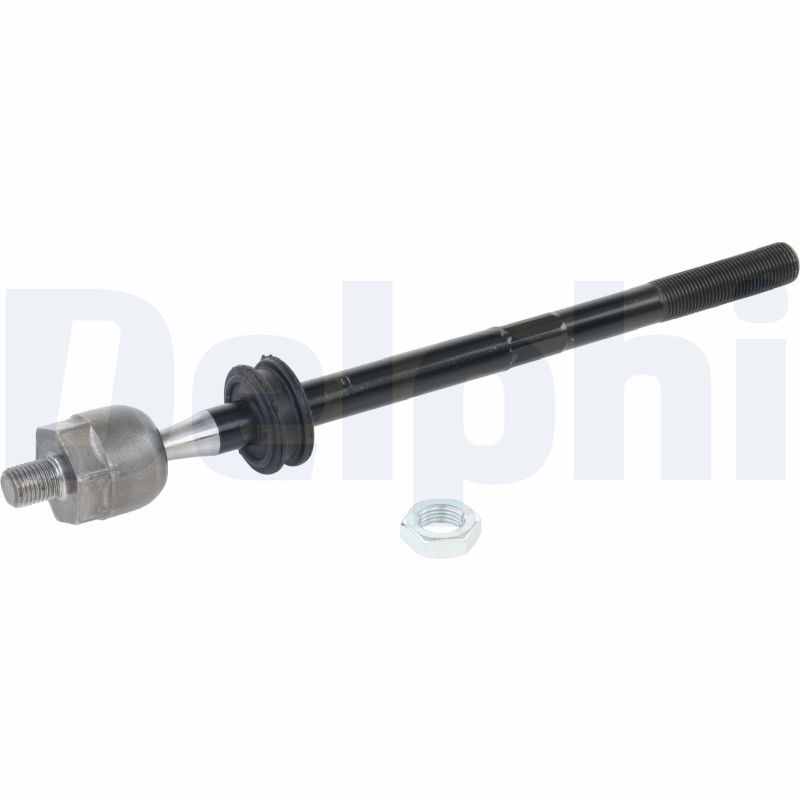

Delphi TA2019 Inner Tie Rod - 2

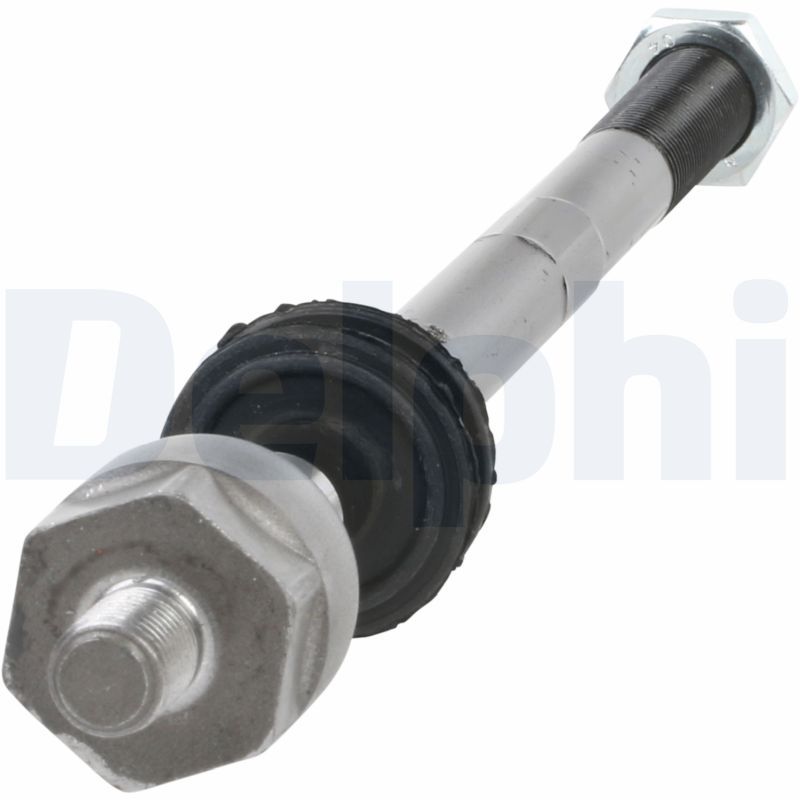

Delphi TA2019 Inner Tie Rod - 3

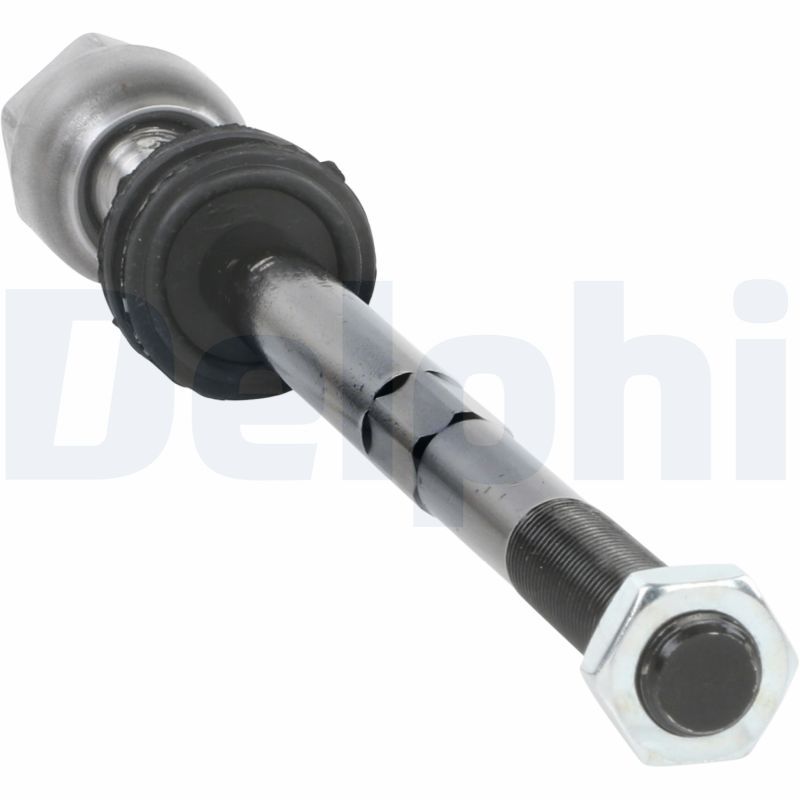

Delphi TA2019 Inner Tie Rod - 4
Delphi TA2019 Inner Tie Rod - 5

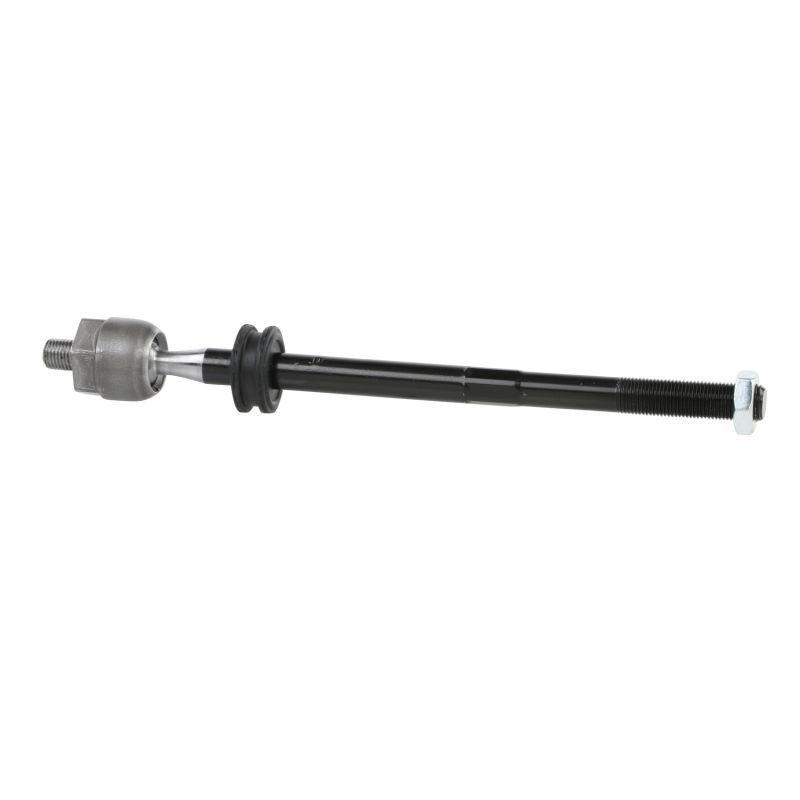

Delphi TA2019 Inner Tie Rod - 6
Delphi TA2019 Inner Tie Rod video
Delphi TA2019 Inner Tie Rod - 1
Delphi TA2019 Inner Tie Rod - 2
Delphi TA2019 Inner Tie Rod - 3
Delphi TA2019 Inner Tie Rod - 4
Delphi TA2019 Inner Tie Rod - 5
Delphi TA2019 Inner Tie Rod - 6
Delphi TA2019 Inner Tie Rod video
DELPHI

Delphi TA2019 Inner Tie Rod

SKU: TA2019
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£12.90 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VW
TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL,
Description Cylinder Capacity Horse Power Year
1.9 D 1896 CCM 61 HP 07/1990 - 12/1995
1.9 TD 1896 CCM 68 HP 10/1992 - 04/2003
2.4 D 2370 CCM 78 HP 09/1990 - 04/1998
2.5 2461 CCM 110 HP 11/1990 - 04/2003
2.5 Syncro 2461 CCM 110 HP 11/1992 - 11/2001
2.0 1968 CCM 84 HP 07/1990 - 04/2003
2.5 2461 CCM 115 HP 08/1996 - 04/2003
2.5 Syncro 2461 CCM 115 HP 08/1996 - 04/2003
2.4 D Syncro 2370 CCM 78 HP 10/1992 - 09/1998
2.5 TDI 2461 CCM 102 HP 09/1995 - 04/2003
2.4 D 2370 CCM 75 HP 08/1997 - 04/2003
2.5 TDI 2461 CCM 88 HP 05/1998 - 04/2003
2.5 TDI Syncro 2461 CCM 102 HP 05/1998 - 04/2003
2.8 2792 CCM 140 HP 05/1996 - 05/2000
1.9 D 1896 CCM 60 HP 09/1990 - 12/1995
TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J)
Description Cylinder Capacity Horse Power Year
2.0 1968 CCM 84 HP 07/1990 - 04/2003
2.5 2461 CCM 110 HP 11/1990 - 04/2003
1.9 D 1896 CCM 61 HP 07/1990 - 12/1995
1.9 TD 1896 CCM 68 HP 10/1992 - 04/2003
2.4 D 2370 CCM 78 HP 07/1990 - 04/1998
2.5 Syncro 2461 CCM 110 HP 11/1992 - 11/2001
2.4 D Syncro 2370 CCM 78 HP 10/1992 - 09/1998
2.5 2461 CCM 115 HP 08/1996 - 04/2003
2.5 Syncro 2461 CCM 115 HP 08/1996 - 04/2003
2.5 TDI 2461 CCM 102 HP 09/1995 - 04/2003
2.4 D 2370 CCM 75 HP 08/1997 - 04/2003
2.5 TDI Syncro 2461 CCM 102 HP 09/1995 - 04/2003
2.5 TDI 2461 CCM 88 HP 12/1998 - 04/2003
2.5 TDI 2461 CCM 151 HP 09/2000 - 04/2003
2.8 VR6 2792 CCM 204 HP 06/2000 - 04/2003
TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J,
Description Cylinder Capacity Horse Power Year
2.4 D Syncro 2370 CCM 78 HP 10/1992 - 09/1998
2.5 Syncro 2461 CCM 110 HP 08/1992 - 04/2003
2.5 2461 CCM 110 HP 09/1990 - 06/2003
1.8 1781 CCM 67 HP 12/1990 - 07/1992
1.9 D 1896 CCM 60 HP 09/1990 - 12/1995
1.9 TD 1896 CCM 68 HP 10/1992 - 04/2003
2.4 D 2370 CCM 78 HP 09/1990 - 04/1998
2.0 1968 CCM 84 HP 09/1990 - 04/2003
2.5 TDI 2461 CCM 102 HP 09/1995 - 04/2003
2.5 TDI Syncro 2461 CCM 102 HP 01/1996 - 04/2003
2.5 Syncro 2461 CCM 115 HP 07/1996 - 04/2003
2.5 2461 CCM 115 HP 08/1996 - 04/2003
2.8 VR 6 2792 CCM 140 HP 11/1995 - 04/2000
2.5 TDI 2461 CCM 88 HP 05/1998 - 04/2003
2.5 TDI 2461 CCM 151 HP 05/1998 - 04/2003

The Delphi TA2019 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16x1.5 thread size 2, front axle fitting position, 307 mm length, and 36 mm width. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod
Thread Size 2 : M16x1.5
Fitting Position : Front Axle
Length [mm] : 307
Width [mm] : 36
Height [mm] : 36
Axle Joint Length [mm] : 290
  • Vendor DELPHI
  • SKU TA2019
  • Barcode 5012759287439
  • VW : 701419810 701 419 810A 701 419 810B 701 419 821C
  • APEC : AST6145
  • BORG & BECK : BTR4255K
  • BORG & BECK : BTR4903
  • BORG & BECK : BTR4903K
  • BOSCH : 0 986 141 052
  • CORTECO : 49398752
  • FEBI BILSTEIN : 32157
  • FEBI BILSTEIN : 34811
  • FEBI BILSTEIN : 34812
  • FIRST LINE : FTR4255K
  • FIRST LINE : FTR4903
  • FIRST LINE : FTR4903K
  • KYB : KRE4026
  • LEMFÖRDER : 10285 02
  • LEMFÖRDER : 13770 02
  • LEMFÖRDER : 22307 01
  • MEYLE : 116 030 8200
  • MONROE : L29212
  • NAPA : NST6145
  • Schaeffler FAG : 840 0174 10
  • Schaeffler FAG : 840 0182 10
  • Schaeffler FAG : 840 0308 10
  • Schaeffler FAG : 840 0309 10
  • SKF : VKDY 321009
  • SKF : VKDY 321010
  • SKF : VKDY 331025
  • SKF : VKDY 331049
  • TRW : JAR558
  • TRW : JAR985
