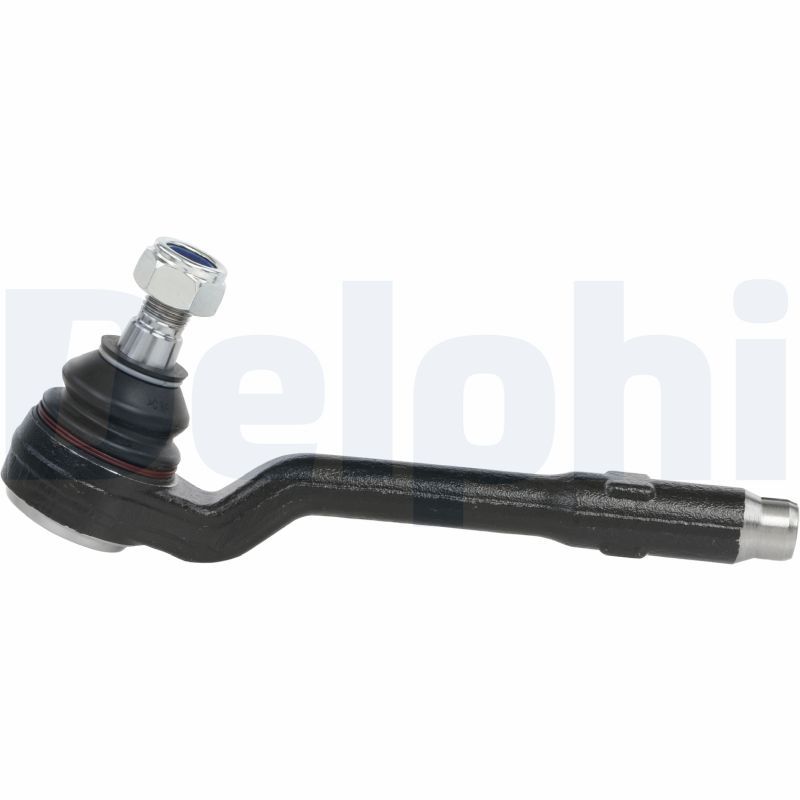

Delphi TA2035 Tie Rod End - 1

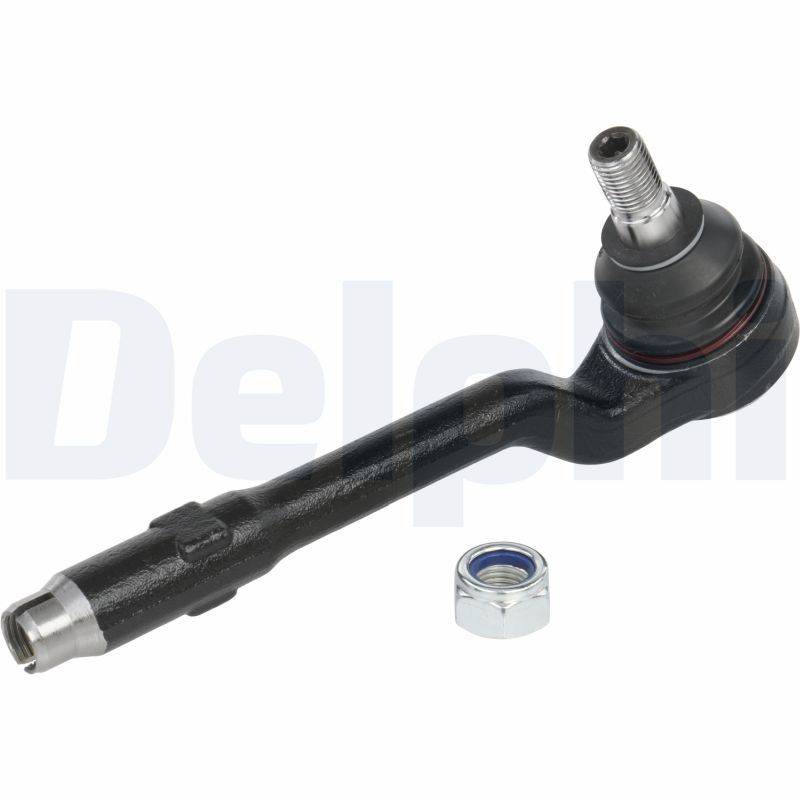

Delphi TA2035 Tie Rod End - 2

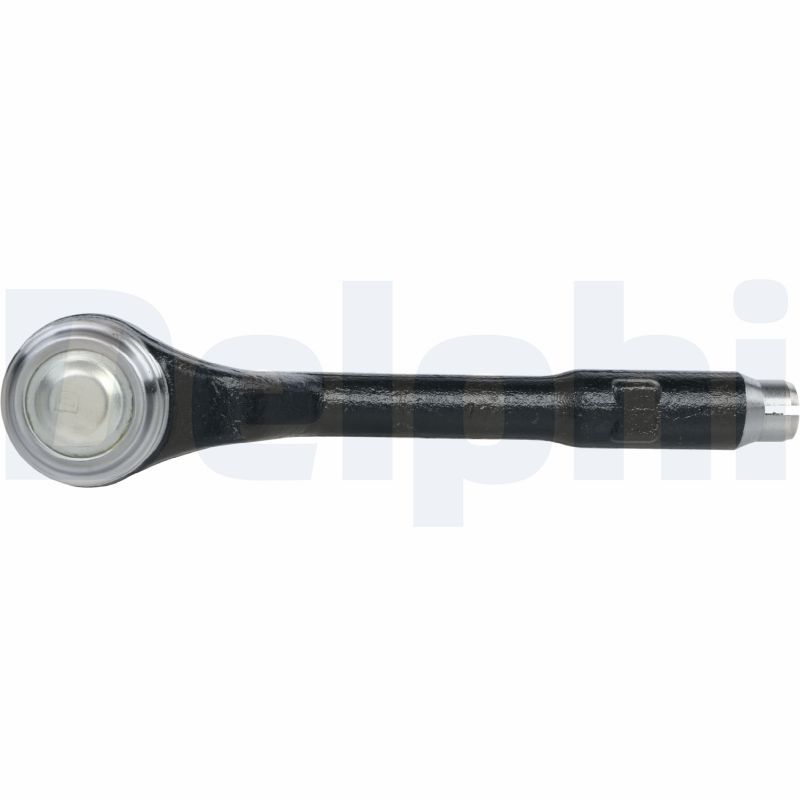

Delphi TA2035 Tie Rod End - 3

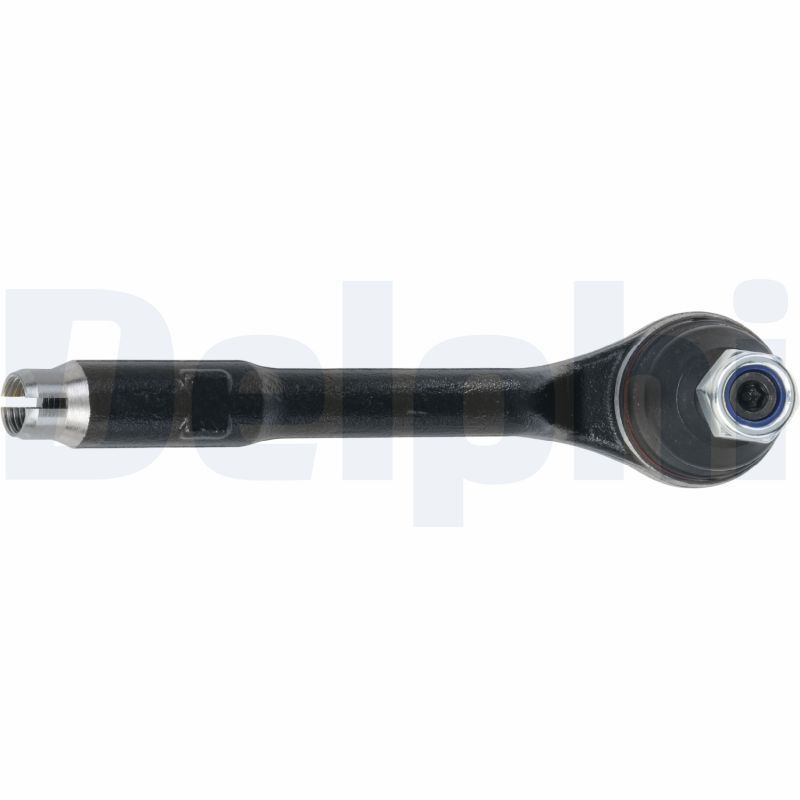

Delphi TA2035 Tie Rod End - 4

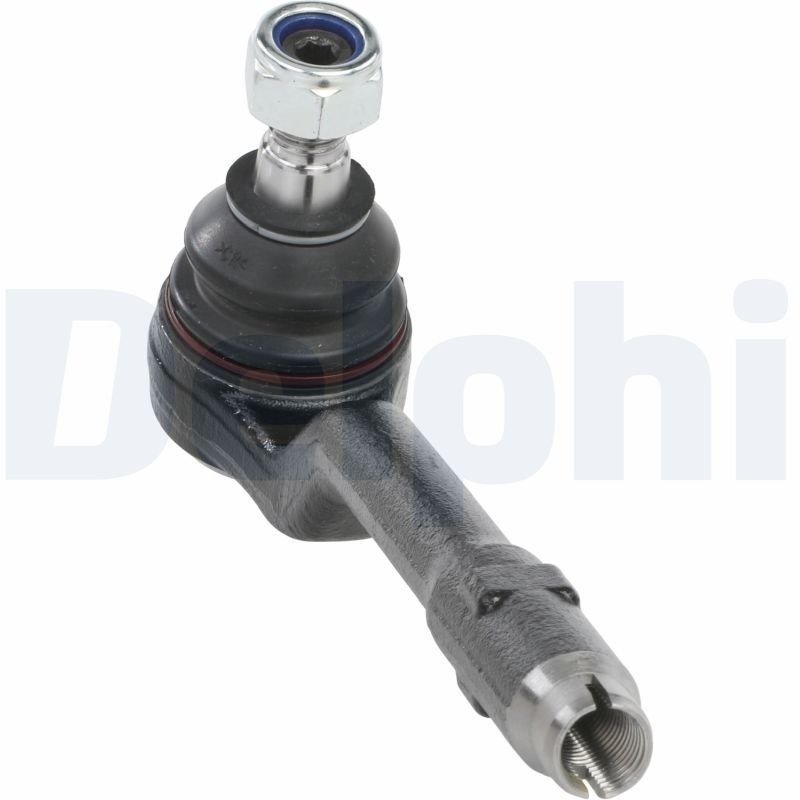

Delphi TA2035 Tie Rod End - 5

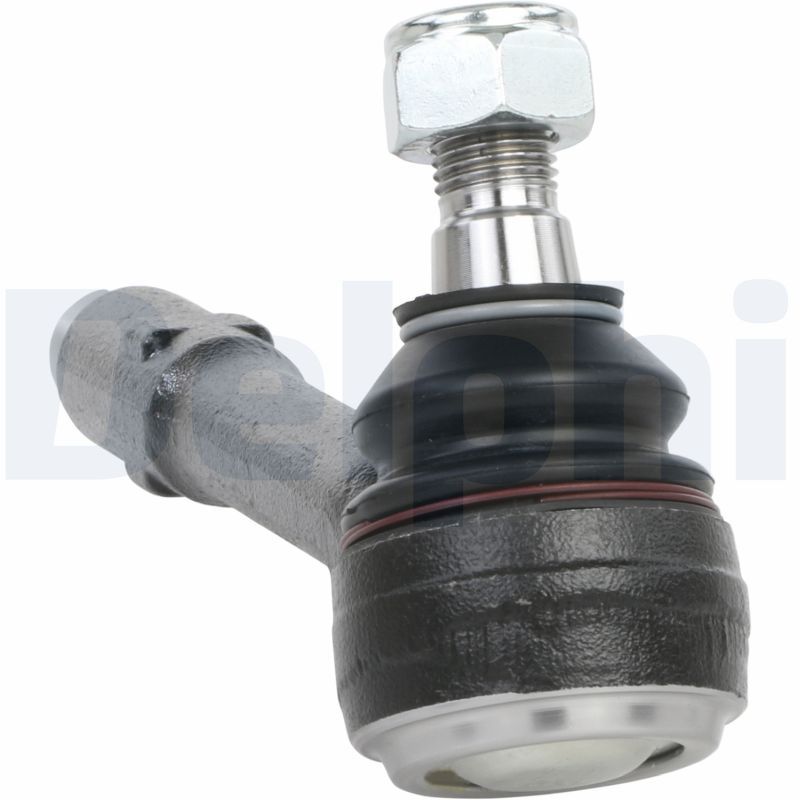

Delphi TA2035 Tie Rod End - 6
Delphi TA2035 Tie Rod End video
Delphi TA2035 Tie Rod End - 1
Delphi TA2035 Tie Rod End - 2
Delphi TA2035 Tie Rod End - 3
Delphi TA2035 Tie Rod End - 4
Delphi TA2035 Tie Rod End - 5
Delphi TA2035 Tie Rod End - 6
Delphi TA2035 Tie Rod End video
DELPHI

Delphi TA2035 Tie Rod End

SKU: TA2035
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£20.05 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
X5 (E53)
Description Cylinder Capacity Horse Power Year
4.4 i 4398 CCM 286 HP 01/2000 - 09/2003
3.0 d 2925 CCM 184 HP 04/2001 - 09/2003
4.6 is 4619 CCM 347 HP 10/2001 - 09/2003
3.0 i 2979 CCM 231 HP 04/2000 - 10/2006
4.4 i 4398 CCM 320 HP 10/2003 - 10/2006
3.0 d 2993 CCM 218 HP 10/2003 - 09/2006
4.8 is 4799 CCM 360 HP 04/2004 - 09/2006
3.0 d 2993 CCM 211 HP 10/2003 - 09/2006

The Delphi TA2035 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle fitting position, and 220 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 15.4
Fitting Position : Front Axle
Length [mm] : 220
Width [mm] : 45
Height [mm] : 89
  • Vendor DELPHI
  • SKU TA2035
  • Barcode 5012759399934
  • BMW : 3210 6774 335 3221 1096 327 3221 6760 354
  • APEC : AST6210
  • APEC : AST6371
  • BORG & BECK : BTR5036
  • CORTECO : 49399131
  • FEBI BILSTEIN : 23936
  • FEBI BILSTEIN : 26637
  • FIRST LINE : FTR5036
  • LEMFÖRDER : 25868 02
  • LEMFÖRDER : 27106 02
  • MEYLE : 316 020 0005/HD
  • MEYLE : 316 030 0010/HD
  • MONROE : L11110
  • NAPA : NST6210
  • NAPA : NST6371
  • Schaeffler FAG : 840 0677 10
  • SKF : VKDY 318516
  • TRW : JTE1006
