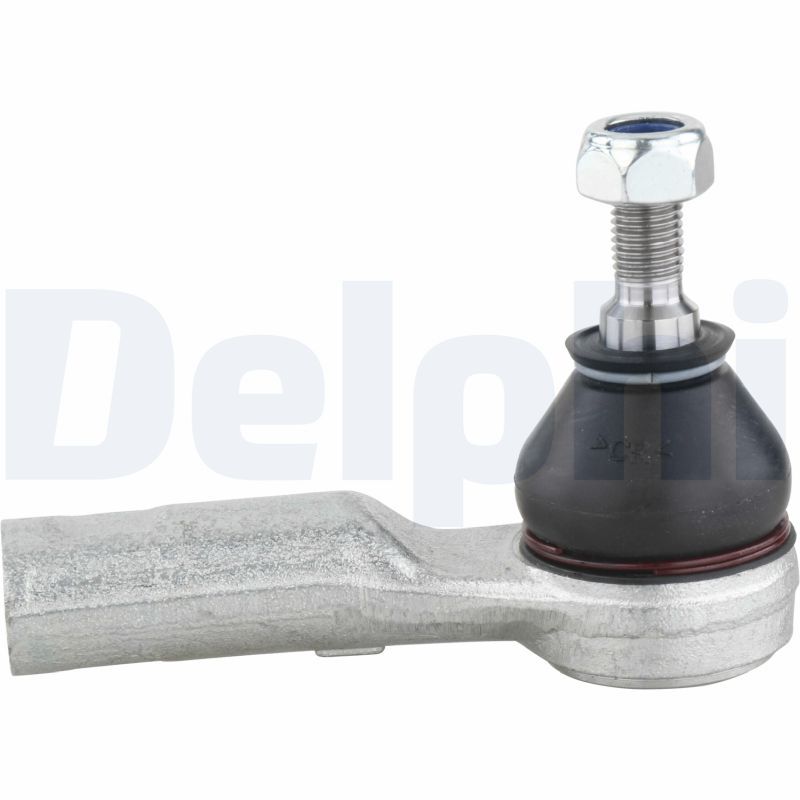

Delphi TA2048 Tie Rod End - 1

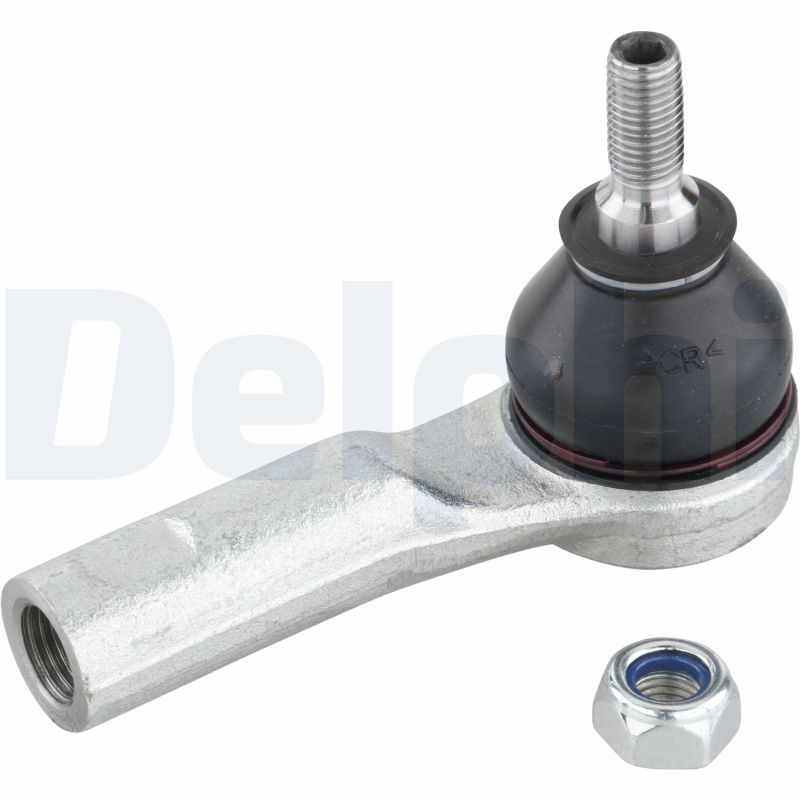

Delphi TA2048 Tie Rod End - 2

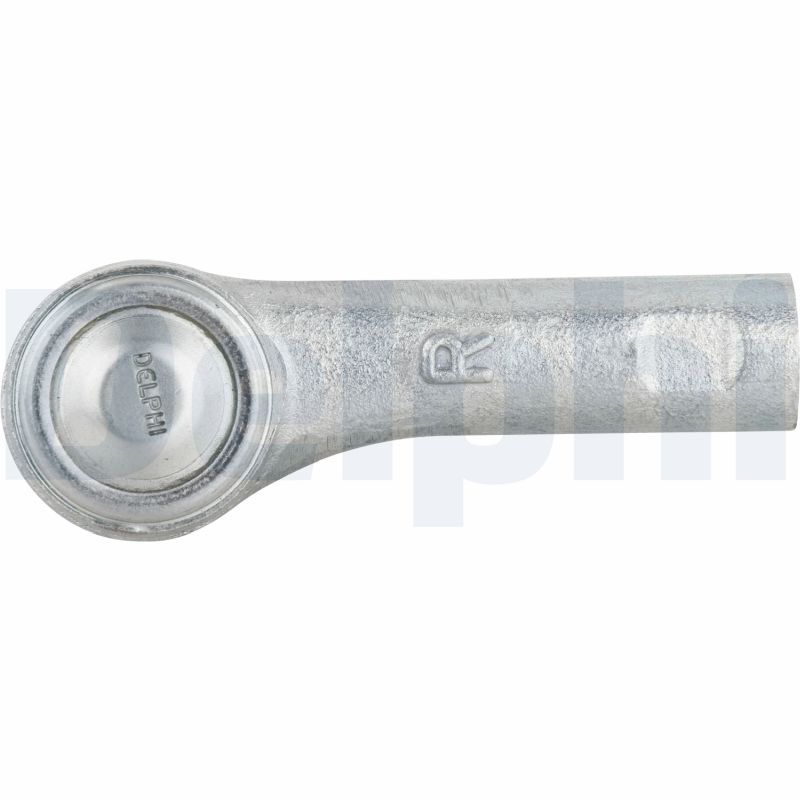

Delphi TA2048 Tie Rod End - 3

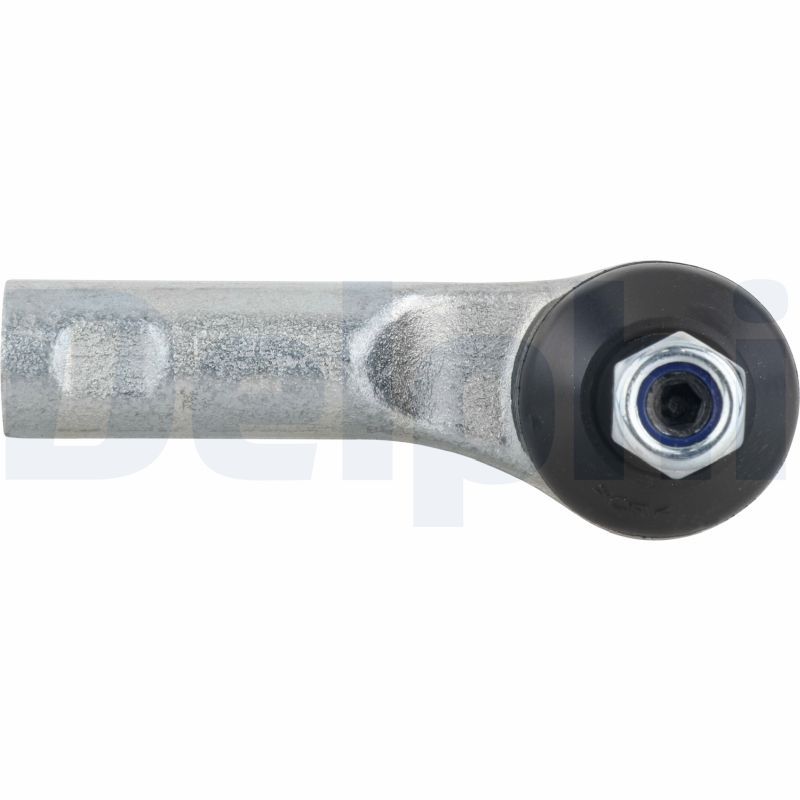

Delphi TA2048 Tie Rod End - 4

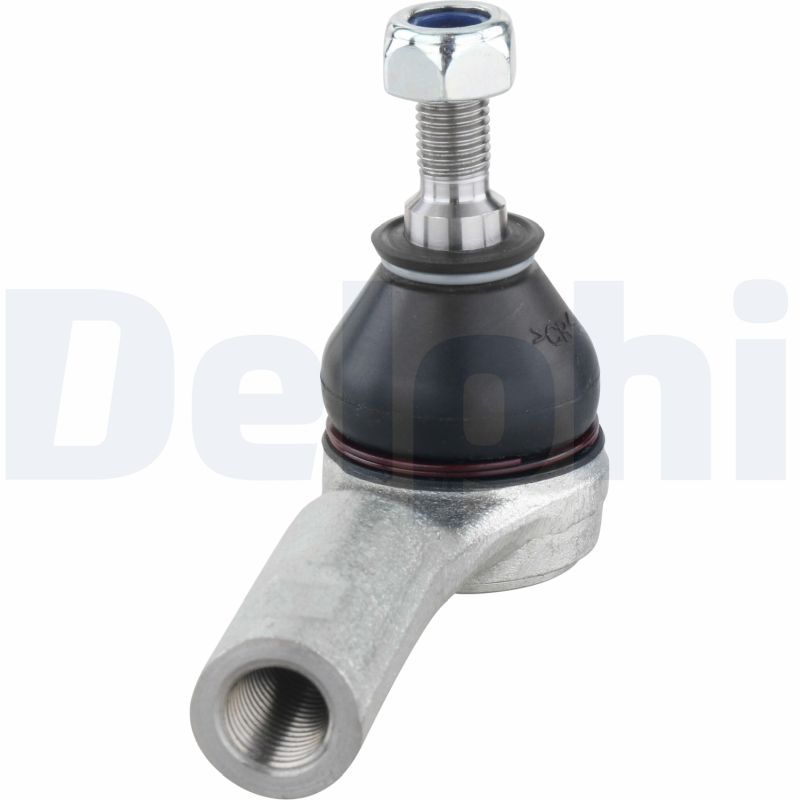

Delphi TA2048 Tie Rod End - 5

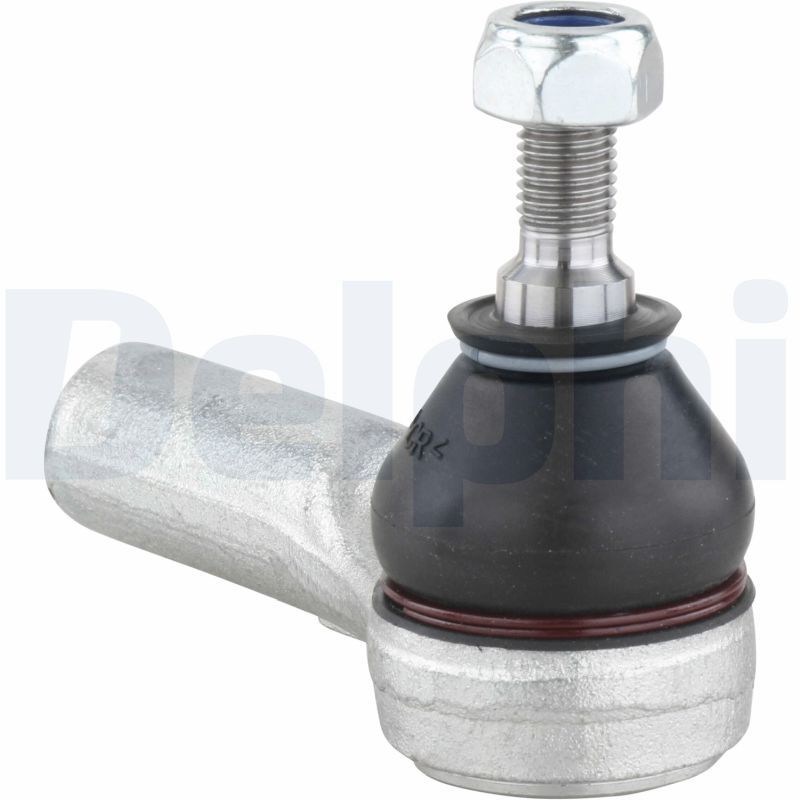

Delphi TA2048 Tie Rod End - 6
Delphi TA2048 Tie Rod End video
DELPHI

Delphi TA2048 Tie Rod End

SKU: TA2048
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£14.86 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VOLVO
S40 I (644)
Description Cylinder Capacity Horse Power Year
2.0 1948 CCM 136 HP 07/1995 - 12/2003
1.9 T4 1855 CCM 200 HP 05/1997 - 07/2000
1.9 DI 1870 CCM 95 HP 03/1999 - 07/2000
2.0 T 1948 CCM 160 HP 10/1997 - 12/2003
1.8 i 1834 CCM 125 HP 03/1998 - 12/2003
1.6 1587 CCM 109 HP 03/1999 - 12/2003
1.8 1783 CCM 122 HP 03/1999 - 12/2003
1.9 DI 1870 CCM 102 HP 07/2000 - 12/2003
1.9 DI 1870 CCM 115 HP 07/2000 - 12/2003
2.0 T4 1948 CCM 200 HP 07/2000 - 12/2003
2.0 T 1948 CCM 165 HP 07/2000 - 06/2001
V40 Estate (645)
Description Cylinder Capacity Horse Power Year
2.0 1948 CCM 136 HP 07/1995 - 06/2004
1.9 T4 1855 CCM 200 HP 05/1997 - 07/2000
2.0 T 1948 CCM 160 HP 10/1997 - 01/2004
1.9 DI 1870 CCM 95 HP 03/1999 - 07/2000
1.8 i 1834 CCM 125 HP 03/1998 - 06/2004
1.6 1587 CCM 109 HP 03/1999 - 06/2004
1.8 1783 CCM 122 HP 03/1999 - 06/2004
1.9 DI 1870 CCM 102 HP 07/2000 - 06/2004
1.9 DI 1870 CCM 115 HP 07/2000 - 06/2004
2.0 T4 1948 CCM 200 HP 07/2000 - 06/2004
2.0 T 1948 CCM 165 HP 07/1999 - 06/2004

The Delphi TA2048 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle right fitting position, and 108 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 13.4
Paired article number : TA2047
Fitting Position : Front Axle Right
Length [mm] : 108
Width [mm] : 36
Height [mm] : 65
  • Vendor DELPHI
  • SKU TA2048
  • Barcode 5012759348802
  • VOLVO : 274226
  • APEC : AST6386
  • BLUE PRINT : ADC496504
  • BORG & BECK : BTR5021
  • BOSCH : 0 986 140 516
  • CORTECO : 49399744
  • FEBI BILSTEIN : 176583
  • FEBI BILSTEIN : 21564
  • FEBI BILSTEIN : 32581
  • FIRST LINE : FTR5021
  • LEMFÖRDER : 27613 01
  • MEYLE : 516 020 0006
  • MONROE : L27125
  • NAPA : NST6386
  • Schaeffler FAG : 840 1389 10
  • SKF : VKDY 316050
  • TRW : JTE1074
  • User manual
