DELPHI

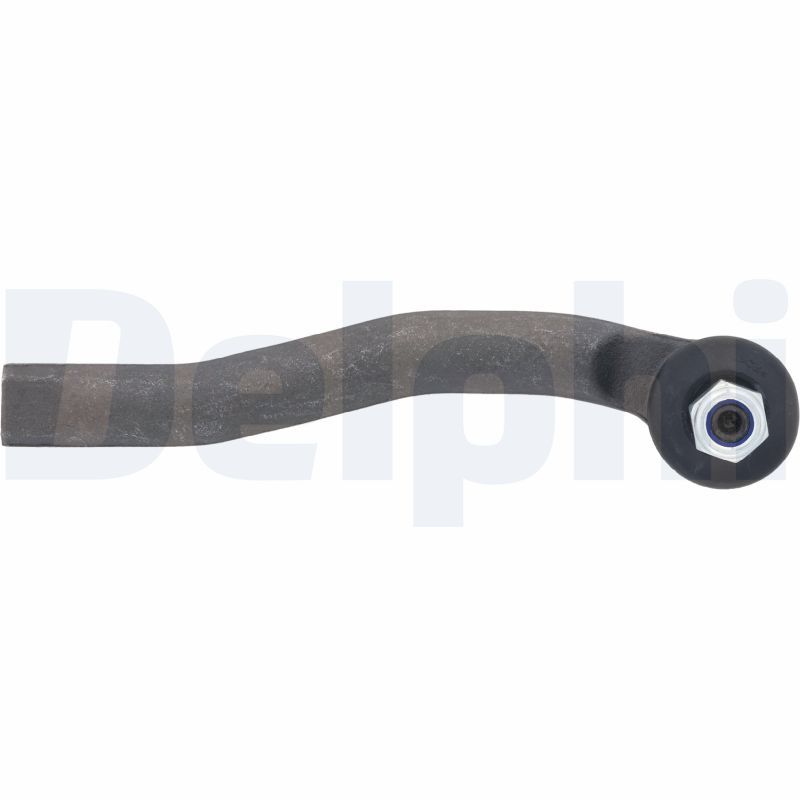

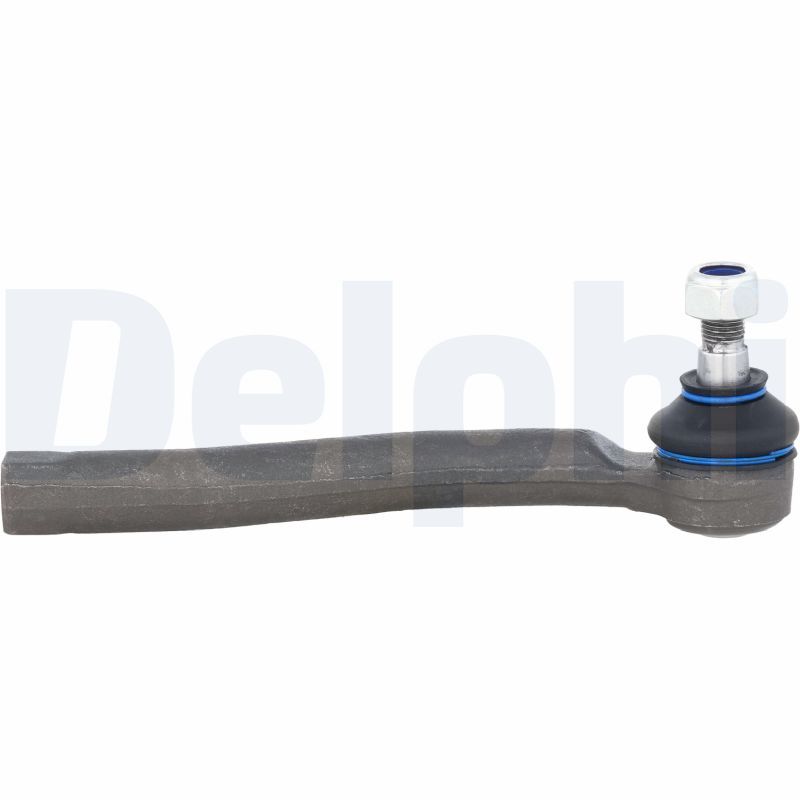

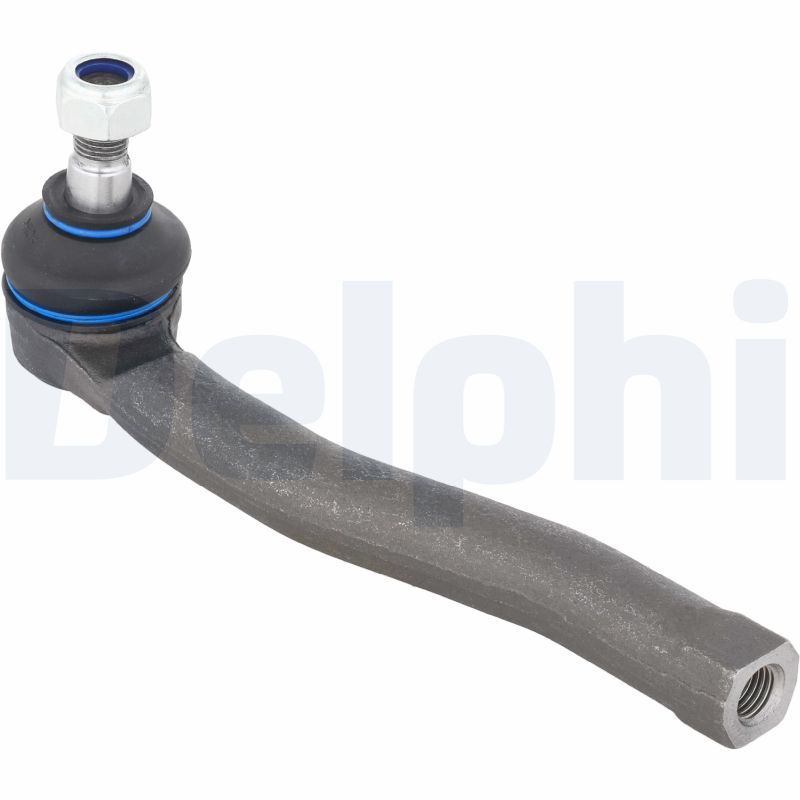

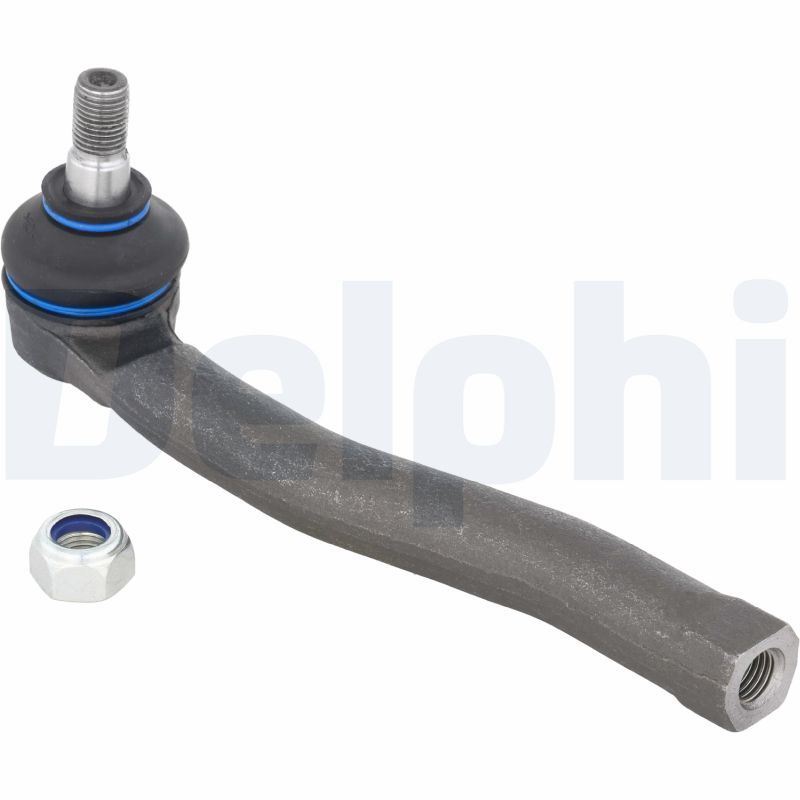

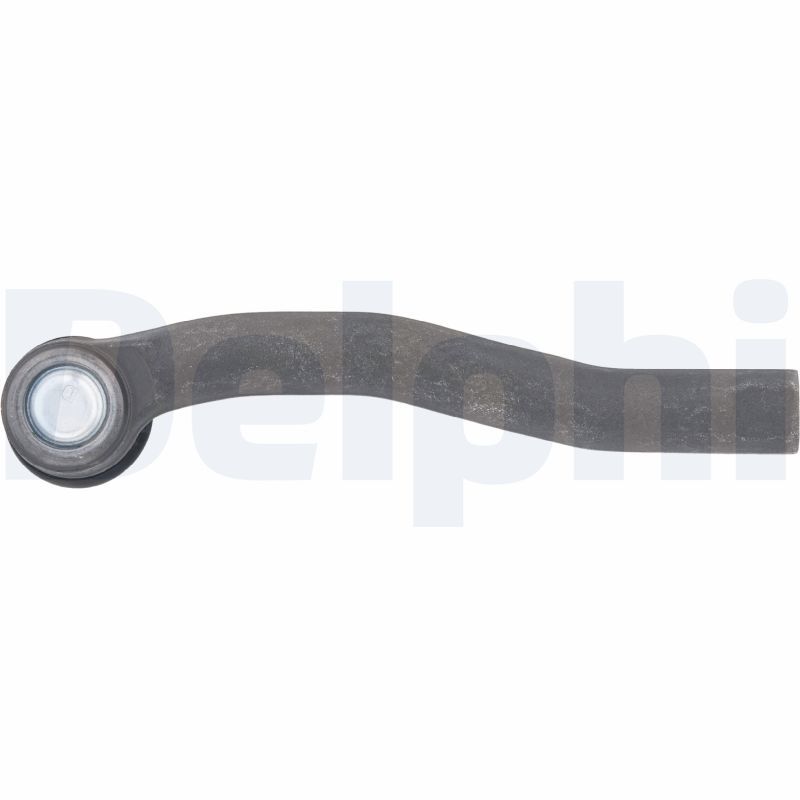

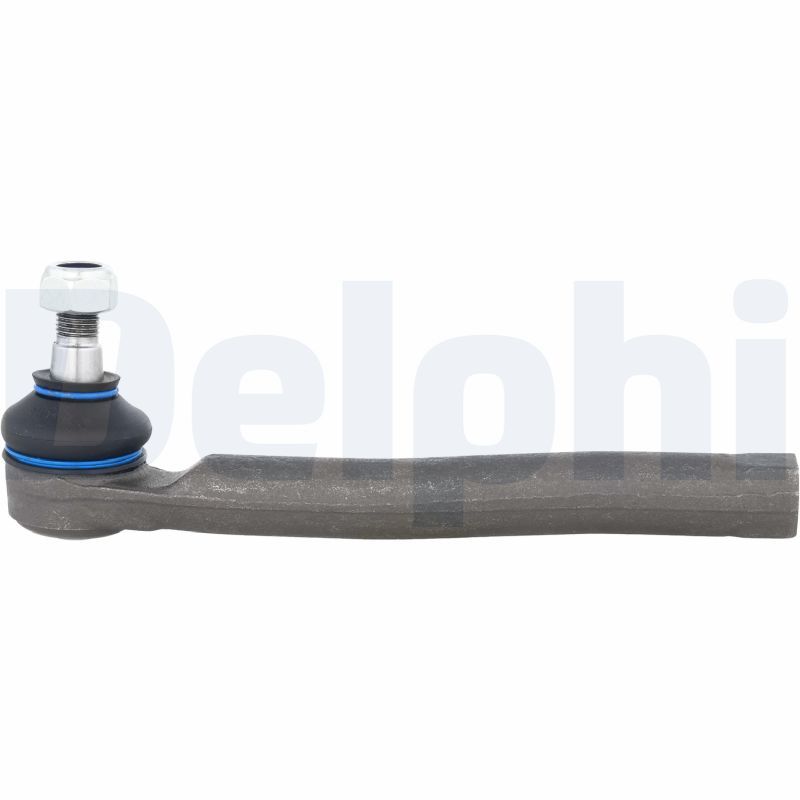

Delphi TA2066 Tie Rod End

SKU: TA2066
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£14.95 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CHEVROLET
AVEO / KALOS Saloon (T200)
Description Cylinder Capacity Horse Power Year
1.4 1399 CCM 94 HP 05/2003 - 05/2008
AVEO / KALOS Hatchback (T200)
Description Cylinder Capacity Horse Power Year
1.4 1399 CCM 83 HP 03/2005 - 05/2008
1.4 16V 1399 CCM 94 HP 05/2003 - 05/2008
1.2 1150 CCM 72 HP 01/2004 - 05/2008
AVEO / KALOS Saloon (T250, T255)
Description Cylinder Capacity Horse Power Year
1.2 1206 CCM 84 HP From 01/2008
1.2 1206 CCM 75 HP From 01/2008
1.2 1150 CCM 72 HP 03/2005 - 12/2007
1.4 1399 CCM 94 HP 03/2005 - 05/2013
1.4 1399 CCM 101 HP From 09/2008
1.4 1399 CCM 83 HP From 03/2005
AVEO / KALOS Hatchback (T250, T255)
Description Cylinder Capacity Horse Power Year
1.4 1399 CCM 101 HP From 04/2008
1.2 1206 CCM 84 HP From 04/2008
1.2 LPG 1206 CCM 84 HP 04/2008 - 12/2011
1.2 1150 CCM 72 HP From 06/2006
1.4 16V 1399 CCM 94 HP 06/2006 - 05/2008
DAEWOO
KALOS (KLAS)
Description Cylinder Capacity Horse Power Year
1.4 1399 CCM 83 HP From 09/2002
1.2 1150 CCM 72 HP From 04/2003
1.4 16V 1399 CCM 94 HP From 04/2003
KALOS Saloon (KLAS)
Description Cylinder Capacity Horse Power Year
1.4 1399 CCM 83 HP 11/2002 - 12/2004
1.4 1399 CCM 94 HP 05/2003 - 12/2004

The Delphi TA2066 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M12x1.5 thread size, with right-hand thread thread type, front axle right fitting position, and 210 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M12x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 13.2
Paired article number : TA2065
Fitting Position : Front Axle Right
Length [mm] : 210
Width [mm] : 40
Height [mm] : 70
  • Vendor DELPHI
  • SKU TA2066
  • Barcode 5012759379936
  • CHEVROLET : 93740623 93740723 KBJO48A
  • DAEWOO : 93740623 93740723
  • APEC : AST6262
  • BLUE PRINT : ADG08788
  • BLUE PRINT : ADG08791
  • BORG & BECK : BTR5045
  • CORTECO : 49401143
  • FEBI BILSTEIN : 26795
  • FEBI BILSTEIN : 36084
  • FEBI BILSTEIN : 41987
  • FIRST LINE : FTR5045
  • LEMFÖRDER : 31089 01
  • MEYLE : 29-16 020 0007
  • MONROE : L21103
  • NAPA : NST6262
  • Schaeffler FAG : 840 1113 10
  • SKF : VKDY 810000
  • TRW : JTE7615
