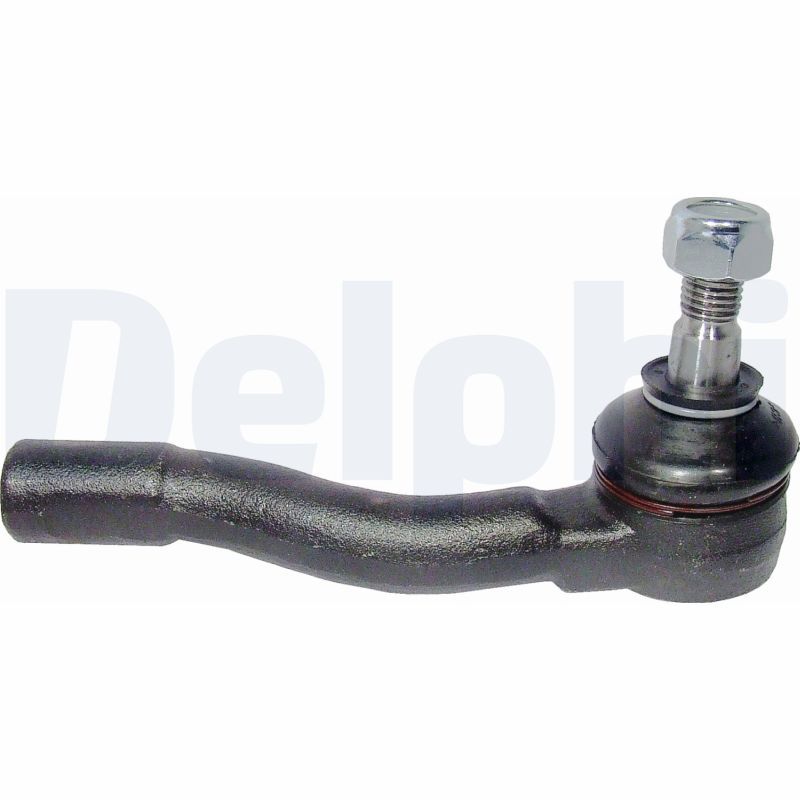

Delphi TA2069 Tie Rod End - 1

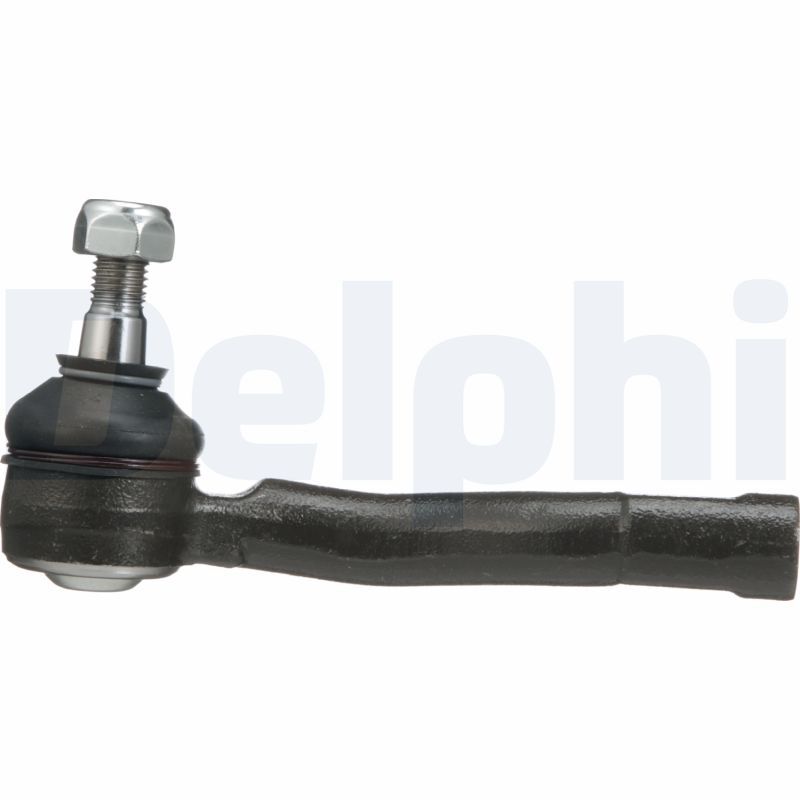

Delphi TA2069 Tie Rod End - 2

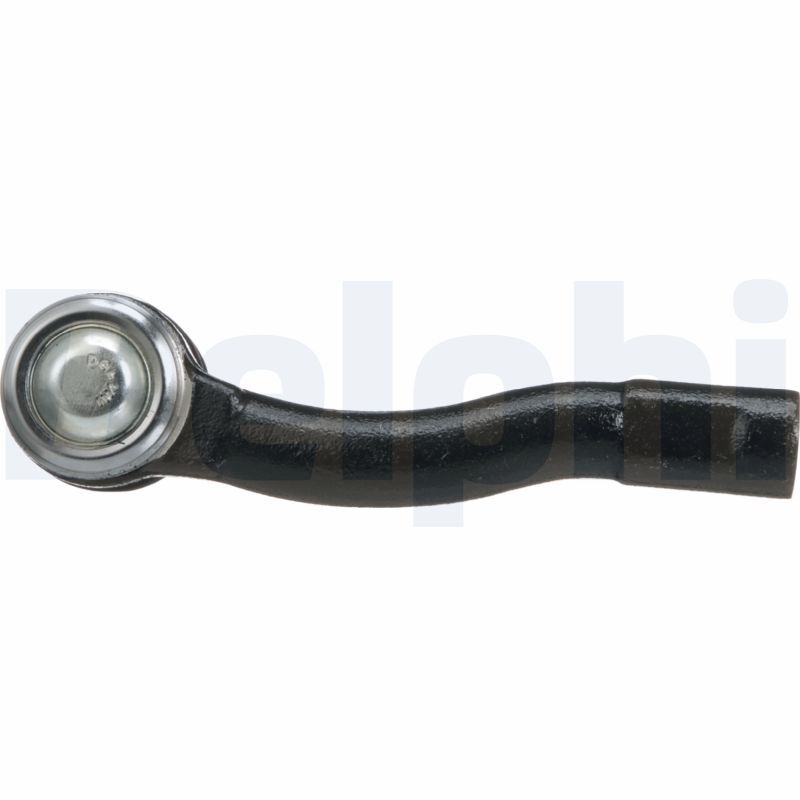

Delphi TA2069 Tie Rod End - 3

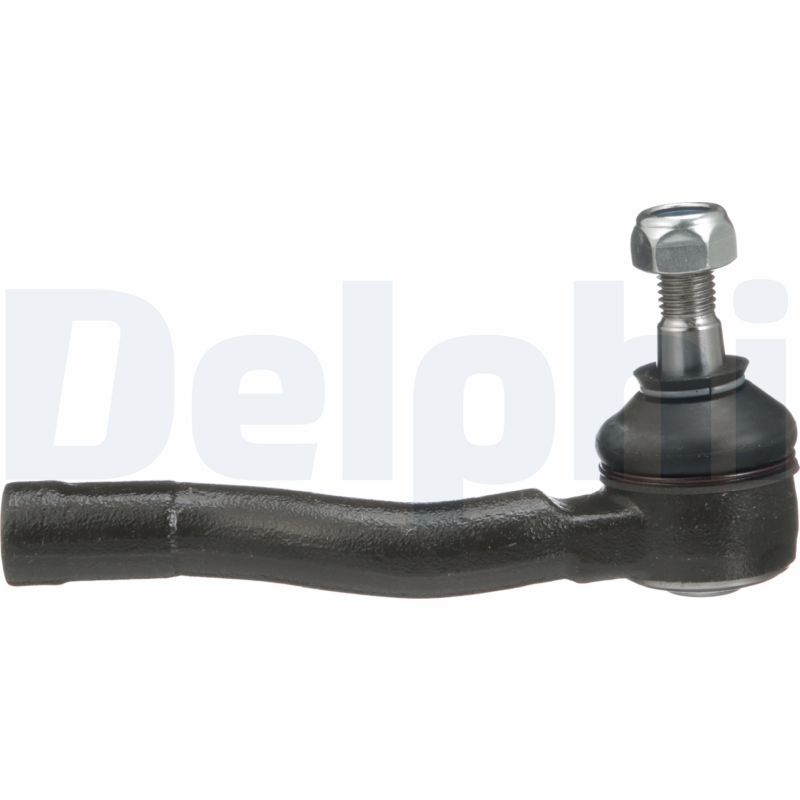

Delphi TA2069 Tie Rod End - 4

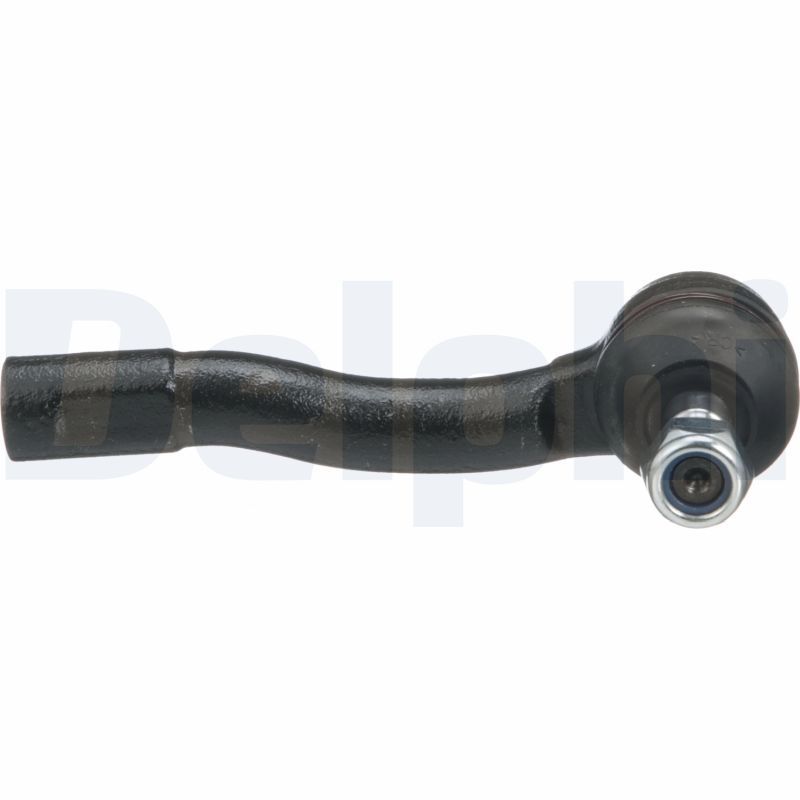

Delphi TA2069 Tie Rod End - 5

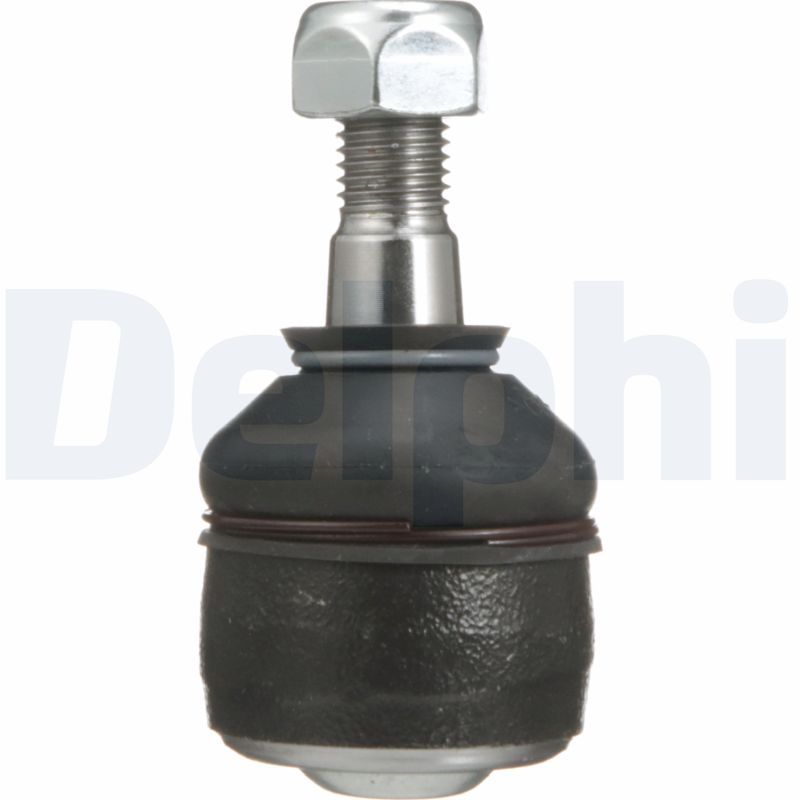

Delphi TA2069 Tie Rod End - 6
Delphi TA2069 Tie Rod End video
DELPHI

Delphi TA2069 Tie Rod End

SKU: TA2069
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£18.23 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CHEVROLET
LACETTI (J200)
Description Cylinder Capacity Horse Power Year
1.4 16V 1399 CCM 95 HP 03/2005 - 03/2013
1.6 1598 CCM 109 HP From 03/2005
1.8 1796 CCM 122 HP From 03/2005
1.8 1796 CCM 121 HP 08/2005 - 12/2011
2.0 D 1991 CCM 121 HP From 01/2007
LACETTI Saloon (J200)
Description Cylinder Capacity Horse Power Year
1.6 1598 CCM 109 HP 03/2005 - 03/2013
1.4 1399 CCM 94 HP 03/2005 - 03/2013
1.8 1796 CCM 122 HP 08/2005 - 03/2013
LACETTI Estate (J200)
Description Cylinder Capacity Horse Power Year
1.6 1598 CCM 109 HP From 03/2005
1.8 1796 CCM 122 HP 08/2005 - 03/2013
2.0 D 1991 CCM 121 HP From 01/2007
1.8 1796 CCM 121 HP From 08/2005
NUBIRA Saloon
Description Cylinder Capacity Horse Power Year
1.4 1399 CCM 95 HP 01/2006 - 12/2008
1.6 1598 CCM 109 HP 03/2005 - 12/2011
1.8 1796 CCM 122 HP 03/2005 - 12/2009
2.0 D 1991 CCM 121 HP 01/2005 - 12/2011
NUBIRA Estate
Description Cylinder Capacity Horse Power Year
1.6 1598 CCM 109 HP 03/2005 - 12/2011
1.8 1796 CCM 122 HP 03/2005 - 12/2009
1.8 1796 CCM 121 HP 08/2005 - 12/2011
2.0 D 1991 CCM 121 HP 01/2007 - 12/2011
OPTRA Saloon (1J_, J200)
Description Cylinder Capacity Horse Power Year
1.8 1796 CCM 122 HP 08/2003 - 12/2008
DAEWOO
LACETTI Hatchback (KLAN)
Description Cylinder Capacity Horse Power Year
1.4 1399 CCM 95 HP From 02/2004
1.6 1598 CCM 109 HP From 02/2004
1.8 1799 CCM 122 HP From 02/2004
1.4 1399 CCM 94 HP 06/2002 - 12/2004
NUBIRA Saloon (J200)
Description Cylinder Capacity Horse Power Year
1.6 1598 CCM 109 HP From 07/2003
1.8 1799 CCM 122 HP From 07/2003
1.4 1399 CCM 94 HP 10/2003 - 12/2004
NUBIRA Wagon (J200)
Description Cylinder Capacity Horse Power Year
1.6 1598 CCM 109 HP From 07/2003
1.8 1799 CCM 122 HP From 07/2003

The Delphi TA2069 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle right fitting position, and 160 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 13.2
Paired article number : TA2068
Fitting Position : Front Axle Right
Length [mm] : 160
Width [mm] : 40
Height [mm] : 76
  • Vendor DELPHI
  • SKU TA2069
  • Barcode 5012759379950
  • CHEVROLET : 96407486
  • DAEWOO : 96407486
  • GENERAL MOTORS : 96407486
  • BLUE PRINT : ADG08752
  • BLUE PRINT : ADJ1396505
  • BORG & BECK : BTR5276
  • CORTECO : 49399828
  • FEBI BILSTEIN : 26798
  • FEBI BILSTEIN : 30114
  • FIRST LINE : FTR5276
  • LEMFÖRDER : 34317 01
  • MEYLE : 29-16 020 0009
  • MONROE : L21107
  • Schaeffler FAG : 840 1296 10
  • SKF : VKDY 810004
  • TRW : JTE7591
