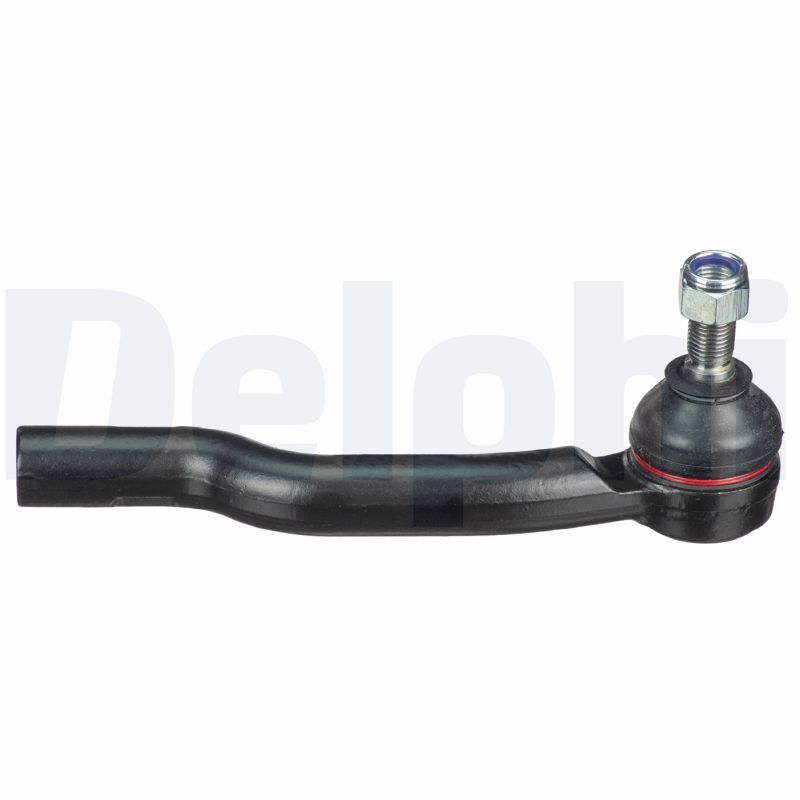

Delphi TA2343 Tie Rod End - 1
Delphi TA2343 Tie Rod End video
Delphi TA2343 Tie Rod End - 1
Delphi TA2343 Tie Rod End video
DELPHI

Delphi TA2343 Tie Rod End

SKU: TA2343
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£21.27 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUZUKI
GRAND VITARA I (FT, HT)
Description Cylinder Capacity Horse Power Year
2.5 V6 24V 4x4 (TD62, SQ625) 2493 CCM 144 HP 04/1998 - 07/2003
1.6 4x4 (SQ416) 1590 CCM 94 HP 01/2001 - 12/2005
2.0 4x4 (SQ420) 1995 CCM 128 HP 05/1999 - 09/2005
2.0 TD 4x4 (SQ420D) 1998 CCM 87 HP 03/1998 - 07/2003
2.0 HDI 110 16V 4x4 (SQ420D, TD83V, JA420WD) 1997 CCM 109 HP 07/2001 - 09/2005
2.7 4x4 (JA627, SQ627W2) 2736 CCM 173 HP 09/2001 - 07/2003
2.7 4x4 (JA627) 2736 CCM 184 HP 01/2004 - 11/2005
2.5 V6 24V 4x4 (SQ625) 2493 CCM 158 HP 08/2004 - 11/2005
2.0 4x4 (SQ 420) 1995 CCM 140 HP 04/1998 - 08/2005
2.0 TD 4x4 (SQ 420D) 1998 CCM 86 HP 04/2000 - 09/2005
2.0 HDI 110 4x4 (SQ420D, TD82V) 1997 CCM 109 HP 02/2001 - 12/2003
2.0 4x4 (SQ 420) 1995 CCM 132 HP 08/1998 - 11/2004
GRAND VITARA I Open Off-Road Vehicle (GT)
Description Cylinder Capacity Horse Power Year
1.6 4x4 (SQ416) 1590 CCM 94 HP 03/1998 - 07/2003
2.0 4x4 (SQ420) 1995 CCM 128 HP 03/1998 - 07/2003

The Delphi TA2343 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle right fitting position, and 194 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 12.5
Paired article number : TA2342
Fitting Position : Front Axle Right
Length [mm] : 194
Width [mm] : 42
Height [mm] : 72
  • Vendor DELPHI
  • SKU TA2343
  • Barcode 5012759399514
  • SUZUKI : 48810-65D00 48810-67D00
  • GENERAL MOTORS : 4881067D00
  • BLUE PRINT : ADK88720
  • BORG & BECK : BTR5171
  • FEBI BILSTEIN : 29828
  • FIRST LINE : FTR5171
  • KYB : KTR1150
  • LEMFÖRDER : 34668 01
  • MONROE : L69103
  • Schaeffler FAG : 840 0672 10
  • SKF : VKDY 816004
  • TRW : JTE7547
