Delphi TA2386 Tie Rod End - 1
Delphi TA2386 Tie Rod End video
Delphi TA2386 Tie Rod End - 1
Delphi TA2386 Tie Rod End video
DELPHI

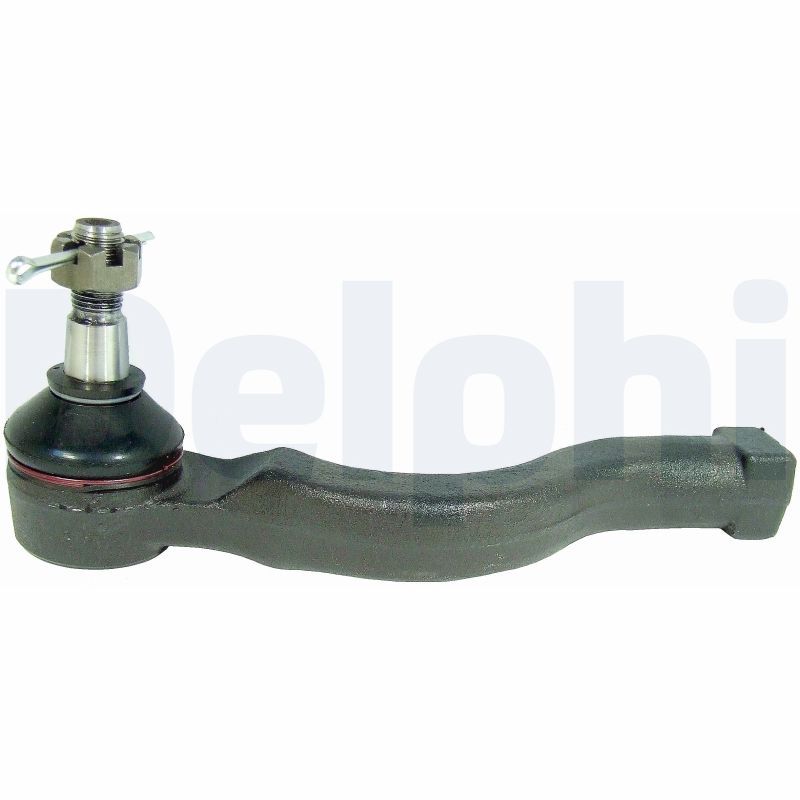

Delphi TA2386 Tie Rod End

SKU: TA2386
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£26.45 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FIAT
FULLBACK Pickup (502_, 503_)
Description Cylinder Capacity Horse Power Year
2.4 D (KT0T) 2442 CCM 154 HP From 04/2016
2.4 D 4x4 (KT0T) 2442 CCM 154 HP From 04/2016
2.4 D 4x4 (KT0T) 2442 CCM 181 HP From 04/2016
2.4 D 4x4 (KT0T) 2442 CCM 150 HP From 04/2016
MITSUBISHI
L200 / TRITON (KA_T, KB_T)
Description Cylinder Capacity Horse Power Year
2.5 DI-D (KA4T) 2477 CCM 167 HP 08/2007 - 12/2015
2.5 DI-D 4WD (KB4T) 2477 CCM 136 HP 11/2005 - 12/2015
2.5 DI-D 4WD (KB4T) 2477 CCM 167 HP 10/2007 - 12/2015
2.5 DI-D (KA4T) 2477 CCM 136 HP 11/2005 - 12/2015
2.5 DI-D (KA4T) 2477 CCM 128 HP 04/2010 - 12/2015
2.5 DI-D 4WD (KB4T) 2477 CCM 178 HP 04/2010 - 12/2015
2.5 DI-D 16V 4WD 2477 CCM 133 HP 04/2007 - 12/2015
2.5 DI-D (KA4T) 2477 CCM 178 HP 01/2010 - 12/2015
2.5 TD (KA4T) 2477 CCM 90 HP 08/2011 - 12/2015
2.5 D 4WD 2477 CCM 75 HP 08/2011 - 12/2015
L200 / TRITON Platform/Chassis (KA_T, KB_T)
Description Cylinder Capacity Horse Power Year
2.5 DI-D (KA4T) 2477 CCM 128 HP 08/2007 - 12/2015
L200 / TRITON (KJ_, KK_, KL_)
Description Cylinder Capacity Horse Power Year
2.4 DI-D 4WD (KL1T) 2442 CCM 181 HP From 11/2014
2.4 DI-D 4WD (KJ0T) 2442 CCM 154 HP From 09/2015
2.4 DI-D (KJ0T) 2442 CCM 154 HP From 09/2015
2.2 DI-D 4WD 2268 CCM 150 HP From 07/2019
2.2 DI-D 2268 CCM 150 HP From 07/2019
PAJERO SPORT II (KH_, KG_)
Description Cylinder Capacity Horse Power Year
3.2 DI-D 4WD 3200 CCM 165 HP From 07/2008
2.5 DI-D 4WD (KH4W) 2477 CCM 178 HP From 07/2008
PAJERO/SHOGUN III (V7_W, V6_W)
Description Cylinder Capacity Horse Power Year
3.5 (V65W, V75W) 3497 CCM 203 HP 04/2000 - 01/2007
3.2 DI-D (V68W) 3200 CCM 160 HP 04/2000 - 12/2006
3.2 DI-D (V68W, V78W) 3200 CCM 165 HP 04/2000 - 10/2006
2.5 TDi (V64W) 2477 CCM 99 HP 04/2000 - 12/2006
2.5 TDi (V64W, V74W) 2477 CCM 115 HP 09/2001 - 12/2006
PAJERO/SHOGUN Mk III Canvas Top (V6_W, V7_W)
Description Cylinder Capacity Horse Power Year
3.2 DI-D (V68W, V78W) 3200 CCM 165 HP 04/2000 - 12/2006
3.2 DI-D (V68W, V78W) 3200 CCM 160 HP 10/2001 - 12/2006
2.5 TDi (V64W, V74W) 2477 CCM 99 HP 04/2000 - 12/2006
2.5 TDi (V64W, V74W) 2477 CCM 115 HP 09/2001 - 12/2006
3.0 (V73W) 2972 CCM 170 HP 10/2001 - 12/2006
SHOGUN II (V3_W)
Description Cylinder Capacity Horse Power Year
3.2 DiD 4WD 3200 CCM 165 HP 04/2000 - 09/2007
3.2 DiD 4WD 3200 CCM 160 HP 05/2005 - 09/2007
SHOGUN SPORT III (KS_)
Description Cylinder Capacity Horse Power Year
2.4 DI-D 4x4 (KS1W) 2442 CCM 181 HP From 08/2015

The Delphi TA2386 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16x1.5 thread size, with right-hand thread thread type, front axle left fitting position, and 204 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M16x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 13.7
Paired article number : TA2387
Fitting Position : Front Axle Left
Length [mm] : 204
Width [mm] : 55
Height [mm] : 82
  • Vendor DELPHI
  • SKU TA2386
  • Barcode 5012759399804
  • FIAT : 6000605949
  • MITSUBISHI : MR508135 4422A096 4422A009
  • APEC : AST6398
  • BLUE PRINT : ADC48761
  • BORG & BECK : BTR5115
  • BOSCH : 0 986 140 539
  • CORTECO : 49401673
  • FEBI BILSTEIN : 41314
  • FIRST LINE : FTR5115
  • KYB : KTR1143
  • MEYLE : 32-16 020 0035
  • MONROE : L42106
  • NAPA : NST6398
  • Schaeffler FAG : 840 1198 10
  • SKF : VKDY 815504
  • TRW : JTE7566
