Delphi TA2392 Tie Rod End
Your selected vehicle
Regular price
£15.27
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

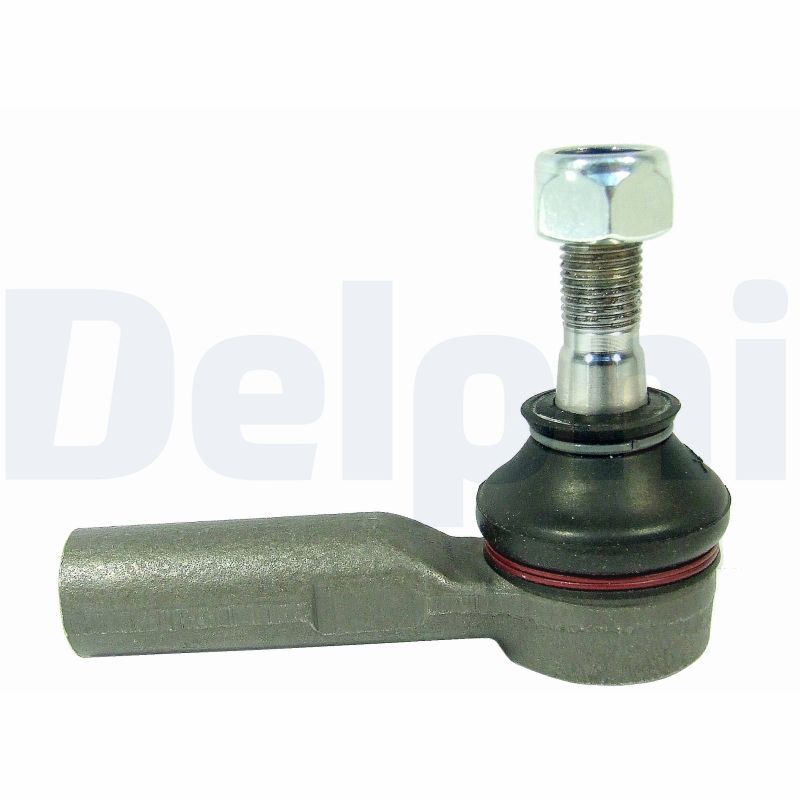

The Delphi TA2392 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M15x1.5 thread size, with right-hand thread thread type, front axle fitting position, and 103 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.
Function :
Tie Rod End
Thread Size :
M15x1.5
Thread Type :
with right-hand thread
Cone Size [mm] :
12.6
Fitting Position :
Front Axle
Length [mm] :
103
Width [mm] :
38
Height [mm] :
78
- Vendor DELPHI
- SKU TA2392
- TOYOTA : 45046-09230
- APEC : AST6805
- BLUE PRINT : ADBP870073
- BLUE PRINT : ADT38733
- BORG & BECK : BTR5175
- CORTECO : 49401104
- FEBI BILSTEIN : 23585
- FEBI BILSTEIN : 29691
- FIRST LINE : FTR5175
- MEYLE : 30-16 020 0119
- MONROE : L13G10
- NAPA : NST6805
- SKF : VKDY 811085
