Delphi TA2393 Tie Rod End - 1
Delphi TA2393 Tie Rod End video
Delphi TA2393 Tie Rod End - 1
Delphi TA2393 Tie Rod End video
DELPHI

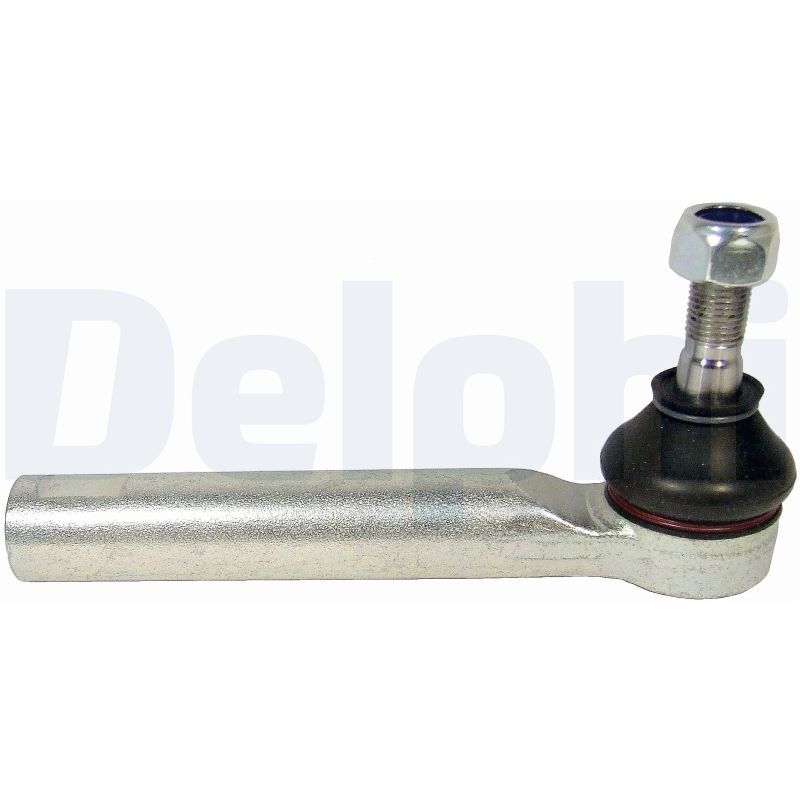

Delphi TA2393 Tie Rod End

SKU: TA2393
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£17.23 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
AVENSIS Saloon (_T25_)
Description Cylinder Capacity Horse Power Year
2.0 VVT-i (AZT250_, AZT250R) 1998 CCM 147 HP 04/2003 - 11/2008
2.0 D-4D (CDT250_, CDT250R) 1995 CCM 116 HP 04/2003 - 11/2008
2.4 VVT-i (AZT251_, AZT251R) 2362 CCM 170 HP 09/2003 - 11/2008
2.4 VVT-i (AZT251_, AZT251R) 2362 CCM 163 HP 10/2003 - 10/2008
2.2 D-4D (ADT251_, ADT251R) 2231 CCM 150 HP 10/2005 - 11/2008
2.2 D-CAT (ADT251_, ADT251R) 2231 CCM 177 HP 07/2005 - 11/2008
2.0 D-4D (ADT250_, ADT250R) 1998 CCM 126 HP 03/2006 - 10/2008
2.0 VVTi (AZT250_) 1998 CCM 155 HP 01/2003 - 11/2008
AVENSIS (_T25_)
Description Cylinder Capacity Horse Power Year
2.0 VVT-i (AZT250_, AZT250R) 1998 CCM 147 HP 03/2003 - 11/2008
2.4 VVT-i (AZT251_, AZT251R) 2362 CCM 170 HP 09/2003 - 11/2008
2.0 D-4D (CDT250_, CDT250R) 1995 CCM 116 HP 04/2003 - 11/2008
2.4 VVT-i (AZT251_, AZT251R) 2362 CCM 163 HP 10/2003 - 10/2008
2.2 D-4D (ADT251_, ADT251R) 2231 CCM 150 HP 10/2005 - 11/2008
2.2 D-CAT (ADT251_, ADT251R) 2231 CCM 177 HP 07/2005 - 11/2008
2.0 D-4D (ADT250_, ADT250R) 1998 CCM 126 HP 03/2006 - 11/2008
AVENSIS Estate (_T25_)
Description Cylinder Capacity Horse Power Year
2.0 VVT-i (AZT250_, AZT250R) 1998 CCM 155 HP 04/2003 - 11/2008
1.8 VVT-i (ZZT251_, ZZT251R) 1794 CCM 129 HP 04/2003 - 11/2008
2.0 VVT-i (AZT250_, AZT250R) 1998 CCM 147 HP 04/2003 - 11/2008
2.0 D-4D (CDT250_, CDT250R) 1995 CCM 116 HP 04/2003 - 11/2008
2.4 VVT-i (AZT251_, AZT251R) 2362 CCM 170 HP 09/2003 - 11/2008
2.4 VVT-i (AZT251_, AZT251R) 2362 CCM 163 HP 10/2003 - 10/2008
1.6 VVT-i (ZZT250_, ZZT250R) 1598 CCM 110 HP 04/2003 - 11/2008
2.2 D-4D (ADT251_, ADT251R) 2231 CCM 150 HP 10/2005 - 11/2008
2.2 D-CAT (ADT251_, ADT251R) 2231 CCM 177 HP 07/2005 - 11/2008
2.0 D-4D (ADT250_, ADT250R) 1998 CCM 126 HP 03/2006 - 11/2008

The Delphi TA2393 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16x1.5 thread size, with right-hand thread thread type, front axle fitting position, and 168 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M16x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 12.6
Fitting Position : Front Axle
Length [mm] : 168
Width [mm] : 38
Height [mm] : 78
  • Vendor DELPHI
  • SKU TA2393
  • Barcode 5012759400869
  • TOYOTA : 45046-29425
  • APEC : AST6397
  • BLUE PRINT : ADT387149
  • BORG & BECK : BTR5176
  • CORTECO : 49401674
  • FEBI BILSTEIN : 29186
  • FIRST LINE : FTR5176
  • KYB : KTR1265
  • LEMFÖRDER : 34500 01
  • MEYLE : 30-16 020 0118
  • MONROE : L13151
  • NAPA : NST6397
  • Schaeffler FAG : 840 1065 10
  • TRW : JTE2144
  • User manual
