DELPHI

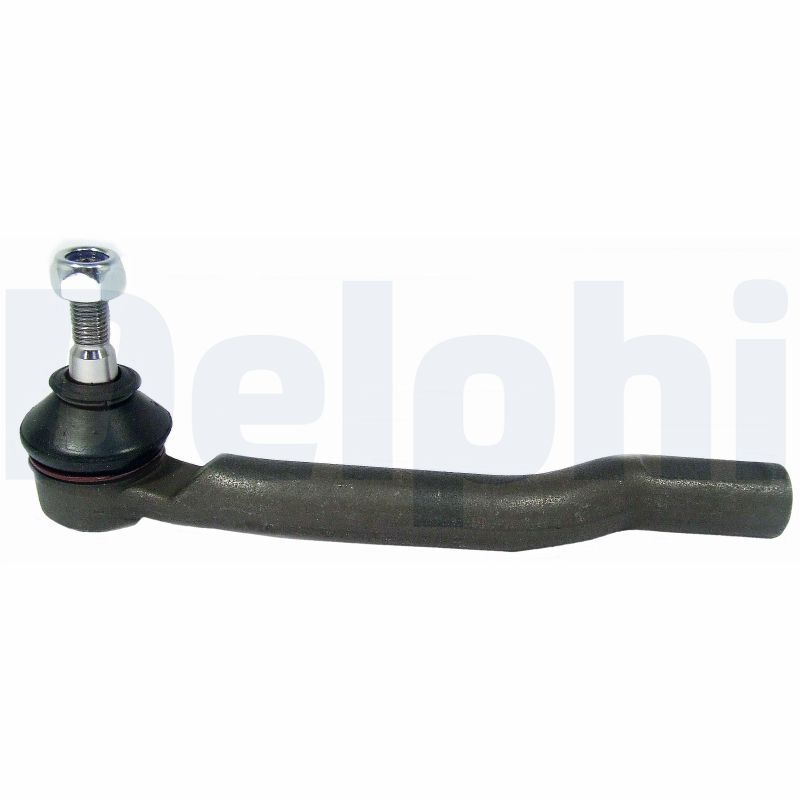

Delphi TA2450 Tie Rod End

SKU: TA2450
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£21.05 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

NISSAN
CUBE (Z12)
Description Cylinder Capacity Horse Power Year
1.5 dCi 1461 CCM 110 HP From 03/2010
1.6 16V 1598 CCM 110 HP From 08/2009
1.5 dCi 1461 CCM 106 HP From 10/2009
MICRA III (K12)
Description Cylinder Capacity Horse Power Year
1.2 16V 1240 CCM 80 HP 01/2003 - 06/2010
1.4 16V 1386 CCM 88 HP 01/2003 - 06/2010
1.2 16V 1240 CCM 65 HP 01/2003 - 06/2010
1.5 dCi 1461 CCM 65 HP 01/2003 - 06/2010
1.5 dCi 1461 CCM 82 HP 09/2003 - 06/2010
1.0 16V (K12) 998 CCM 65 HP 01/2003 - 06/2010
160 SR 1598 CCM 110 HP 05/2005 - 06/2010
1.5 dCi 1461 CCM 68 HP 06/2005 - 06/2010
1.5 dCi 1461 CCM 86 HP 06/2005 - 06/2010
1.2 LPG 1240 CCM 80 HP 10/2002 - 06/2010
MICRA C+C III (K12)
Description Cylinder Capacity Horse Power Year
1.4 16V 1386 CCM 88 HP 08/2005 - 01/2009
1.6 160 SR 1598 CCM 110 HP 08/2005 - 06/2010
NOTE (E11, NE11)
Description Cylinder Capacity Horse Power Year
1.5 dCi 1461 CCM 90 HP 09/2010 - 06/2012
1.4 1386 CCM 88 HP 03/2006 - 06/2012
1.6 1598 CCM 110 HP 03/2006 - 06/2012
1.5 dCi 1461 CCM 68 HP 03/2006 - 06/2012
1.5 dCi 1461 CCM 86 HP 03/2006 - 06/2012
1.5 dCi 1461 CCM 103 HP 07/2008 - 06/2012
NOTE VAN (E11)
Description Cylinder Capacity Horse Power Year
1.5 dCi 1461 CCM 86 HP 01/2011 - 09/2012
NV200 Van
Description Cylinder Capacity Horse Power Year
1.5 dCi 90 (M20, M20N, M20M) 1461 CCM 90 HP From 04/2011
1.5 dCi 110 (M20, M20N, M20M) 1461 CCM 110 HP From 04/2011
1.6 16V (VM20, M20N, M20, M20L, M20M) 1598 CCM 110 HP From 02/2010
1.5 dCi 85 (M20, M20N, M20M) 1461 CCM 86 HP From 02/2010
NV200 / EVALIA Bus
Description Cylinder Capacity Horse Power Year
1.5 dCi 90 (M20, M20M) 1461 CCM 90 HP From 04/2011
1.5 dCi 110 (M20, M20M) 1461 CCM 110 HP From 04/2011
1.6 16V (M20, M20M) 1598 CCM 110 HP From 07/2010
1.5 dCi 85 (M20, M20M, M20K, M20KK) 1461 CCM 86 HP From 07/2010
TIIDA Saloon (SC11)
Description Cylinder Capacity Horse Power Year
1.6 (C11L) 1598 CCM 110 HP 09/2007 - 12/2012
1.8 1798 CCM 126 HP 09/2007 - 12/2012
1.5 dCi 1461 CCM 106 HP 09/2007 - 12/2012
TIIDA Hatchback (C11)
Description Cylinder Capacity Horse Power Year
1.6 1598 CCM 110 HP 09/2007 - 12/2011
1.8 (JC11) 1798 CCM 126 HP 09/2004 - 12/2011
1.5 dCi 1461 CCM 106 HP 09/2007 - 12/2011
1.5 dCi 1461 CCM 103 HP 03/2007 - 06/2013

The Delphi TA2450 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M12x1.25 thread size, with right-hand thread thread type, front axle right fitting position, and 215 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M12x1.25
Thread Type : with right-hand thread
Cone Size [mm] : 11.7
Paired article number : TA2451
Fitting Position : Front Axle Right
Length [mm] : 215
Width [mm] : 42
Height [mm] : 75
  • Vendor DELPHI
  • SKU TA2450
  • Barcode 5012759429105
  • NISSAN : 48627-1U61A 48647-1U61A D8640EW00A
  • APEC : AST6838
  • BLUE PRINT : ADN187205
  • BORG & BECK : BTR5448
  • BOSCH : 0 986 140 579
  • FEBI BILSTEIN : 30529
  • FIRST LINE : FTR5448
  • KYB : KTR1200
  • LEMFÖRDER : 35294 01
  • MEYLE : 36-16 020 0027
  • MONROE : L14136
  • NAPA : NST6838
  • Schaeffler FAG : 840 1189 10
  • SKF : VKDY 812002
  • TRW : JTE1210
