Home / Car Parts / Steering & Suspension / Steering Parts / Inner Tie Rod

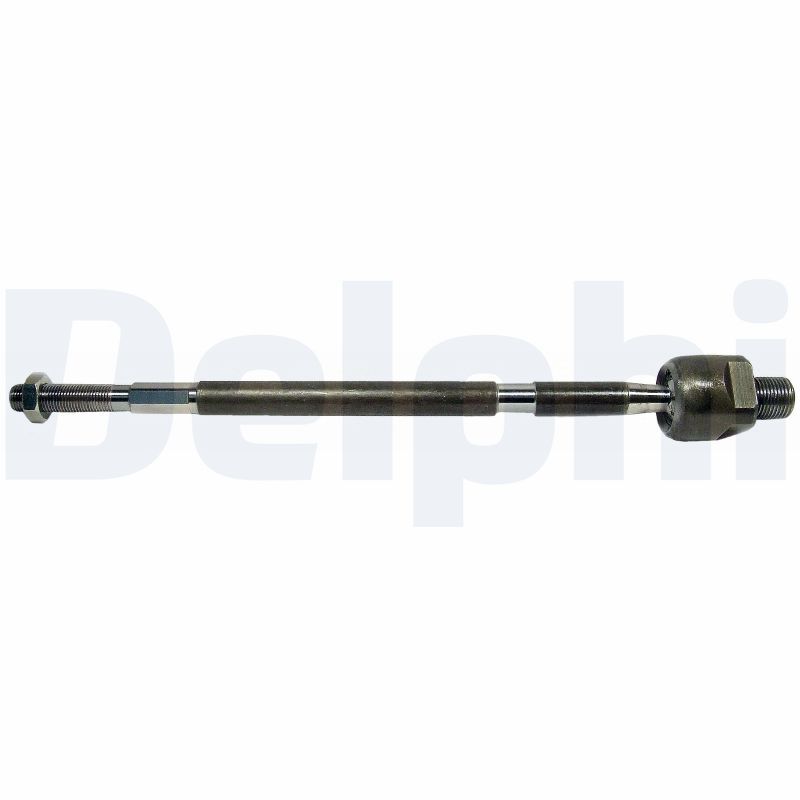

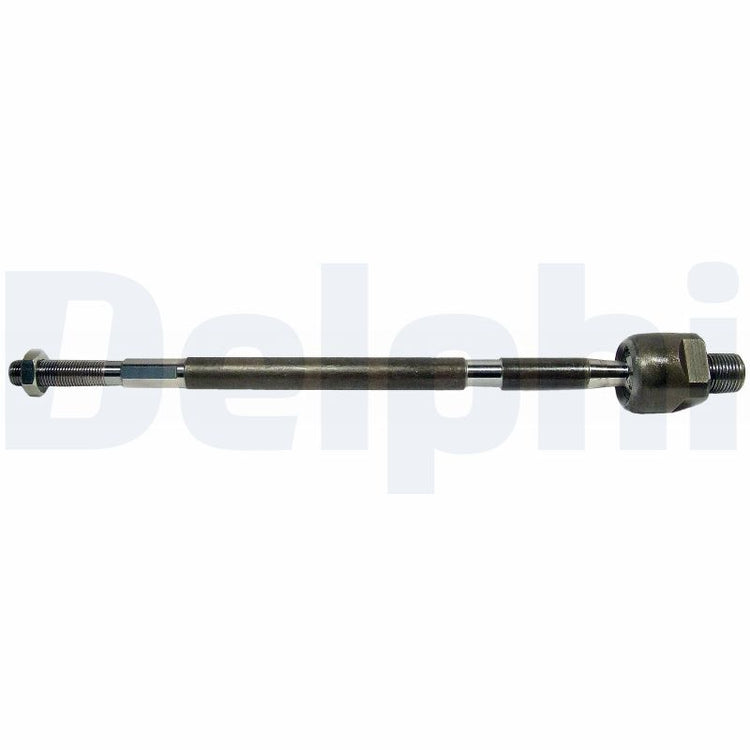

Delphi TA2457 Inner Tie Rod - 1
Delphi TA2457 Inner Tie Rod video
Delphi TA2457 Inner Tie Rod - 1
Delphi TA2457 Inner Tie Rod video
DELPHI

Delphi TA2457 Inner Tie Rod

SKU: TA2457
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£16.53 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

OPEL
AGILA B (H08)
Description Cylinder Capacity Horse Power Year
1.2 (F68) 1242 CCM 94 HP 04/2010 - 10/2014
1.0 LPG (F68) 996 CCM 65 HP 01/2010 - 06/2011
1.2 LPG (F68) 1242 CCM 86 HP 04/2008 - 10/2010
1.0 (F68) 996 CCM 68 HP 07/2011 - 07/2014
1.0 (F68) 996 CCM 65 HP 04/2008 - 06/2011
1.2 (F68) 1242 CCM 86 HP 04/2008 - 10/2012
1.3 CDTI (F68) 1248 CCM 75 HP 04/2008 - 04/2010
SUZUKI
SPLASH (EX)
Description Cylinder Capacity Horse Power Year
1.2 VVT (A5B412) 1242 CCM 94 HP From 09/2010
1.0 (A5B310) 996 CCM 68 HP From 06/2011
1.2 VVT (A5B412) 1242 CCM 90 HP From 06/2011
1.0 (A5B310) 996 CCM 65 HP From 01/2008
1.2 (A5B412) 1242 CCM 86 HP From 01/2008
1.3 CDTI (A5B413D) 1248 CCM 75 HP From 01/2008
1.2 VVT (A5B412) 1242 CCM 91 HP From 08/2012
SWIFT III (MZ, EZ)
Description Cylinder Capacity Horse Power Year
1.5 (RS415, ZC21S) 1490 CCM 102 HP From 02/2005
1.3 (RS413, ZC11S) 1328 CCM 92 HP From 02/2005
1.3 DDiS (RS413D) 1248 CCM 69 HP From 08/2005
1.3 4x4 (RS413, ZD11S) 1328 CCM 90 HP From 01/2006
1.6 (RS416, RR 416, ZC31S) 1586 CCM 125 HP From 05/2006
1.3 4x4 (RS 413, ZD11S) 1328 CCM 92 HP From 02/2005
1.3 DDiS (RS413D) 1248 CCM 75 HP 08/2005 - 12/2011
1.3 (RS413, ZC11S) 1328 CCM 91 HP 02/2005 - 06/2015
VAUXHALL
AGILA Mk II (B) (H08)
Description Cylinder Capacity Horse Power Year
1.0 12V 996 CCM 65 HP 01/2008 - 11/2014
1.2 i 16V 1242 CCM 86 HP 01/2008 - 11/2014
1.3 CDTI 1248 CCM 75 HP 01/2008 - 11/2014
1.2 i 16V 1242 CCM 94 HP 01/2008 - 11/2014
1.0 i 996 CCM 68 HP 08/2011 - 11/2014

The Delphi TA2457 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M12x1.25 thread size 2, front axle fitting position, 324 mm length, and 36 mm width. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod
Thread Size 2 : M12x1.25
Fitting Position : Front Axle
Length [mm] : 324
Width [mm] : 36
Height [mm] : 36
  • Vendor DELPHI
  • SKU TA2457
  • Barcode 5012759429181
  • OPEL : 93194002 4709161
  • SUZUKI : 48830-63J00
  • VAUXHALL : 93194002
  • APEC : AST6539
  • BLUE PRINT : ADK88742
  • BORG & BECK : BTR5298
  • BOSCH : 0 986 141 136
  • CORTECO : 49396831
  • FEBI BILSTEIN : 28056
  • FIRST LINE : FTR5298
  • KYB : KRE1042
  • LEMFÖRDER : 36745 01
  • MEYLE : 616 031 0018
  • MONROE : L69203
  • NAPA : NST6539
  • Schaeffler FAG : 840 0346 10
  • SKF : VKDY 325021
  • TRW : JAR1309
