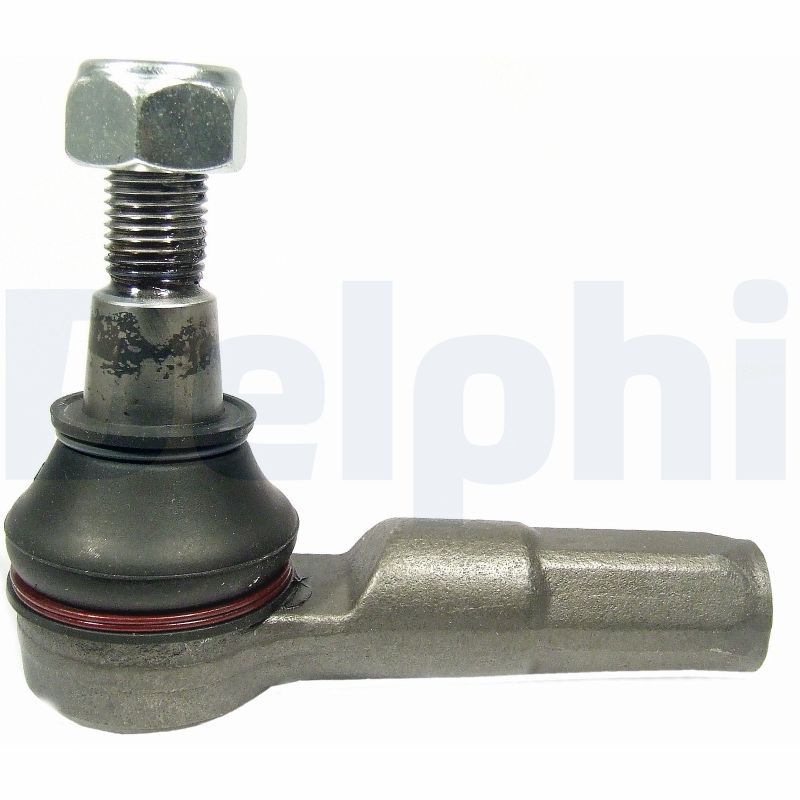

Delphi TA2461 Tie Rod End
Your selected vehicle
Regular price
£17.69
inc. VAT
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.
The Delphi TA2461 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16x1.5 thread size, with right-hand thread thread type, front axle fitting position, and 110 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.
Function :
Tie Rod End
Thread Size :
M16x1.5
Thread Type :
with right-hand thread
Cone Size [mm] :
16.9
Fitting Position :
Front Axle
Length [mm] :
110
Width [mm] :
40
Height [mm] :
98
- Vendor DELPHI
- SKU TA2461
- MERCEDES-BENZ : 906 460 0048 A906 460 0348 A906 460 0148 A906 460 0048 906 460 0148 906 460 0348
- VW : 2E0 713 501 2E0 731 501 2E0498104 2E0498104A
- HYUNDAI : 5681159000
- APEC : AST6074
- BORG & BECK : BTR5415
- BOSCH : 0 986 140 541
- CORTECO : 49398472
- FEBI BILSTEIN : 31273
- FEBI BILSTEIN : 33078
- FIRST LINE : FTR5415
- KYB : KTR4009
- LEMFÖRDER : 31148 01
- MEYLE : 016 020 0038
- MEYLE : 116 030 0033
- MONROE : L10114
- NAPA : NST6074
- Schaeffler FAG : 840 1111 10
- SKF : VKDY 318024
- TRW : JTE1062
