DELPHI

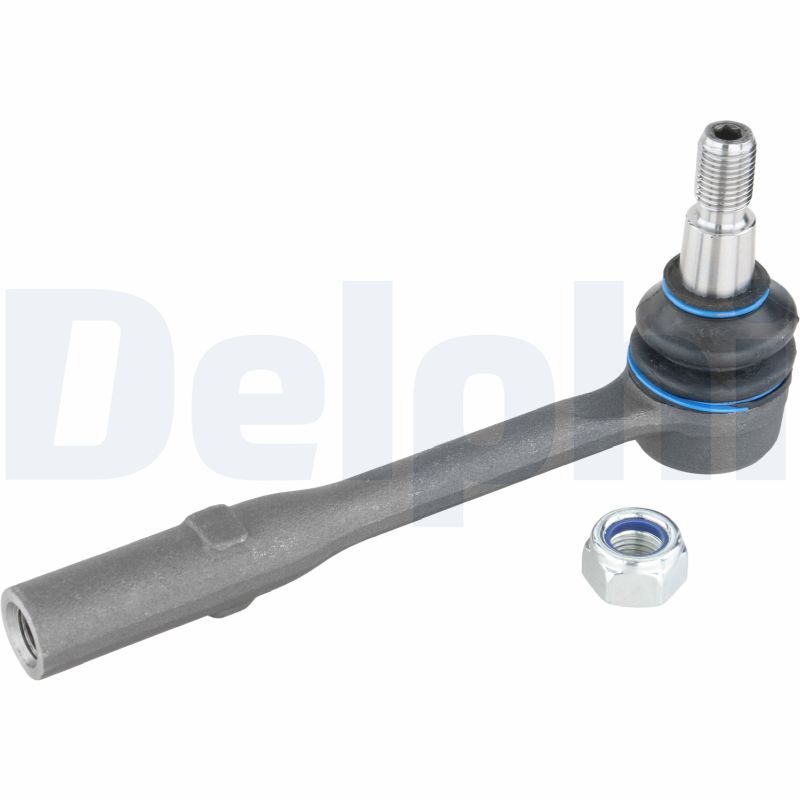

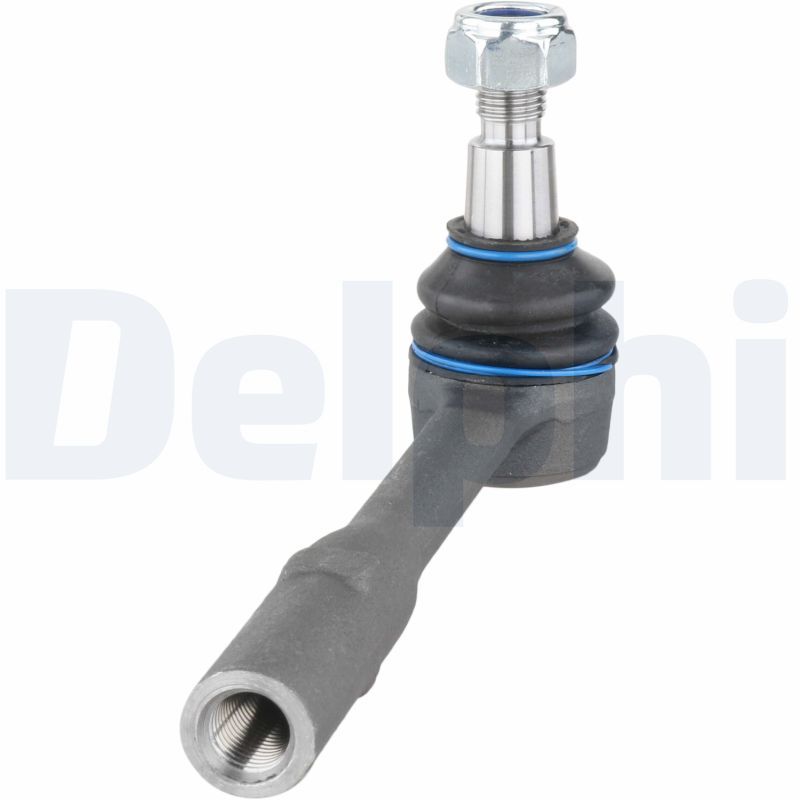

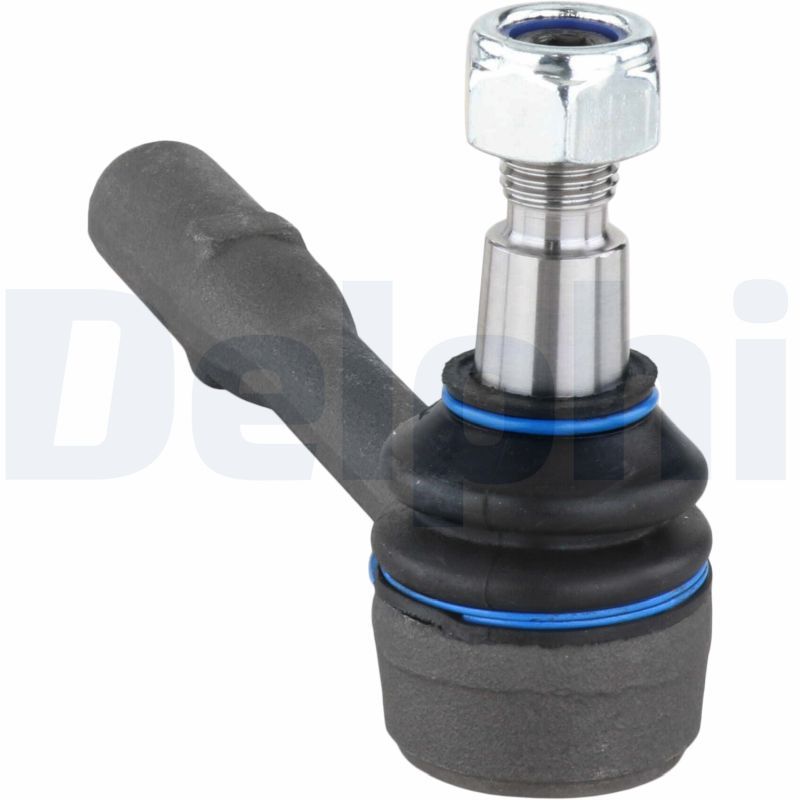

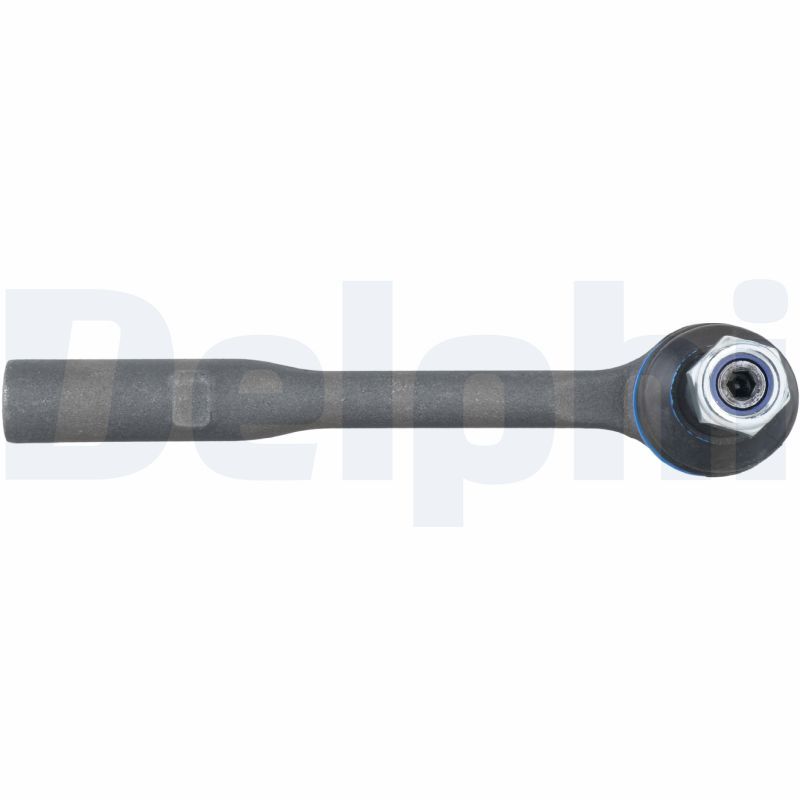

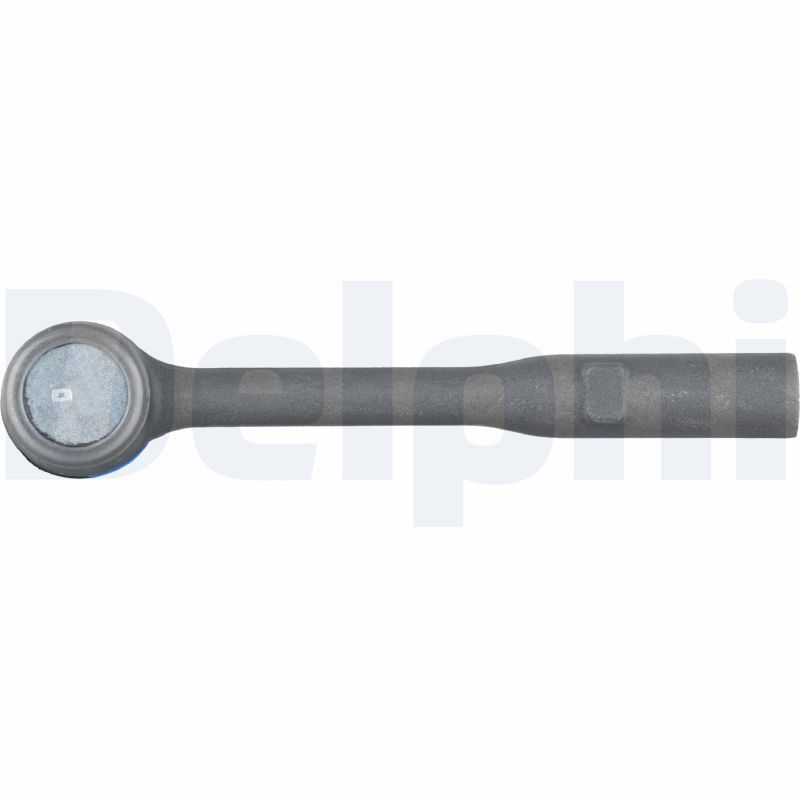

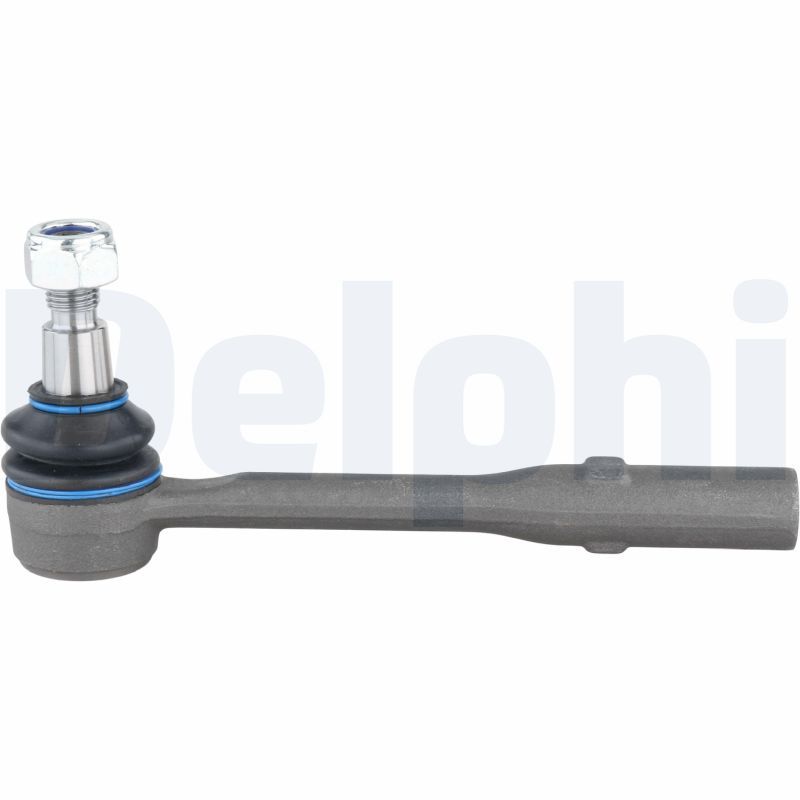

Delphi TA2491 Tie Rod End

SKU: TA2491
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£22.07 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
S-CLASS (W221, V221)
Description Cylinder Capacity Horse Power Year
S 400 Hybrid (221.095, 221.195) 3498 CCM 279 HP 01/2009 - 12/2013
S 63 AMG (221.074, 221.174) 5461 CCM 571 HP 02/2012 - 12/2013
S 350 BlueTec (221.026, 221.126) 2987 CCM 258 HP 04/2011 - 12/2013
S 350 CGI (221.057, 221.157) 3498 CCM 306 HP 04/2011 - 12/2013
S 500 CGI (221.073, 221.173) 4663 CCM 435 HP 04/2011 - 12/2013
S 63 AMG (221.074, 221.174) 5461 CCM 544 HP 03/2011 - 12/2013
S 65 AMG (221.179) 5980 CCM 630 HP 10/2010 - 12/2013
S 350 CDI (221.022, 221.122) 2987 CCM 235 HP 06/2009 - 12/2013
S 350 (221.056, 221.156) 3498 CCM 272 HP 10/2005 - 12/2013
S 500 (221.071, 221.171) 5461 CCM 388 HP 10/2005 - 12/2013
S 320 CDI (221.022, 221.122) 2987 CCM 235 HP 12/2005 - 06/2009
S-CLASS Coupe (C216)
Description Cylinder Capacity Horse Power Year
CL 500 (216.373) 4663 CCM 435 HP 02/2011 - 12/2013
CL 63 AMG (216.374) 5461 CCM 544 HP 02/2011 - 12/2013
CL 65 AMG (216.379) 5980 CCM 630 HP 02/2011 - 12/2013
CL 63 AMG (216.374) 5461 CCM 571 HP 01/2010 - 12/2013
CL 500 (216.371) 5461 CCM 388 HP 06/2006 - 12/2013
CL 600 (216.376) 5513 CCM 517 HP 05/2006 - 12/2013
CL 63 AMG (216.377) 6208 CCM 525 HP 10/2006 - 12/2013
CL 65 AMG (216.379) 5980 CCM 612 HP 10/2006 - 12/2010
CL 63 AMG (216.377) 6208 CCM 525 HP 09/2007 - 12/2011

The Delphi TA2491 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle fitting position, and 205 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 16.6
Fitting Position : Front Axle
Length [mm] : 205
Width [mm] : 40
Height [mm] : 86
  • Vendor DELPHI
  • SKU TA2491
  • Barcode 5012759435076
  • MERCEDES-BENZ : 221 330 1503 221 330 3903 A221 330 1503 A221 330 3903
  • APEC : AST6910
  • BORG & BECK : BTR5515
  • FEBI BILSTEIN : 38631
  • FEBI BILSTEIN : 38632
  • FIRST LINE : FTR5515
  • LEMFÖRDER : 34005 01
  • MEYLE : 016 020 0015
  • MONROE : L23128
  • NAPA : NST6910
  • SKF : VKDY 318098
  • TRW : JTE499
