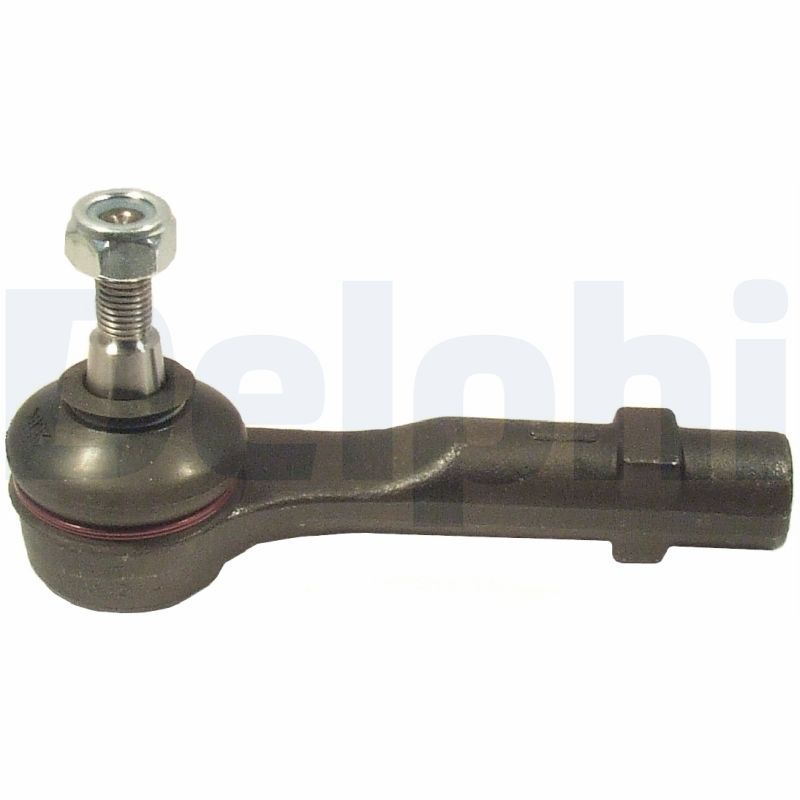

Delphi TA2494 Tie Rod End - 1
Delphi TA2494 Tie Rod End video
Delphi TA2494 Tie Rod End - 1
Delphi TA2494 Tie Rod End video
DELPHI

Delphi TA2494 Tie Rod End

SKU: TA2494
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£19.58 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

CITROËN
C4 GRAND PICASSO I (UA_)
Description Cylinder Capacity Horse Power Year
1.6 THP 155 1598 CCM 156 HP 09/2010 - 08/2013
1.6 HDi 110 1560 CCM 112 HP 09/2010 - 08/2013
2.0 HDi 165 1997 CCM 163 HP 09/2010 - 08/2013
1.8 i 16V 1749 CCM 125 HP 10/2006 - 12/2010
2.0 i 16V 1997 CCM 140 HP 10/2006 - 08/2013
1.6 HDi 1560 CCM 109 HP 10/2006 - 06/2011
2.0 HDi 138 1997 CCM 136 HP 10/2006 - 12/2013
1.6 VTi 120 1598 CCM 120 HP 07/2008 - 08/2013
1.6 16V 1598 CCM 140 HP 07/2008 - 12/2010
1.6 16V 1598 CCM 150 HP 10/2008 - 08/2013
2.0 HDi 150 1997 CCM 150 HP 07/2009 - 08/2013
C4 PICASSO I MPV (UD_)
Description Cylinder Capacity Horse Power Year
1.6 THP 155 1598 CCM 156 HP 09/2010 - 08/2013
1.6 HDi 110 1560 CCM 112 HP 09/2010 - 08/2013
2.0 HDi 165 1997 CCM 163 HP 09/2010 - 08/2013
1.8 i 16V 1749 CCM 125 HP 02/2007 - 12/2011
2.0 i 16V 1997 CCM 140 HP 09/2007 - 08/2013
1.6 HDi 1560 CCM 109 HP 02/2007 - 08/2013
2.0 HDi 138 1997 CCM 136 HP 10/2006 - 08/2013
1.6 VTi 120 1598 CCM 120 HP 07/2008 - 08/2013
1.6 THP 140 1598 CCM 140 HP 07/2008 - 08/2013
2.0 HDi 150 1997 CCM 150 HP 07/2009 - 08/2013
1.6 16V 1598 CCM 150 HP 07/2008 - 08/2013

The Delphi TA2494 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16x1.5 thread size, with right-hand thread thread type, front axle left fitting position, and 140 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M16x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 12.2
Paired article number : TA2495
Fitting Position : Front Axle Left
Length [mm] : 140
Width [mm] : 40
Height [mm] : 72
  • Vendor DELPHI
  • SKU TA2494
  • Barcode 5012759435243
  • CITROËN : 1635773080 3817.71 1610935780
  • APEC : AST6334
  • BORG & BECK : BTR5505
  • BOSCH : 0 986 140 563
  • CORTECO : 49400152
  • FEBI BILSTEIN : 36261
  • FEBI BILSTEIN : 44942
  • FIRST LINE : FTR5505
  • LEMFÖRDER : 31003 01
  • MEYLE : 11-16 020 0028
  • MONROE : L38108
  • NAPA : NST6334
  • Schaeffler FAG : 840 1104 10
  • SKF : VKDY 313019
  • TRW : JTE1208
  • User manual
