Delphi TA2495 Tie Rod End - 1
Delphi TA2495 Tie Rod End video
Delphi TA2495 Tie Rod End - 1
Delphi TA2495 Tie Rod End video
DELPHI

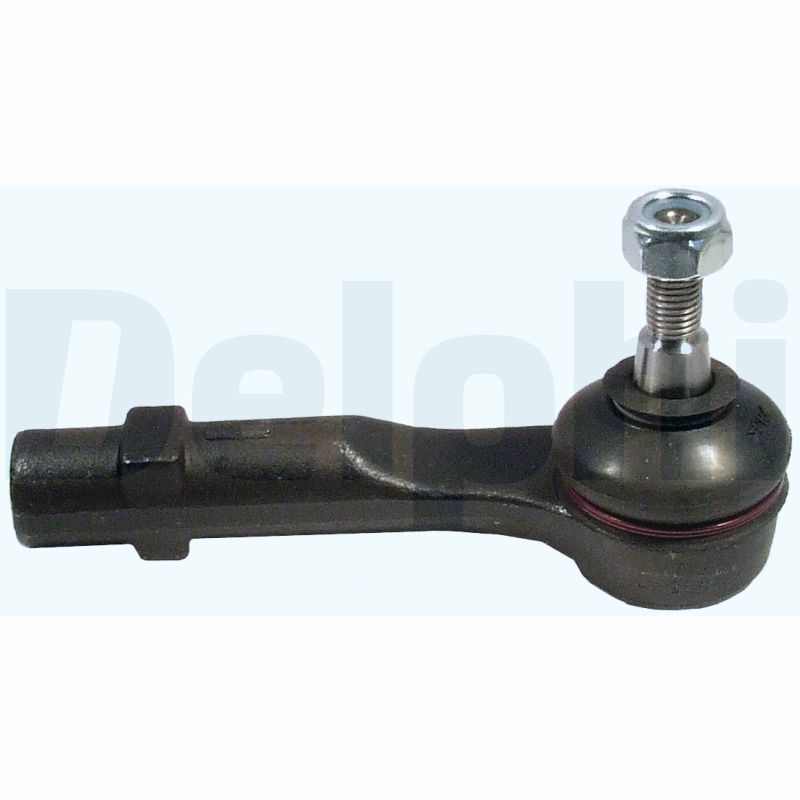

Delphi TA2495 Tie Rod End

SKU: TA2495
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£19.72 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

CITROËN
C4 GRAND PICASSO I (UA_)
Description Cylinder Capacity Horse Power Year
1.6 THP 155 1598 CCM 156 HP 09/2010 - 08/2013
1.6 HDi 110 1560 CCM 112 HP 09/2010 - 08/2013
2.0 HDi 165 1997 CCM 163 HP 09/2010 - 08/2013
1.8 i 16V 1749 CCM 125 HP 10/2006 - 12/2010
2.0 i 16V 1997 CCM 140 HP 10/2006 - 08/2013
1.6 HDi 1560 CCM 109 HP 10/2006 - 06/2011
2.0 HDi 138 1997 CCM 136 HP 10/2006 - 12/2013
1.6 VTi 120 1598 CCM 120 HP 07/2008 - 08/2013
1.6 16V 1598 CCM 140 HP 07/2008 - 12/2010
1.6 16V 1598 CCM 150 HP 10/2008 - 08/2013
2.0 HDi 150 1997 CCM 150 HP 07/2009 - 08/2013
C4 PICASSO I MPV (UD_)
Description Cylinder Capacity Horse Power Year
1.6 THP 155 1598 CCM 156 HP 09/2010 - 08/2013
1.6 HDi 110 1560 CCM 112 HP 09/2010 - 08/2013
2.0 HDi 165 1997 CCM 163 HP 09/2010 - 08/2013
1.8 i 16V 1749 CCM 125 HP 02/2007 - 12/2011
2.0 i 16V 1997 CCM 140 HP 09/2007 - 08/2013
1.6 HDi 1560 CCM 109 HP 02/2007 - 08/2013
2.0 HDi 138 1997 CCM 136 HP 10/2006 - 08/2013
1.6 VTi 120 1598 CCM 120 HP 07/2008 - 08/2013
1.6 THP 140 1598 CCM 140 HP 07/2008 - 08/2013
2.0 HDi 150 1997 CCM 150 HP 07/2009 - 08/2013
1.6 16V 1598 CCM 150 HP 07/2008 - 08/2013

The Delphi TA2495 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16x1.5 thread size, with right-hand thread thread type, front axle right fitting position, and 140 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M16x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 12.2
Paired article number : TA2494
Fitting Position : Front Axle Right
Length [mm] : 140
Width [mm] : 40
Height [mm] : 72
  • Vendor DELPHI
  • SKU TA2495
  • Barcode 5012759435250
  • CITROËN : 1610935880 1635772980 3817.72
  • APEC : AST6333
  • BORG & BECK : BTR5506
  • BOSCH : 0 986 140 564
  • CORTECO : 49399607
  • FEBI BILSTEIN : 36262
  • FEBI BILSTEIN : 44947
  • FIRST LINE : FTR5506
  • LEMFÖRDER : 31004 01
  • MEYLE : 11-16 020 0029
  • MONROE : L38107
  • NAPA : NST6333
  • Schaeffler FAG : 840 1105 10
  • SKF : VKDY 313020
  • TRW : JTE1209
  • User manual
