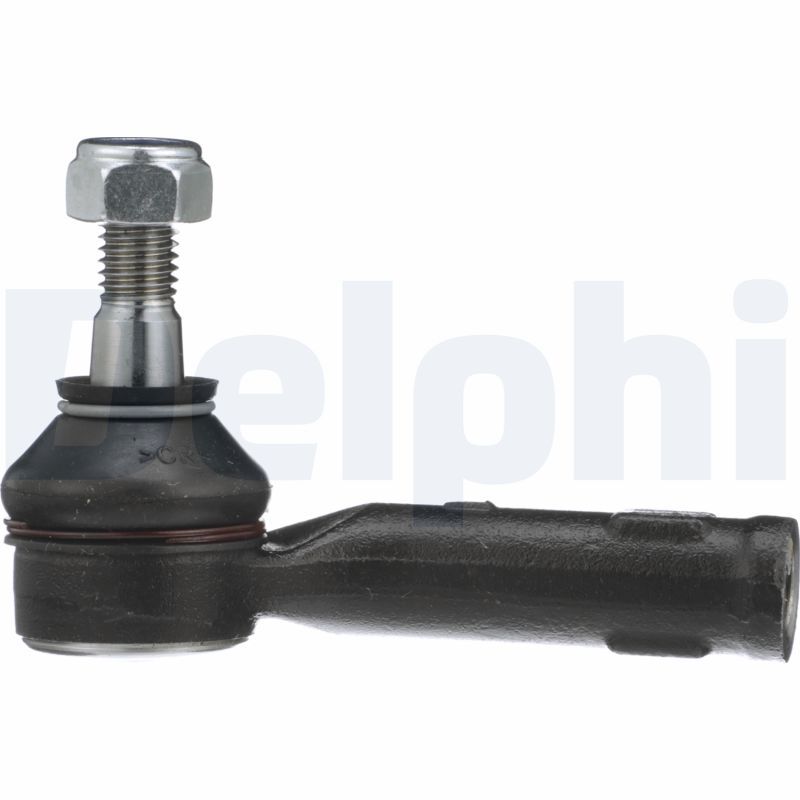

Delphi TA2498 Tie Rod End - 1

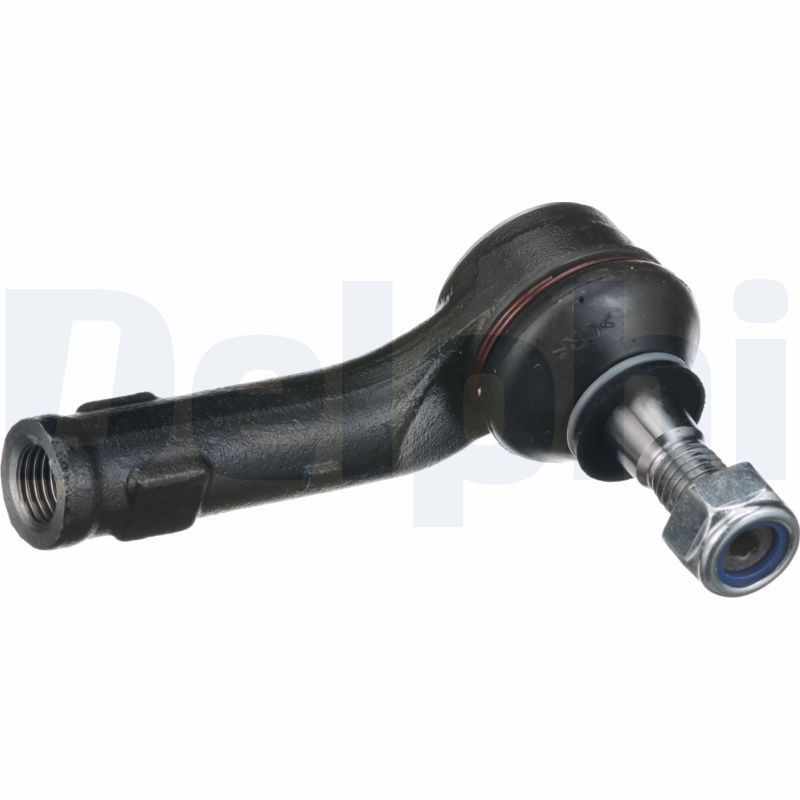

Delphi TA2498 Tie Rod End - 2

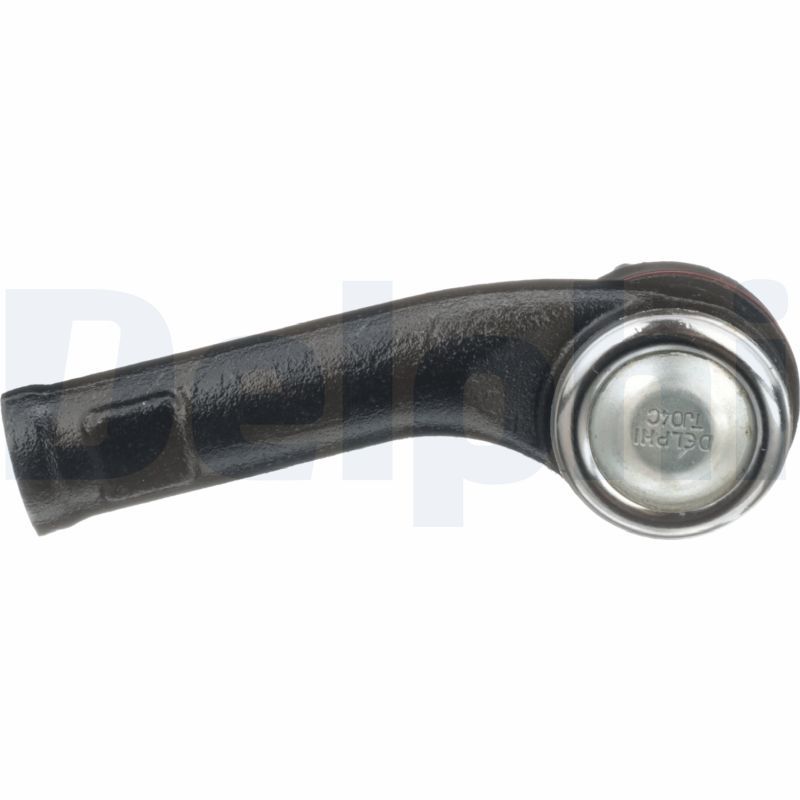

Delphi TA2498 Tie Rod End - 3

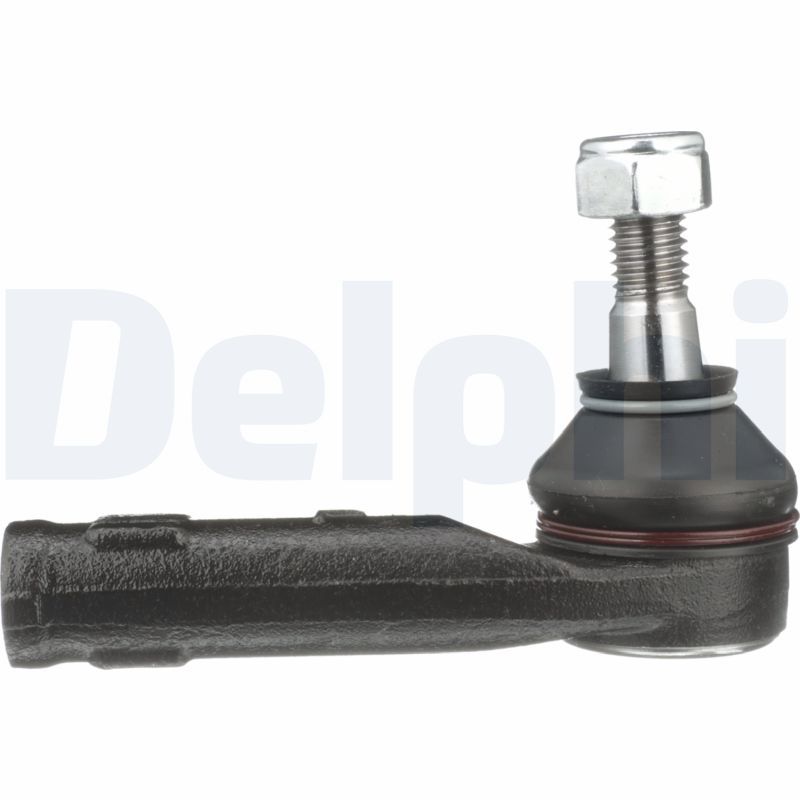

Delphi TA2498 Tie Rod End - 4

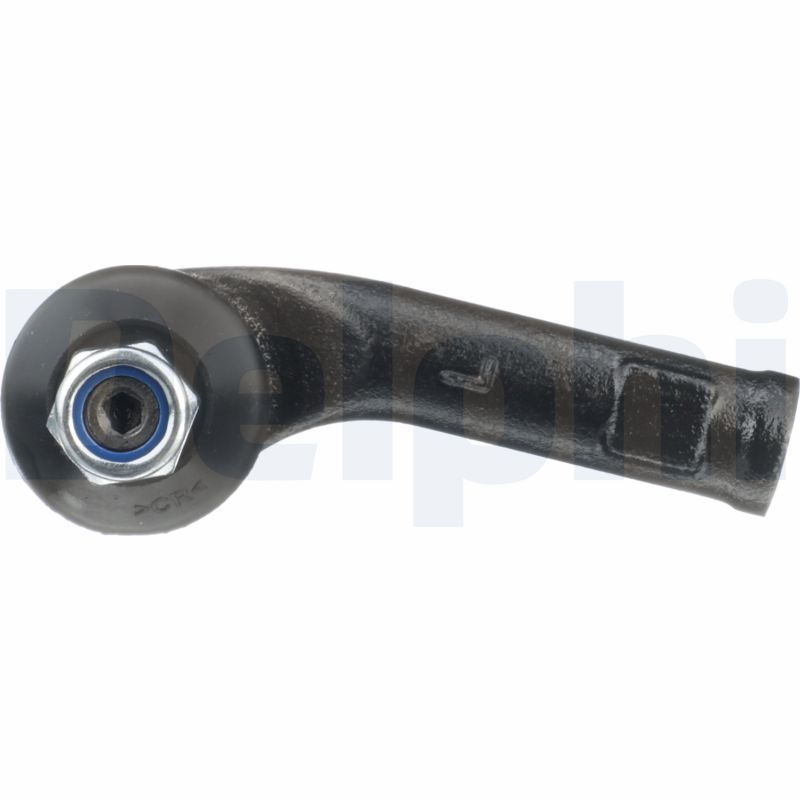

Delphi TA2498 Tie Rod End - 5

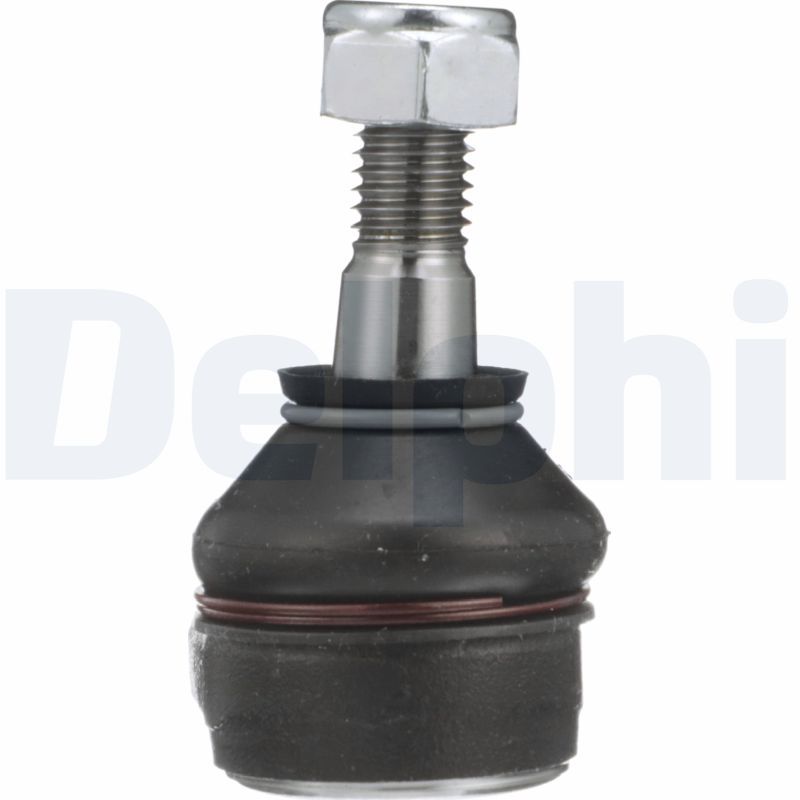

Delphi TA2498 Tie Rod End - 6
Delphi TA2498 Tie Rod End video
Delphi TA2498 Tie Rod End - 1
Delphi TA2498 Tie Rod End - 2
Delphi TA2498 Tie Rod End - 3
Delphi TA2498 Tie Rod End - 4
Delphi TA2498 Tie Rod End - 5
Delphi TA2498 Tie Rod End - 6
Delphi TA2498 Tie Rod End video
DELPHI

Delphi TA2498 Tie Rod End

SKU: TA2498
In stock
Order by 17:00 for same-day dispatch
£15.91 inc. VAT
Pay in 3 interest-free payments with Klarna

Free UK delivery

Free shipping available on all orders across the UK.

  • Royal Mail Tracked 48 = Free
  • Royal Mail Tracked 24 = £2.99
  • FedEx Next Day = £4.99
FORD
B-MAX Van (JK)
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 100 HP From 10/2012
B-MAX (JK)
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 100 HP From 10/2012
1.0 EcoBoost 998 CCM 120 HP From 10/2012
1.6 Ti 1596 CCM 105 HP From 10/2012
1.6 TDCi 1560 CCM 95 HP From 10/2012
1.4 1388 CCM 90 HP From 10/2012
1.5 TDCi 1499 CCM 75 HP From 10/2012
1.0 EcoBoost 998 CCM 125 HP From 10/2012
1.4 LPG 1388 CCM 90 HP From 08/2013
1.5 TDCi 1499 CCM 95 HP From 04/2015
1.0 EcoBoost 998 CCM 140 HP From 02/2016
ECOSPORT
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 125 HP From 10/2013
1.5 Ti 1498 CCM 112 HP From 10/2013
1.5 TDCi 1499 CCM 90 HP From 10/2013
1.6 Ti-VCT 1596 CCM 122 HP From 08/2012
1.5 EcoBlue TDCi 1499 CCM 95 HP From 05/2015
1.0 EcoBoost 998 CCM 140 HP From 03/2016
1.5 TDCi 1499 CCM 100 HP From 05/2015
1.5 Ti-VCT 1498 CCM 110 HP 10/2013 - 06/2022
1.5 TDCi EcoBlue 1499 CCM 120 HP From 11/2019
1.5 EcoBlue TDCi 1499 CCM 100 HP From 11/2017
1.0 EcoBoost 998 CCM 95 HP From 04/2020
FIESTA VI (CB1, CCN)
Description Cylinder Capacity Horse Power Year
1.6 Ti 1596 CCM 134 HP 12/2010 - 04/2017
1.4 TDCi 1399 CCM 70 HP 07/2010 - 09/2012
1.25 1242 CCM 60 HP 06/2008 - 04/2017
1.25 1242 CCM 82 HP 06/2008 - 04/2017
1.6 TDCi 1560 CCM 90 HP 06/2008 - 12/2012
1.4 1388 CCM 97 HP 10/2008 - 12/2017
1.6 Ti 1596 CCM 120 HP 06/2008 - 09/2012
1.4 TDCi 1399 CCM 68 HP 08/2008 - 09/2012
1.6 TDCi 1560 CCM 75 HP 06/2008 - 12/2012
1.4 LPG 1388 CCM 97 HP 01/2009 - 04/2017
1.6 TDCi 1560 CCM 95 HP 02/2010 - 12/2015
1.0 998 CCM 65 HP 01/2013 - 04/2017
1.0 EcoBoost 998 CCM 100 HP 01/2013 - 12/2017
1.0 EcoBoost 998 CCM 125 HP 09/2012 - 12/2017
1.6 Ti 1596 CCM 105 HP 09/2012 - 04/2017
FIESTA VI Van
Description Cylinder Capacity Horse Power Year
1.4 TDCi 1399 CCM 70 HP 07/2010 - 04/2017
1.6 TDCi 1560 CCM 95 HP 02/2010 - 05/2015
1.25 1242 CCM 82 HP 01/2009 - 04/2017
1.4 TDCi 1399 CCM 68 HP 01/2009 - 04/2017
1.6 TDCi 1560 CCM 90 HP 01/2009 - 04/2017
1.5 TDCi 1499 CCM 75 HP 10/2012 - 04/2017
1.0 EcoBoost 998 CCM 125 HP 09/2012 - 04/2017
1.0 EcoBoost 998 CCM 140 HP 05/2014 - 04/2017
1.0 998 CCM 65 HP 01/2013 - 04/2017
1.0 EcoBoost 998 CCM 100 HP 01/2013 - 04/2017
1.5 TDCi 1499 CCM 95 HP 05/2015 - 04/2017
1.0 998 CCM 80 HP 10/2012 - 04/2017
1.6 Ti-VCT 1596 CCM 120 HP 10/2008 - 12/2012
1.4 1388 CCM 97 HP 10/2008 - 12/2012
FIESTA Saloon
Description Cylinder Capacity Horse Power Year
1.6 Ti 1596 CCM 120 HP 04/2010 - 04/2017
1.6 Ti 1596 CCM 105 HP 03/2015 - 04/2017
1.6 1596 CCM 85 HP 03/2015 - 04/2017
KA+ III (UK, FK)
Description Cylinder Capacity Horse Power Year
1.2 1198 CCM 70 HP From 06/2016
1.2 Ti-VCT 1196 CCM 85 HP From 06/2016
1.5 TDCi 1499 CCM 95 HP From 02/2018
1.5 TDCi 1499 CCM 90 HP From 02/2018
1.2 1194 CCM 85 HP From 02/2018
KA+ III Saloon (TK, FK)
Description Cylinder Capacity Horse Power Year
1.2 (TK) 1196 CCM 85 HP From 06/2016
TOURNEO COURIER B460 MPV
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 100 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 75 HP 02/2014 - 12/2023
1.6 TDCi 1560 CCM 95 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 95 HP 05/2015 - 12/2023
1.5 EcoBlue 1499 CCM 100 HP 04/2018 - 12/2023
TOURNEO COURIER V769 MPV (N1P)
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 999 CCM 125 HP From 07/2023
TRANSIT COURIER B460 Box Body/MPV
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 95 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 75 HP 02/2014 - 12/2023
1.0 EcoBoost 998 CCM 100 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 95 HP 05/2015 - 12/2023
1.5 EcoBlue 1499 CCM 100 HP 04/2018 - 12/2023
TRANSIT COURIER B460 MPV
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 95 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 75 HP 02/2014 - 12/2023
1.0 EcoBoost 998 CCM 100 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 95 HP 05/2015 - 12/2023
1.5 EcoBlue 1499 CCM 100 HP 04/2018 - 12/2023
Function : Tie Rod End
Thread Size : M14x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 12.9
Paired article number : TA2499
Fitting Position : Front Axle Left
Length [mm] : 112
Width [mm] : 38
Height [mm] : 78
  • Vendor DELPHI
  • SKU TA2498
  • Barcode 5012759435199
  • FORD : 8V513C437AA BE8Z3A131A 1545339
  • APEC : AST6158
  • APEC : AST6159
  • BORG & BECK : BTR5521
  • BOSCH : 0 986 140 571
  • CORTECO : 49399551
  • FEBI BILSTEIN : 40833
  • FIRST LINE : FTR5521
  • KYB : KTR4031
  • LEMFÖRDER : 34090 01
  • MEYLE : 716 020 0022
  • MEYLE : 716 020 0022/HD
  • MEYLE : 716 030 0003/HD
  • MONROE : L10122
  • NAPA : NST6158
  • NAPA : NST6159
  • Schaeffler FAG : 840 1128 10
  • SKF : VKDY 314007
  • TRW : JTE1126
