Delphi TA2503 Inner Tie Rod - 1
Delphi TA2503 Inner Tie Rod video
Delphi TA2503 Inner Tie Rod - 1
Delphi TA2503 Inner Tie Rod video
DELPHI

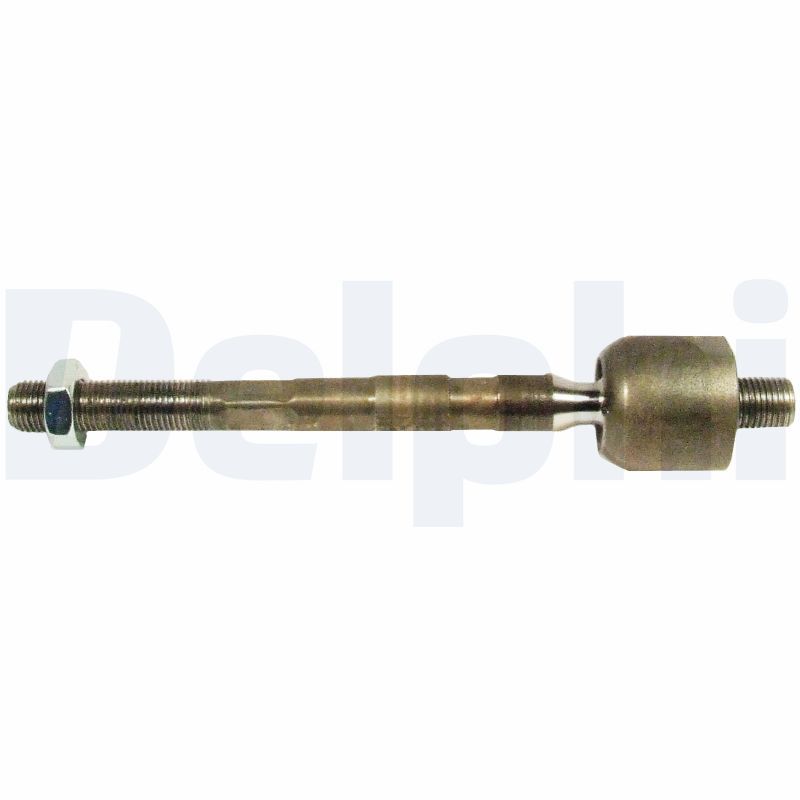

Delphi TA2503 Inner Tie Rod

SKU: TA2503
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£17.54 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT
LAGUNA III (BT0/1)
Description Cylinder Capacity Horse Power Year
3.5 V6 (BT0C, BT0P) 3498 CCM 238 HP 04/2008 - 12/2015
2.0 16V (BT05, BT0F, BT0W) 1998 CCM 140 HP 10/2007 - 12/2012
2.0 16V Turbo 1998 CCM 170 HP 10/2007 - 12/2015
1.5 dCi (BT00, BT0A, BT0T, BT1J) 1461 CCM 110 HP 10/2007 - 12/2015
2.0 dCi (BT07, BT0J, BT14, BT1A, BT1S) 1995 CCM 131 HP 10/2007 - 12/2015
2.0 dCi (BT01, BT08, BT09, BT0E, BT0K, BT12, BT1C, BT1D,... 1995 CCM 150 HP 10/2007 - 12/2015
2.0 GT 1998 CCM 204 HP 03/2008 - 12/2015
2.0 dCi GT (BT11, BT1E, BT1N) 1995 CCM 178 HP 03/2008 - 12/2015
2.0 dCi (BT0M, BT0N, BT0S, BT19, BT1F) 1995 CCM 173 HP 01/2008 - 12/2015
1.6 16V (BT04, BT0D, BT0U) 1598 CCM 110 HP 10/2007 - 12/2015
3.0 dCi (BT03, BT13) 2998 CCM 235 HP 09/2008 - 12/2015
2.0 16V Hi-Flex (BT1H, BT1G, BT1K) 1997 CCM 140 HP 10/2007 - 12/2015
LAGUNA III Sport Tourer (KT0/1)
Description Cylinder Capacity Horse Power Year
3.5 V6 (KT0C, KT0P) 3498 CCM 238 HP 04/2008 - 12/2015
2.0 16V (KT0F, KT0W) 1998 CCM 140 HP 10/2007 - 12/2015
2.0 16V Turbo 1998 CCM 170 HP 10/2007 - 12/2015
1.5 dCi (KT0A, KT0R, KT02) 1461 CCM 110 HP 10/2007 - 12/2015
2.0 dCi (KT07, KT0J, KT14, KT1A, KT1S) 1995 CCM 131 HP 10/2007 - 12/2015
2.0 dCi (KT01, KT08, KT09, KT0K, KT12, KT1D, KT1W) 1995 CCM 150 HP 10/2007 - 12/2015
2.0 GT 1998 CCM 204 HP 03/2008 - 12/2015
2.0 dCi GT (KT11, KT1E, KT1N) 1995 CCM 178 HP 03/2008 - 12/2015
2.0 dCi (KT0M, KT0N, KT0S, KT19, KT1F) 1995 CCM 173 HP 01/2008 - 12/2015
1.6 16V (KT0D) 1598 CCM 110 HP 10/2007 - 12/2015
3.0 dCi (KT03, KT13) 2998 CCM 235 HP 09/2008 - 12/2015
2.0 16V Hi-Flex (KT1H, KT1G, KT1K) 1997 CCM 140 HP 10/2007 - 12/2015
LAGUNA Coupe (DT0/1)
Description Cylinder Capacity Horse Power Year
3.0 dCi 2998 CCM 241 HP 01/2012 - 12/2015
3.0 dCi (DT03) 2998 CCM 235 HP 09/2008 - 12/2015
2.0 16V Turbo 1998 CCM 170 HP 09/2008 - 12/2015
2.0 dCi (DT0M, DT0N, DT0S, DT19, DT1F) 1995 CCM 173 HP 09/2008 - 12/2015
3.5 V6 (DT0P) 3498 CCM 238 HP 09/2008 - 12/2015
2.0 GT 1998 CCM 204 HP 09/2008 - 12/2015
2.0 dCi (DT01, DT08, DT09, DT0K, DT12, DT1C, DT1D, DT1M,... 1995 CCM 150 HP 09/2008 - 12/2015
2.0 dCi GT (DT11, DT1E, DT1N) 1995 CCM 178 HP 09/2008 - 12/2015
1.5 dCi 1461 CCM 110 HP 03/2012 - 12/2015

The Delphi TA2503 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size 2, front axle fitting position, 205 mm length, and 36 mm width. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod
Thread Size 2 : M14x1.5
Fitting Position : Front Axle
Length [mm] : 205
Width [mm] : 36
Height [mm] : 36
  • Vendor DELPHI
  • SKU TA2503
  • Barcode 5012759435151
  • RENAULT : 4852 100 01R
  • APEC : AST6733
  • BORG & BECK : BTR5454
  • CORTECO : 49396986
  • FEBI BILSTEIN : 32020
  • FIRST LINE : FTR5454
  • LEMFÖRDER : 34937 01
  • MEYLE : 16-16 031 0017
  • MONROE : L25228
  • NAPA : NST6733
  • Schaeffler FAG : 840 0393 10
  • SKF : VKDY 326027
  • TRW : JAR1225
  • User manual
