Delphi TA2520 Inner Tie Rod - 1
Delphi TA2520 Inner Tie Rod video
Delphi TA2520 Inner Tie Rod - 1
Delphi TA2520 Inner Tie Rod video
DELPHI

Delphi TA2520 Inner Tie Rod

SKU: TA2520
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£24.80 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
X5 (E70)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 245 HP 04/2010 - 07/2013
xDrive 40 d 2993 CCM 306 HP 09/2010 - 06/2013
xDrive 35 i 2979 CCM 306 HP 04/2010 - 07/2013
xDrive 50 i 4395 CCM 408 HP 04/2010 - 07/2013
3.0 si 2996 CCM 272 HP 10/2006 - 09/2008
4.8 i xDrive 4799 CCM 355 HP 10/2006 - 09/2008
3.0 d 2993 CCM 235 HP 12/2006 - 09/2008
3.0 sd 2993 CCM 286 HP 10/2007 - 09/2008
xDrive 30 i 2996 CCM 272 HP 10/2008 - 03/2010
xDrive 48 i 4799 CCM 355 HP 10/2008 - 03/2010
xDrive 30 d 2993 CCM 235 HP 10/2008 - 03/2010
xDrive 35 d 2993 CCM 286 HP 10/2008 - 07/2013
M 4395 CCM 555 HP 07/2009 - 07/2013
3.0 3.0d 2993 CCM 211 HP 02/2007 - 09/2008
X6 (E71, E72)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 245 HP 04/2010 - 07/2014
xDrive 40 d 2993 CCM 306 HP 07/2009 - 06/2014
ActiveHybrid 4395 CCM 485 HP 01/2009 - 10/2011
xDrive 30 d 2993 CCM 211 HP 04/2010 - 07/2014
xDrive 35 i 2979 CCM 306 HP 01/2008 - 07/2014
xDrive 30 d 2993 CCM 235 HP 04/2008 - 03/2010
xDrive 35 d 2993 CCM 286 HP 01/2008 - 03/2010
M 4395 CCM 555 HP 07/2009 - 07/2014

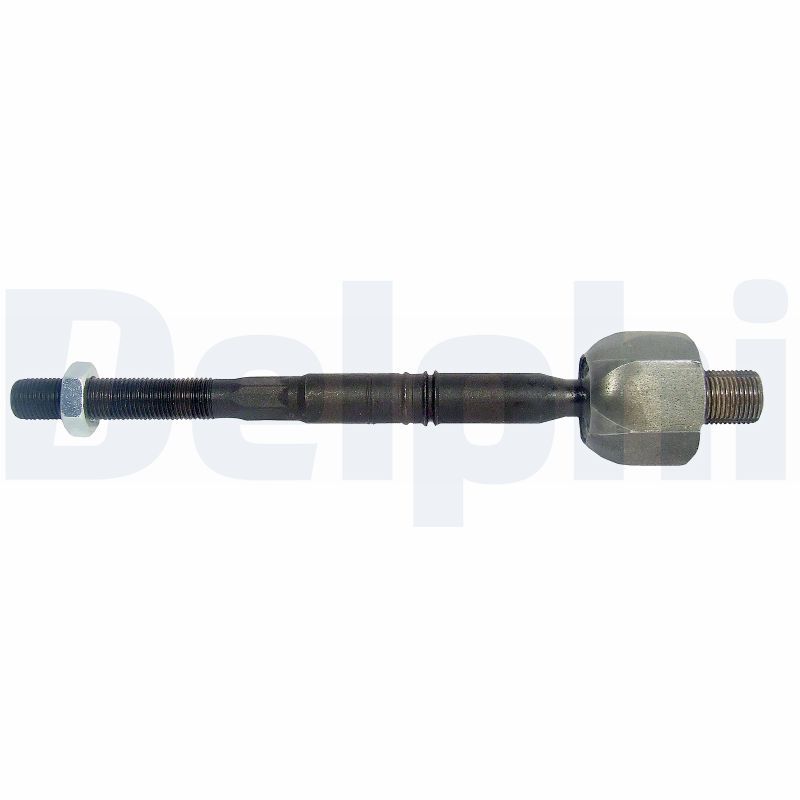

The Delphi TA2520 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size 2, front axle fitting position, 241 mm length, and 43 mm width. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod
Thread Size 2 : M14x1.5
Fitting Position : Front Axle
Length [mm] : 241
Width [mm] : 43
Height [mm] : 38
  • Vendor DELPHI
  • SKU TA2520
  • Barcode 5012759441725
  • BMW : 32106793496* 32106793498 32216773740
  • APEC : AST6517
  • BORG & BECK : BTR5456
  • FEBI BILSTEIN : 31785
  • FEBI BILSTEIN : 33512
  • FEBI BILSTEIN : 43774
  • FIRST LINE : FTR5456
  • LEMFÖRDER : 30994 01
  • MEYLE : 316 030 0009
  • MEYLE : 316 030 0010/HD
  • MEYLE : 316 030 3044
  • MONROE : L11H00
  • NAPA : NST6517
  • SKF : VKDY 328505
