Delphi TA2521 Inner Tie Rod - 1
Delphi TA2521 Inner Tie Rod video
Delphi TA2521 Inner Tie Rod - 1
Delphi TA2521 Inner Tie Rod video
DELPHI

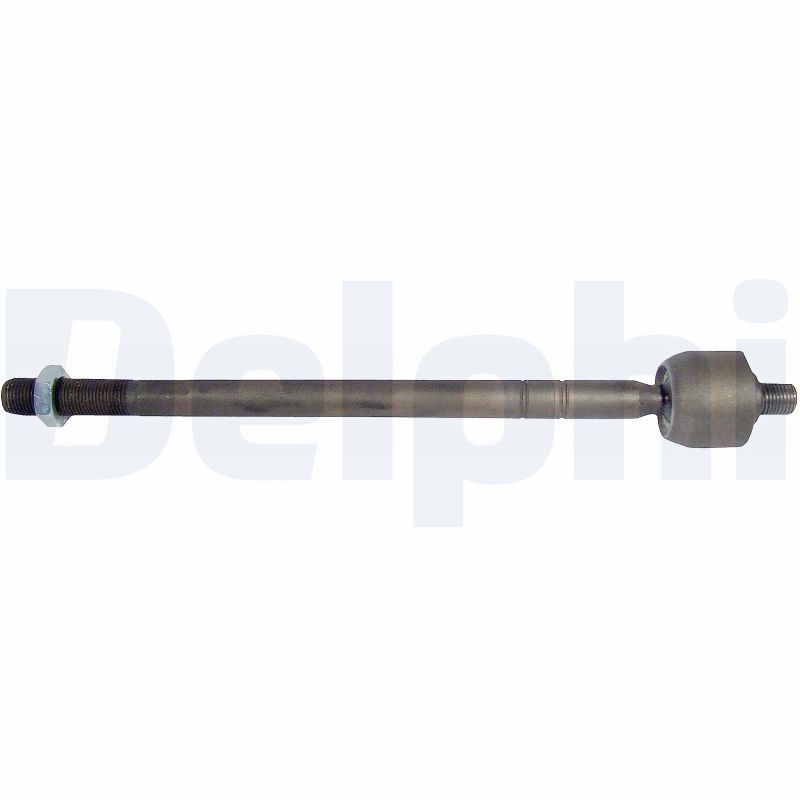

Delphi TA2521 Inner Tie Rod

SKU: TA2521
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£16.20 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

CITROËN
C4 GRAND PICASSO I (UA_)
Description Cylinder Capacity Horse Power Year
1.6 THP 155 1598 CCM 156 HP 09/2010 - 08/2013
1.6 HDi 110 1560 CCM 112 HP 09/2010 - 08/2013
2.0 HDi 165 1997 CCM 163 HP 09/2010 - 08/2013
1.8 i 16V 1749 CCM 125 HP 10/2006 - 12/2010
2.0 i 16V 1997 CCM 140 HP 10/2006 - 08/2013
1.6 HDi 1560 CCM 109 HP 10/2006 - 06/2011
2.0 HDi 138 1997 CCM 136 HP 10/2006 - 12/2013
1.6 VTi 120 1598 CCM 120 HP 07/2008 - 08/2013
1.6 16V 1598 CCM 140 HP 07/2008 - 12/2010
1.6 16V 1598 CCM 150 HP 10/2008 - 08/2013
2.0 HDi 150 1997 CCM 150 HP 07/2009 - 08/2013
C4 PICASSO I MPV (UD_)
Description Cylinder Capacity Horse Power Year
1.6 THP 155 1598 CCM 156 HP 09/2010 - 08/2013
1.6 HDi 110 1560 CCM 112 HP 09/2010 - 08/2013
2.0 HDi 165 1997 CCM 163 HP 09/2010 - 08/2013
1.8 i 16V 1749 CCM 125 HP 02/2007 - 12/2011
2.0 i 16V 1997 CCM 140 HP 09/2007 - 08/2013
1.6 HDi 1560 CCM 109 HP 02/2007 - 08/2013
2.0 HDi 138 1997 CCM 136 HP 10/2006 - 08/2013
1.6 VTi 120 1598 CCM 120 HP 07/2008 - 08/2013
1.6 THP 140 1598 CCM 140 HP 07/2008 - 08/2013
2.0 HDi 150 1997 CCM 150 HP 07/2009 - 08/2013
1.6 16V 1598 CCM 150 HP 07/2008 - 08/2013

The Delphi TA2521 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16x1.5 thread size 2, front axle fitting position, 330 mm length, and 40 mm width. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod
Thread Size 2 : M16x1.5
Fitting Position : Front Axle
Length [mm] : 330
Width [mm] : 40
Height [mm] : 40
  • Vendor DELPHI
  • SKU TA2521
  • Barcode 5012759441732
  • CITROËN : 1610935980 1635770580 3812.E9
  • APEC : AST6516
  • BORG & BECK : BTR5401
  • BOSCH : 0 986 141 142
  • CORTECO : 49400809
  • FEBI BILSTEIN : 28607
  • FIRST LINE : FTR5401
  • LEMFÖRDER : 31002 01
  • LEMFÖRDER : 38928 01
  • MEYLE : 11-16 031 0025
  • MONROE : L38207
  • NAPA : NST6516
  • Schaeffler FAG : 840 0359 10
  • SKF : VKDY 323012
  • TRW : JAR1088
