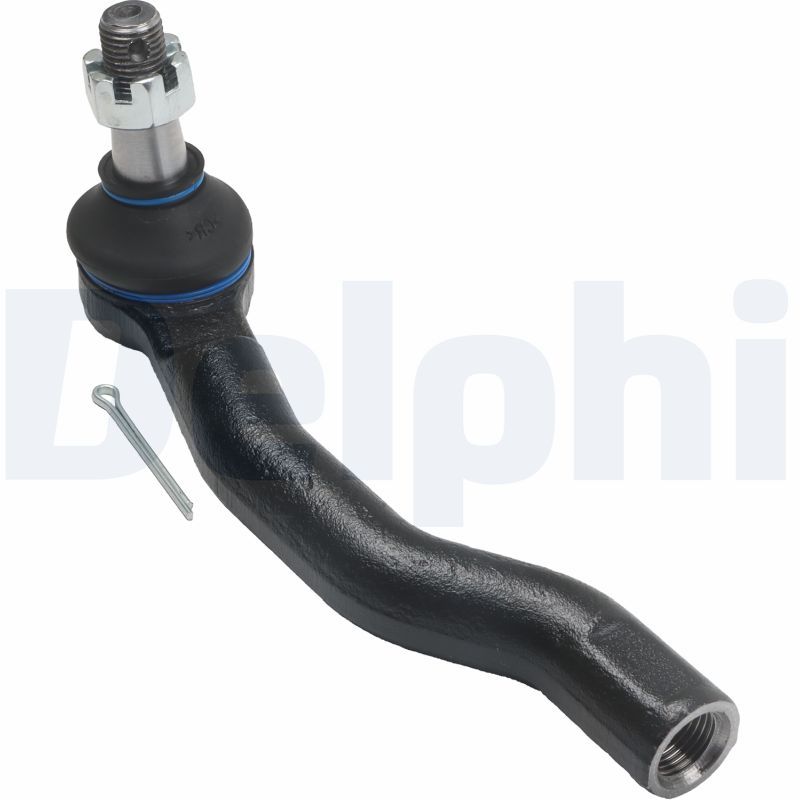

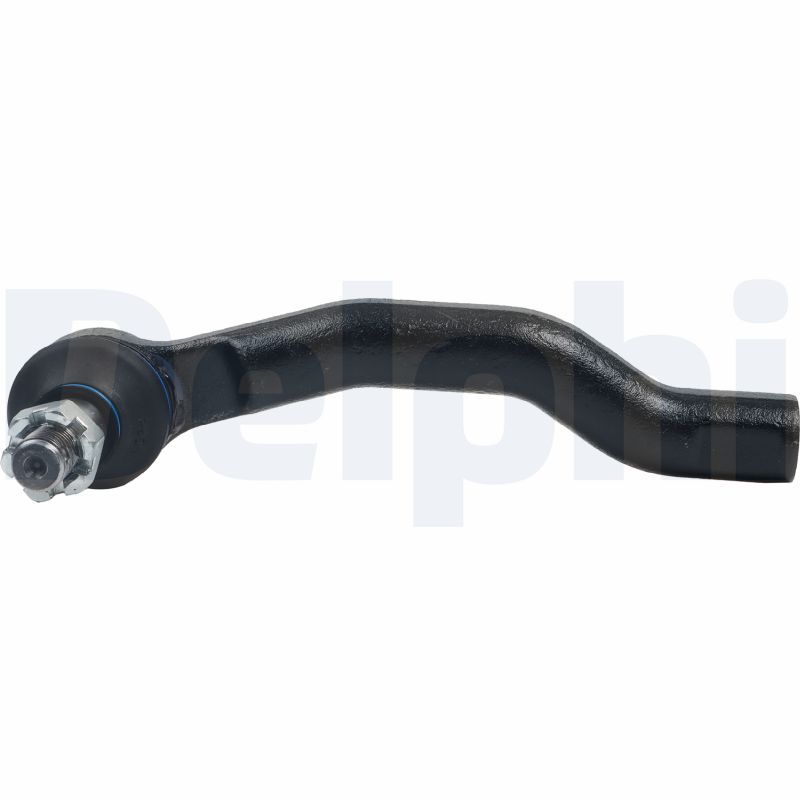

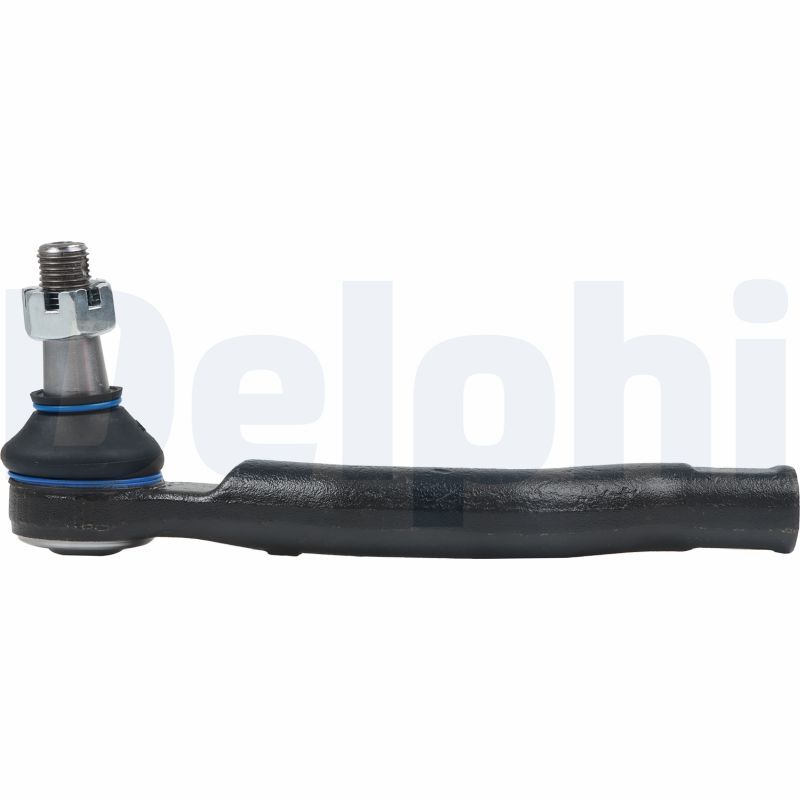

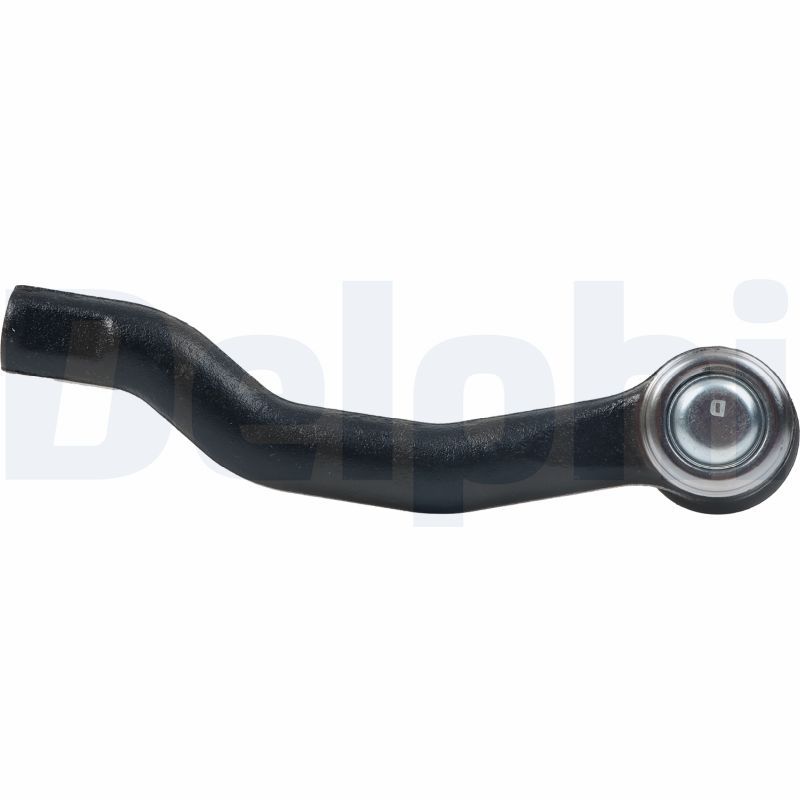

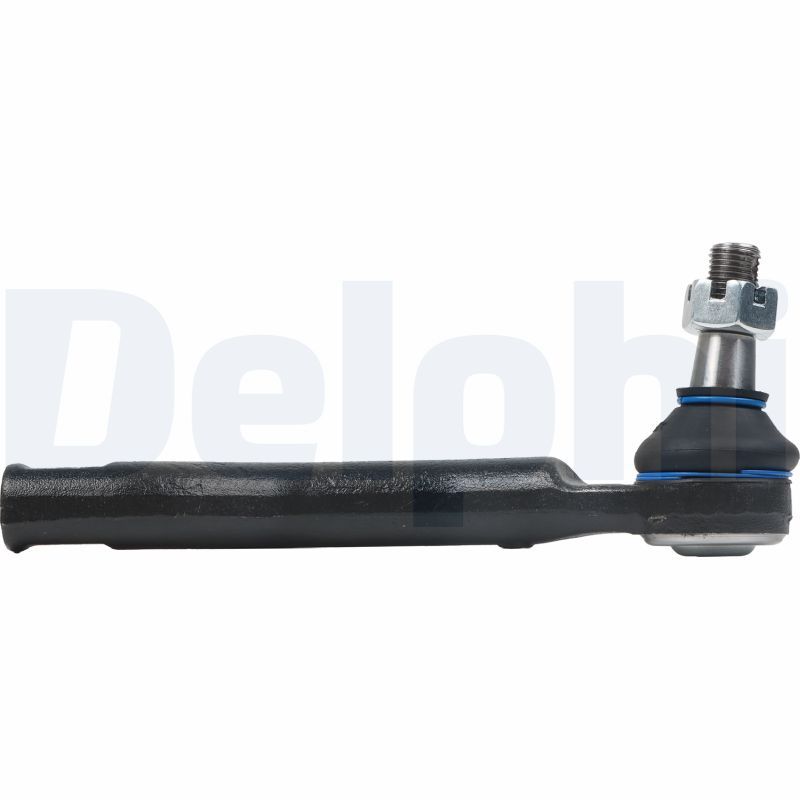

Delphi TA2570 Tie Rod End - 1
Delphi TA2570 Tie Rod End - 2
Delphi TA2570 Tie Rod End - 3
Delphi TA2570 Tie Rod End - 4
Delphi TA2570 Tie Rod End - 5
Delphi TA2570 Tie Rod End - 6
Delphi TA2570 Tie Rod End video
DELPHI

Delphi TA2570 Tie Rod End

SKU: TA2570
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£18.22 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

NISSAN
NAVARA NP300 (D40)
Description Cylinder Capacity Horse Power Year
2.5 dCi 4WD (D40TT, D40T, D40M, D40BB) 2488 CCM 190 HP From 12/2009
3.0 dCi 4WD 2993 CCM 231 HP From 02/2010
2.5 dCi 2488 CCM 144 HP From 07/2005
2.5 dCi 4WD 2488 CCM 174 HP From 07/2005
2.5 dCi 4WD 2488 CCM 171 HP From 10/2006
2.5 dCi 2488 CCM 163 HP From 10/2006
2.5 dCi 4WD 2488 CCM 144 HP From 01/2007
NAVARA NP300 Platform/Chassis (D40)
Description Cylinder Capacity Horse Power Year
2.5 dCi 2488 CCM 190 HP From 03/2010
3.0 dCi 2993 CCM 231 HP From 03/2010
2.5 dCi 4WD 2488 CCM 144 HP From 08/2008
PATHFINDER III (R51)
Description Cylinder Capacity Horse Power Year
2.5 dCi 4WD 2488 CCM 174 HP 01/2005 - 01/2010
4.0 4WD 3954 CCM 269 HP From 09/2005
2.5 dCi 2488 CCM 174 HP 01/2005 - 01/2010
2.5 dCi 4WD 2488 CCM 171 HP From 10/2006
2.5 dCi 4WD 2488 CCM 190 HP From 08/2010
3.0 dCi 2993 CCM 231 HP From 08/2010
2.5 dCi 4WD 2488 CCM 163 HP From 01/2005

The Delphi TA2570 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16x1.5 thread size, with right-hand thread thread type, front axle left fitting position, and 203 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M16x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 15
Paired article number : TA2571
Fitting Position : Front Axle Left
Length [mm] : 203
Width [mm] : 45
Height [mm] : 84
  • Vendor DELPHI
  • SKU TA2570
  • Barcode 5012759450925
  • NISSAN : 48520-EA01J
  • APEC : AST6157
  • BLUE PRINT : ADN187195
  • BORG & BECK : BTR5419
  • CORTECO : 49401847
  • FEBI BILSTEIN : 42742
  • FIRST LINE : FTR5419
  • KYB : KTR1369
  • MEYLE : 36-16 020 0017
  • MONROE : L14137
  • NAPA : NST6157
  • Schaeffler FAG : 840 1133 10
  • SKF : VKDY 812020
  • TRW : JTE2141
