Delphi TA2590 Tie Rod End - 1
Delphi TA2590 Tie Rod End video
Delphi TA2590 Tie Rod End - 1
Delphi TA2590 Tie Rod End video
DELPHI

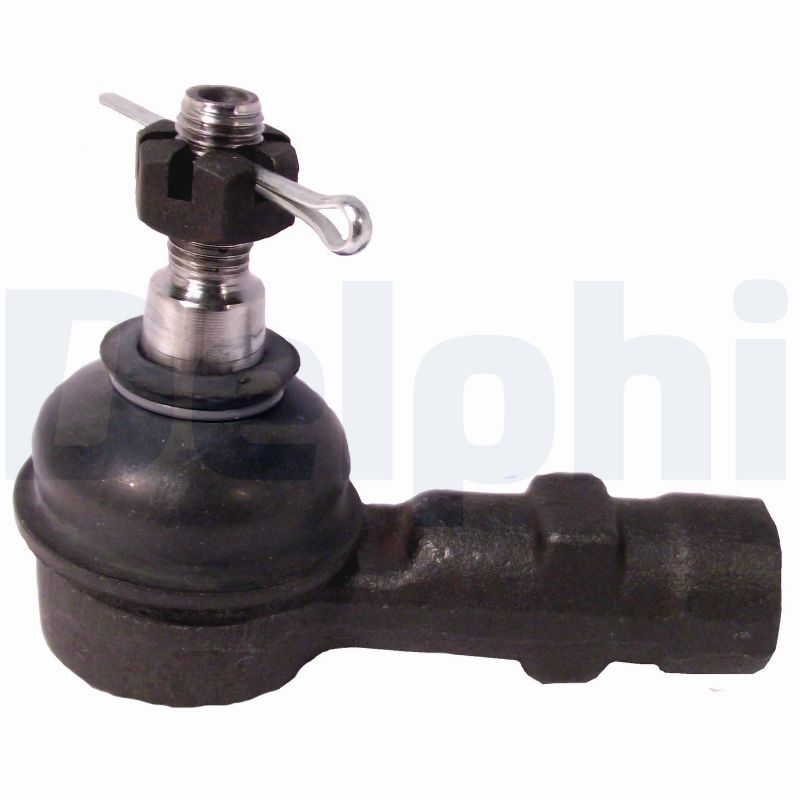

Delphi TA2590 Tie Rod End

SKU: TA2590
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£17.02 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HYUNDAI
i10 I (PA)
Description Cylinder Capacity Horse Power Year
1.1 1086 CCM 69 HP 04/2011 - 12/2013
1.2 1248 CCM 86 HP 04/2011 - 12/2013
1.1 LPG 1086 CCM 69 HP 04/2011 - 12/2013
1.1 1086 CCM 67 HP 01/2008 - 12/2013
1.1 CRDi 1120 CCM 75 HP 01/2008 - 12/2011
1.1 1086 CCM 65 HP 12/2007 - 12/2013
1.2 1248 CCM 78 HP 11/2008 - 12/2011
1.0 998 CCM 69 HP 01/2011 - 12/2013
1.1 1086 CCM 68 HP 11/2008 - 12/2013
1.2 1248 CCM 87 HP 01/2011 - 05/2018
KIA
PICANTO I (SA)
Description Cylinder Capacity Horse Power Year
1.1 1086 CCM 65 HP 04/2004 - 09/2011
1.0 999 CCM 61 HP 04/2004 - 04/2011
1.1 CRDi 1120 CCM 75 HP 10/2005 - 04/2011
1.0 999 CCM 63 HP 09/2007 - 04/2011

The Delphi TA2590 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M12x1.25 thread size, with right-hand thread thread type, front axle fitting position, and 92 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M12x1.25
Thread Type : with right-hand thread
Cone Size [mm] : 13.4
Fitting Position : Front Axle
Length [mm] : 92
Width [mm] : 40
Height [mm] : 74
  • Vendor DELPHI
  • SKU TA2590
  • Barcode 5012759452844
  • HYUNDAI : 568200X000 56820-0X000 568200X010 56820-0X010 568200X900 56820-0X900
  • KIA : 568200X000
  • APEC : AST6412
  • BLUE PRINT : ADG087160
  • BORG & BECK : BTR5574
  • BOSCH : 0 986 140 573
  • CORTECO : 49401777
  • FEBI BILSTEIN : 41925
  • FIRST LINE : FTR5574
  • KYB : KTR1288
  • MEYLE : 37-16 020 0012
  • MONROE : L43127
  • NAPA : NST6412
  • SKF : VKDY 815029
  • TRW : JTE603
