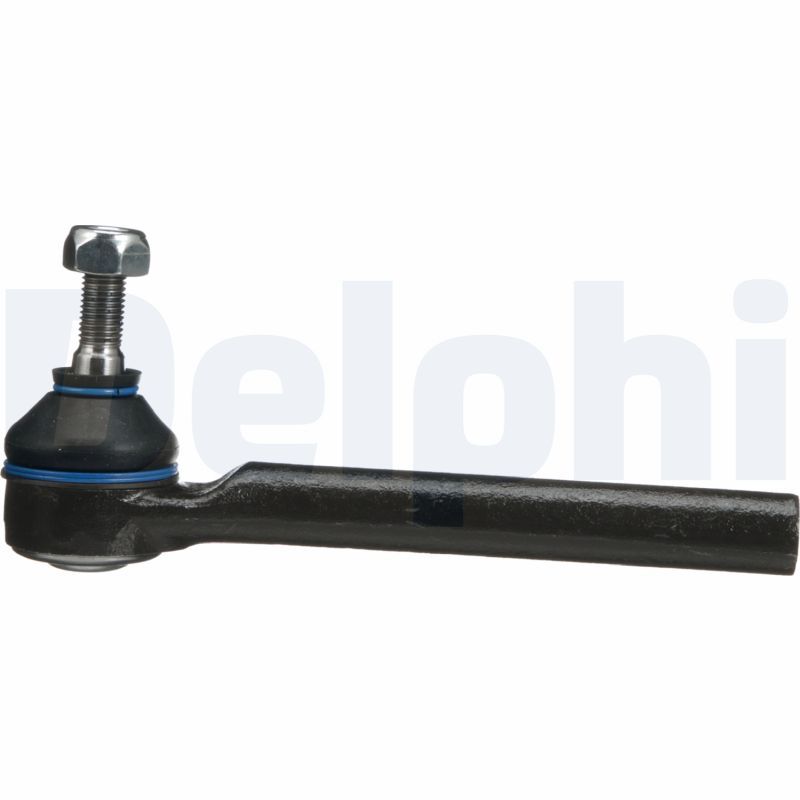

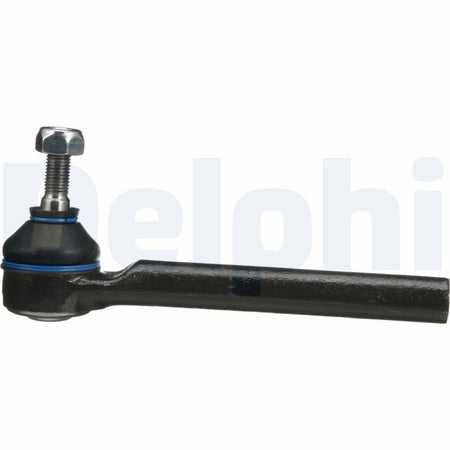

Delphi TA2848 Tie Rod End - 1

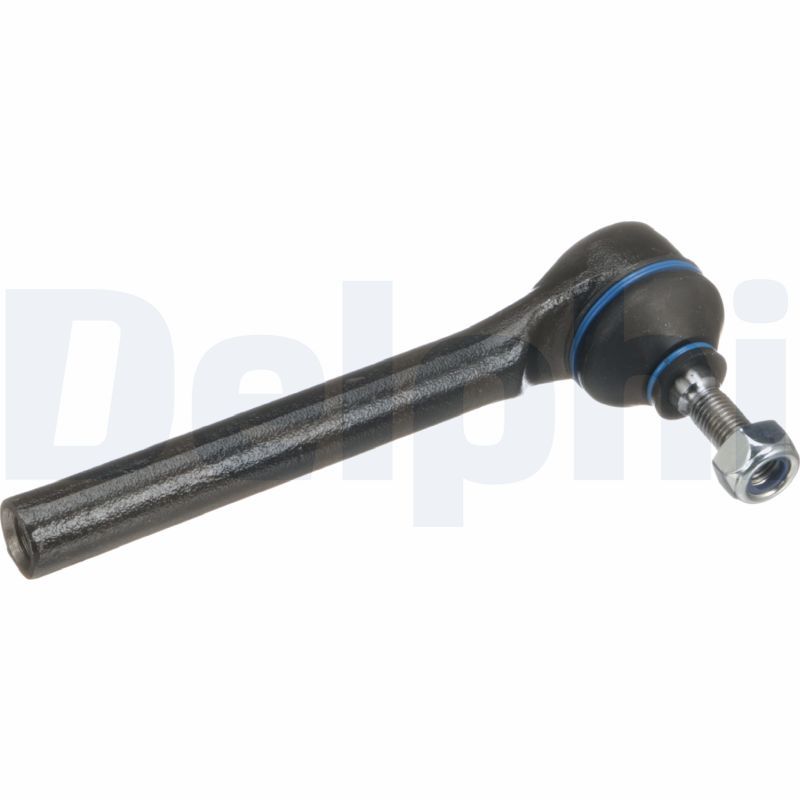

Delphi TA2848 Tie Rod End - 2

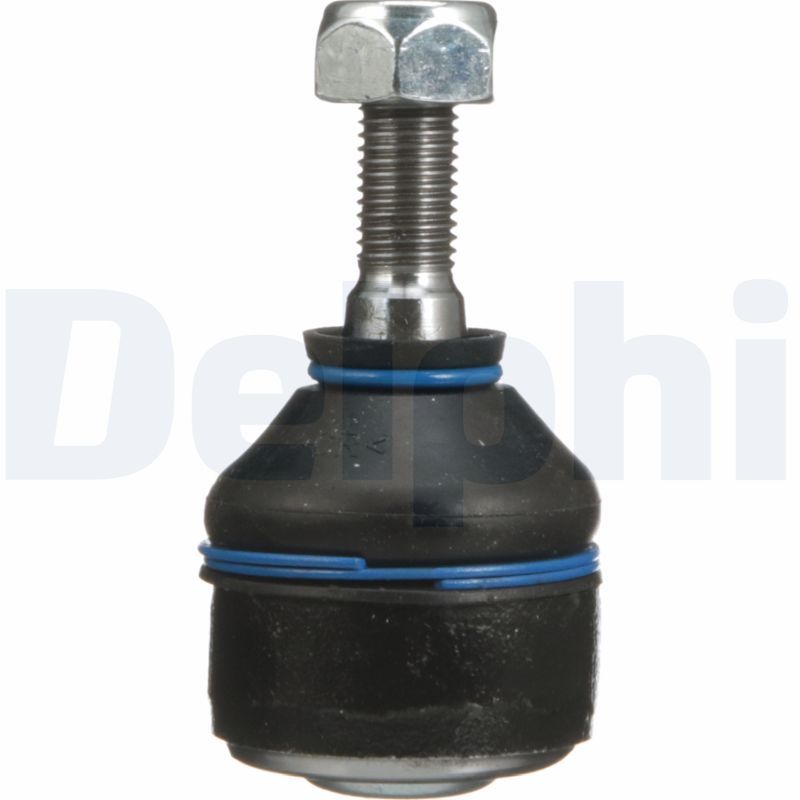

Delphi TA2848 Tie Rod End - 3

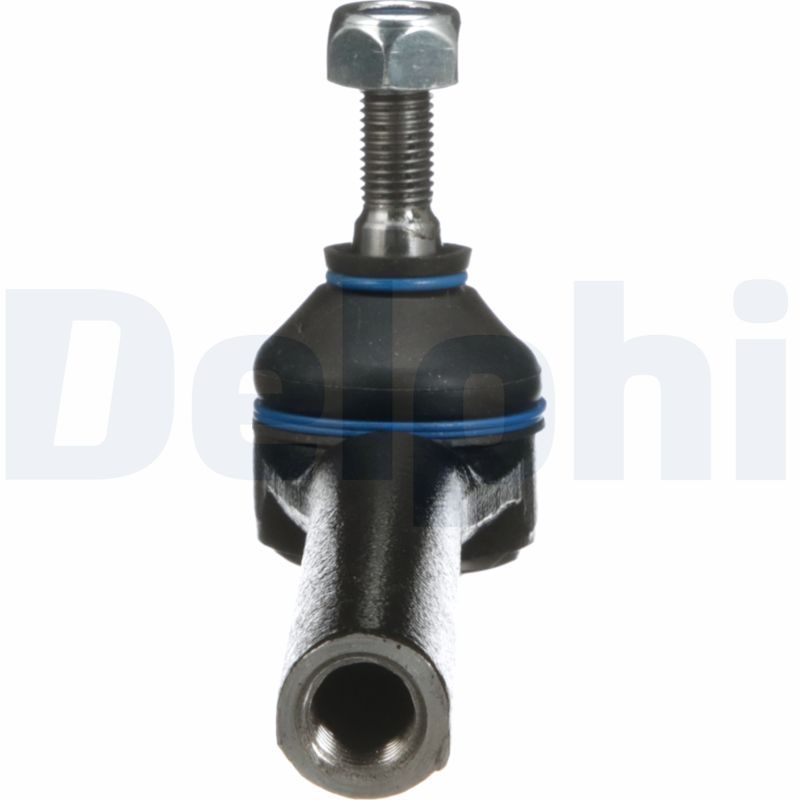

Delphi TA2848 Tie Rod End - 4

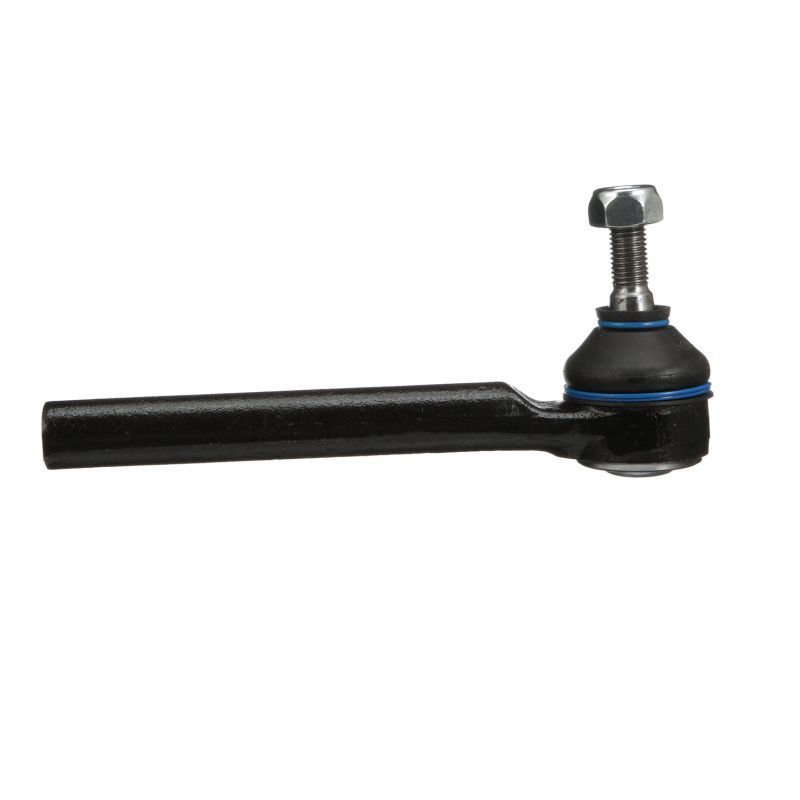

Delphi TA2848 Tie Rod End - 5

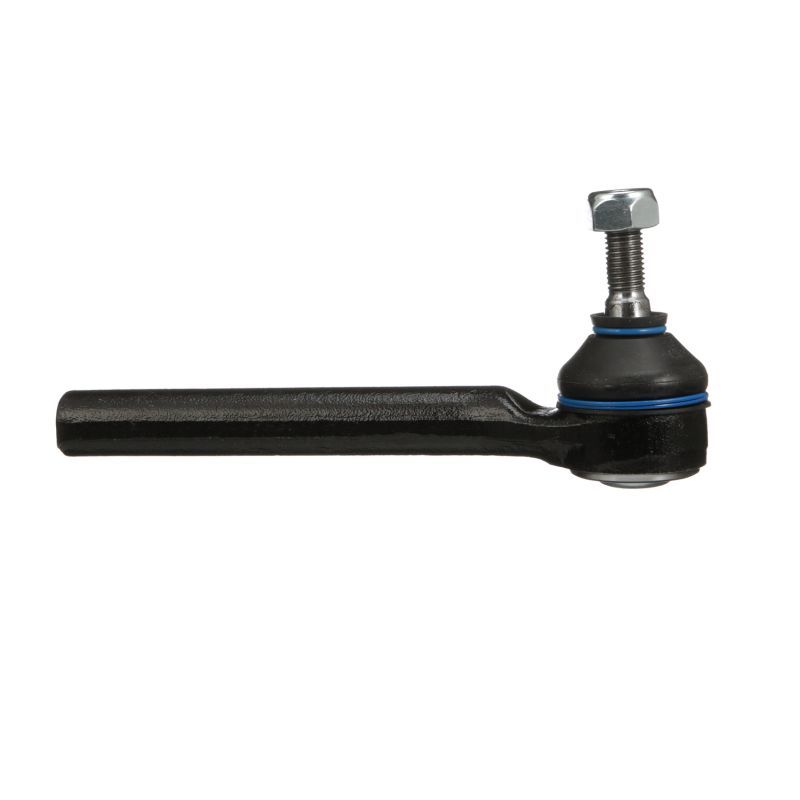

Delphi TA2848 Tie Rod End - 6
Delphi TA2848 Tie Rod End video
Delphi TA2848 Tie Rod End - 1
Delphi TA2848 Tie Rod End - 2
Delphi TA2848 Tie Rod End - 3
Delphi TA2848 Tie Rod End - 4
Delphi TA2848 Tie Rod End - 5
Delphi TA2848 Tie Rod End - 6
Delphi TA2848 Tie Rod End video
DELPHI

Delphi TA2848 Tie Rod End

SKU: TA2848
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£22.58 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CHRYSLER
YPSILON
Description Cylinder Capacity Horse Power Year
0.9 Twinair 875 CCM 86 HP 05/2011 - 12/2018
1.2 1242 CCM 69 HP 05/2011 - 12/2021
1.3 Multijet 1248 CCM 95 HP From 05/2011
FIAT
PANDA (312_, 319_)
Description Cylinder Capacity Horse Power Year
1.2 (312PXA1A) 1242 CCM 69 HP From 02/2012
1.3 D Multijet (312PXL1A) 1248 CCM 75 HP From 02/2012
0.9 (312PXG1A) 875 CCM 86 HP From 02/2012
0.9 (312PXH1A) 964 CCM 65 HP From 02/2012
0.9 Natural Power (312PXG1A, 312PYC1A) 875 CCM 86 HP From 07/2012
1.3 D Multijet 4x4 (312PXL1A) 1248 CCM 75 HP From 06/2012
0.9 4x4 (312PXG1A) 875 CCM 86 HP From 09/2012
1.2 LPG (312PXA1A) 1242 CCM 69 HP From 06/2012
0.9 (312PXP1A) 964 CCM 60 HP From 12/2013
0.9 (312PXN1A, 312PXN11) 875 CCM 80 HP From 12/2013
0.9 4x4 (312PXR2B) 875 CCM 90 HP From 06/2014
1.3 D Multijet 4x4 (312PXS2A) 1248 CCM 80 HP From 06/2014
0.9 Natural Power (312PXN1A) 875 CCM 80 HP From 01/2015
1.3 D Multijet (312PXU1A, 312PXW1A) 1248 CCM 95 HP From 04/2015
PANDA VAN (312_, 519_)
Description Cylinder Capacity Horse Power Year
0.9 (312CXH1A, 312DXH1A) 964 CCM 65 HP From 02/2012
0.9 4x4 (312CXG2B) 875 CCM 86 HP From 09/2012
1.2 (312CXA1A, 312DXA1A) 1242 CCM 69 HP From 02/2012
1.2 LPG (312CXA1A) 1242 CCM 69 HP From 06/2012
1.3 D Multijet (312CXL1A, 312DXL1A) 1248 CCM 75 HP From 02/2012
1.3 D Multijet 4x4 (312CXL2A) 1248 CCM 75 HP From 06/2012
0.9 Natural Power (312DXG1A) 875 CCM 86 HP From 07/2012
1.3 D Multijet (312PXS2A) 1248 CCM 80 HP From 12/2015
1.3 D Multijet 4x4 (312PXS2A) 1248 CCM 80 HP From 06/2014
LANCIA
YPSILON (312_)
Description Cylinder Capacity Horse Power Year
0.9 CNG (312.YXG1A) 875 CCM 86 HP From 05/2011
0.9 TwinAir (312.YXN11, 312.YXN1A) 875 CCM 80 HP 12/2013 - 12/2018
1.2 Bi-fuel (312.YXA1A) 1242 CCM 69 HP From 05/2011
1.0 Mild Hybrid (312) 999 CCM 69 HP From 03/2020

The Delphi TA2848 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M12x1.5 thread size, with right-hand thread thread type, front axle fitting position, and 171 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M12x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 13.9
Fitting Position : Front Axle
Length [mm] : 171
Width [mm] : 37
Height [mm] : 70
  • Vendor DELPHI
  • SKU TA2848
  • Barcode 5012759495186
  • CHRYSLER : 77365815 68111382AA
  • FIAT : 77365815
  • LANCIA : 77365815
  • APEC : AST6429
  • BORG & BECK : BTR5762
  • BOSCH : 0 986 140 624
  • CORTECO : 49401907
  • FEBI BILSTEIN : 46007
  • FIRST LINE : FTR5762
  • LEMFÖRDER : 37887 01
  • LEMFÖRDER : 39411 01
  • MEYLE : 216 020 0064
  • MONROE : L15122
  • NAPA : NST6429
  • Schaeffler FAG : 840 1402 10
  • SKF : VKDY 312014
  • TRW : JTE111
