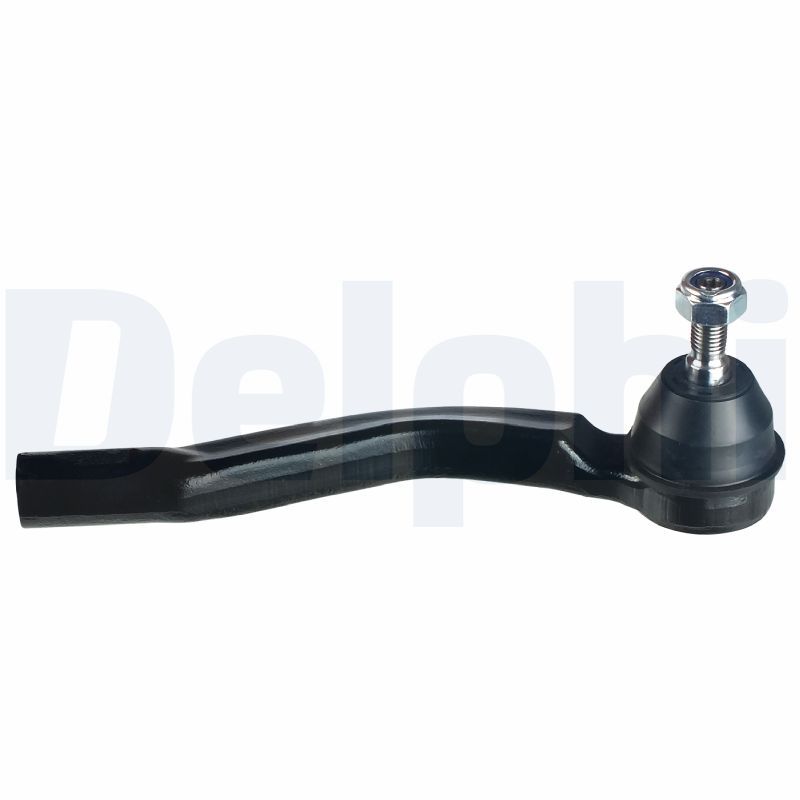

Delphi TA2914 Tie Rod End - 1
Delphi TA2914 Tie Rod End video
Delphi TA2914 Tie Rod End - 1
Delphi TA2914 Tie Rod End video
DELPHI

Delphi TA2914 Tie Rod End

SKU: TA2914
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£18.37 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT
CAPTUR I (J5_, H5_)
Description Cylinder Capacity Horse Power Year
0.9 TCe 90 898 CCM 90 HP 06/2013 - 12/2019
1.2 TCe 120 1197 CCM 120 HP 06/2013 - 12/2018
1.5 dCi 90 (J5N4, J5M5, J5MW, J5M6, J5AL, J5AJ) 1461 CCM 90 HP 06/2013 - 06/2019
1.5 dCi 110 1461 CCM 110 HP 01/2015 - 09/2018
1.2 TCe 120 1197 CCM 118 HP 01/2016 - 08/2018
1.3 TCe 150 (J5NK, J5JS) 1332 CCM 150 HP 03/2018 - 12/2019
1.3 TCe 130 (J5NJ, J5NE) 1332 CCM 131 HP 03/2018 - 12/2019
CLIO IV (BH_)
Description Cylinder Capacity Horse Power Year
1.5 dCi 90 1461 CCM 90 HP 11/2012 - 08/2021
1.5 dCi 75 (BHN3) 1461 CCM 75 HP 11/2012 - 08/2021
1.2 16V 1149 CCM 73 HP 11/2012 - 08/2021
0.9 TCe 90 (BHNF, BHMA, BHMH, BHJK, BHJR) 898 CCM 90 HP 11/2012 - 08/2021
1.6 RS (BHJ4, BHJ6, BHMM) 1618 CCM 200 HP 03/2013 - 08/2021
1.2 TCe 120 (BHM0) 1197 CCM 120 HP 03/2013 - 08/2021
1.6 RS Trophy (BHJ4, BHJ6) 1618 CCM 220 HP 03/2015 - 08/2021
1.2 TCe 120 (BHAU) 1197 CCM 118 HP 01/2016 - 08/2021
1.5 dCi 110 1461 CCM 110 HP 06/2016 - 08/2021
1.2 16V (BHA1, BHAK, BHMG, BHMK) 1149 CCM 75 HP 06/2015 - 08/2021
0.9 TCe 75 (BHNP) 898 CCM 76 HP 05/2018 - 08/2021
1.5 dCi (BHMW) 1461 CCM 86 HP 11/2012 - 08/2021
1.5 dCi (BHM6) 1461 CCM 84 HP 11/2012 - 08/2021
CLIO IV Grandtour (KH_)
Description Cylinder Capacity Horse Power Year
0.9 TCe 90 (KHJR, KHMA, KHM1) 898 CCM 90 HP 01/2013 - 08/2021
1.2 16V 1149 CCM 73 HP 01/2013 - 08/2021
1.5 dCi 75 1461 CCM 75 HP 01/2013 - 08/2021
1.5 dCi 90 (KHN3, KHN4) 1461 CCM 90 HP 11/2012 - 08/2021
1.2 TCe 120 (KHM0) 1197 CCM 120 HP 03/2013 - 08/2021
1.2 TCe 120 (KHAU) 1197 CCM 118 HP 01/2016 - 08/2021
1.5 dCi 110 1461 CCM 110 HP 06/2016 - 08/2021
0.9 TCe 75 (KHNP) 898 CCM 76 HP 08/2018 - 08/2021
CLIO IV Estate Van (KH_)
Description Cylinder Capacity Horse Power Year
1.5 dCi 75 1461 CCM 75 HP 01/2014 - 08/2021
1.5 dCi 90 1461 CCM 90 HP 01/2014 - 08/2021
CLIO IV Hatchback Van (BH_)
Description Cylinder Capacity Horse Power Year
1.5 dCi 75 1461 CCM 75 HP 01/2014 - 08/2021
1.5 dCi 90 (BHAJ) 1461 CCM 90 HP 01/2014 - 08/2021
0.9 TCe 75 898 CCM 76 HP 01/2014 - 08/2021
ZOE (BFM_)
Description Cylinder Capacity Horse Power Year
ZOE 88 HP From 06/2012
ZOE 92 HP From 09/2016
ZOE (BFMD) 109 HP From 08/2018
ZOE (BFMC, BFMD) 136 HP From 09/2019
ZOE Hatchback Van (BFM_)
Description Cylinder Capacity Horse Power Year
Electric (BFMF) 109 HP From 04/2019

The Delphi TA2914 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle right fitting position, and 210 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 11.9
Paired article number : TA2913
Fitting Position : Front Axle Right
Length [mm] : 210
Width [mm] : 46
Height [mm] : 74
  • Vendor DELPHI
  • SKU TA2914
  • RENAULT : 4852 083 55R 8660005235
  • APEC : AST6536
  • BORG & BECK : BTR5801
  • BOSCH : 0 986 140 622
  • CORTECO : 49400938
  • FEBI BILSTEIN : 107931
  • FIRST LINE : FTR5801
  • LEMFÖRDER : 37993 01
  • MEYLE : 16-16 020 0043/HD
  • MONROE : L25139
  • NAPA : NST6536
  • Schaeffler FAG : 840 1145 10
  • SKF : VKDY 316053
  • TRW : JTE1022
