DELPHI

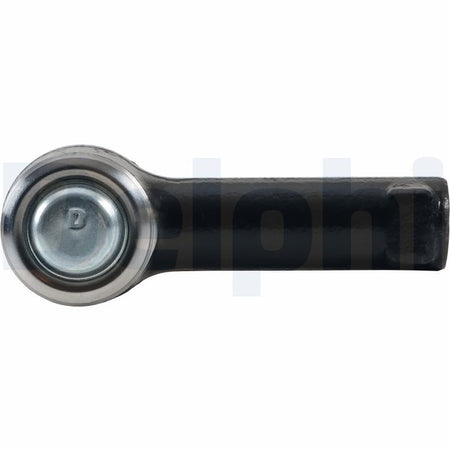

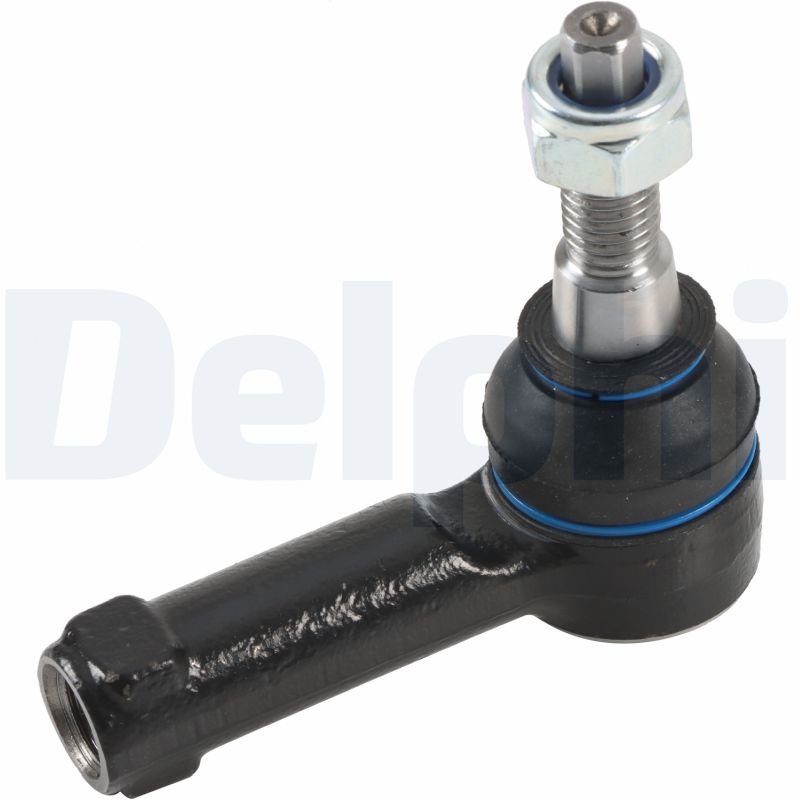

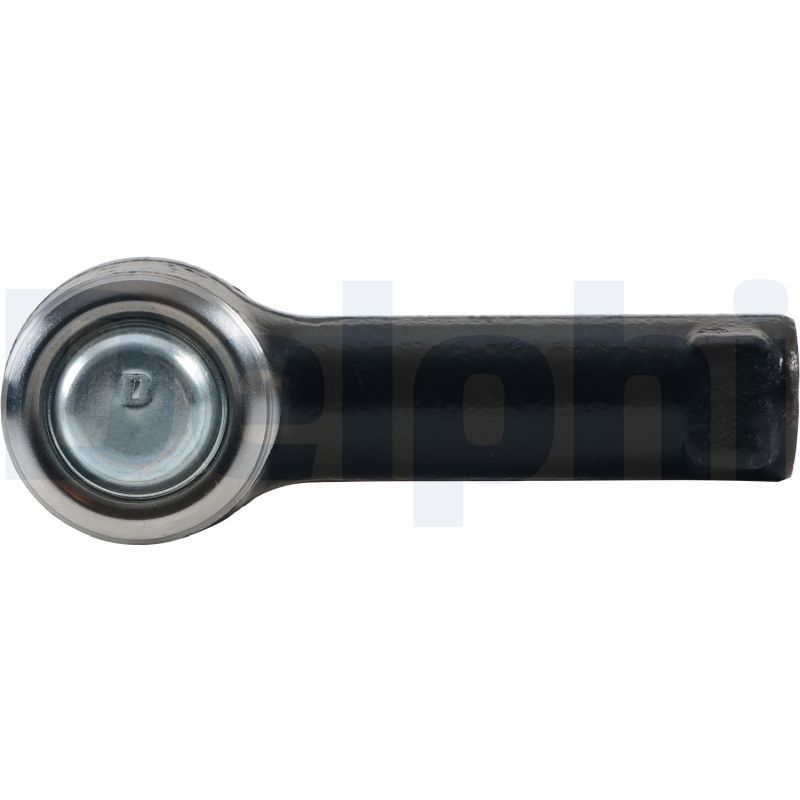

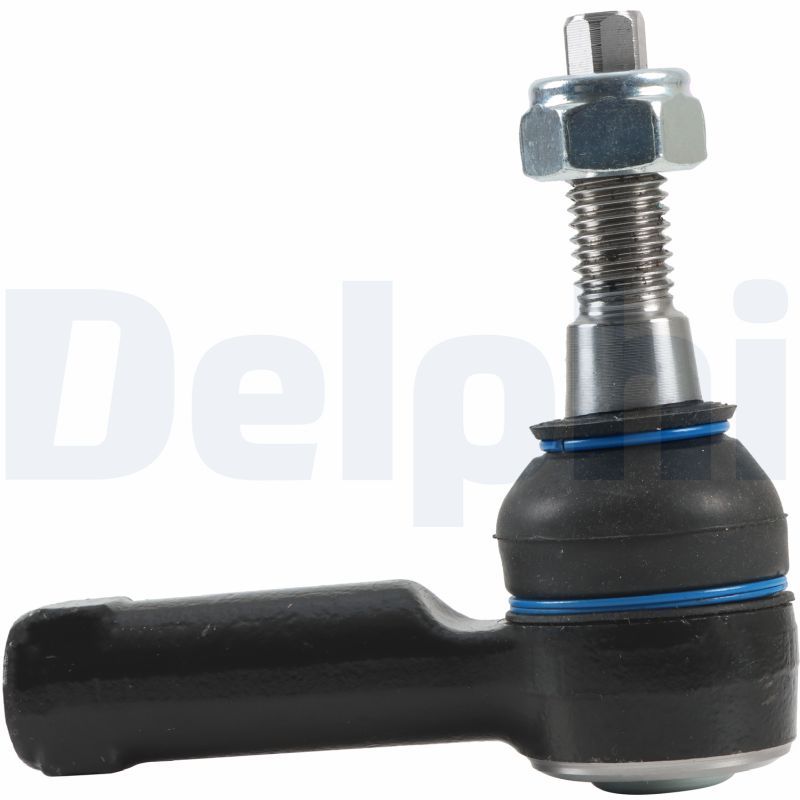

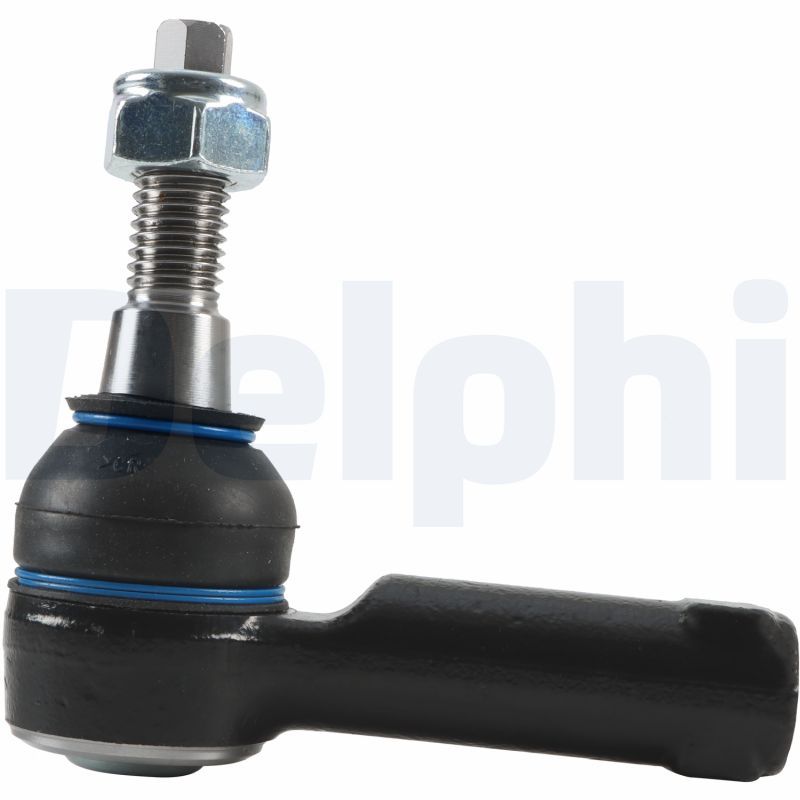

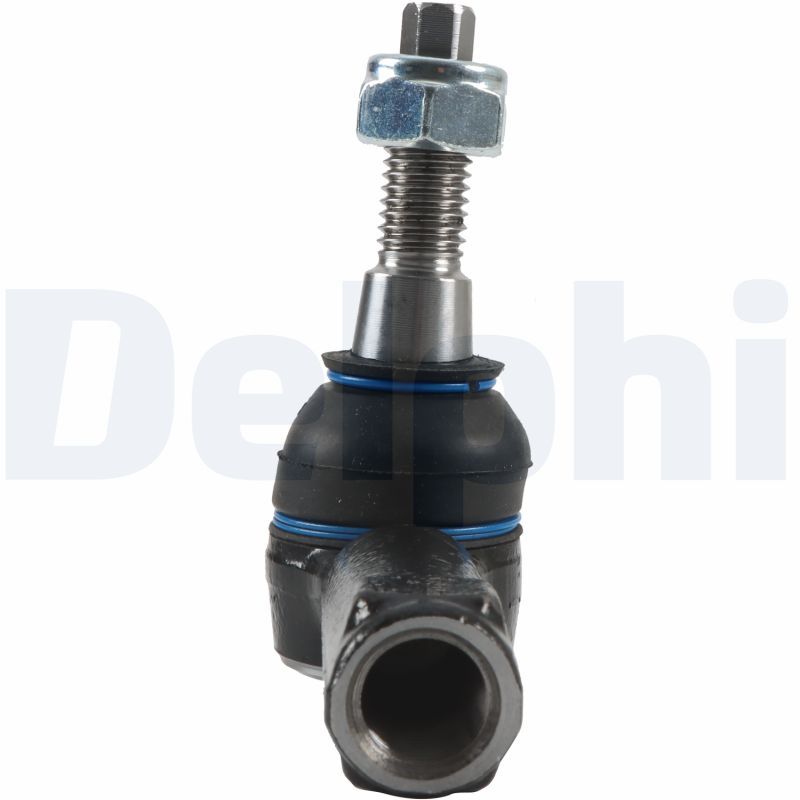

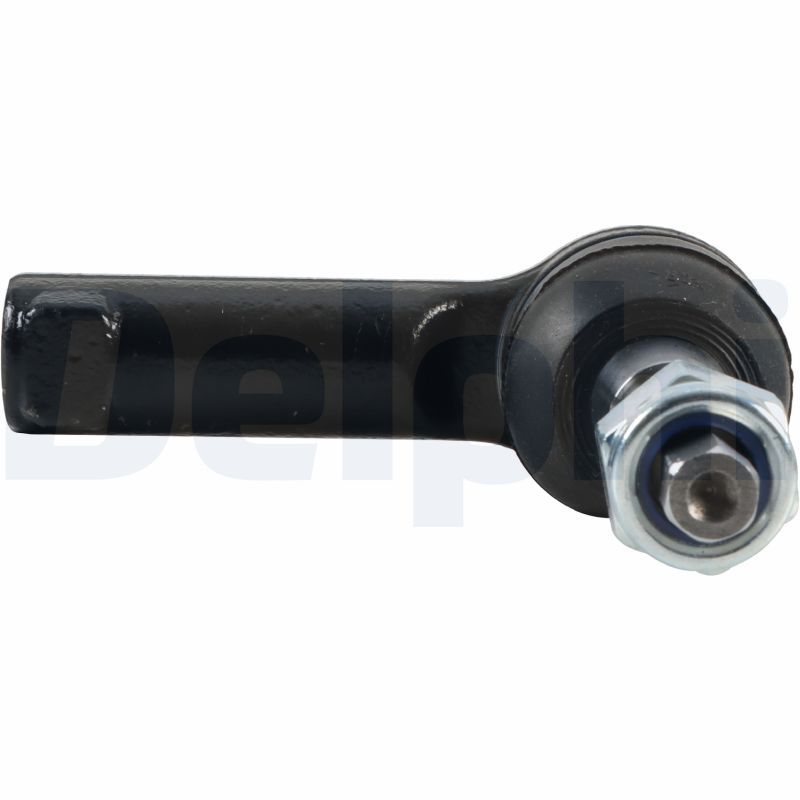

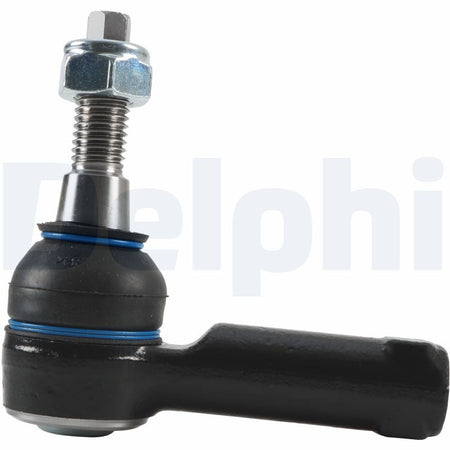

Delphi TA2922 Tie Rod End

SKU: TA2922
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£13.80 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
TOURNEO CUSTOM V362 Bus (F3)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 09/2012 - 12/2015
2.2 TDCi 2198 CCM 125 HP 09/2012 - 12/2015
2.2 TDCi 2198 CCM 155 HP 09/2012 - 12/2015
2.0 EcoBlue 1995 CCM 105 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 130 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 170 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 150 HP 01/2022 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 150 HP 01/2022 - 12/2023
TRANSIT Platform/Chassis (FM_ _, FN_ _)
Description Cylinder Capacity Horse Power Year
2.4 DI (F_A_, F_B_, F_C_, F_D_) 2402 CCM 90 HP 01/2000 - 05/2006
2.4 DI (F_A_, F_B_, F_C_, F_D_) 2402 CCM 120 HP 01/2000 - 05/2006
2.4 DI (F_A_, F_B_, F_C_, F_D_) 2402 CCM 75 HP 01/2000 - 05/2006
2.0 DI (F_E_, F_F_) 1998 CCM 75 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_) 1998 CCM 100 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_) 1998 CCM 86 HP 08/2000 - 05/2006
2.3 16V (F_A_, F_B_, F_C_, F_D_) 2295 CCM 146 HP 04/2001 - 05/2006
2.0 TDCi (F_E_, F_F_) 1998 CCM 125 HP 08/2002 - 05/2006
2.4 TDE 2402 CCM 125 HP 07/2001 - 05/2006
2.4 TDE 2402 CCM 115 HP 03/2004 - 05/2006
2.4 TDCi 2402 CCM 137 HP 03/2004 - 05/2006
2.3 BiFuel 2295 CCM 143 HP 03/2001 - 03/2006
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.4 DI RWD (F_B_, F_C_, F_A_) 2402 CCM 120 HP 01/2000 - 05/2006
2.4 DI (F_B_, F_C_, F_A_) 2402 CCM 90 HP 01/2000 - 05/2006
2.4 DI RWD (F_B_, F_C_) 2402 CCM 75 HP 01/2000 - 05/2006
2.0 DI (F_E_, F_F_, F_G_) 1998 CCM 75 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_, F_G_) 1998 CCM 100 HP 08/2000 - 05/2006
2.3 16V RWD (F_B_, F_C_, F_A_) 2295 CCM 146 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_, F_G_) 1998 CCM 86 HP 08/2000 - 05/2006
2.4 TDE (F_C_, F_B_, F_A_) 2402 CCM 125 HP 07/2001 - 05/2006
2.0 TDCi (F_F_, F_E_, F_G_) 1998 CCM 125 HP 08/2002 - 05/2006
2.4 TDE 2402 CCM 115 HP 03/2004 - 05/2006
2.4 TDCi 2402 CCM 137 HP 03/2004 - 05/2006
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.4 DI (FAA_, FAB_, FAC_, FAD_) 2402 CCM 90 HP 01/2000 - 05/2006
2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) 2402 CCM 120 HP 01/2000 - 05/2006
2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) 2402 CCM 75 HP 01/2000 - 05/2006
2.0 DI (FAE_, FAF_, FAG_) 1998 CCM 75 HP 08/2000 - 05/2006
2.0 DI (FAE_, FAF_, FAG_) 1998 CCM 100 HP 08/2000 - 05/2006
2.0 DI (FAE_, FAF_, FAG_) 1998 CCM 86 HP 08/2000 - 05/2006
2.3 16V RWD (FAA_, FAB_, FAC_) 2295 CCM 146 HP 04/2001 - 05/2006
2.0 TDCi 1998 CCM 125 HP 08/2002 - 05/2006
2.4 TDE 2402 CCM 125 HP 07/2001 - 05/2006
2.4 TDE 2402 CCM 115 HP 03/2004 - 05/2006
2.4 TDCi 2402 CCM 137 HP 03/2004 - 05/2006
2.4 TD 2402 CCM 75 HP 08/2000 - 08/2003
2.3 2295 CCM 143 HP 03/2001 - 03/2006
2.3 BiFuel 2295 CCM 143 HP 03/2001 - 03/2006
TRANSIT TOURNEO Bus (FC_ _)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 125 HP 03/2002 - 03/2006
2.0 1998 CCM 75 HP 06/2000 - 08/2003
TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi 4x4 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 155 HP 10/2011 - 08/2014
2.3 16V RWD 2261 CCM 145 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 100 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 115 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 140 HP 04/2006 - 08/2014
3.2 TDCi RWD 3199 CCM 200 HP 09/2007 - 08/2014
2.4 TDCi 4x4 2402 CCM 140 HP 11/2006 - 08/2014
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 125 HP 09/2011 - 12/2014
2.4 TDCi 2402 CCM 115 HP 04/2006 - 08/2014
2.4 TDCi 2402 CCM 140 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
2.4 TDCi 2402 CCM 100 HP 04/2006 - 08/2014
2.4 TDCi 4x4 2402 CCM 140 HP 11/2006 - 08/2014
3.2 TDCi 3199 CCM 200 HP 02/2008 - 08/2014
2.2 TDCi 2198 CCM 140 HP 10/2007 - 08/2014
2.2 TDCi 2198 CCM 115 HP 10/2008 - 08/2014
2.2 TDCi RWD 2198 CCM 135 HP 09/2011 - 08/2014
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 125 HP 09/2011 - 12/2014
2.2 TDCi RWD 2198 CCM 155 HP 10/2011 - 08/2014
2.2 TDCi 4x4 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 115 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 140 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 100 HP 04/2006 - 08/2014
2.3 16V RWD 2261 CCM 145 HP 04/2006 - 08/2014
3.2 TDCi RWD 3199 CCM 200 HP 09/2007 - 08/2014
2.4 TDCi 4x4 2402 CCM 140 HP 11/2006 - 08/2014
TRANSIT TOURNEO Bus
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 110 HP 07/2006 - 08/2014
2.2 TDCi 2198 CCM 131 HP 07/2006 - 08/2014
2.2 TDCi 2198 CCM 140 HP 10/2007 - 08/2014
2.2 TDCi 2198 CCM 115 HP 10/2008 - 08/2014
2.2 2198 CCM 125 HP 10/2011 - 08/2014
TRANSIT CUSTOM V362 Bus (F3)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 09/2012 - 06/2016
2.2 TDCi 2198 CCM 125 HP 09/2012 - 12/2015
2.2 TDCi 2198 CCM 155 HP 09/2012 - 12/2015
2.0 EcoBlue 1995 CCM 105 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 130 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 170 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 150 HP 01/2022 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 150 HP 01/2022 - 12/2023
TRANSIT CUSTOM V362 Van (FY, FZ)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 09/2012 - 06/2016
2.2 TDCi 2198 CCM 125 HP 09/2012 - 04/2016
2.2 TDCi 2198 CCM 155 HP 09/2012 - 12/2015
2.0 EcoBlue 1995 CCM 105 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 130 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 170 HP 12/2015 - 12/2023
TRANSIT V363 Platform/Chassis (FED, FFD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 135 HP 08/2013 - 12/2018
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024
2.0 EcoBlue RWD 1995 CCM 105 HP From 03/2016
2.0 EcoBlue RWD 1995 CCM 130 HP From 03/2016
2.0 EcoBlue RWD 1995 CCM 170 HP 03/2016 - 06/2024
TRANSIT V363 Bus (FAD, FBD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 155 HP 12/2014 - 12/2018
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024
2.2 TDCi RWD 2198 CCM 135 HP 08/2013 - 12/2018
2.2 TDCi All-wheel Drive 2198 CCM 155 HP 08/2015 - 12/2018
TRANSIT V363 Van (FCD, FDD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 155 HP 08/2015 - 12/2018
2.2 TDCi 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 100 HP 08/2013 - 12/2018
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024
2.0 EcoBlue RWD 1995 CCM 105 HP From 03/2016
2.0 EcoBlue RWD 1995 CCM 130 HP From 03/2016
2.0 EcoBlue RWD 1995 CCM 170 HP 03/2016 - 06/2024
2.0 EcoBlue 4x4 1995 CCM 130 HP From 01/2017

The Delphi TA2922 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16x1.5 thread size, with right-hand thread thread type, front axle fitting position, and 110 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M16x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 16.7
Fitting Position : Front Axle
Length [mm] : 110
Width [mm] : 40
Height [mm] : 105
  • Vendor DELPHI
  • SKU TA2922
  • Barcode 5012759508329
  • FORD : BK2Z3A130A 1743642 6C113289AC
  • APEC : AST6221
  • BORG & BECK : BTR5835
  • BOSCH : 0 986 140 617
  • FEBI BILSTEIN : 22406
  • FIRST LINE : FTR5835
  • MONROE : L16175
  • NAPA : NST6221
