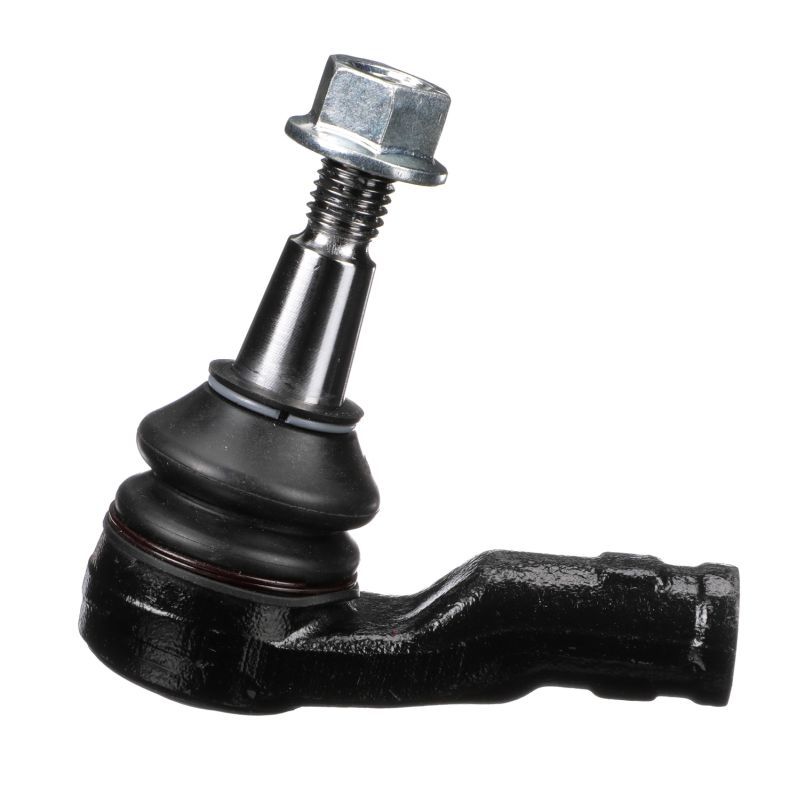

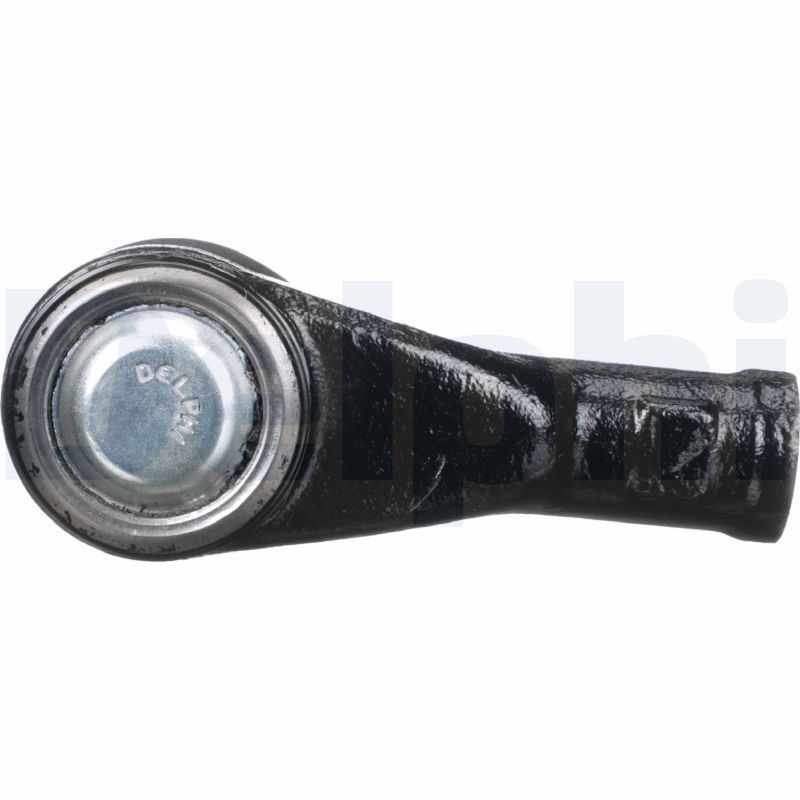

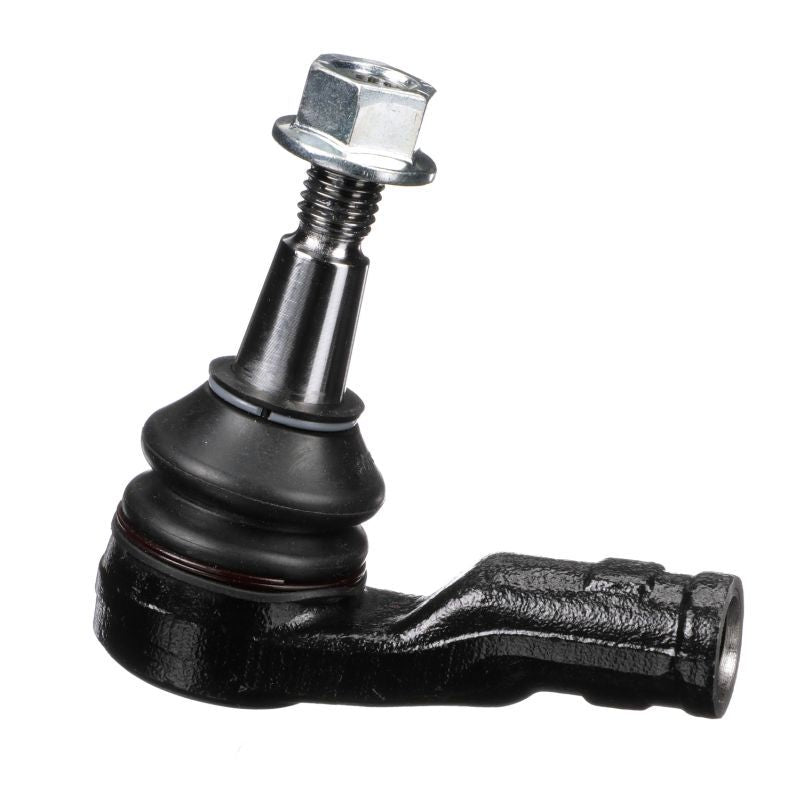

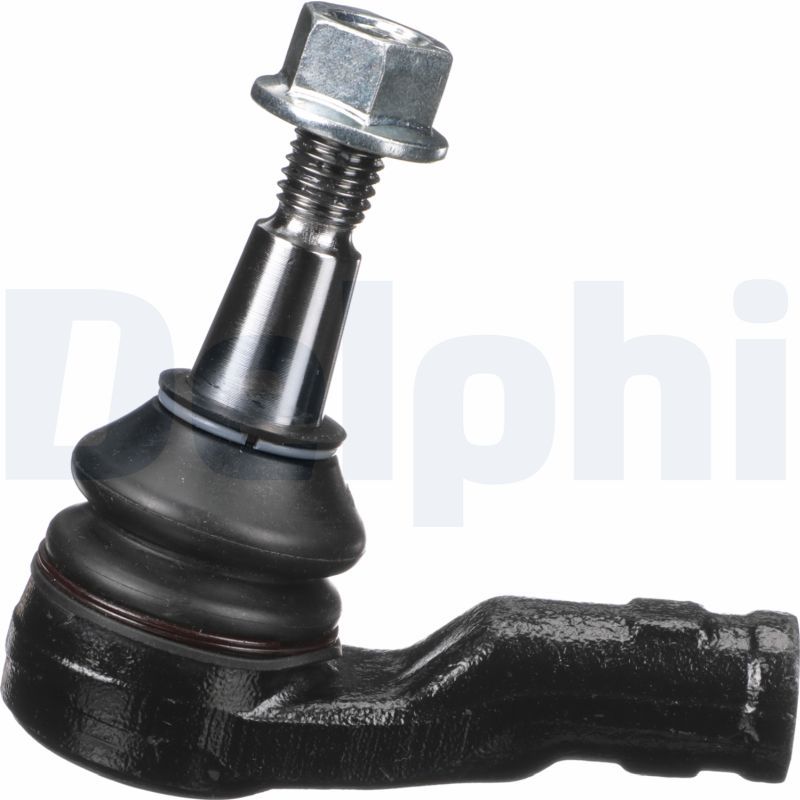

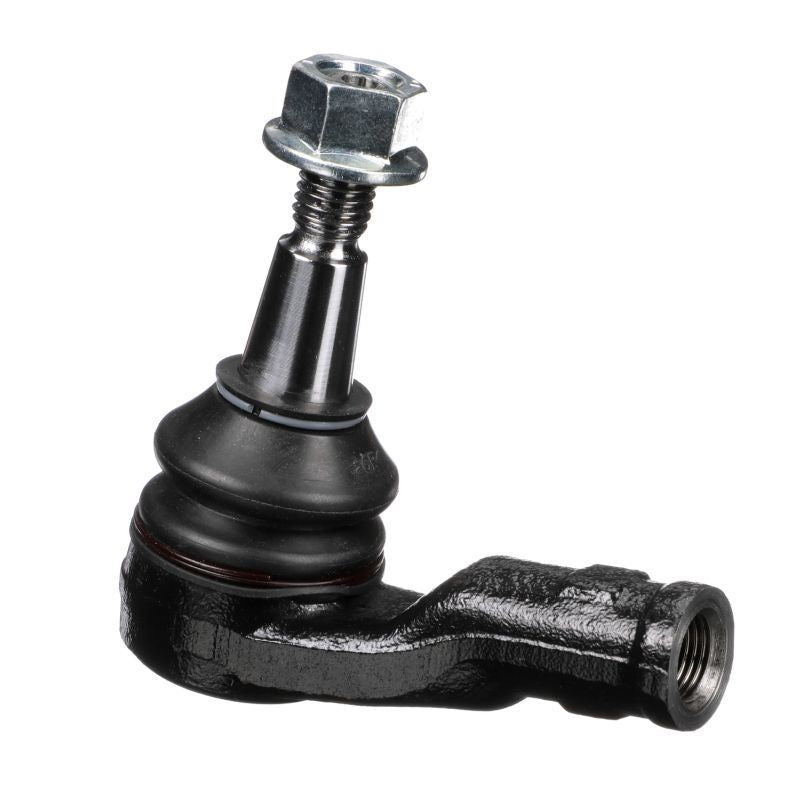

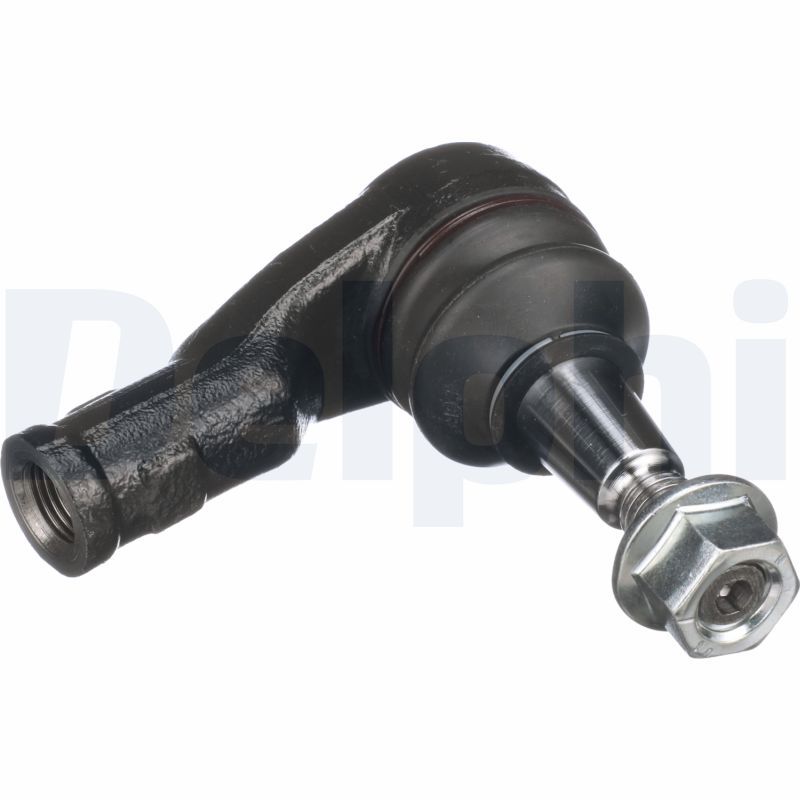

Delphi TA2938 Tie Rod End

SKU: TA2938
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£20.66 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

LAND ROVER
DISCOVERY III (L319)
Description Cylinder Capacity Horse Power Year
4.0 4x4 3999 CCM 218 HP 02/2005 - 09/2009
4.4 4x4 4394 CCM 299 HP 07/2004 - 09/2009
2.7 TD 4x4 2720 CCM 190 HP 07/2004 - 09/2009
4.0 V6 4x4 4009 CCM 218 HP 10/2004 - 09/2009
DISCOVERY III VAN (L319)
Description Cylinder Capacity Horse Power Year
2.7 TD 4x4 2720 CCM 190 HP 01/2007 - 07/2009
DISCOVERY IV (L319)
Description Cylinder Capacity Horse Power Year
2.7 TD 4x4 2720 CCM 190 HP 09/2009 - 12/2018
3.0 TD 4x4 2993 CCM 211 HP 05/2010 - 12/2018
5.0 V8 4x4 4999 CCM 375 HP 09/2009 - 12/2018
3.0 4x4 2995 CCM 340 HP 08/2013 - 12/2018
4.0 4x4 4009 CCM 218 HP 09/2009 - 12/2018
3.0 SDV6 4x4 2993 CCM 256 HP 11/2009 - 12/2018
3.0 TD 4x4 2993 CCM 272 HP 09/2009 - 12/2018
3.0 TD 4x4 2993 CCM 245 HP 09/2009 - 12/2018
3.0 TD 4x4 2993 CCM 249 HP 07/2012 - 12/2018
DISCOVERY IV VAN (L319)
Description Cylinder Capacity Horse Power Year
3.0 TD 4x4 2993 CCM 211 HP 01/2011 - 12/2017
3.0 TD 4x4 2993 CCM 245 HP 01/2011 - 12/2017
3.0 TD 4x4 2993 CCM 256 HP 01/2011 - 12/2017

The Delphi TA2938 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16x1.5 thread size, with right-hand thread thread type, front axle fitting position, and 114 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M16x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 16.2
Fitting Position : Front Axle
Length [mm] : 114
Width [mm] : 45
Height [mm] : 115
  • Vendor DELPHI
  • SKU TA2938
  • ROVER : LR010672 QJB500080
  • LAND ROVER : LR010672 QJB500080
  • APEC : AST6451
  • BLUE PRINT : ADJ138706
  • BORG & BECK : BTR5702
  • CORTECO : 49401666
  • FEBI BILSTEIN : 39738
  • FIRST LINE : FTR5702
  • LEMFÖRDER : 34408 01
  • MEYLE : 53-16 020 0002
  • MONROE : L17129
  • NAPA : NST6451
  • Schaeffler FAG : 840 1502 10
  • TRW : JTE1143
