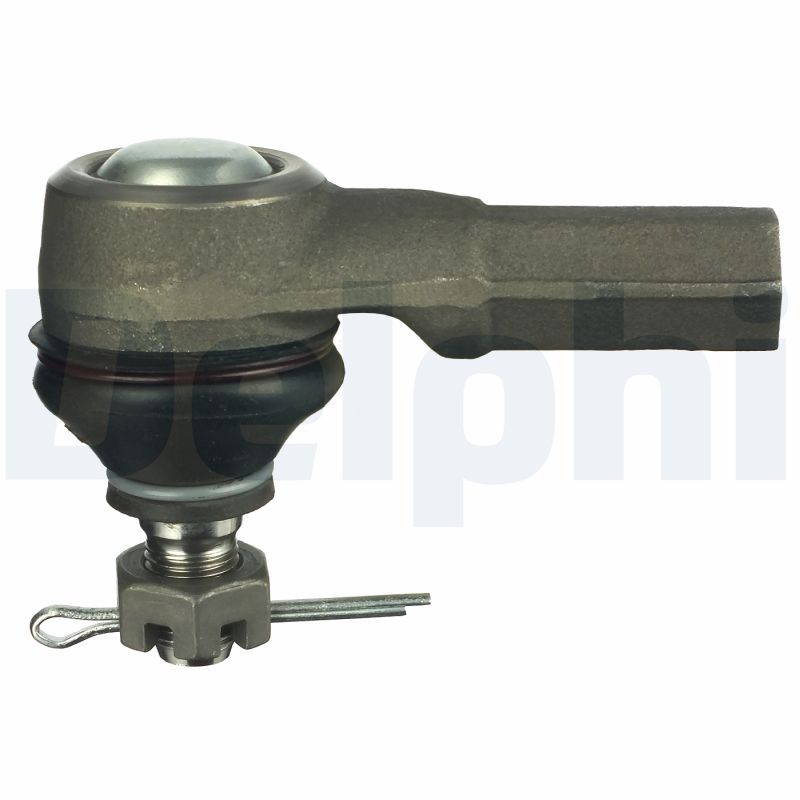

Delphi TA3016 Tie Rod End - 1
Delphi TA3016 Tie Rod End video
Delphi TA3016 Tie Rod End - 1
Delphi TA3016 Tie Rod End video
DELPHI

Delphi TA3016 Tie Rod End

SKU: TA3016
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£16.26 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUBARU
JUSTY III (G3X)
Description Cylinder Capacity Horse Power Year
1.3 AWD (G3X413) 1328 CCM 94 HP From 09/2003
1.5 AWD (G3X413) 1490 CCM 99 HP From 09/2003
SUZUKI
ALTO VII (GF, HA25_, HA35_)
Description Cylinder Capacity Horse Power Year
1.0 (AMF310, GFC31S) 996 CCM 68 HP From 01/2009
CELERIO (LF)
Description Cylinder Capacity Horse Power Year
1.0 (AVK310) 998 CCM 68 HP From 03/2014
IGNIS II (MH)
Description Cylinder Capacity Horse Power Year
1.3 (RM413) 1328 CCM 94 HP From 09/2003
1.5 (RM415) 1490 CCM 99 HP From 09/2003
1.5 4x4 (RM415) 1490 CCM 99 HP From 09/2003
1.3 DDiS (RM413D) 1248 CCM 70 HP From 09/2003
1.3 4x4 (RM413) 1328 CCM 94 HP From 09/2003
WAGON R+ (MA)
Description Cylinder Capacity Horse Power Year
1.3 (RB413) 1298 CCM 76 HP 05/2000 - 12/2004
WAGON R (MH21, MH22)
Description Cylinder Capacity Horse Power Year
1.0 998 CCM 60 HP 06/2004 - 08/2005

The Delphi TA3016 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M12x1.25 thread size, with right-hand thread thread type, front axle fitting position, and 91 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M12x1.25
Thread Type : with right-hand thread
Cone Size [mm] : 13.1
Fitting Position : Front Axle
Length [mm] : 91
Width [mm] : 37
Height [mm] : 66
  • Vendor DELPHI
  • SKU TA3016
  • SUBARU : 4881083E02
  • SUZUKI : 4881083E02 4881084M00 48810-M68K00
  • APEC : AST6406
  • BLUE PRINT : ADBP870015
  • BLUE PRINT : ADK88744
  • BORG & BECK : BTR5312
  • FEBI BILSTEIN : 109577
  • FEBI BILSTEIN : 42318
  • FIRST LINE : FTR5312
  • MEYLE : 616 020 0009
  • MONROE : L24116
  • NAPA : NST6406
  • SKF : VKDY 315021
