Delphi TA3022 Inner Tie Rod

SKU: TA3022
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£15.39 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MAZDA
6 Saloon (GH)
Description Cylinder Capacity Horse Power Year
1.8 MZR 1798 CCM 120 HP 08/2007 - 07/2013
2.0 MZR (GHEFP, GH10F) 1999 CCM 147 HP 08/2007 - 12/2012
2.5 MZR (GH5FS, GH5FP) 2488 CCM 170 HP 08/2007 - 07/2013
2.0 MZR-CD (GH14) 1998 CCM 140 HP 08/2007 - 10/2010
2.2 MZR-CD (GH10) 2184 CCM 125 HP 01/2009 - 12/2012
2.2 MZR-CD (GH10) 2184 CCM 163 HP 01/2009 - 12/2012
2.2 MZR-CD (GH10) 2184 CCM 185 HP 01/2009 - 12/2012
2.0 MZR (GHEFP) 1999 CCM 155 HP 01/2010 - 12/2012
2.2 D (GH10) 2184 CCM 129 HP 01/2010 - 12/2012
2.2 D (GH10) 2183 CCM 180 HP 01/2010 - 07/2013
6 Hatchback (GH)
Description Cylinder Capacity Horse Power Year
2.2 MZR-CD (GH10) 2184 CCM 180 HP 01/2010 - 12/2012
2.2 D (GH10) 2184 CCM 129 HP 01/2010 - 12/2012
2.0 MZR (GHEFS) 1999 CCM 155 HP 01/2010 - 12/2012
1.8 MZR 1798 CCM 120 HP 08/2007 - 07/2013
2.0 MZR (GHEFS) 1999 CCM 147 HP 08/2007 - 07/2013
2.5 MZR (GH5FS) 2488 CCM 170 HP 08/2007 - 03/2013
2.0 MZR-CD (GH14) 1998 CCM 140 HP 08/2007 - 10/2009
2.2 MZR-CD (GH10) 2184 CCM 185 HP 01/2009 - 12/2012
2.2 MZR-CD (GH10) 2184 CCM 163 HP 01/2009 - 12/2012
2.2 MZR-CD (GH10) 2184 CCM 125 HP 01/2009 - 12/2012
6 Estate (GH)
Description Cylinder Capacity Horse Power Year
2.0 MZR (GHEFW) 1999 CCM 155 HP 01/2010 - 07/2013
2.2 D (GH10) 2184 CCM 129 HP 01/2010 - 07/2013
2.2 MZR-CD (GH10) 2183 CCM 180 HP 01/2010 - 07/2013
1.8 MZR 1798 CCM 120 HP 02/2008 - 07/2013
2.0 MZR (GHEFW, GH10F) 1999 CCM 147 HP 12/2007 - 07/2013
2.0 MZR-CD (GH14) 1998 CCM 140 HP 12/2007 - 12/2010
2.5 MZR (GH5FW) 2488 CCM 170 HP 02/2008 - 07/2013
2.2 MZR-CD (GH10) 2184 CCM 125 HP 01/2009 - 12/2010
2.2 MZR-CD (GH10) 2184 CCM 163 HP 08/2008 - 07/2013
2.2 MZR-CD (GH10) 2184 CCM 185 HP 08/2008 - 12/2011

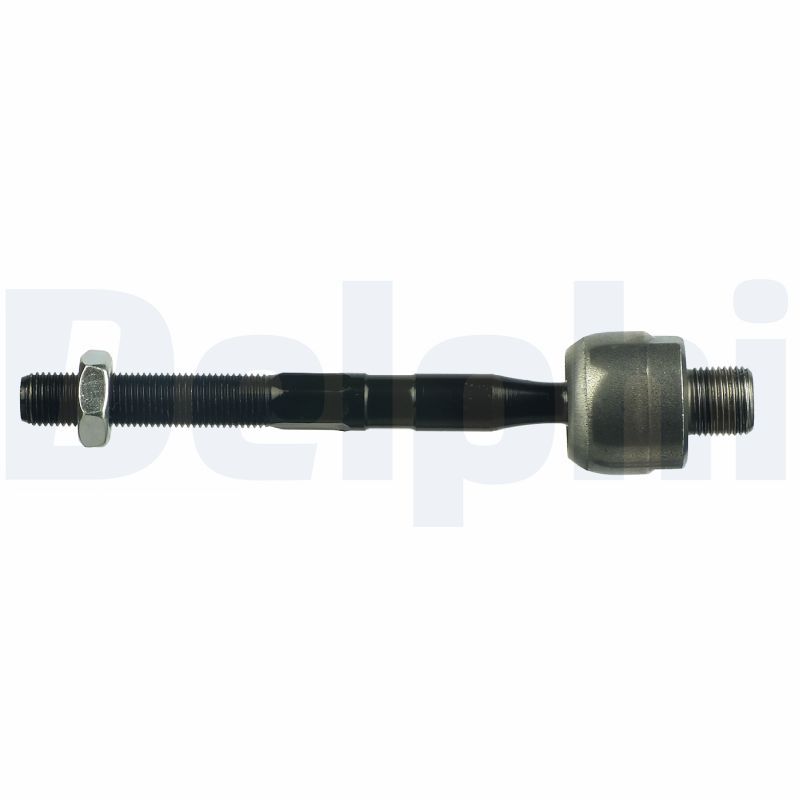

The Delphi TA3022 Inner Tie Rod is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size 2, front axle fitting position, 183 mm length, and 36 mm width. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Inner Tie Rod
Thread Size 2 : M14x1.5
Fitting Position : Front Axle
Length [mm] : 183
Width [mm] : 36
Height [mm] : 36
Axle Joint Length [mm] : 165
  • Vendor DELPHI
  • SKU TA3022
  • Barcode 5012759524091
  • MAZDA : GS1D-32-240
  • APEC : AST6481
  • BLUE PRINT : ADM58773
  • BORG & BECK : BTR5692
  • FEBI BILSTEIN : 33498
  • FIRST LINE : FTR5692
  • KYB : KRE1143
  • LEMFÖRDER : 38438 01
  • MEYLE : 35-16 031 0035
  • MONROE : L50227
  • NAPA : NST6481
  • TRW : JAR1310
